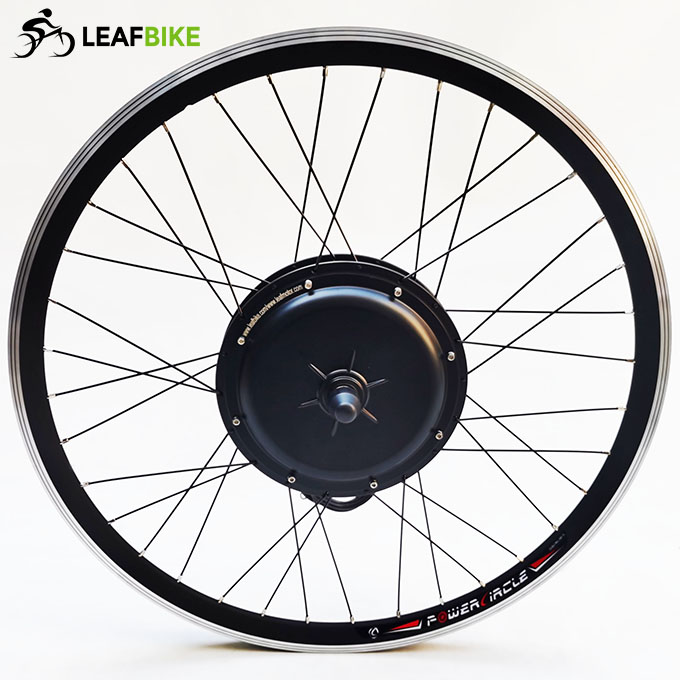

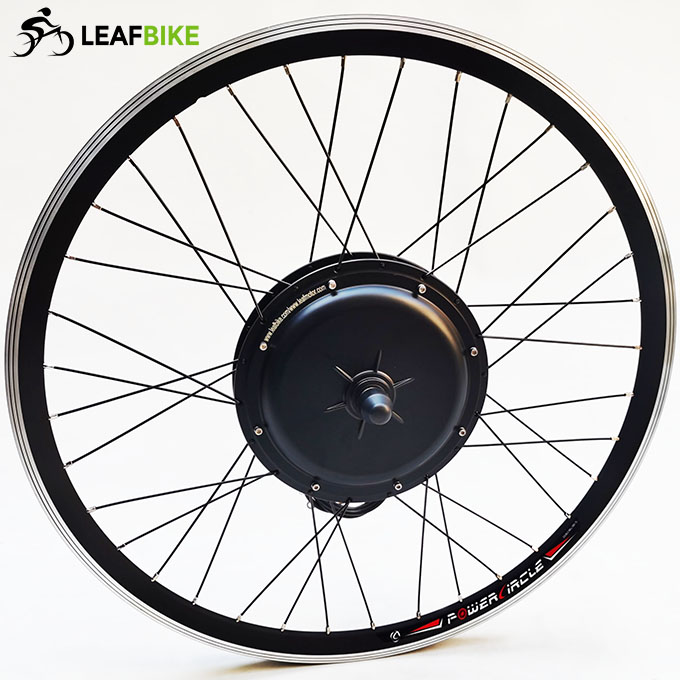

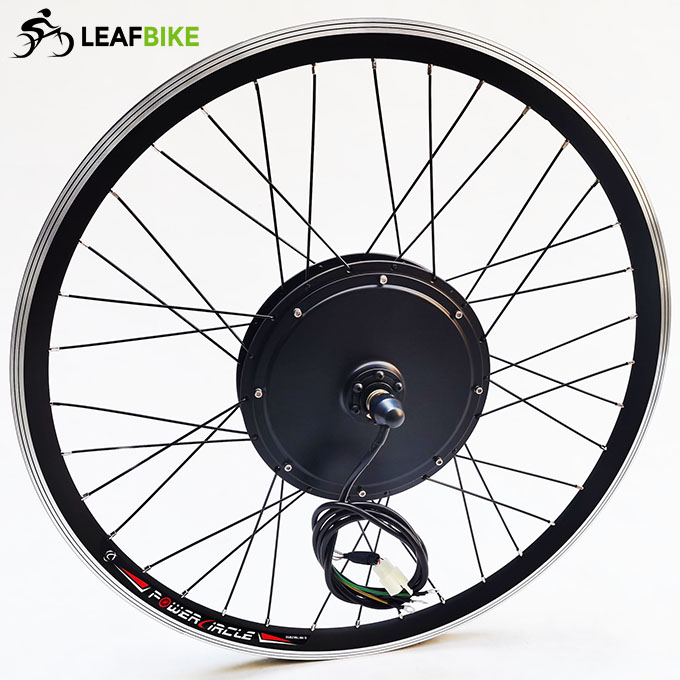

This 700c bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

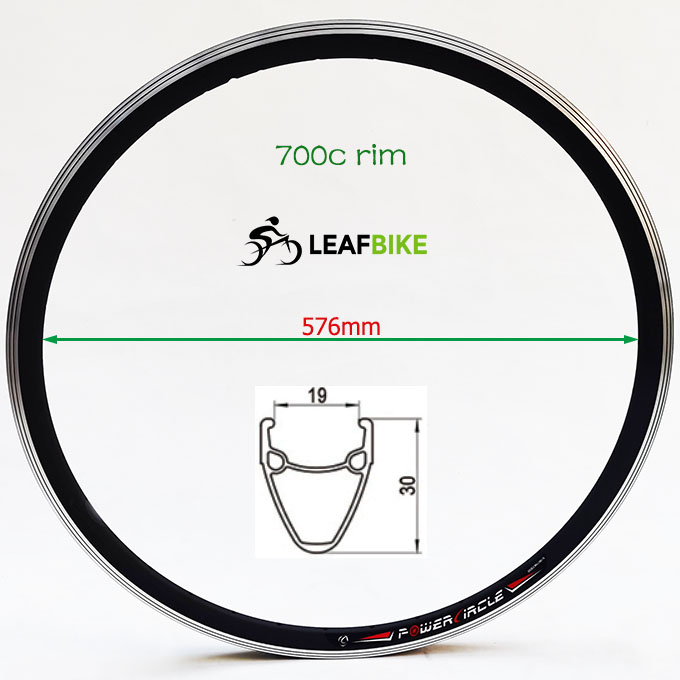

>. Rim: 700c double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 73.3 kmh -- 45.5 mph
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminum
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
With LCD, More Function:
* Cruise
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* ...

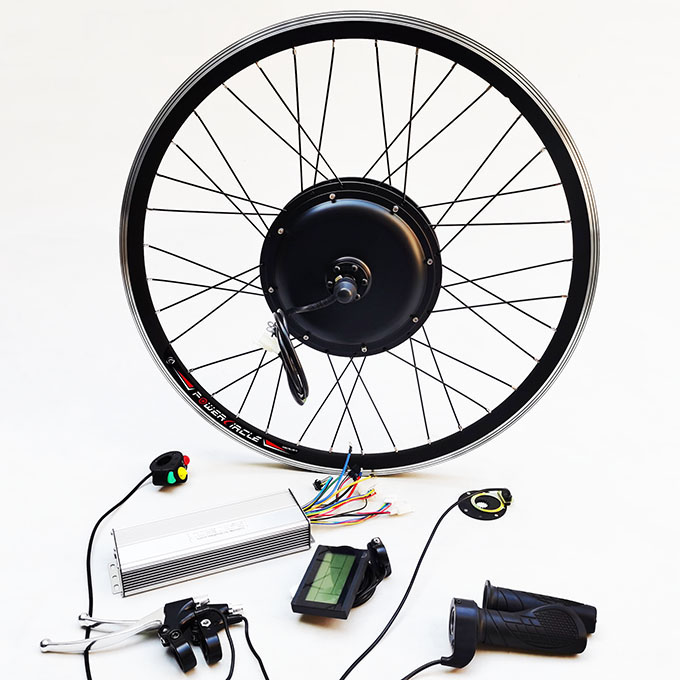

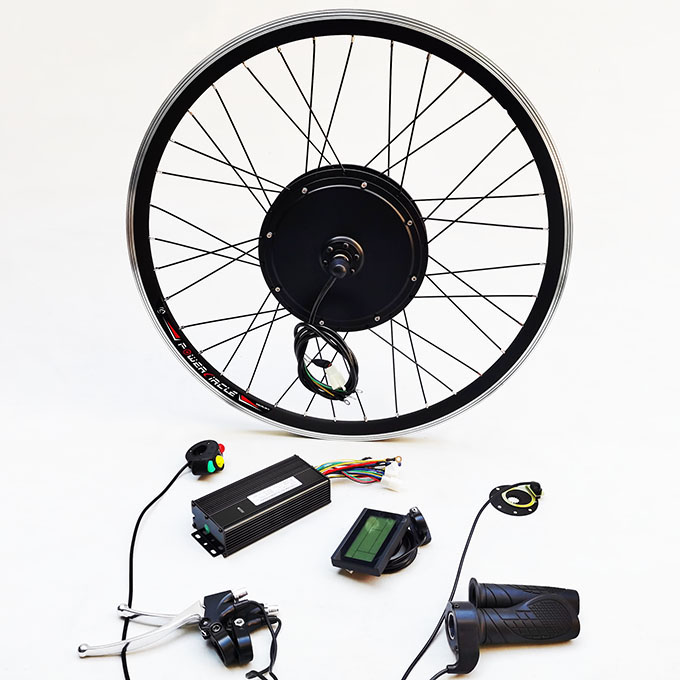

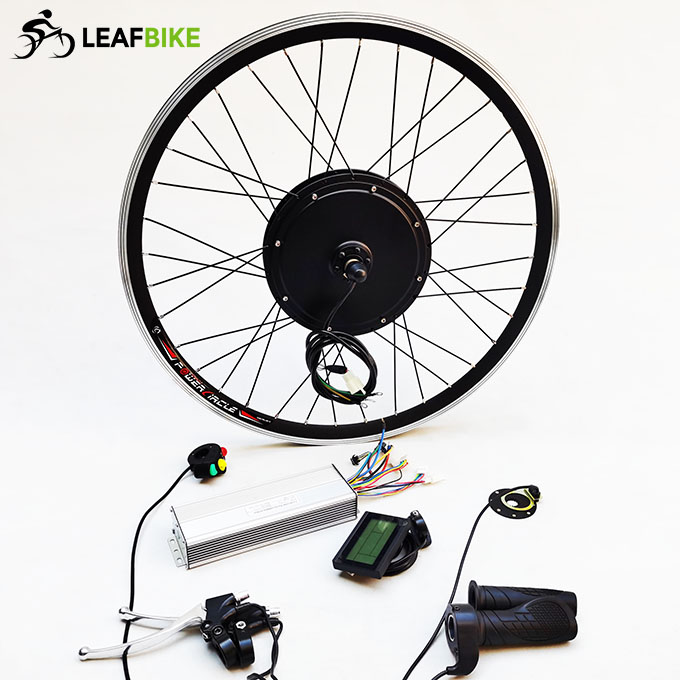

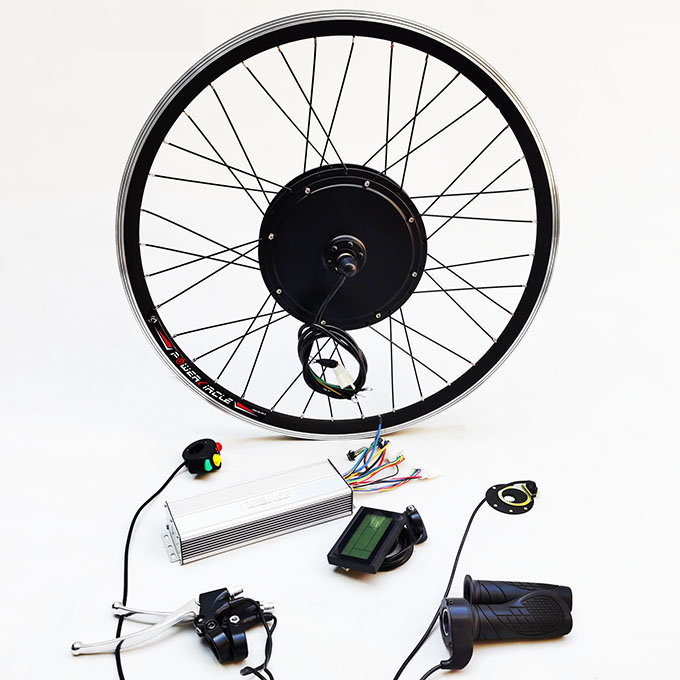

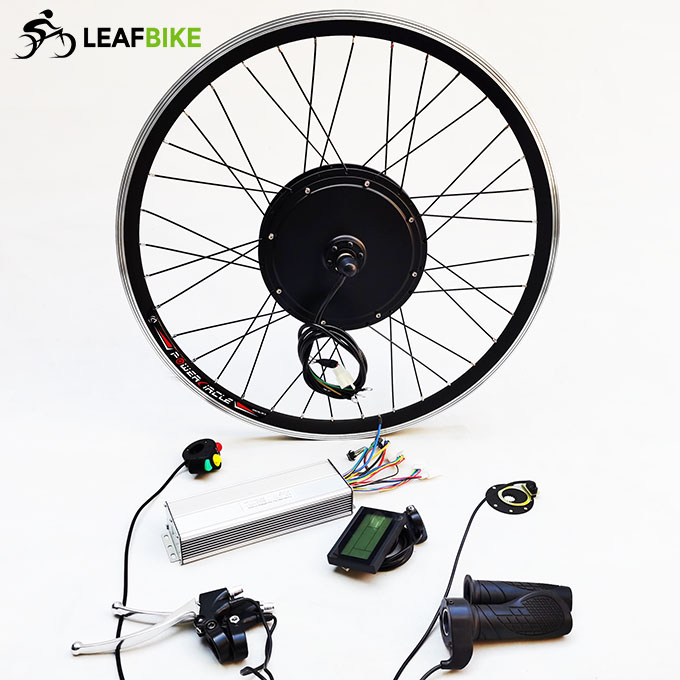

Package Content:

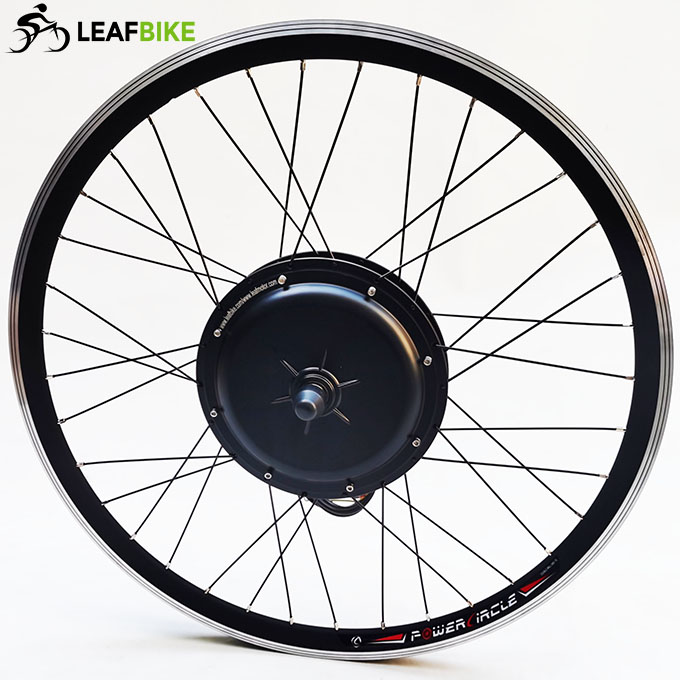

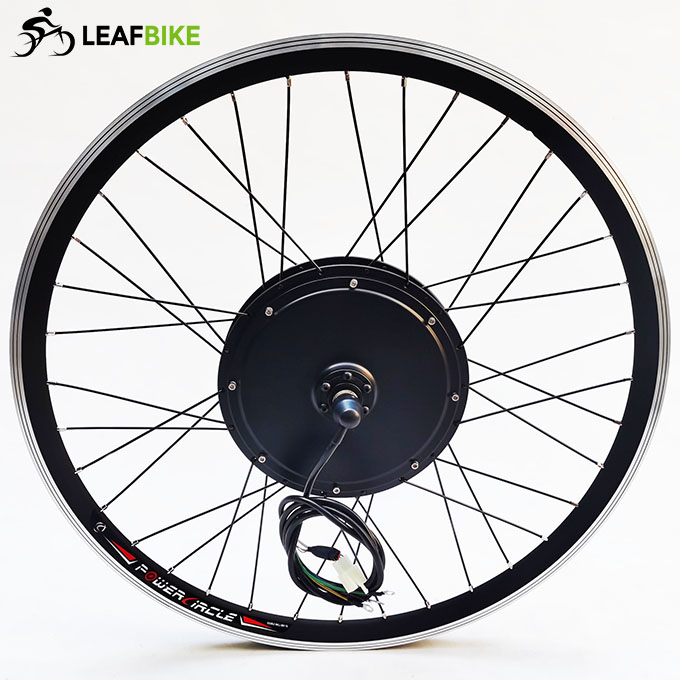

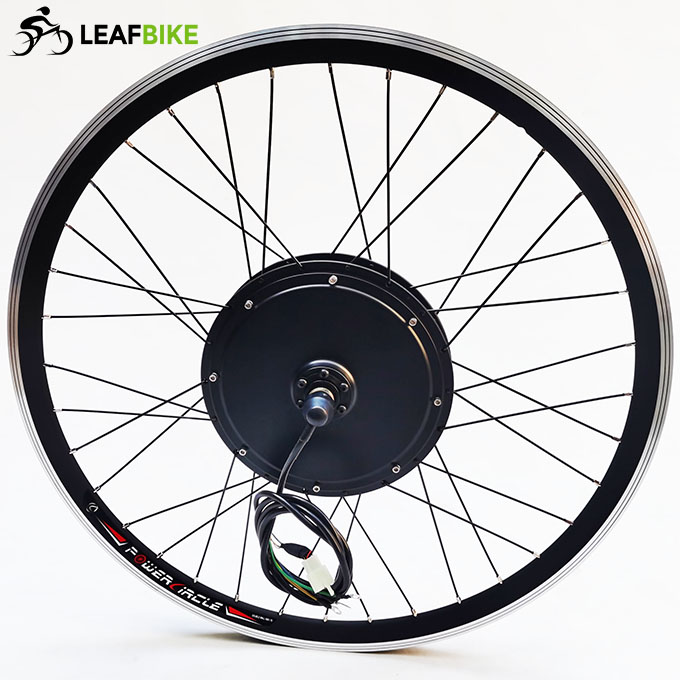

1 x 700c 60V 2000W front hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

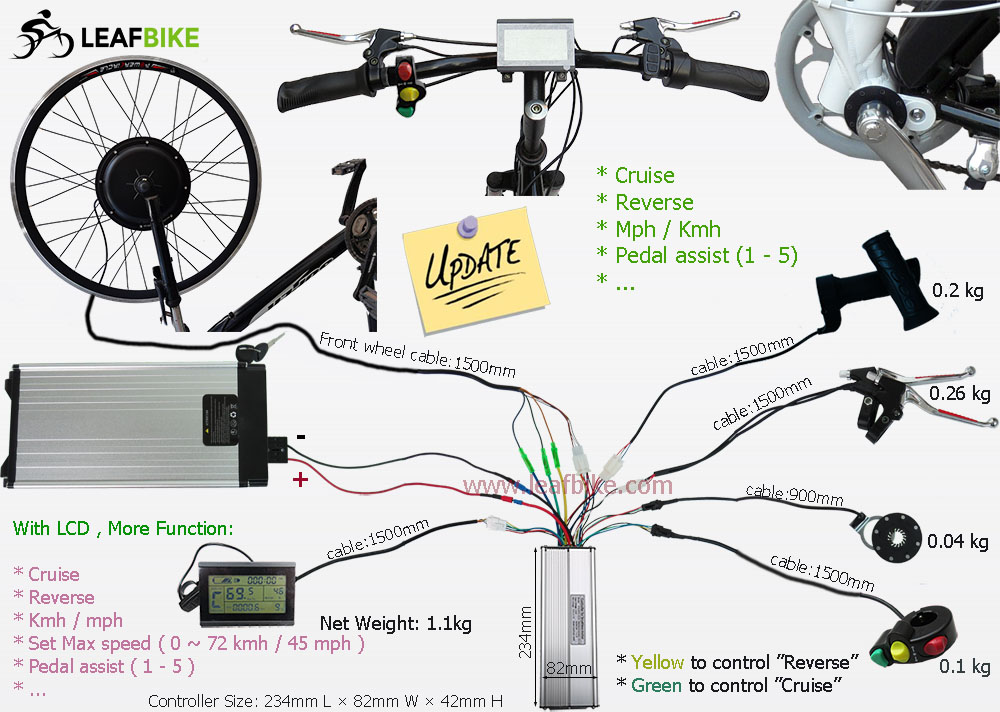

Wire Diagram:

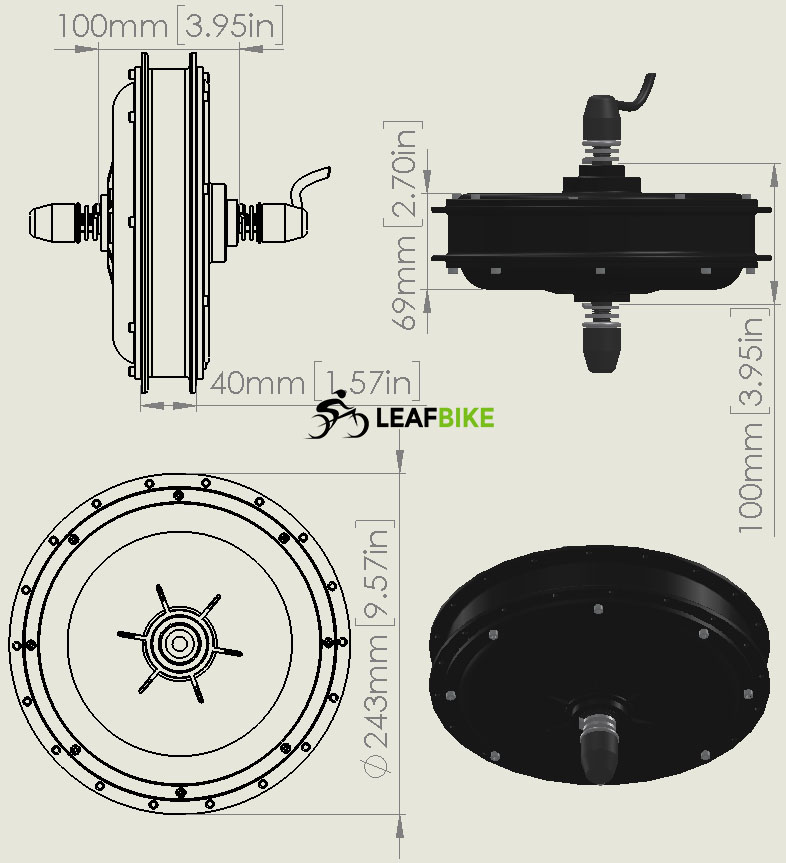

Front Motor Drw.
