700c 48V 1500W front hub motor kit

Name: 700c 48V 1500W front hub motor kit
Brand: Leaf Bike
SKU: LBCK700C481500FNK
Price: 377 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK700C481500FNK

$377.00 ~~$428.00~~

Maybe You Need These

Description

Please watch videos for 700c 48V 1500W front hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..

Share Video:

700c 48V 1500W front hub motor kit video

Share Video:

700c 1500W front hub motor - electric bike conversion kit video

* This 700c bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

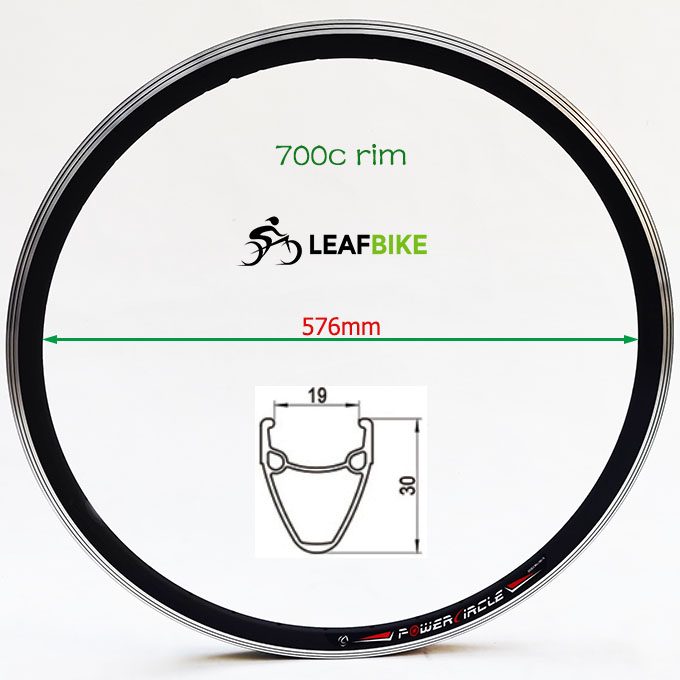

>. Rim: 700c double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 73.3 kmh -- 45.5 mph
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171mm L × 82 mm W × 42 mm H

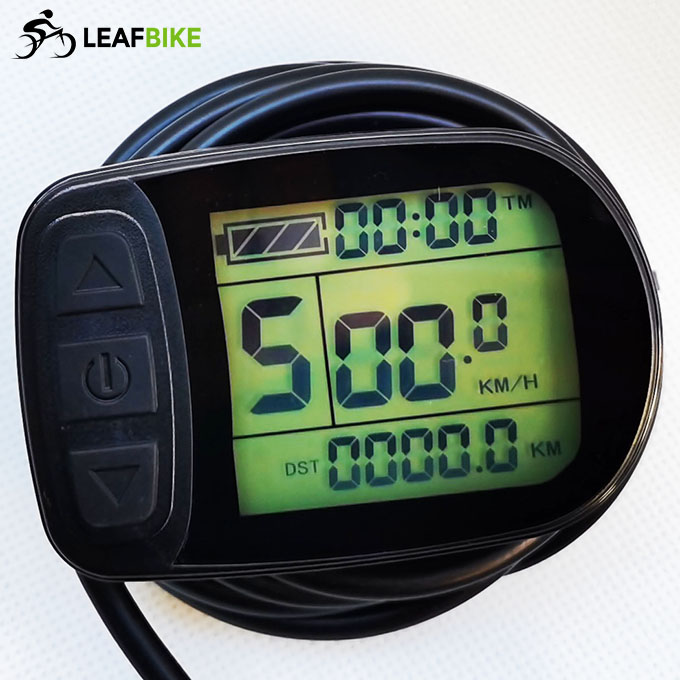

With LCD, More Function:
* Cruise
* Kmh / mph
* Set Max speed ( 0 ~ 72kmh )
* Pedal assist ( 0 - 5 )
* ...

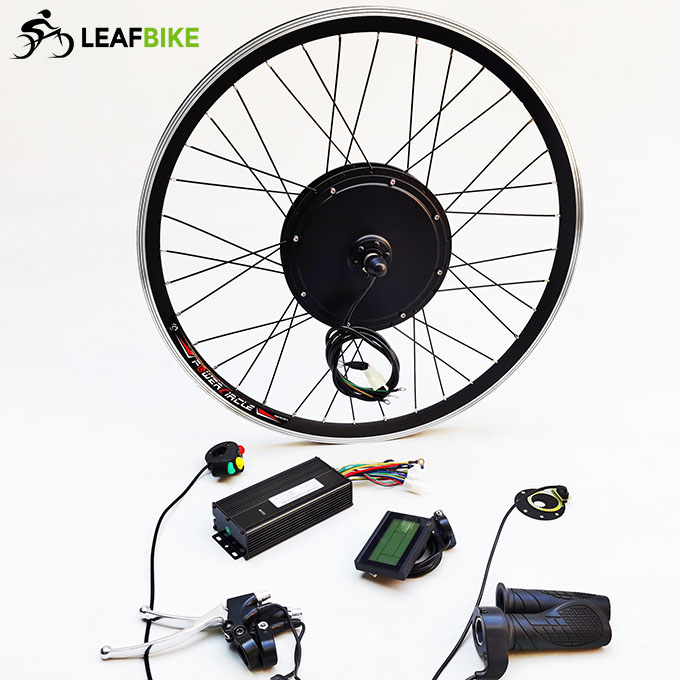

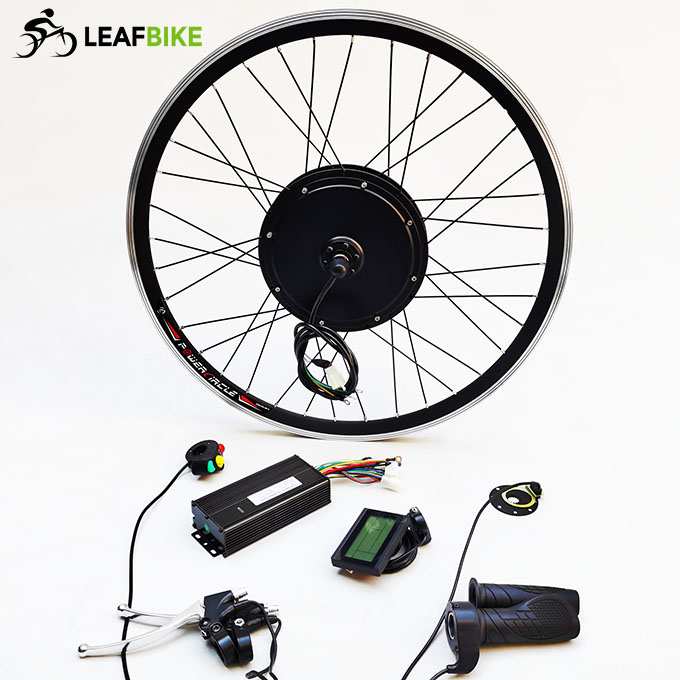

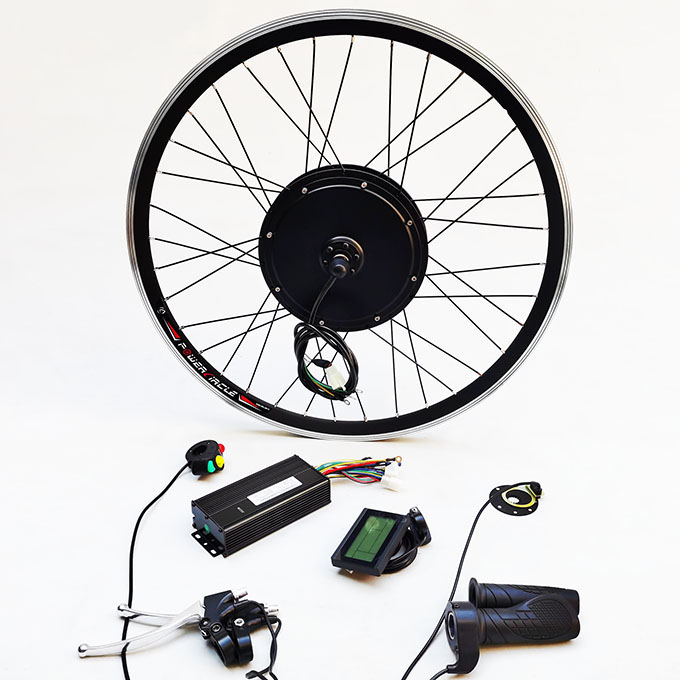

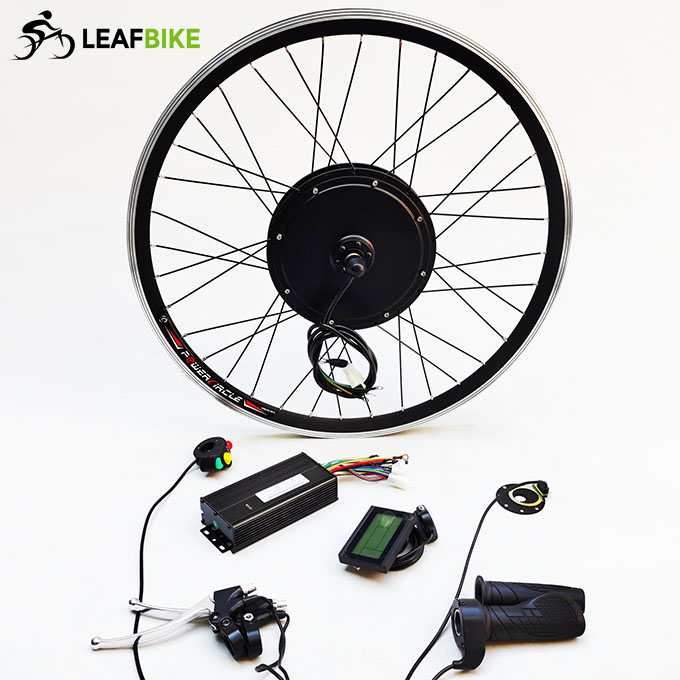

Package Content:

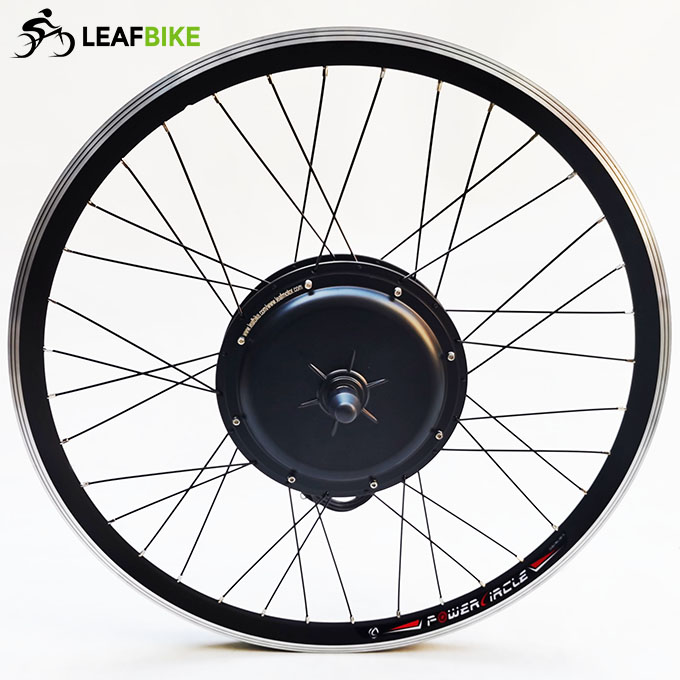

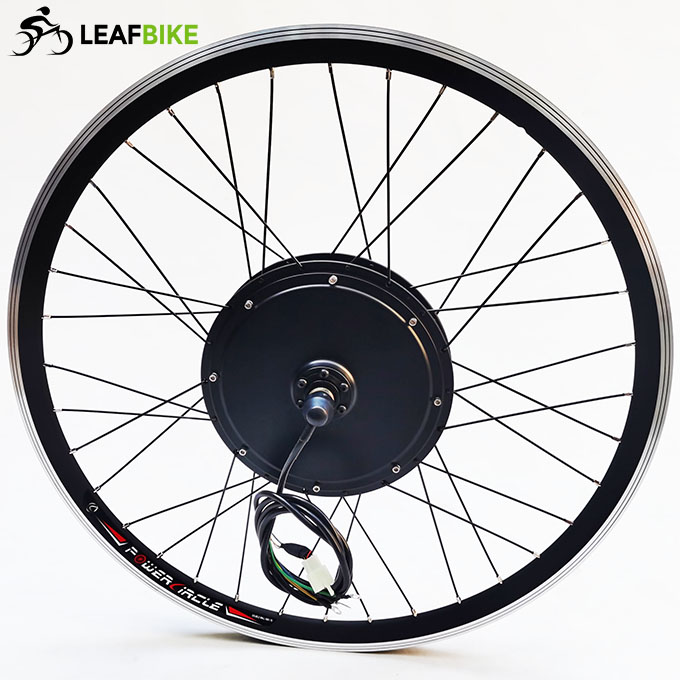

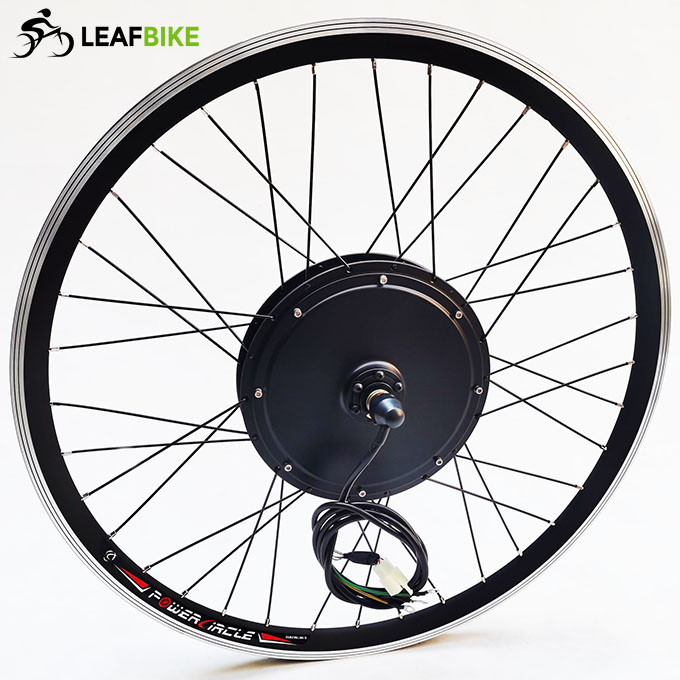

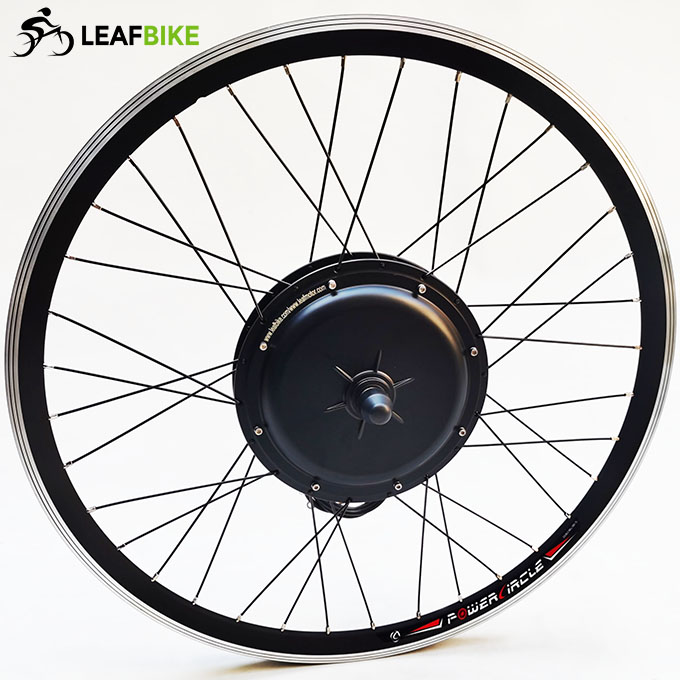

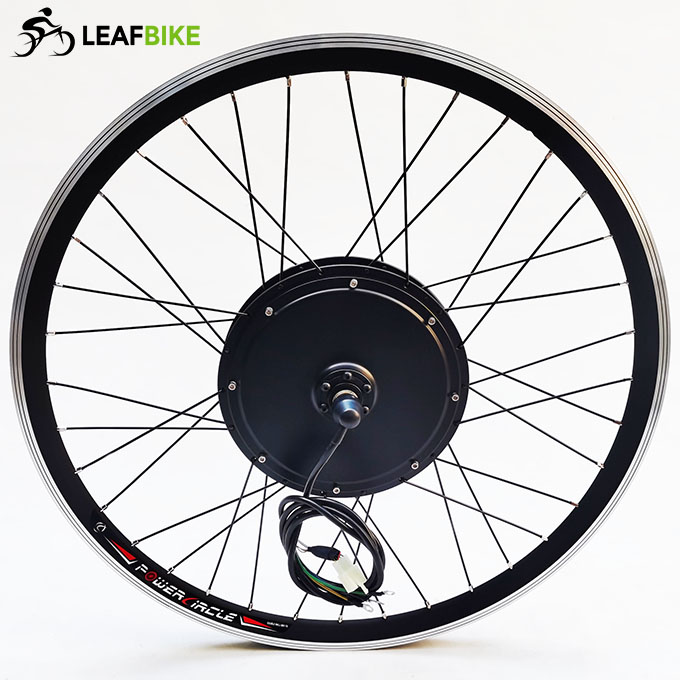

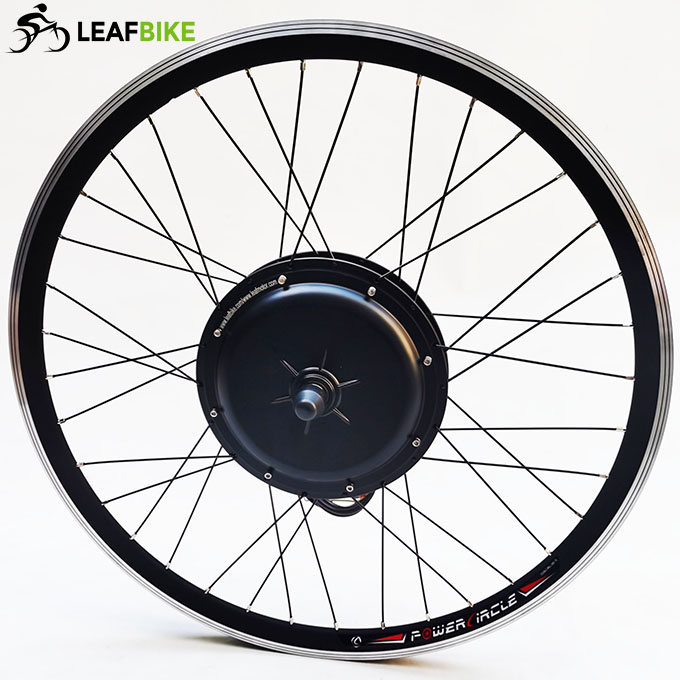

1 x 700c 48V 1500W front hub motor wheel
1 x 48V 1500W motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

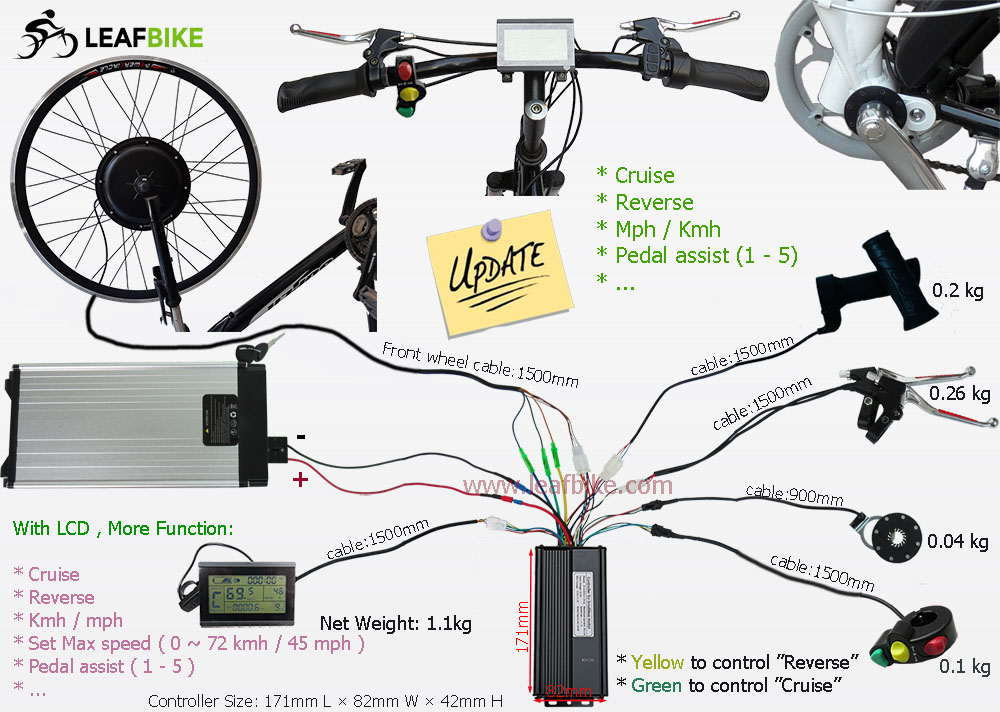

Wire Diagram:

1500w Front Drw.

Performance Data:
