700c 48V 1000W front hub motor kit

Name: 700c 48V 1000W front hub motor kit
Brand: Leaf Bike
SKU: LBCK700C481000FNK
Price: 315 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK700C481000FNK

$315.00 ~~$378.00~~

Maybe You Need These

Description

Please watch videos for 700c 48V 1000W front hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

700c 48V 1000W front hub motor kit video

Share Video:

700c 48v 1500w front electric hub motor - bike conversion kit video

Share Video:

* The 700c hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

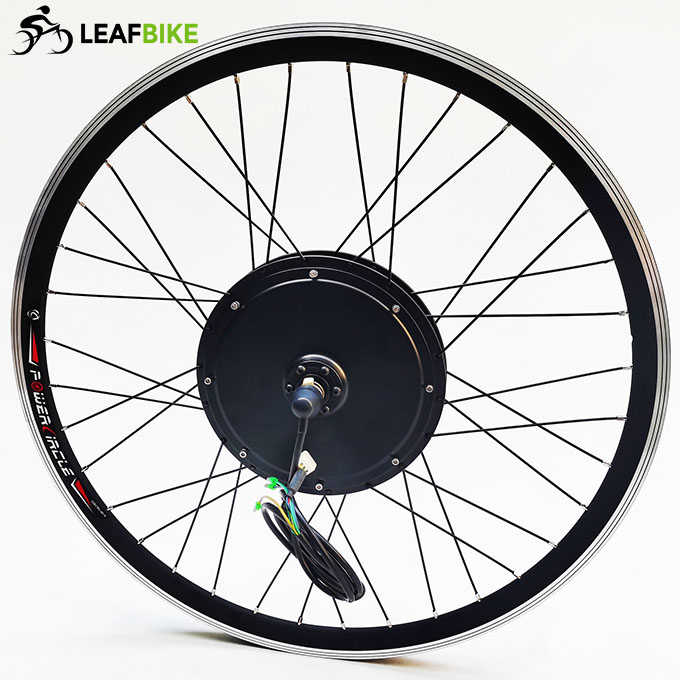

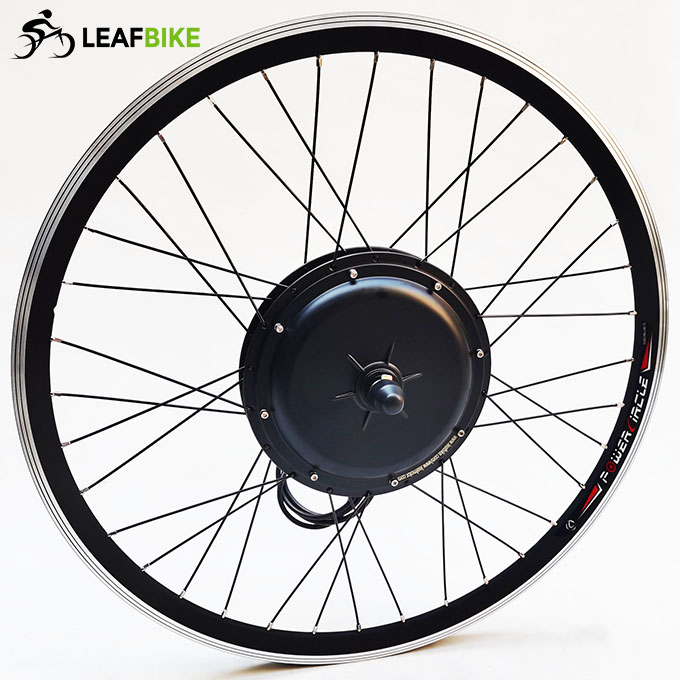

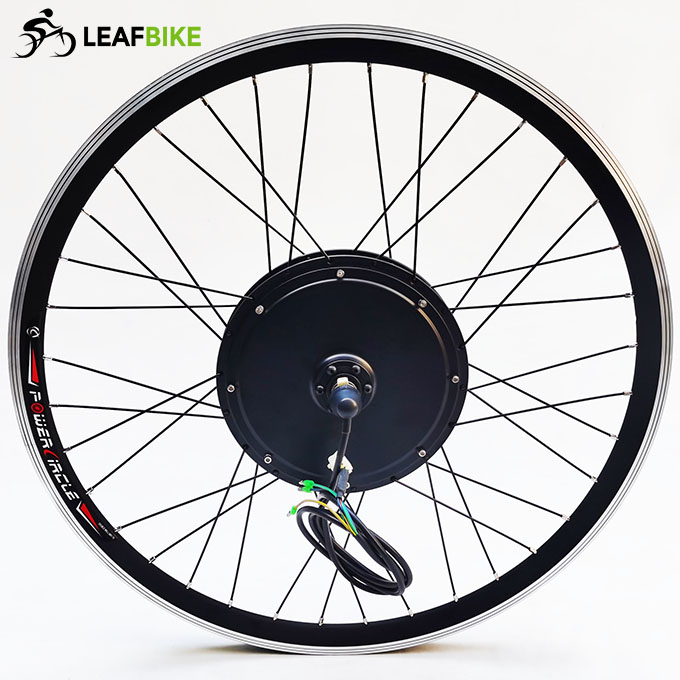

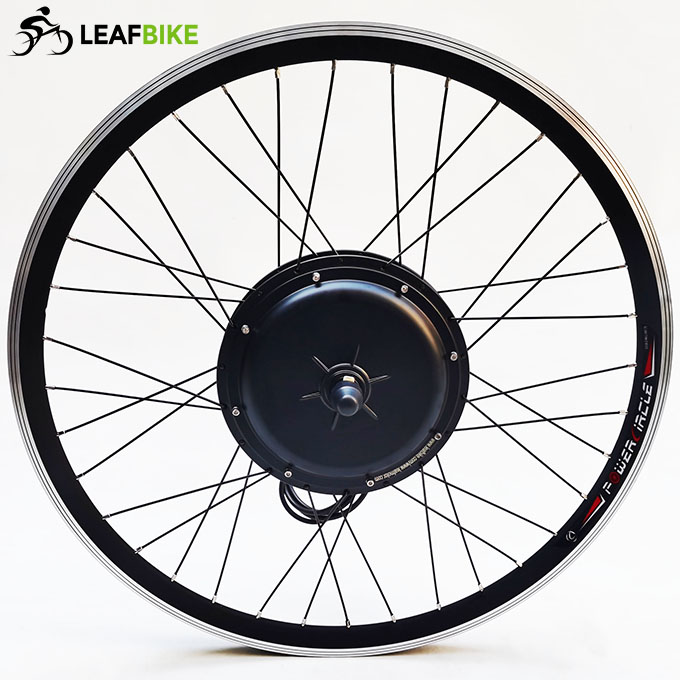

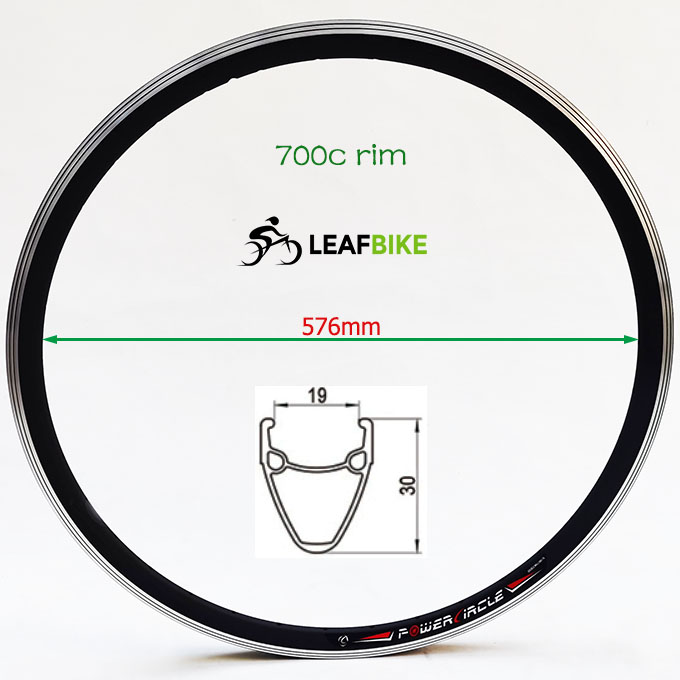

>. Rim: 700c / 622 double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.

>. Spoke: 12 gauge / 184mm Length × 36 pcs
Default: Black spokes
Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 73.3 kmh -- 45.5mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminum
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise - Yes
* Forward & Backwards (Optional: On / Off)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

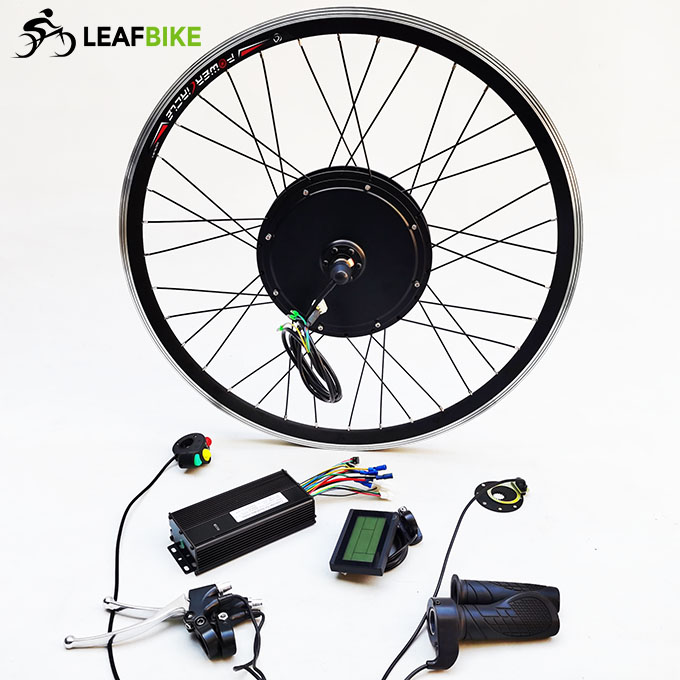

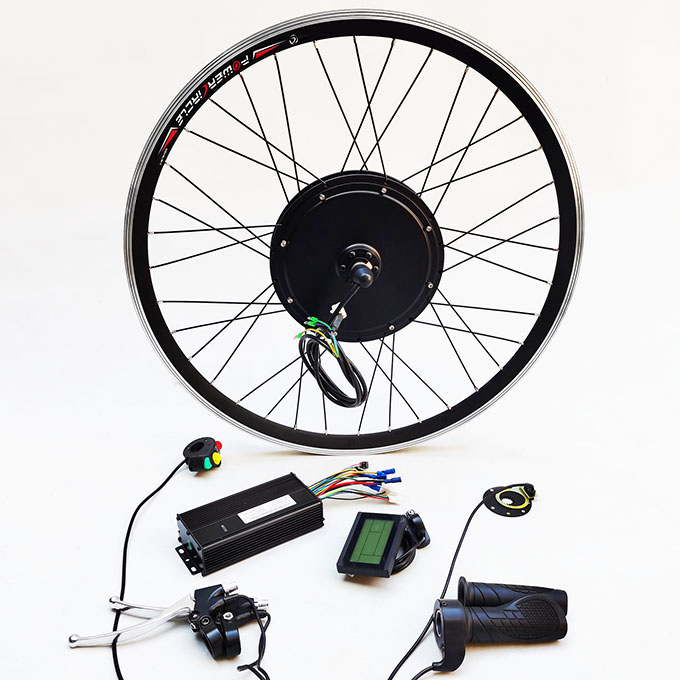

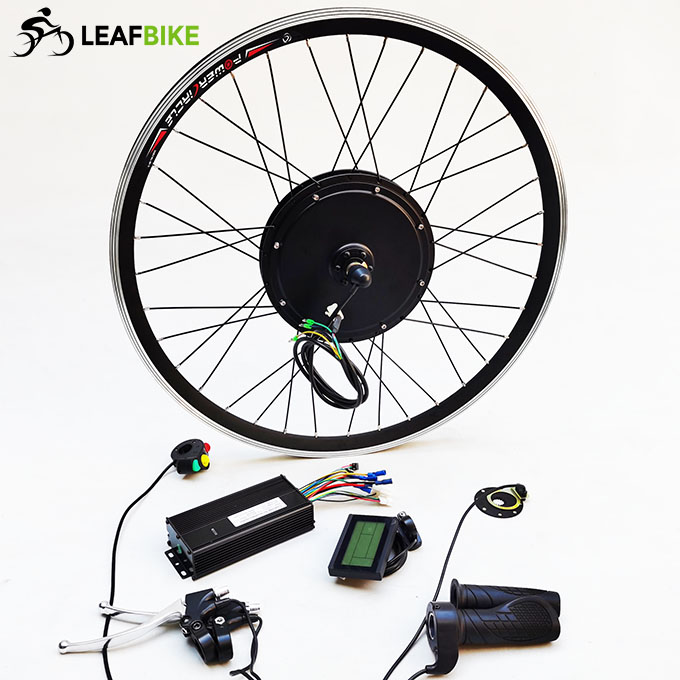

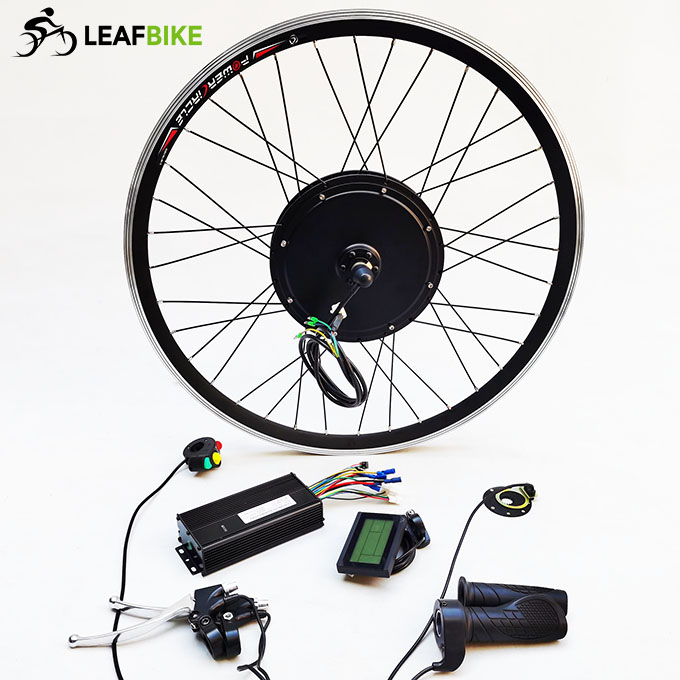

Package Content:

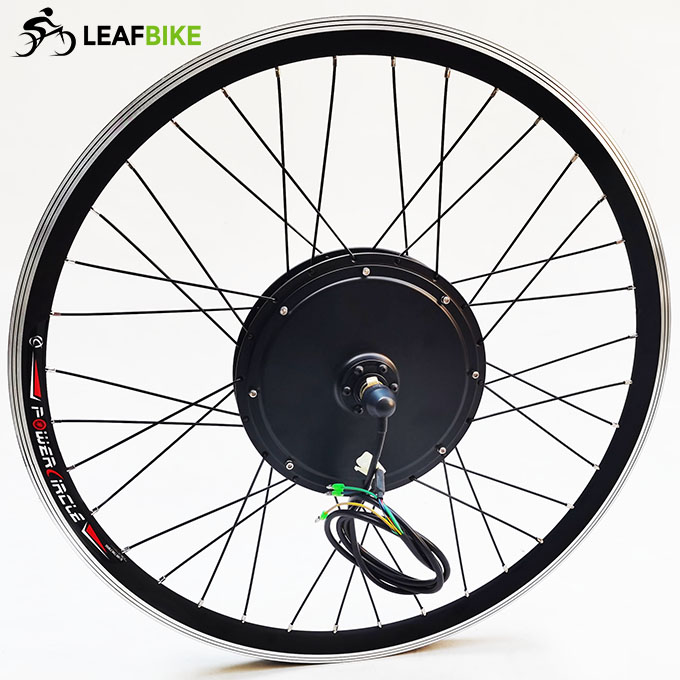

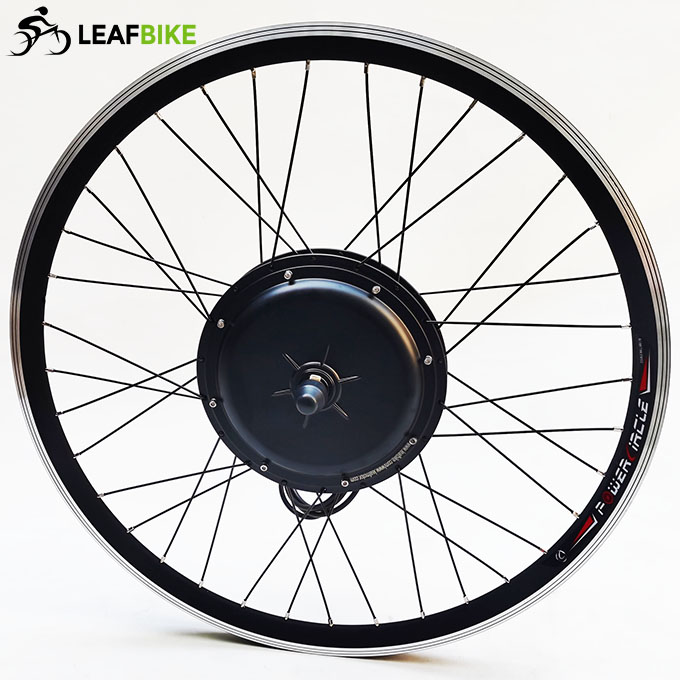

1 x 700c 48V 1000W front hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

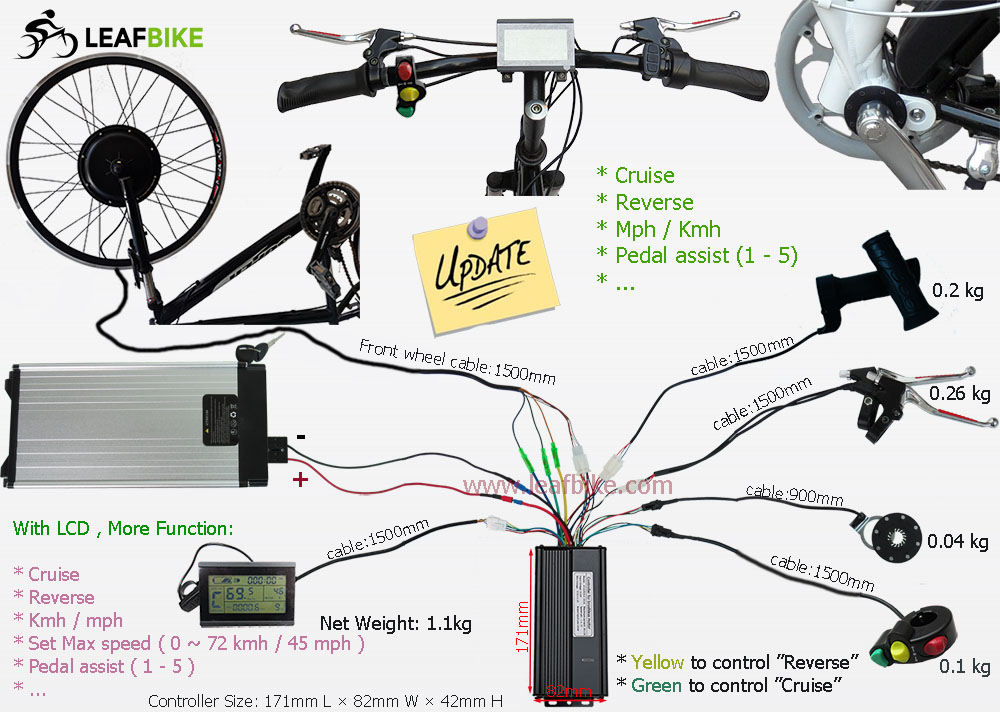

Wire Diagram:

1000w Hub Motor Drw.

Performance Data:

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
