Please watch video for 700c 48V 1500W rear electric bike kit hub motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..
Share Video:
* This 700c bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

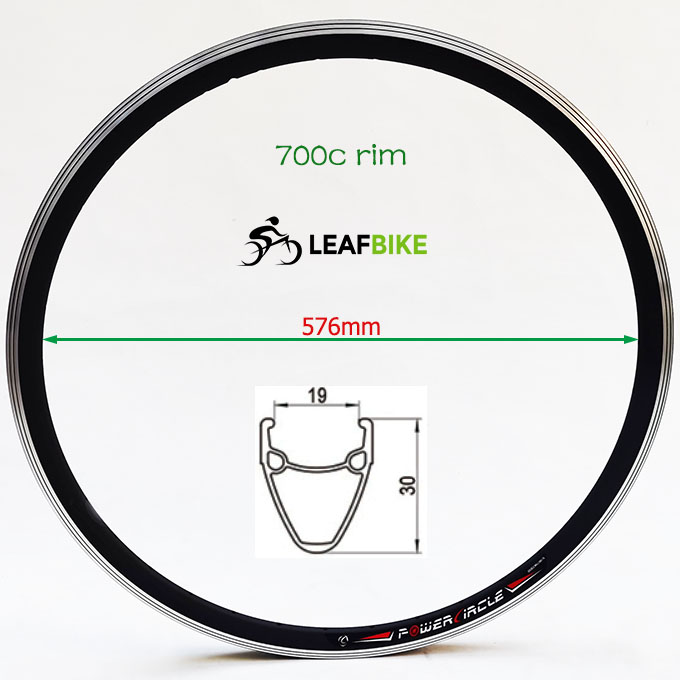

>. Rim: 700c double wall Alloy (Rim Fit For: 700c x 18C / 20C / 23C / 25C / 28C / 32C / 35C / 38C / 40C tyre)
>. Spoke: Black 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.
>. Engine : Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 73.3 kmh -- 45.5 mph Default (Optional other speed: 30mph,25mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette

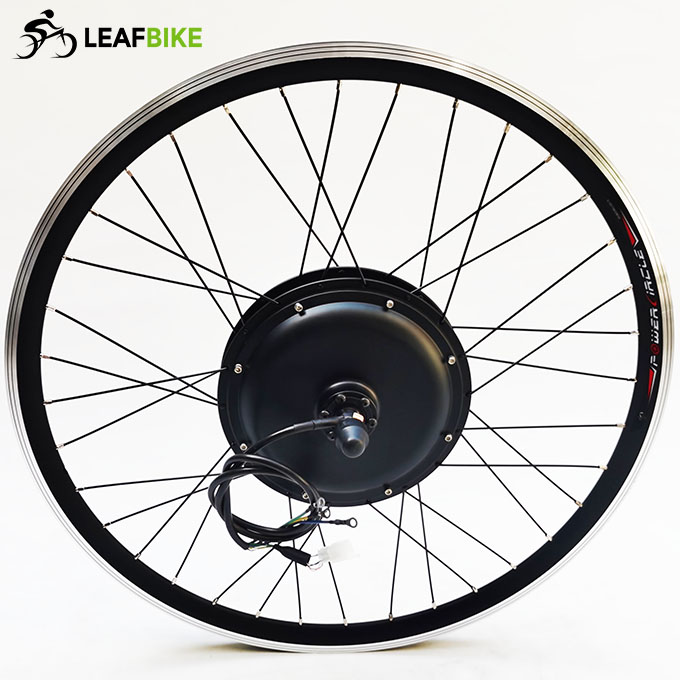

>>. Cable location: shaft end, LEFT

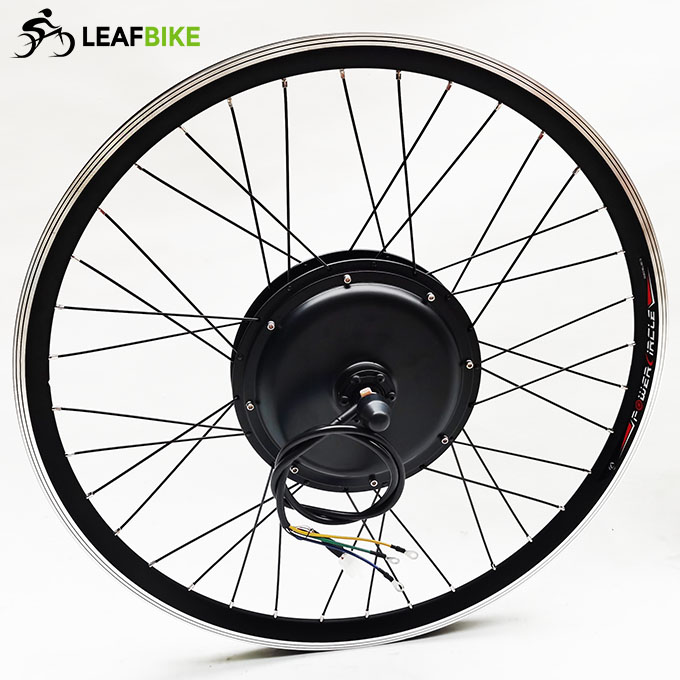

>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min 135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

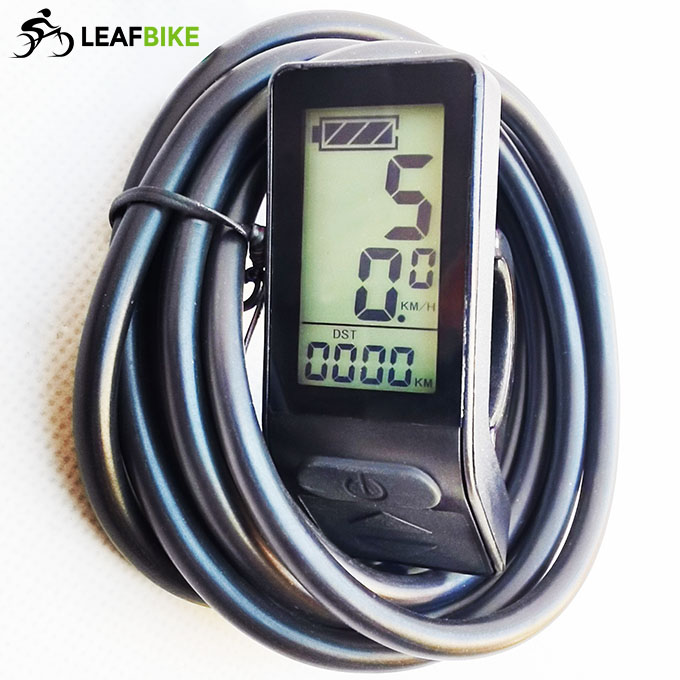

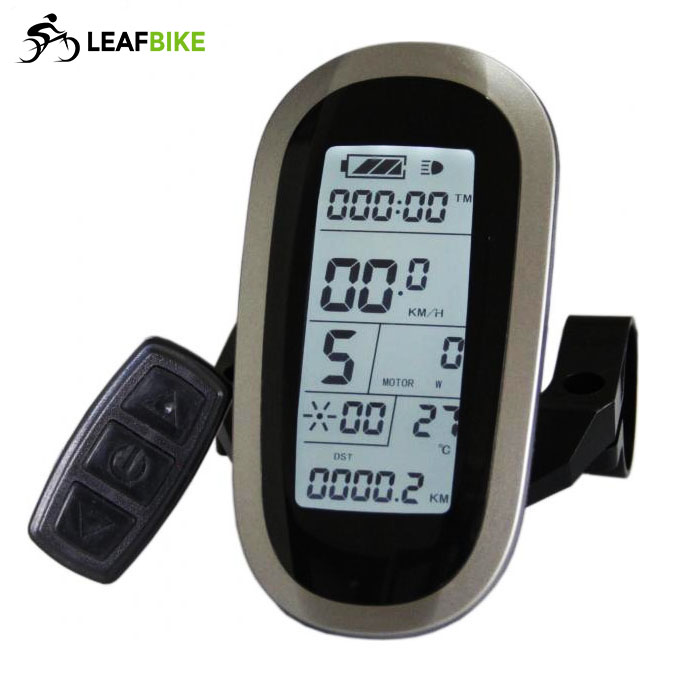

LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* ...

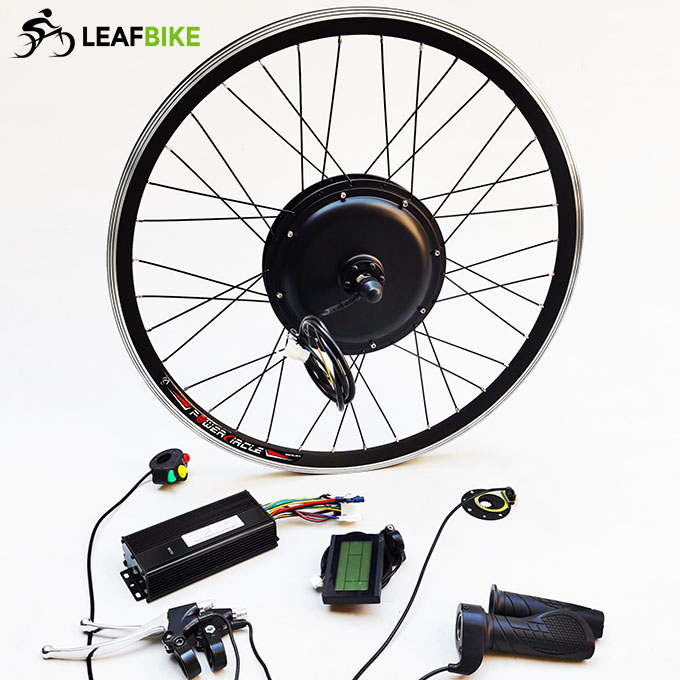

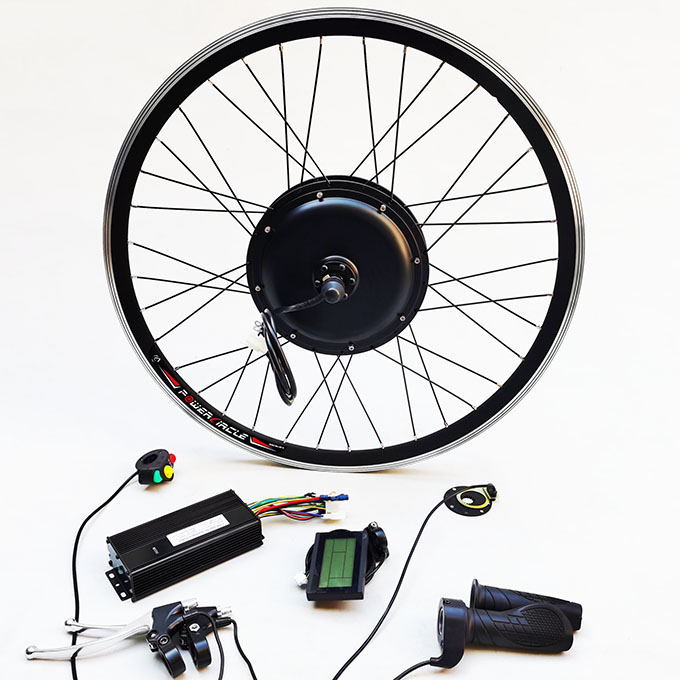

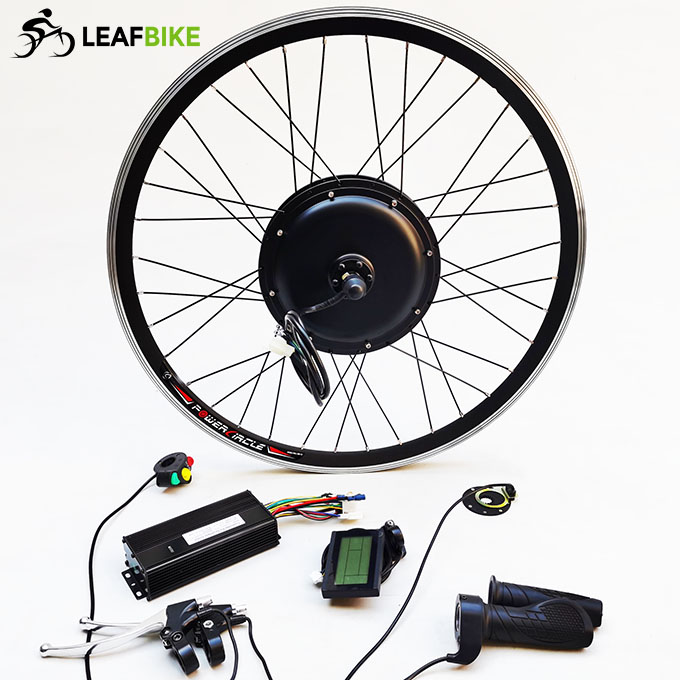

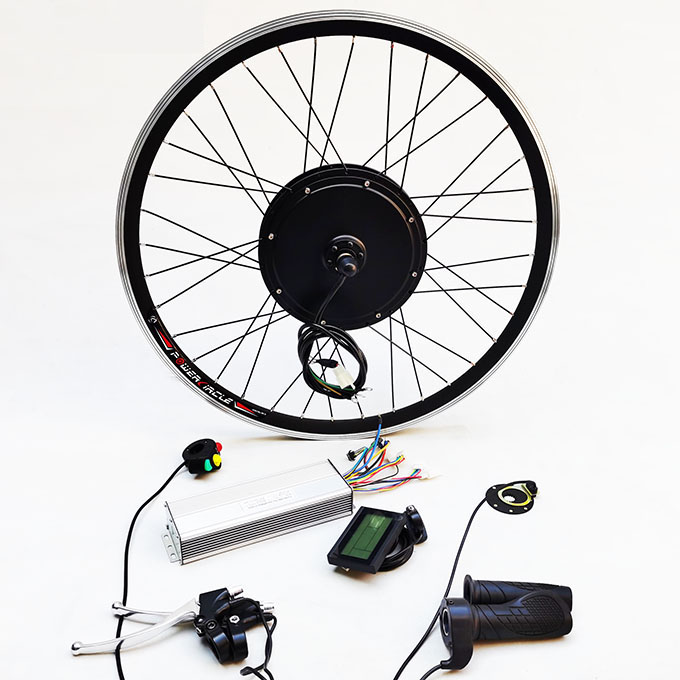

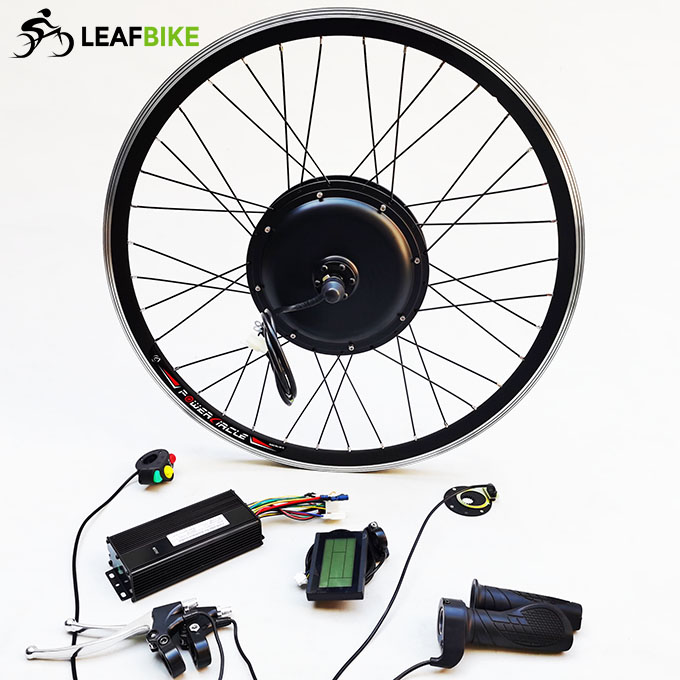

Package Content:

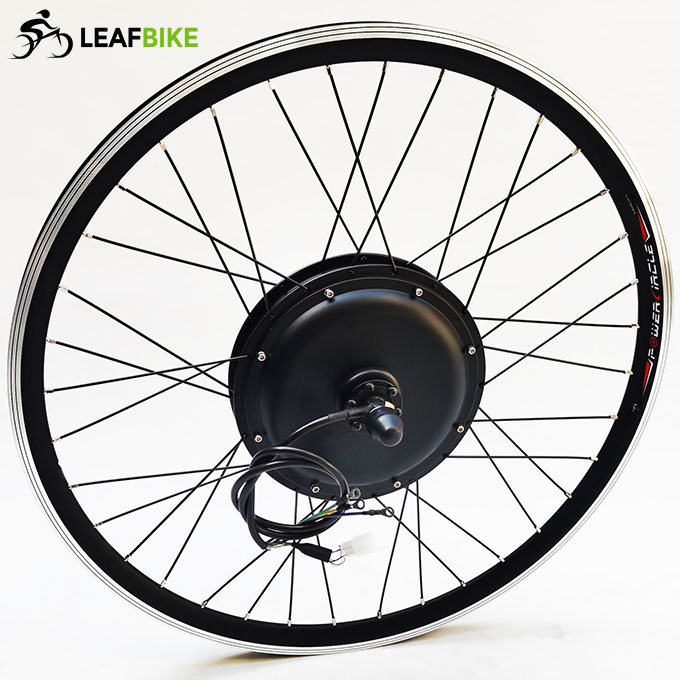

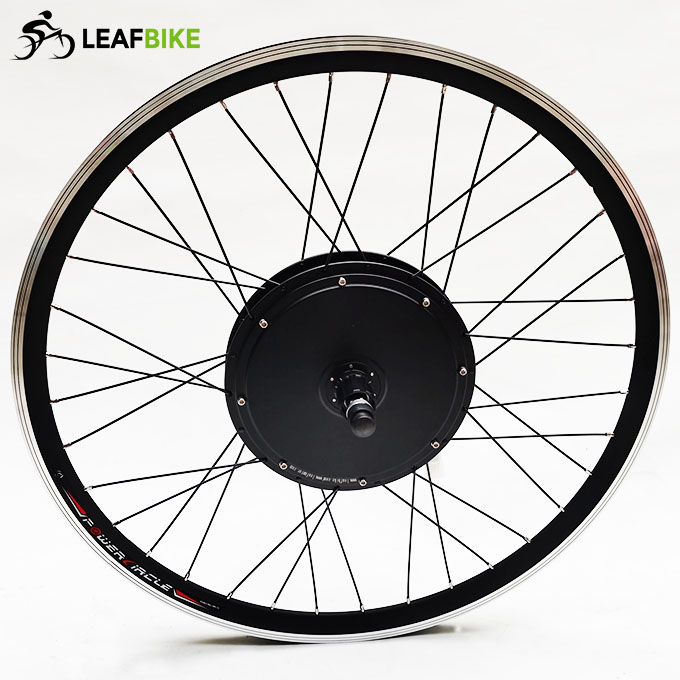

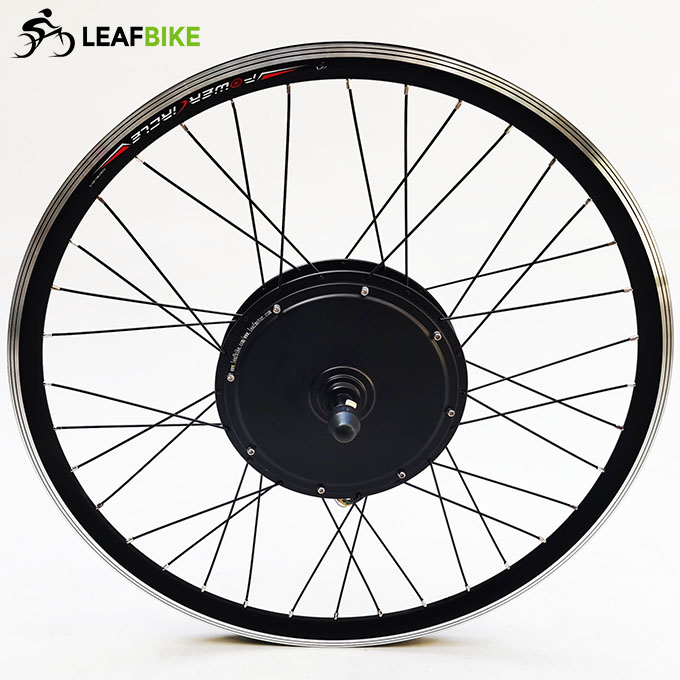

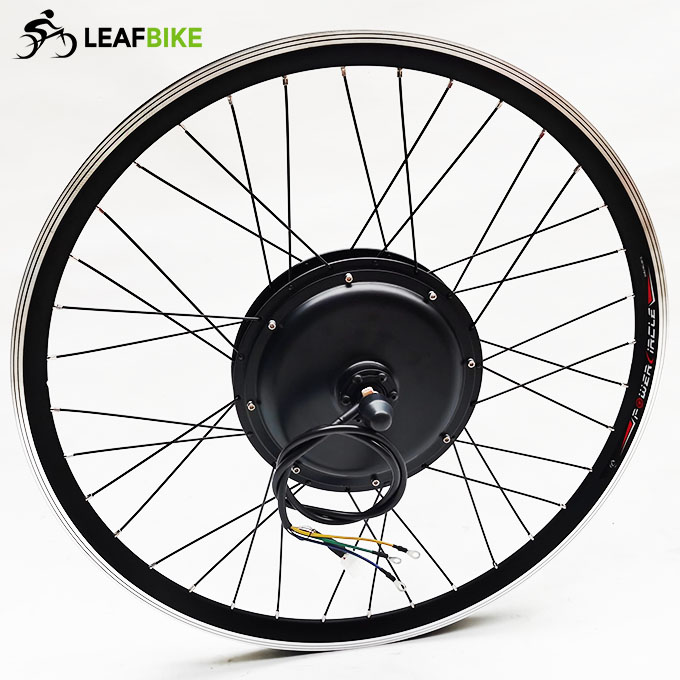

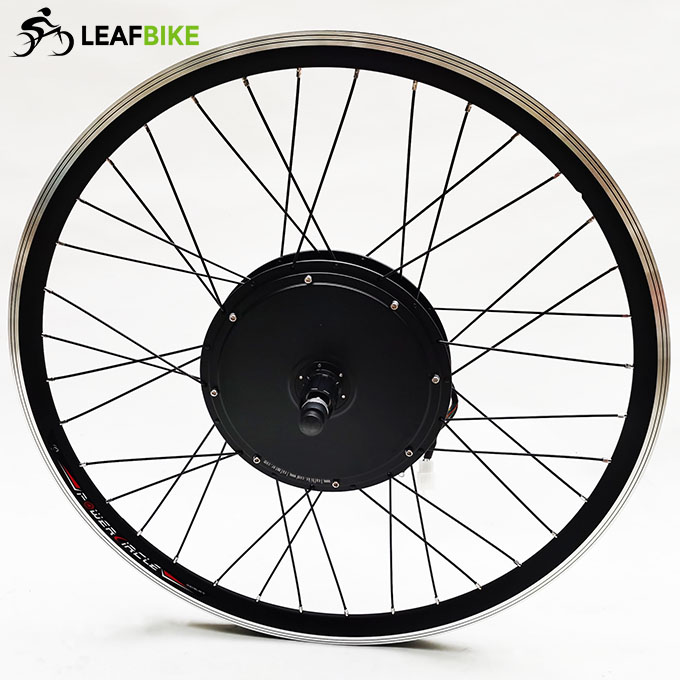

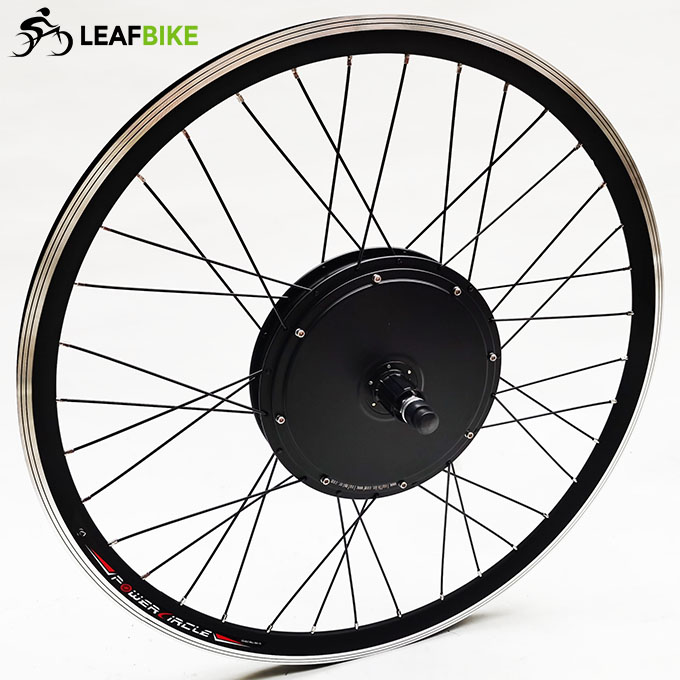

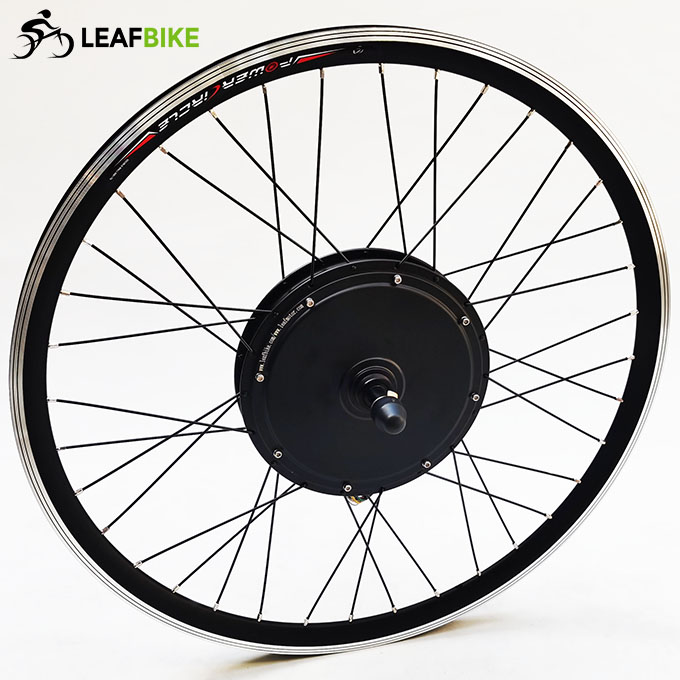

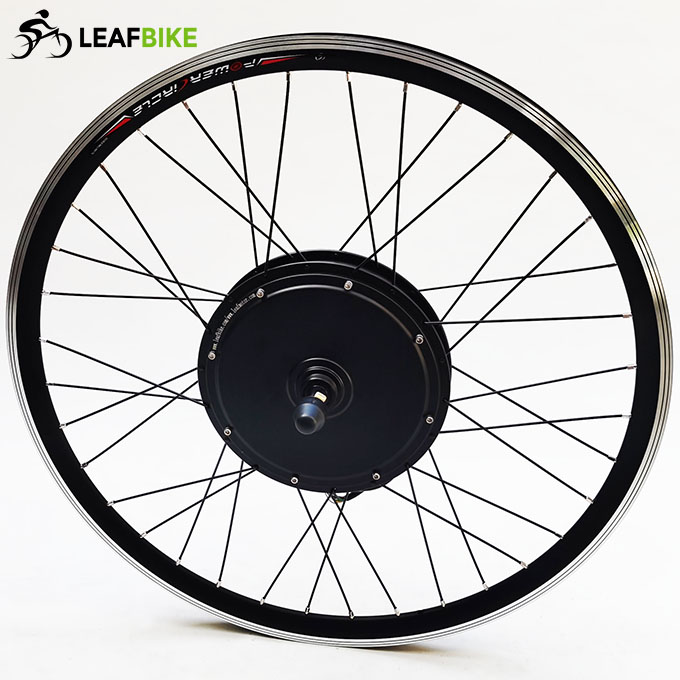

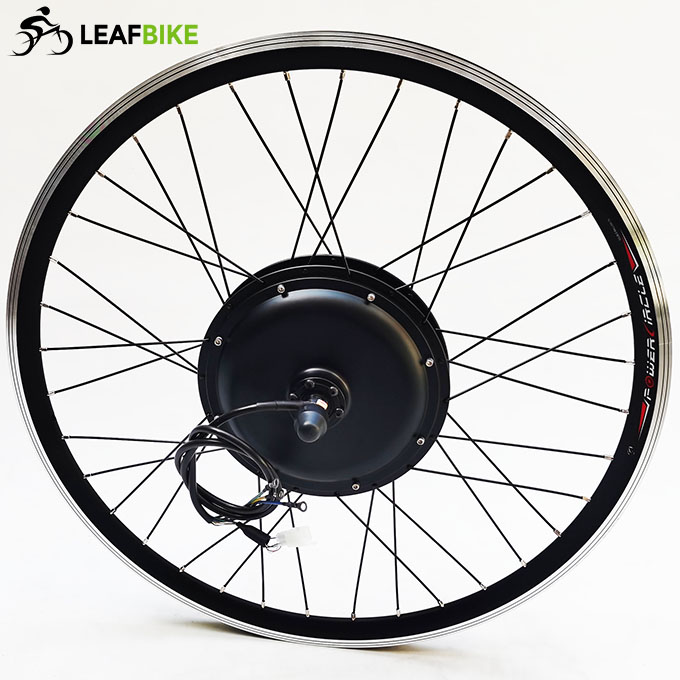

1 x 700c 48V 1500W rear bike motor wheel
1 x 48V 1500W motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

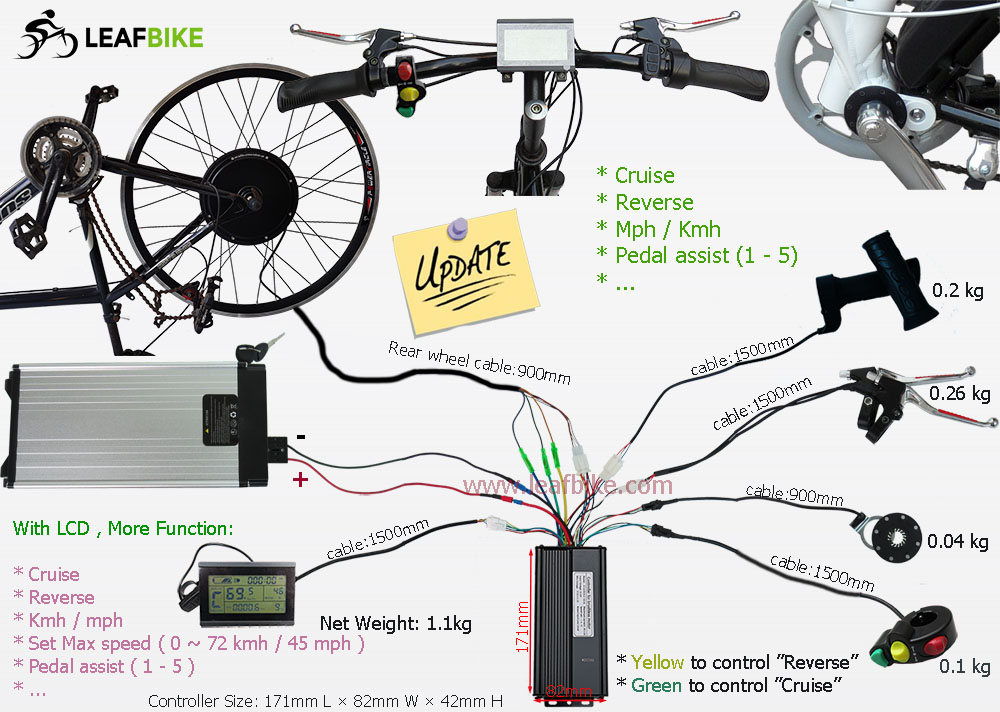

Wire Diagram:
1500w rear Motor Drw.
1500W Cassette Drw.
Performance Data:
Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
