48v 20 inch Single Shaft brushless hub motor 26 in 1500w 52v front wheel 18 inch 36v Arteries

700c 48V 52V 1000W rear wheel - electric hub motor kit

Name: 700c 48V 52V 1000W rear wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK700C481000RN
Price: 337 USD
Availability: InStock
Rating: 5 (3 reviews)

Item ID #LBCK700C481000RN

$337.00 ~~$386.00~~

Maybe You Need These

Description

Please watch videos for 700c 48V 52V 1000W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..

Share Video:

700c 48V 52V 1000W rear hub motor electric bike kit video

Share Video:

700c 1000w rear hub motor bike conversion kit video

* This 700c electric bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

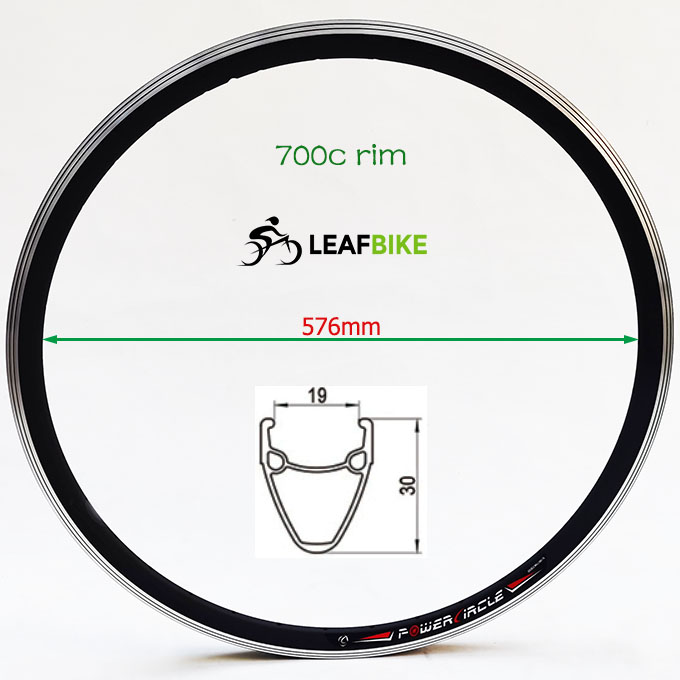

>. Rim: 700c / 622 double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.

>. Spoke: 12 gauge / 184mm Length × 36 pcs
Default: Black spokes
Optional: Silver spokes -- Please leave message.

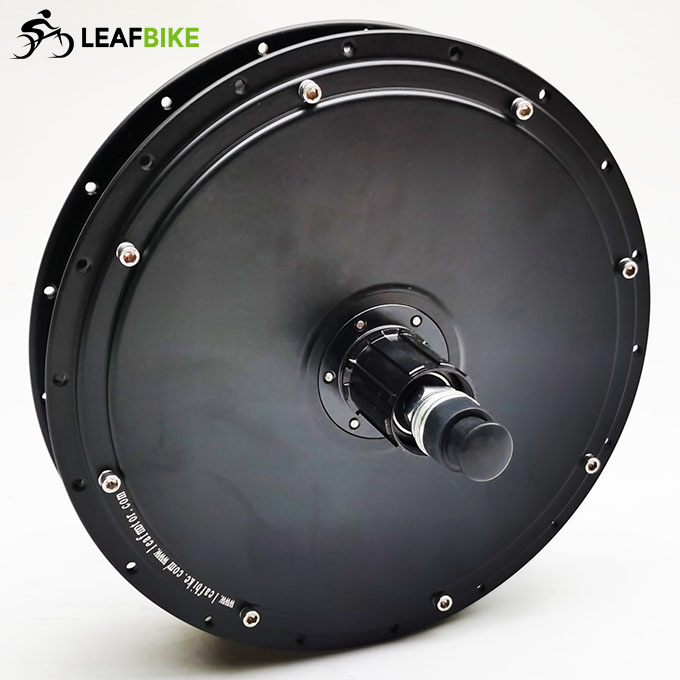

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 84.5 kmh -- 52.5 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, Left
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

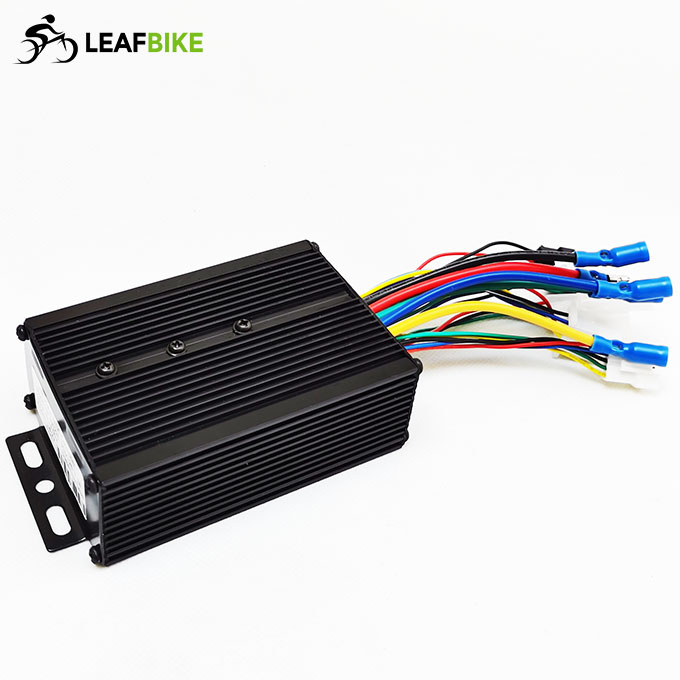

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminum
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise - Yes
* Forward & Backwards (Optional: On / Off)
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

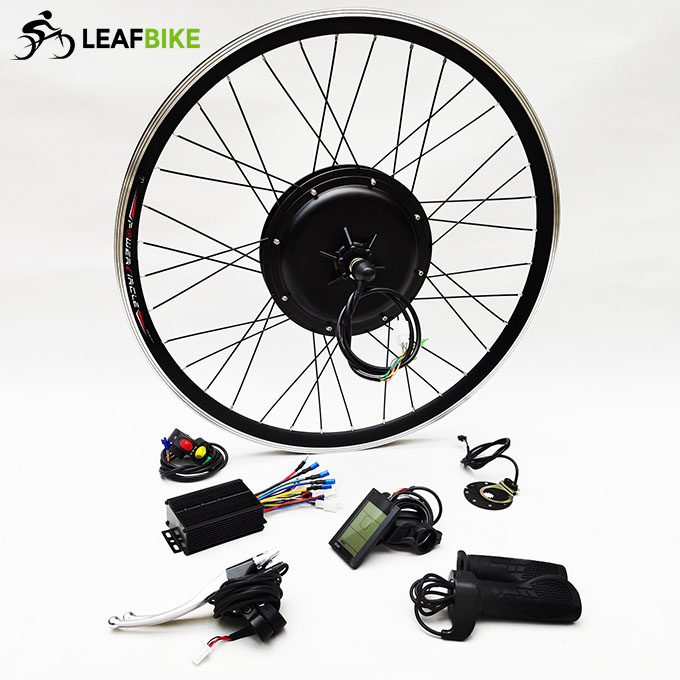

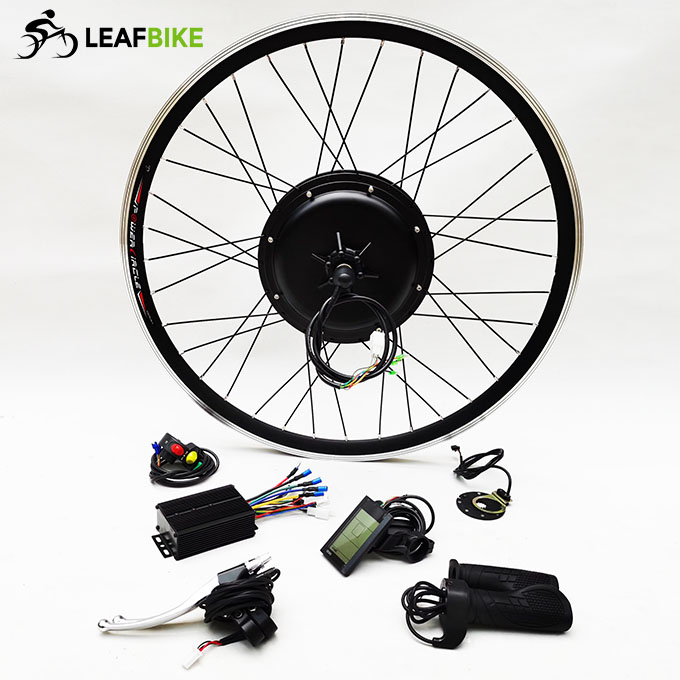

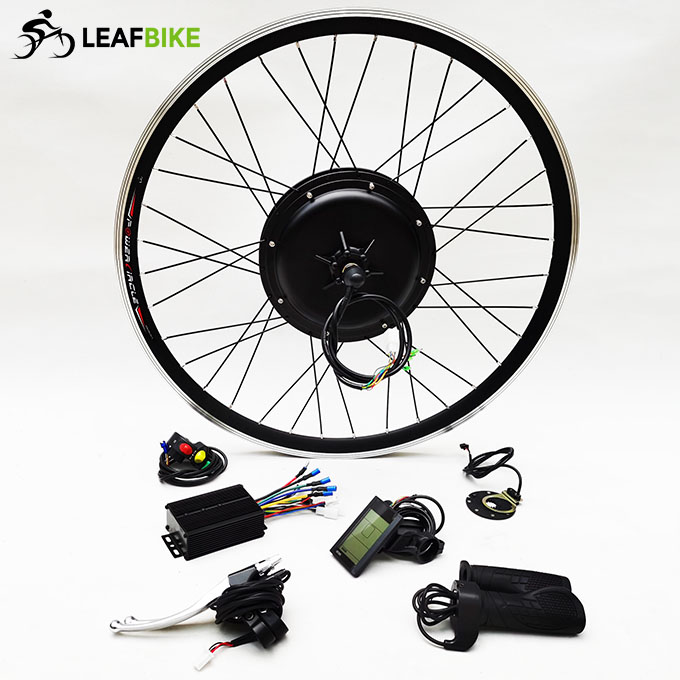

Package Content:

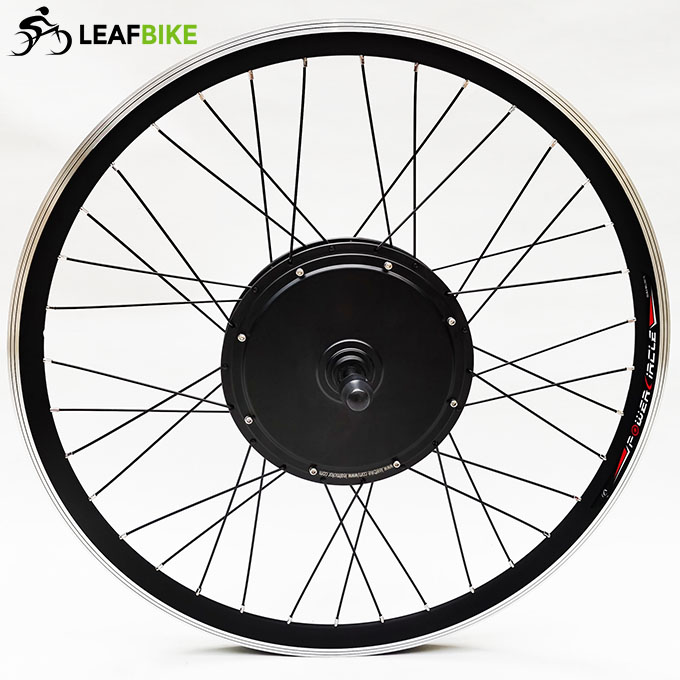

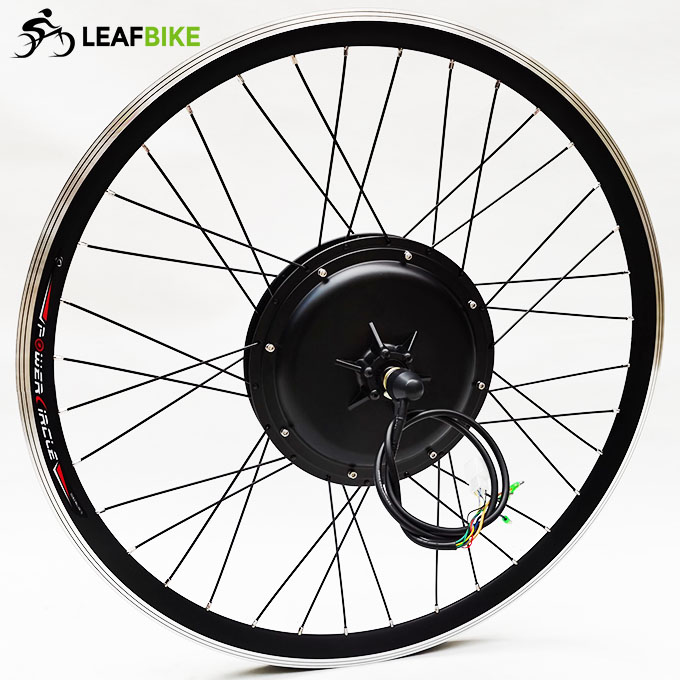

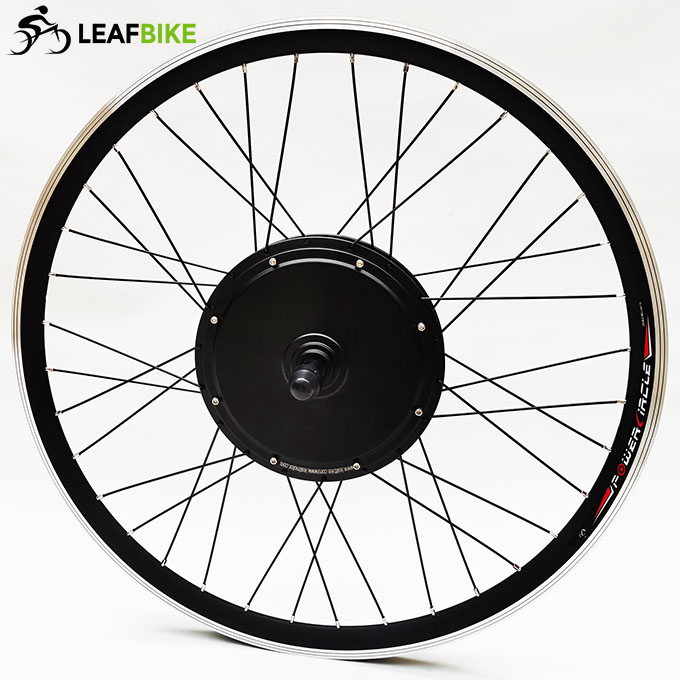

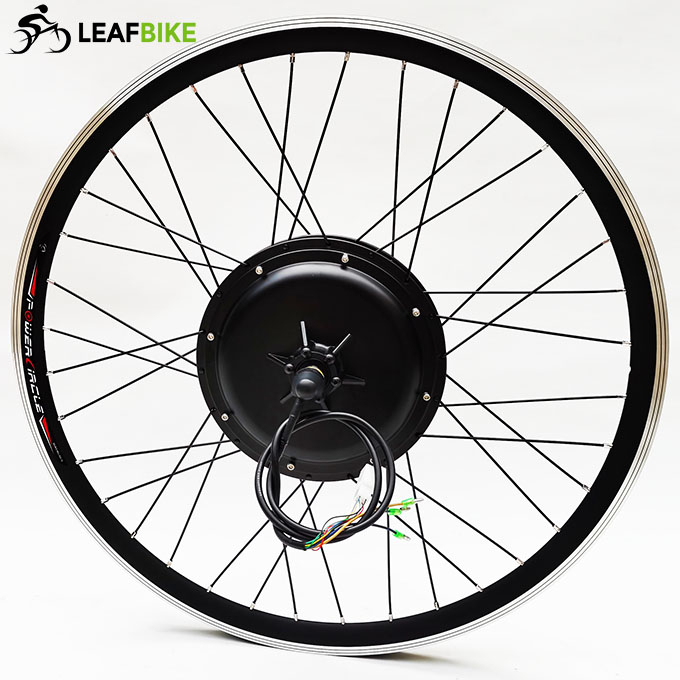

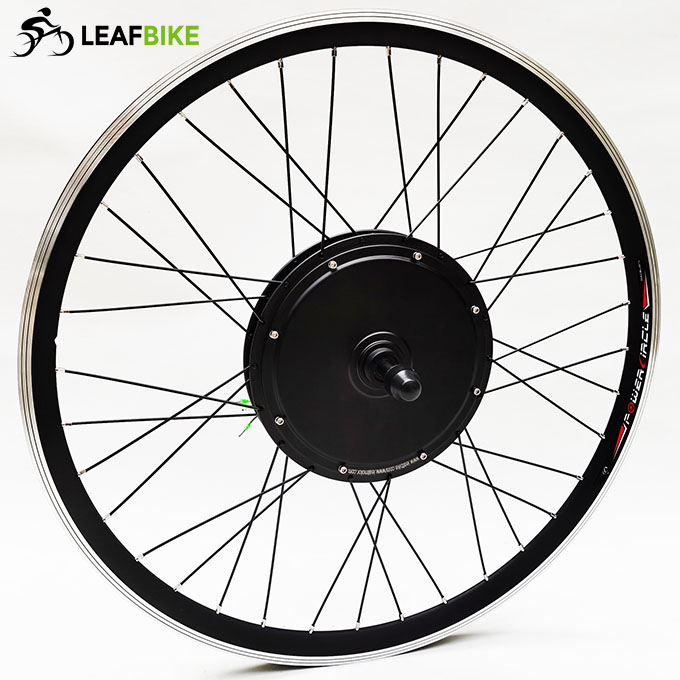

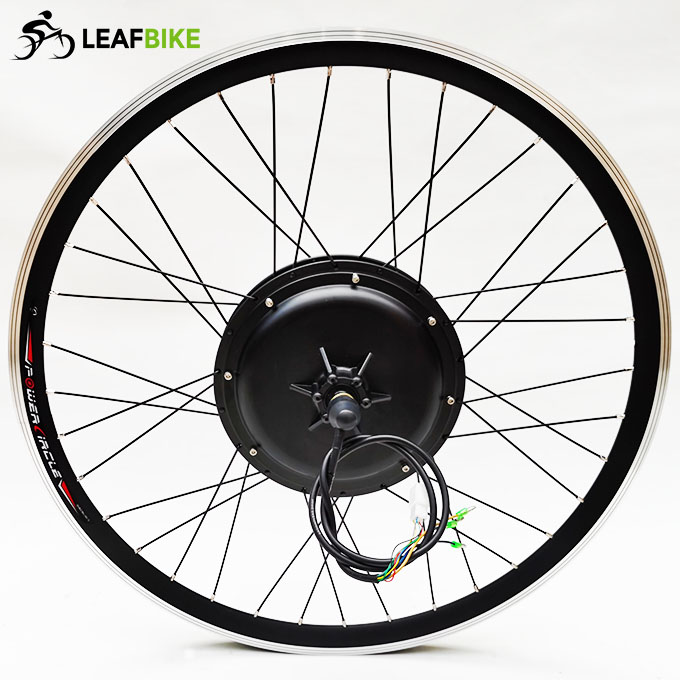

1 x 700c 48V / 52V 1000W rear hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg / Gross Weight: 12.5 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

* This motor & controller system can handle with a 48V or 52V battery.

Wire Diagram:

1000W Rear Drw.

1000W Cassette Drw.

Performance Data:
