14 inch 48V 52V 1000W front casted electric scooter motor kit

Item ID #LBCK14481000FNL
$301.00 $370.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for 14 inch 48V 52V 1000W front casted electric scooter motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh ..
Share Video:

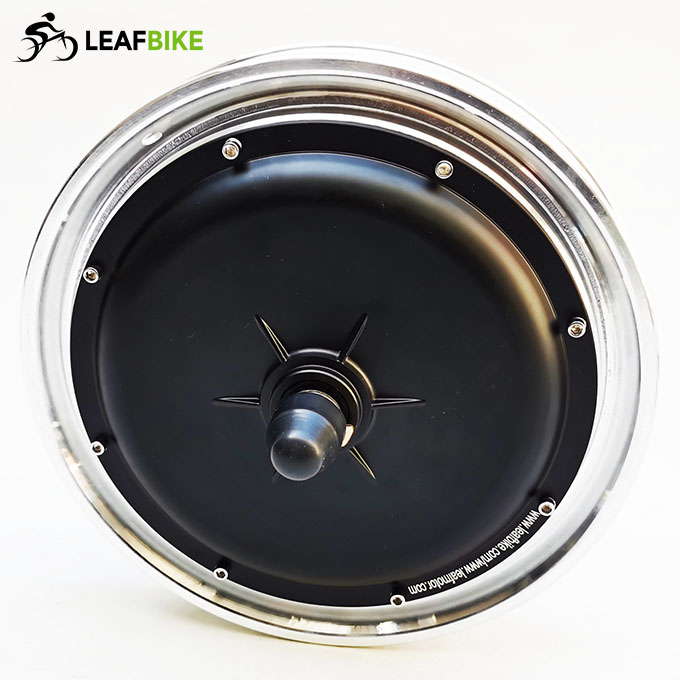

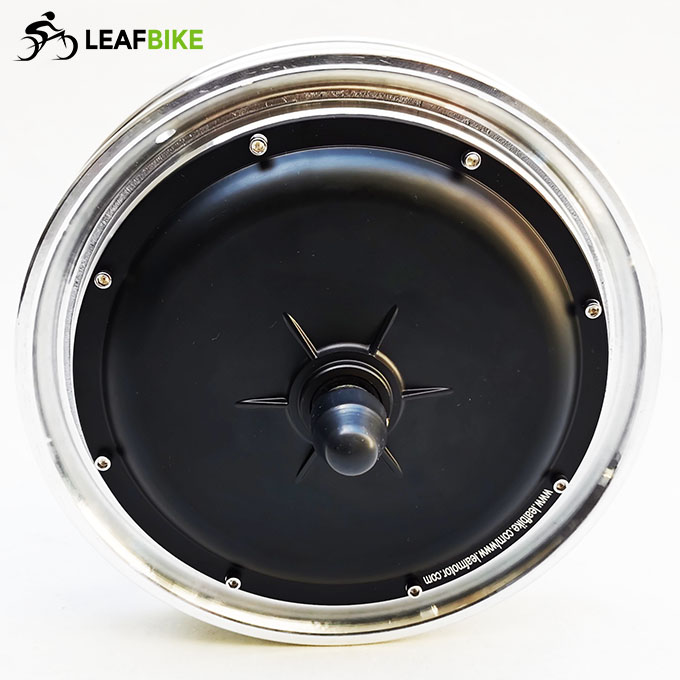

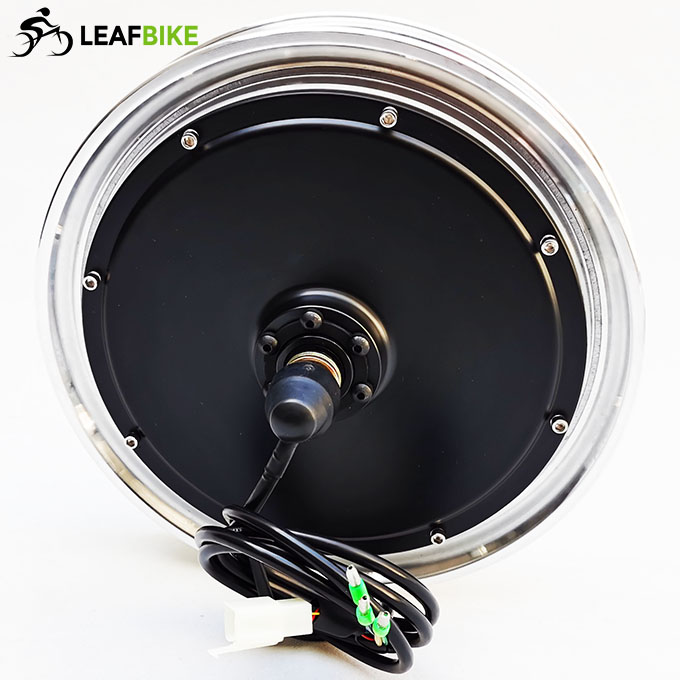

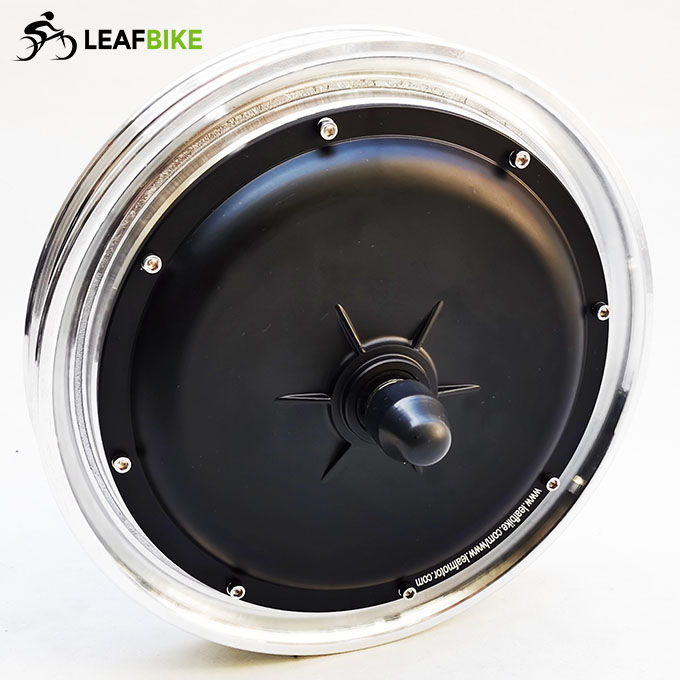

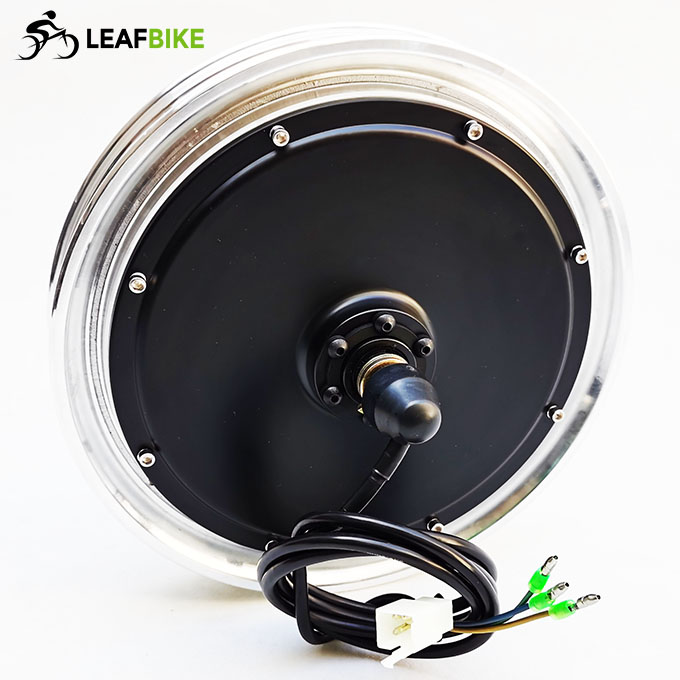

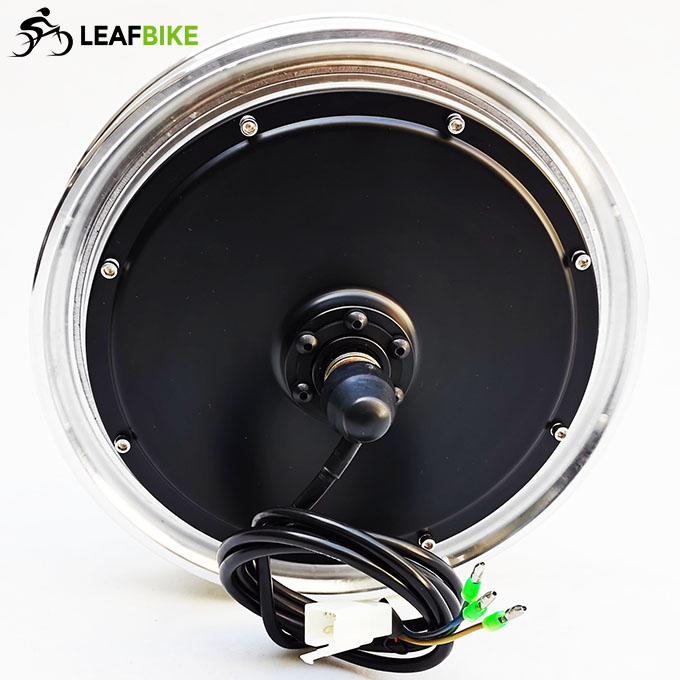

14 inch 48v 1000w front hub motor - electric bike conversion kit

This 14 inch electric scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" / 2.5" tire)
>. Motor Type: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 48.3 kmh -- 30.0 mph Default (Optional other speed: 25mph,20mph,15mph...)
>>. Mechanical brake: Disk or  V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-08HU With USB Port & Color screen, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

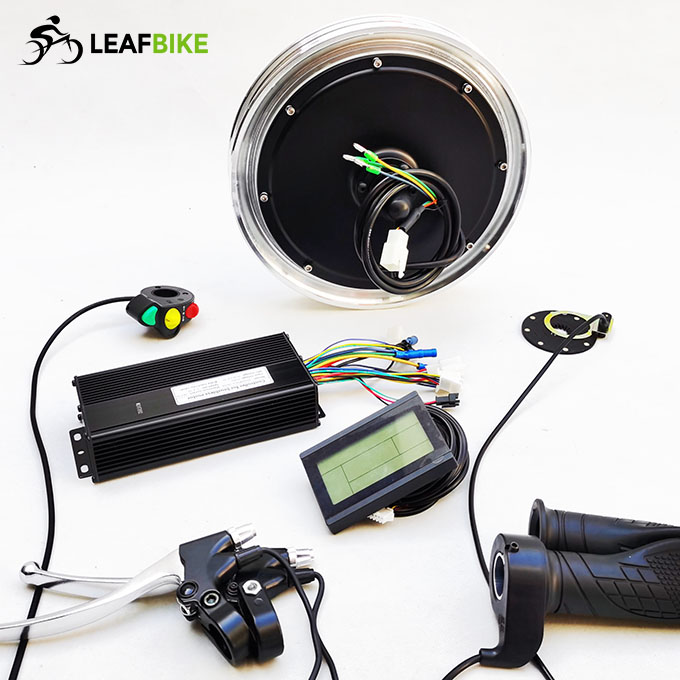

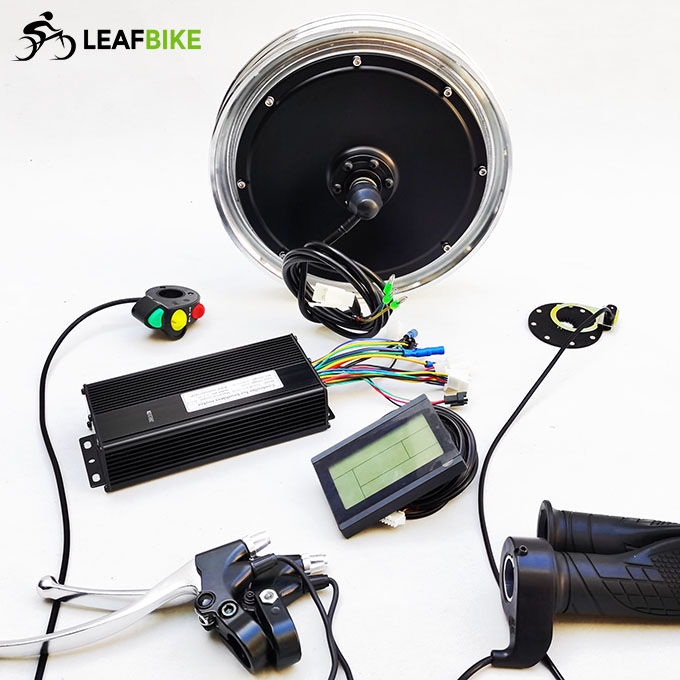

Package Content:
1 x 14 inch 48V / 52V 1000W front hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-08HU With USB Port & Color screen
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.0 kg   /  19.8 lbs
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
14 inch front casted hub motor - electric bike conversion kit wire diagram
1000w Front Drw.
14 inch front hub motor drawing
Performance Data:
1000w hub motor curve
