14 inch 36V 750W front casted electric scooter motor kit

Name: 14 inch 36V 750W front casted electric scooter motor kit
Brand: Leaf Bike
SKU: LBCK1436750FN
Price: 297 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK1436750FN

$297.00 ~~$346.00~~

Maybe You Need These

Description

Please watch video for 14 inch 36V 750W front casted electric scooter motor kit that show one kind of default speed.

Share Video:

14 inch 36V 750W front casted hub motor bike conversion kit video

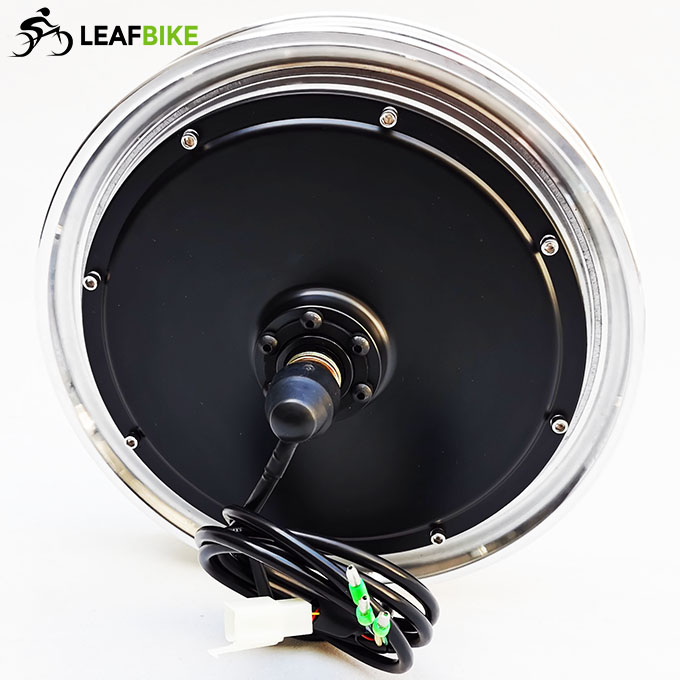

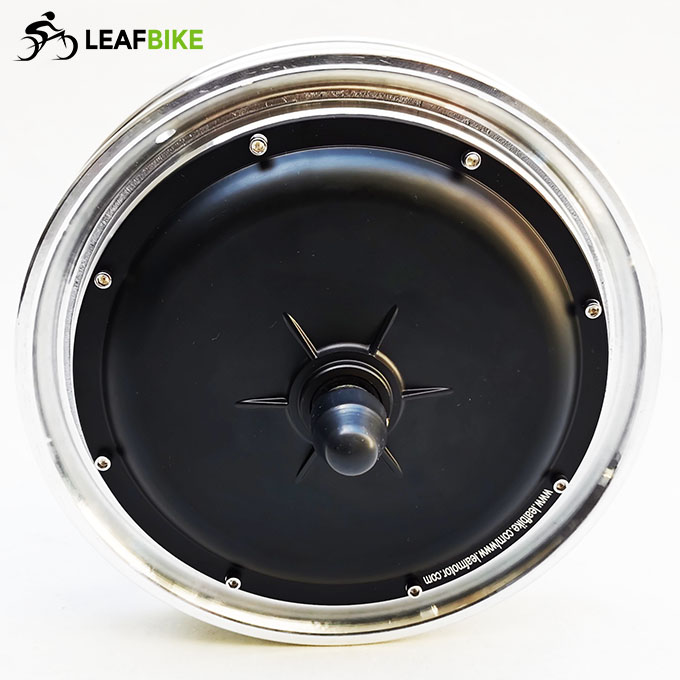

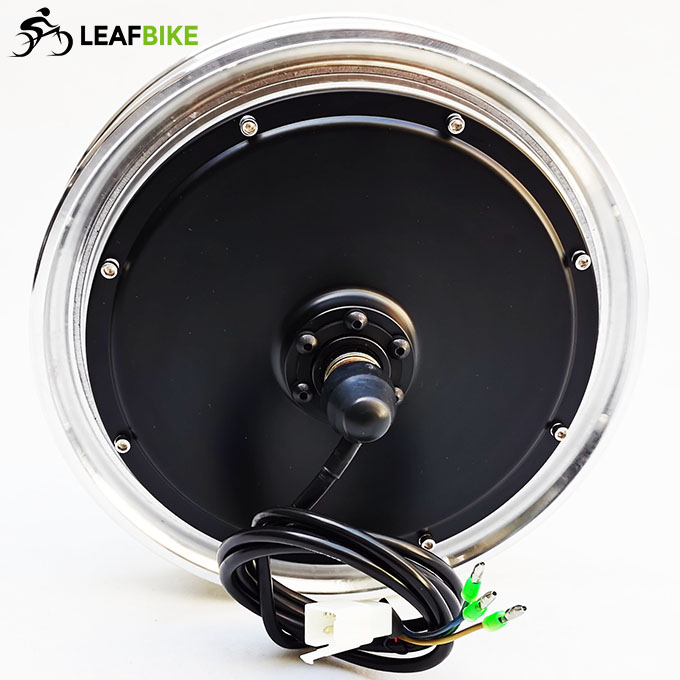

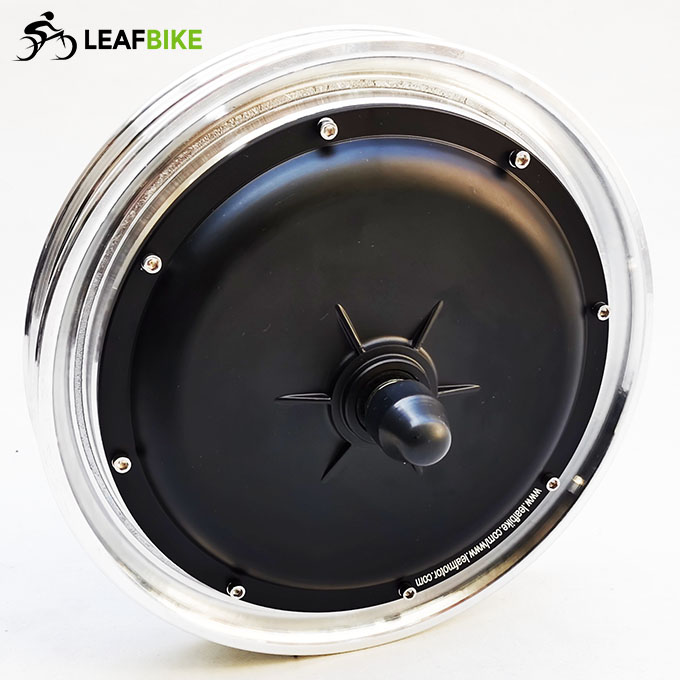

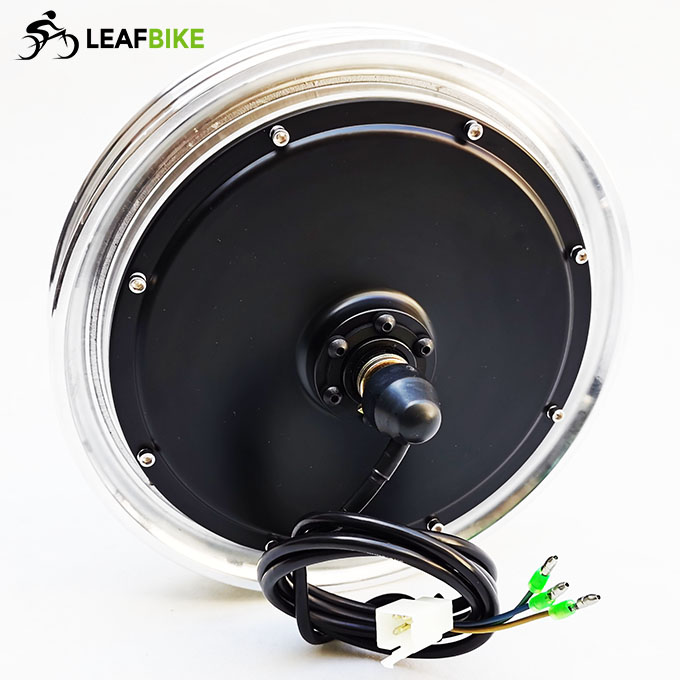

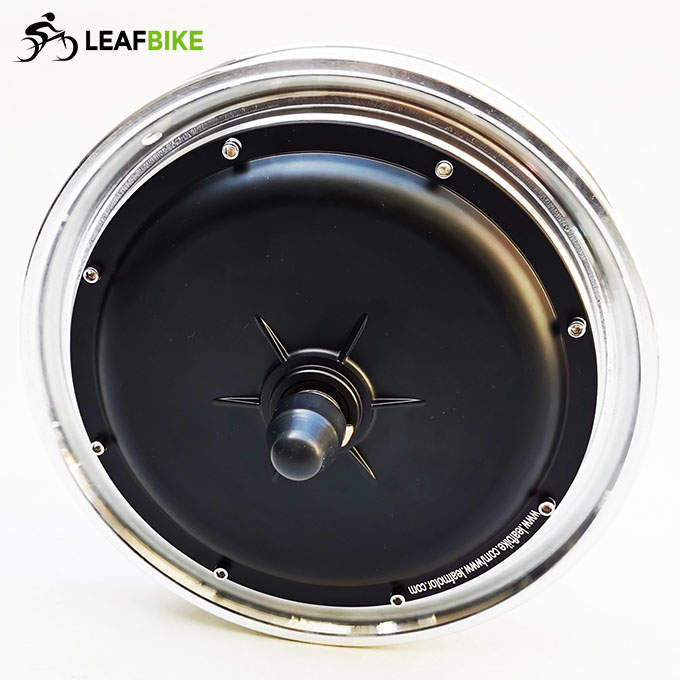

This 14 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" / 2.5" tire)

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 32.9 kmh -- 20.3 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork (Min.100mm ~ Max.115mm)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

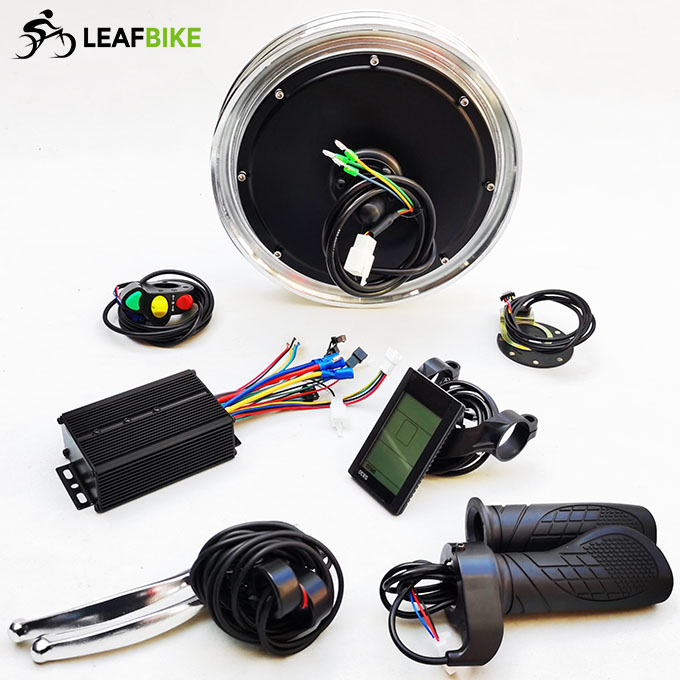

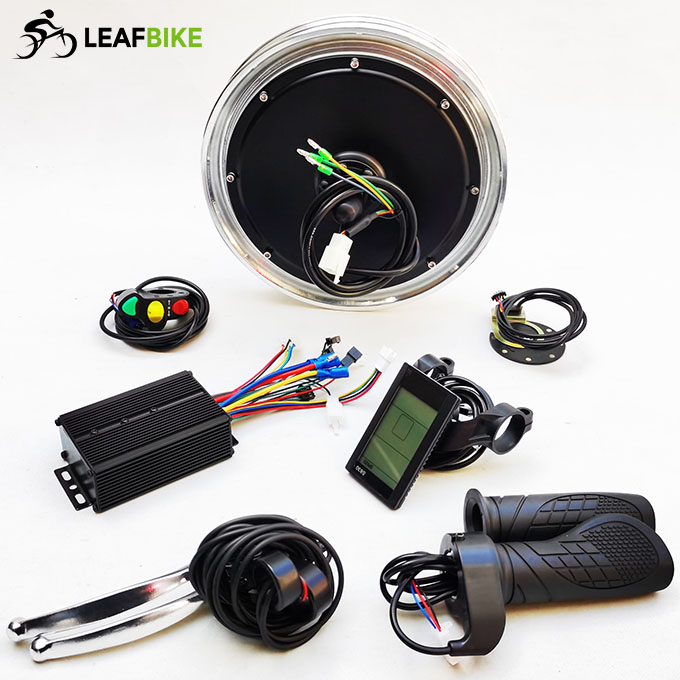

Package Content:
1 x 14 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.0 kg / 19.8 lbs
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

14 inch Front Drw.

Performance Data:
