14 inch 36V 750W front casted hub motor - bike conversion kit

Name: 14 inch 36V 750W front casted hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK1436750FNK
Price: 290 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK1436750FNK

$290.00 ~~$334.00~~

Maybe You Need These

Description

Please watch video for casted 14 inch 36V 750W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh ..

Share Video:

Casted 14 inch 36V 750W front hub motor electric bike conversion kit video

This 14 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

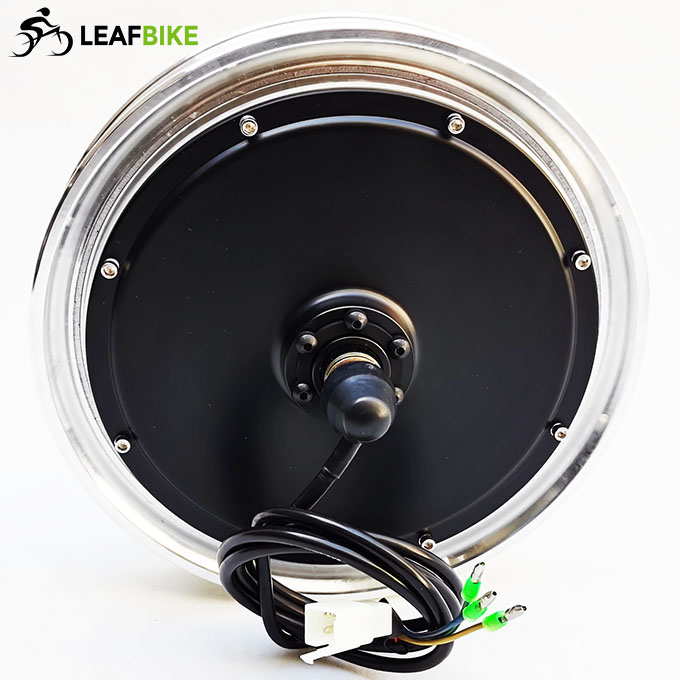

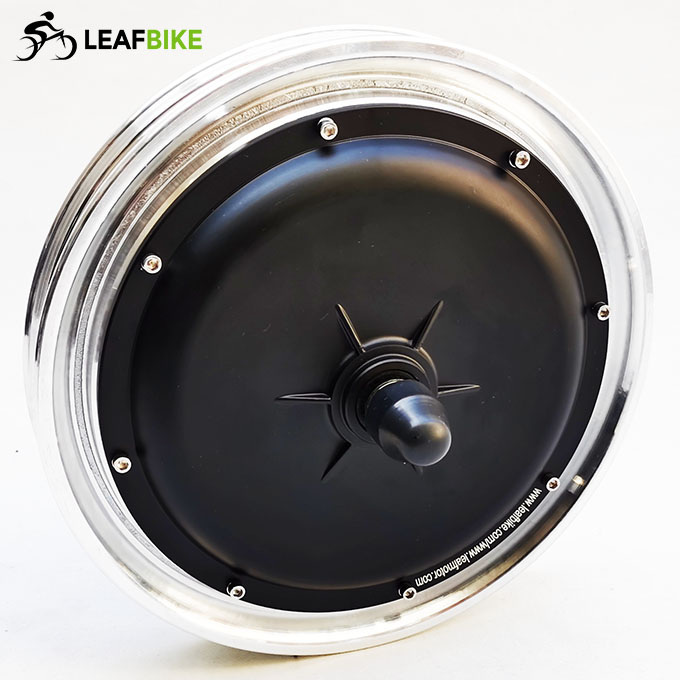

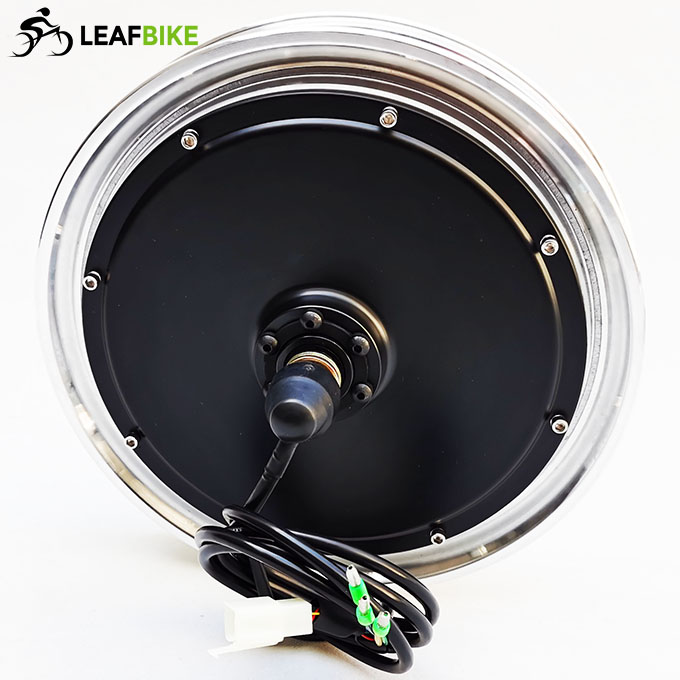

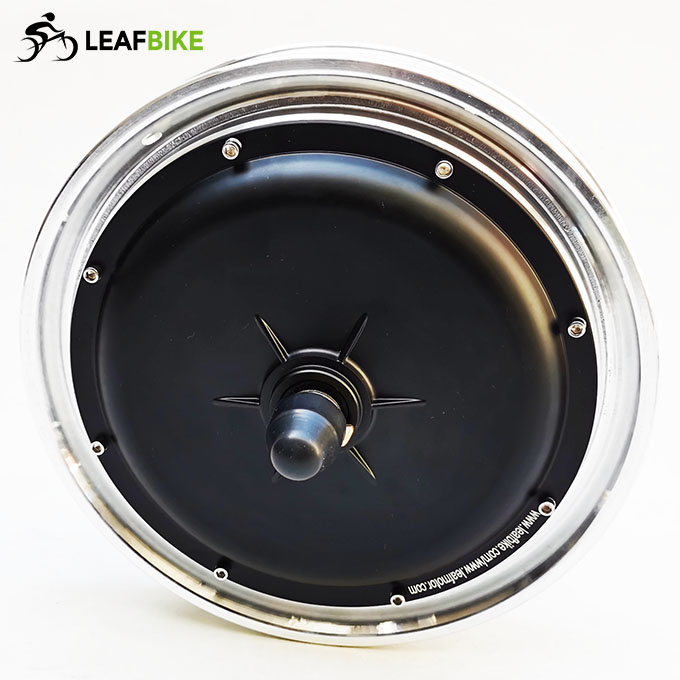

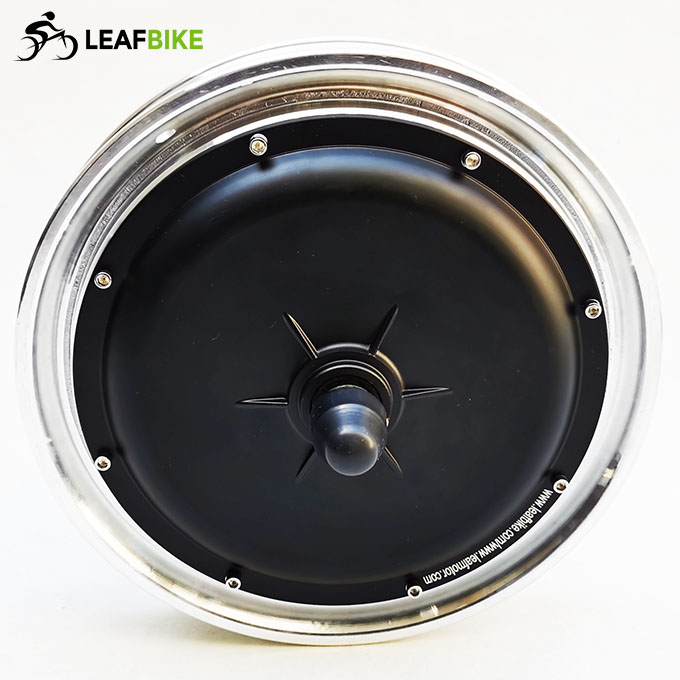

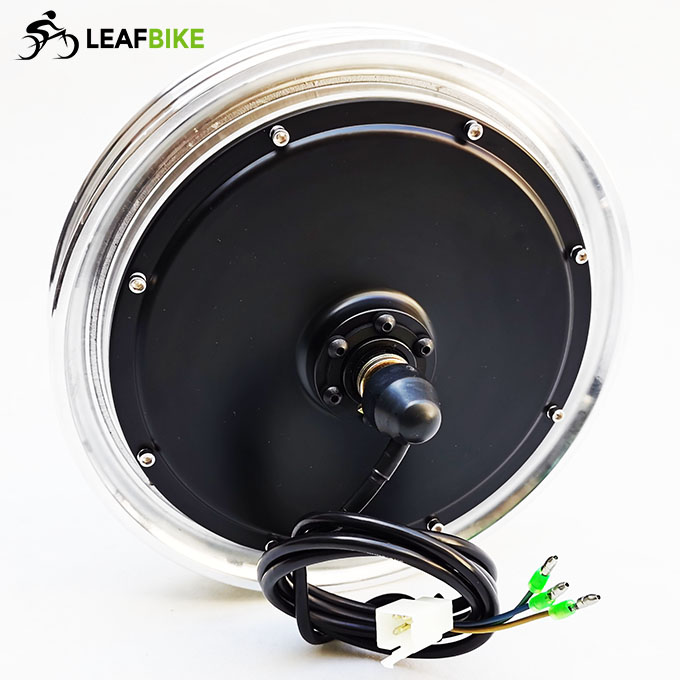

Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" / 2.5" tire)
>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 33.3 kmh -- 20.6 mph Default (Optional other speed:15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end , LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

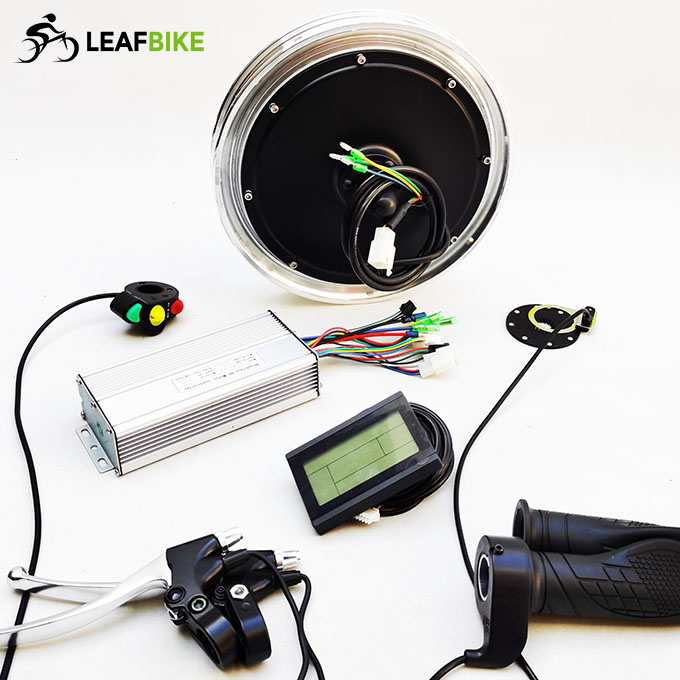

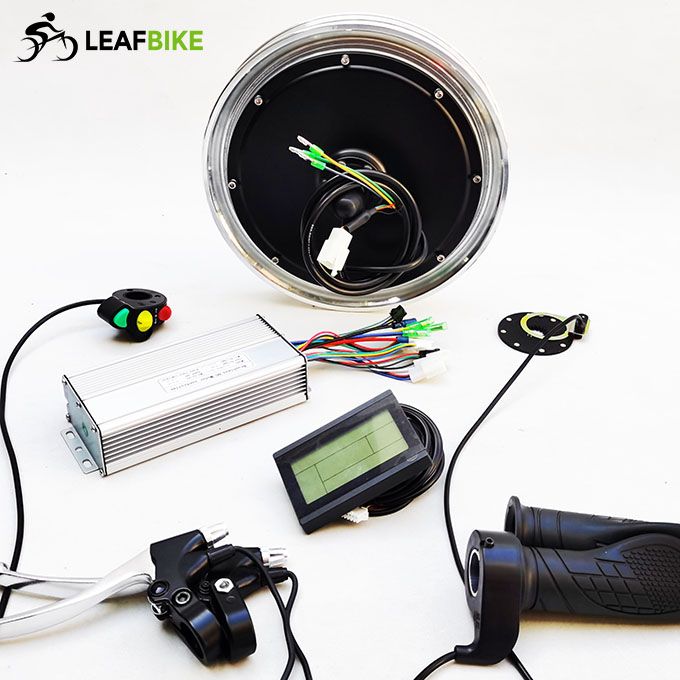

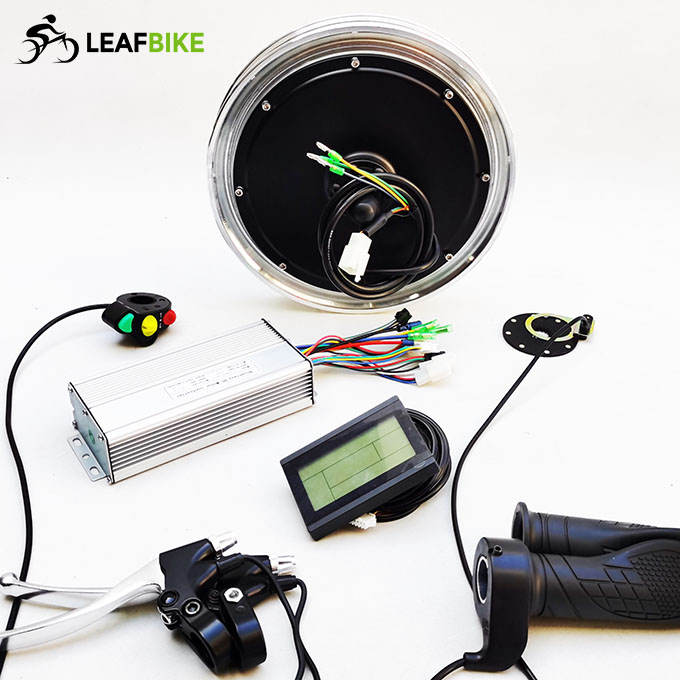

Package Content:
1 x 14 inch 36V 750W front hub motor wheel
1 x 36V 12-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.0 kg / 19.8 lbs
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box

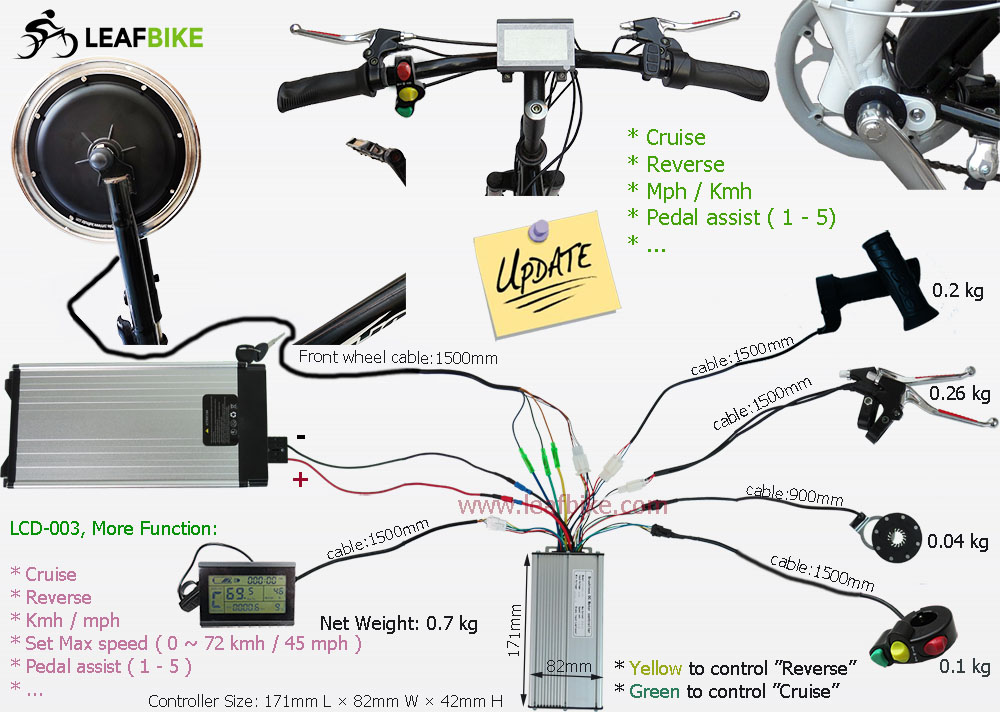

Wire Diagram:

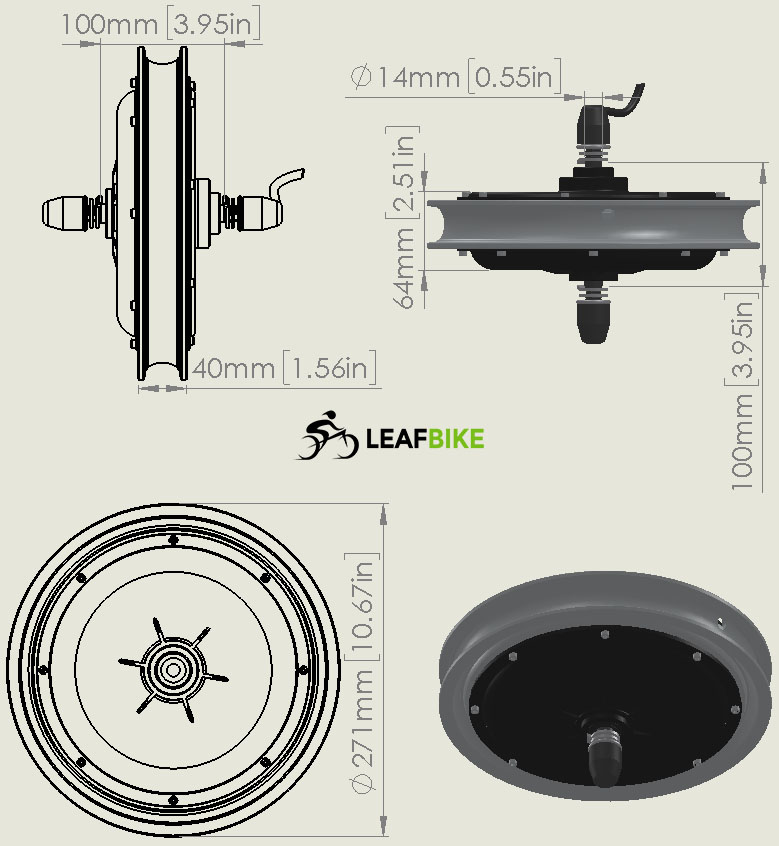

14 inch Front Drw.

Performance Data:
