Mid drive kit 16 inch 80 mm Electric front Wheel Brushless Hub Motor Ebike conversion 48v / 52v 1/ 20in 2000w front motor hub

14 inch 48V 52V 1000W rear casted hub motor - electric bike kit

Name: 14 inch 48V 52V 1000W rear casted hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK14481000RN
Price: 299 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK14481000RN

$299.00 ~~$348.00~~

Maybe You Need These

Description

Please watch videos for 14 inch 48V 52V 1000W rear casted hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh..

S830 Video:

SW900 Video:

08HU Video:

Share Video:

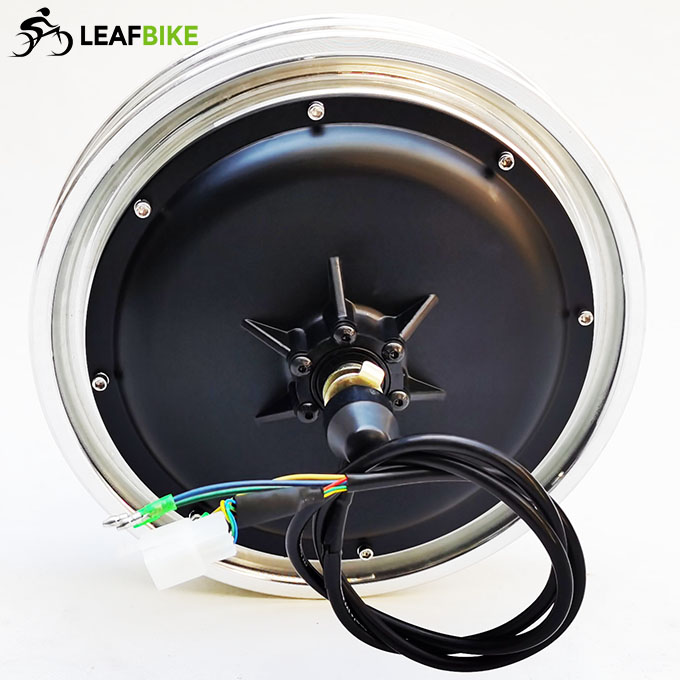

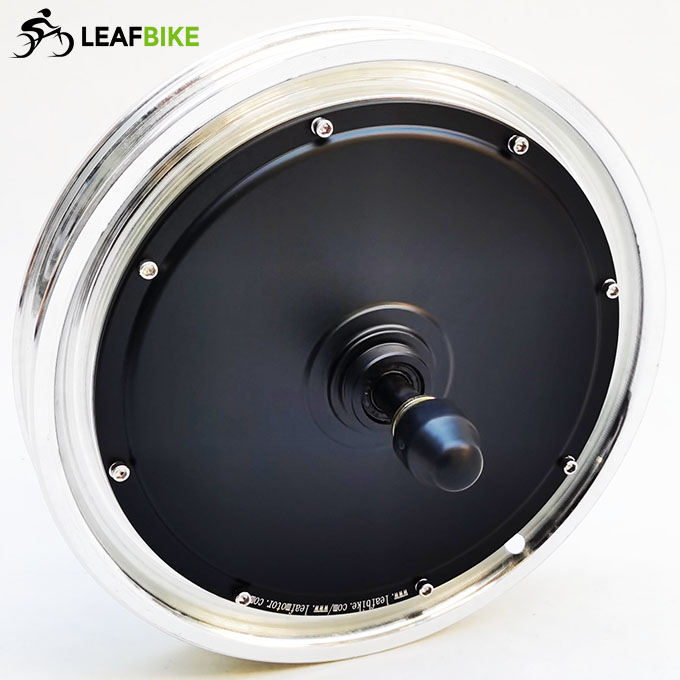

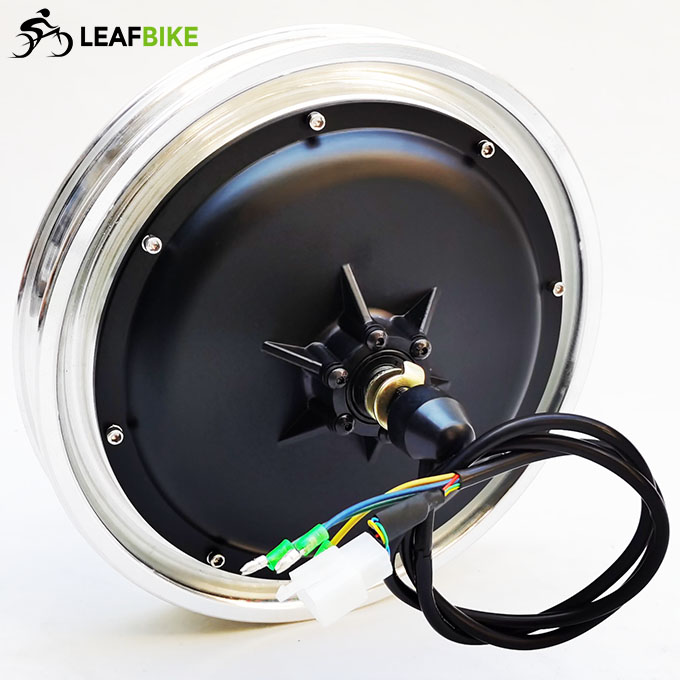

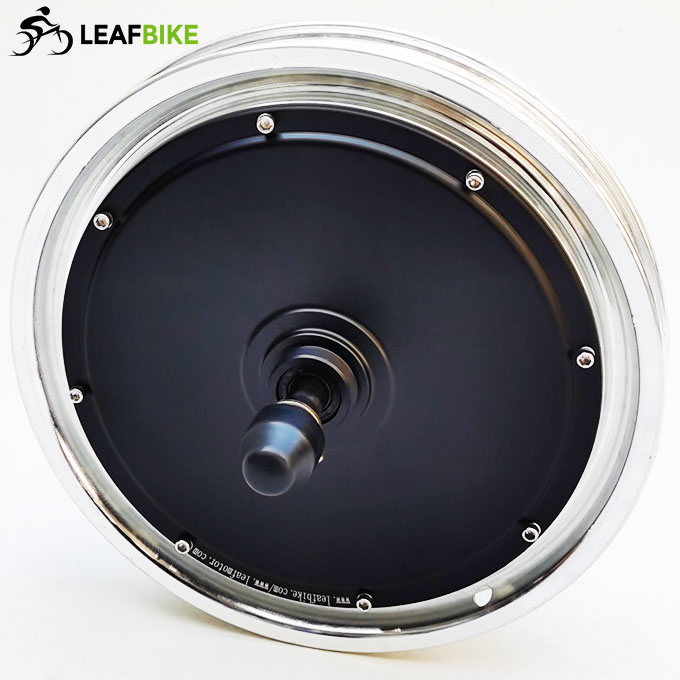

This 14 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" ~ 2.5" tire)
>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 49.5 kmh -- 30.7 mph Default (Optional other speed: 25mph,20mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 1 ~ 7 speed Default: install screw thread Sprocket (If install Cassette Sprocket,please leave message)
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backwards (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

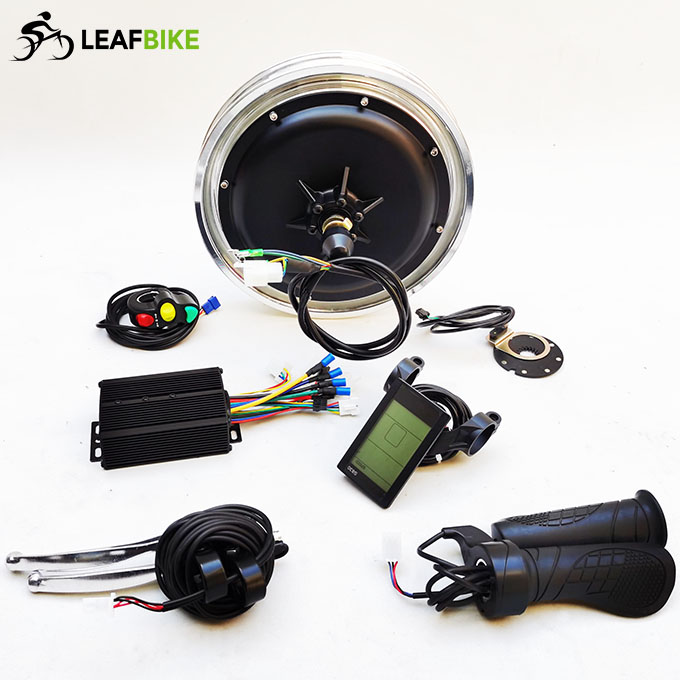

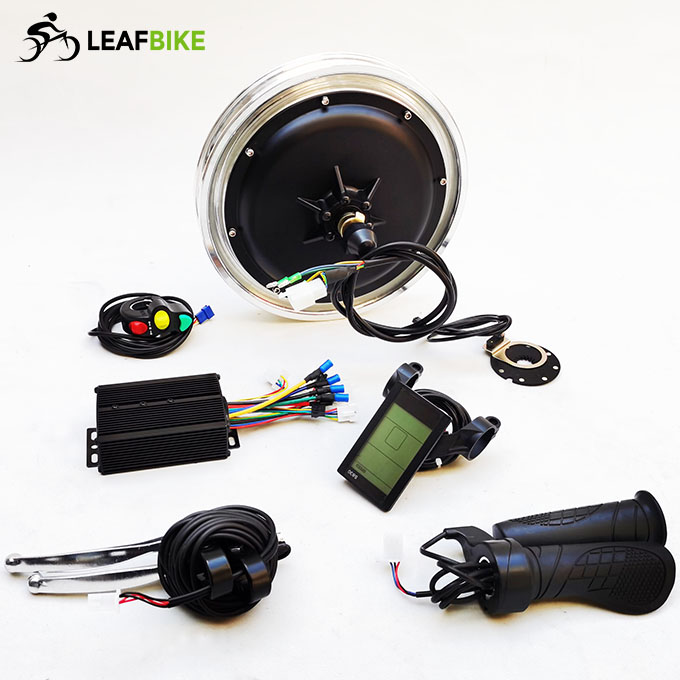

Package Content:
1 x 14 inch 48V / 52V 1000W rear hub motor wheel

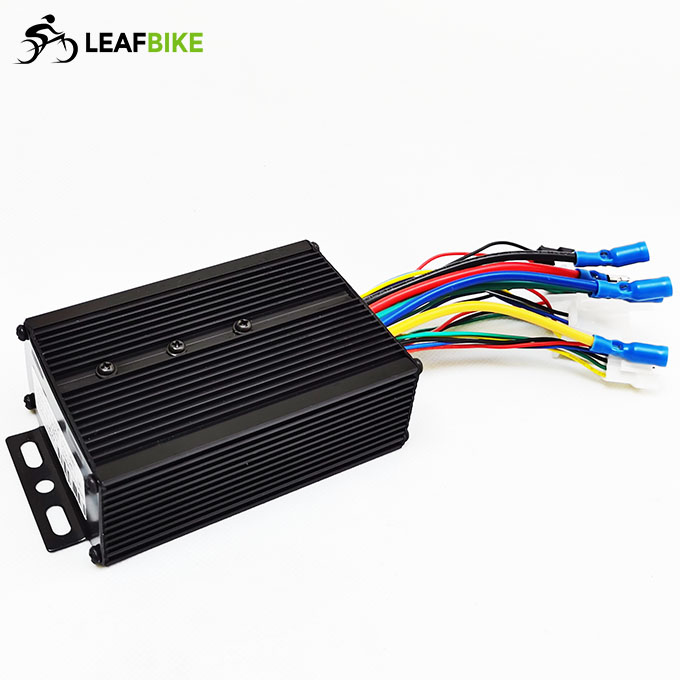

1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.0 kg / 19.8 lbs
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

14 inch rear Drw.

Performance Data:
