The 26 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:
>. Rim: 26 inch 59mm external double wall Alloy (Rim Fit For: 26 × 2.8 ~ 3.0" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs -- (Default black spokes / please leave message for silver spokes)
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 45mph Default (Optional other speed: 30mph or 25mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min.135mm ~ Max.155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
LCD-003, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Max speed ( 0 ~ 72 kmh / 45 mph ) -- If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 1 - 5 )
* ...

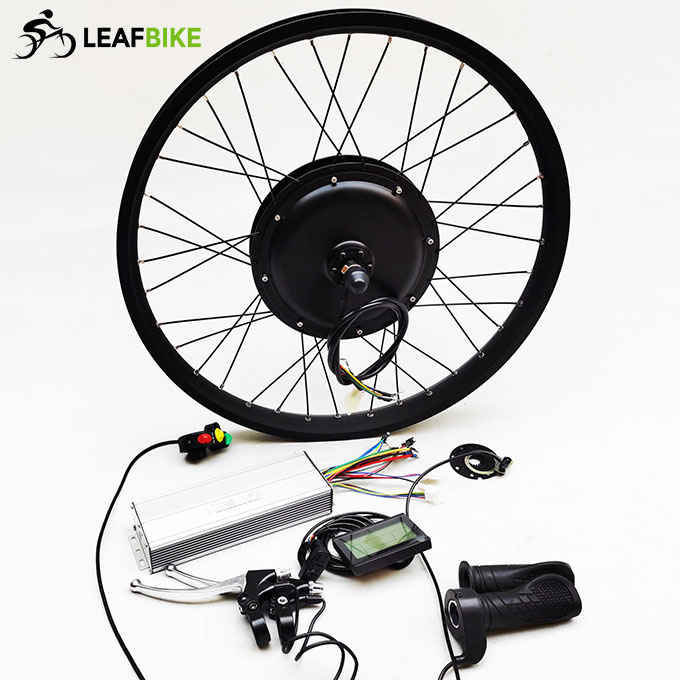

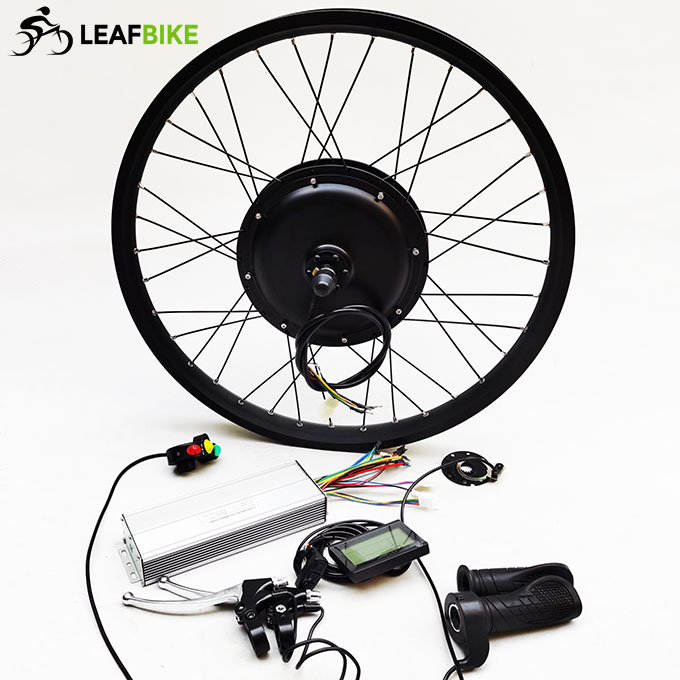

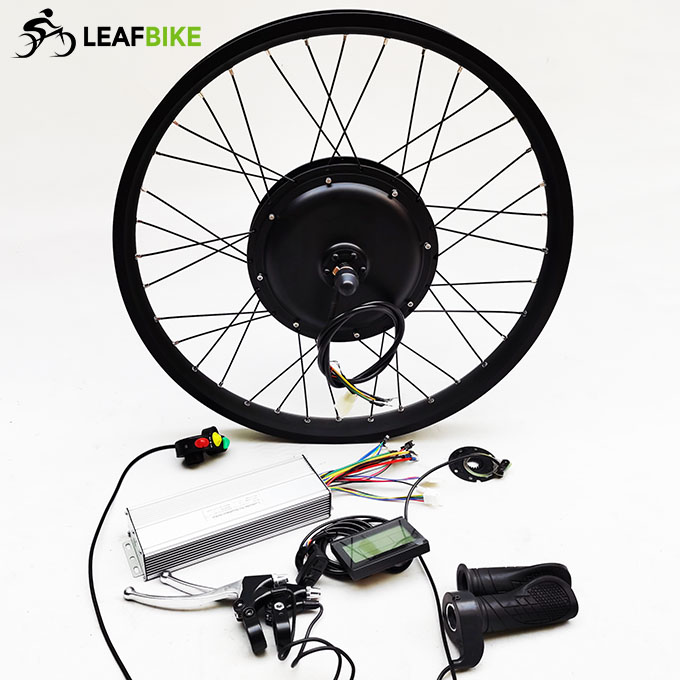

Package Content:

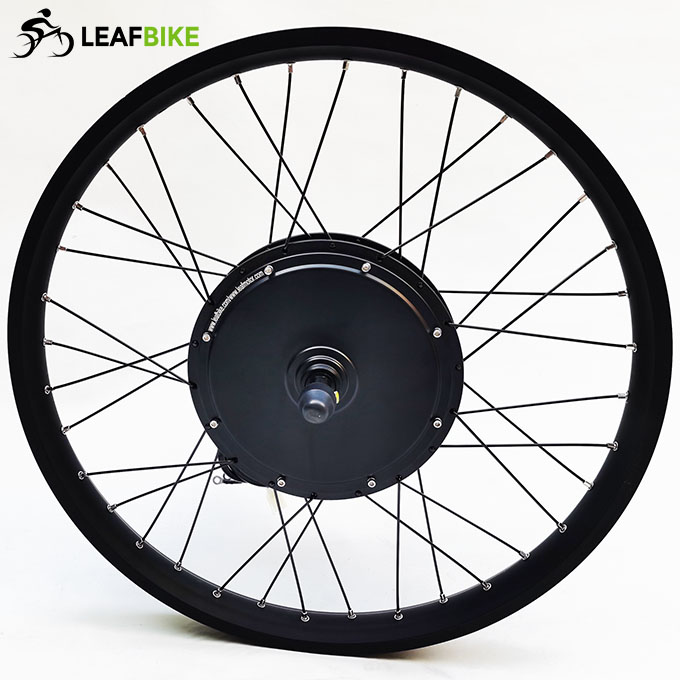

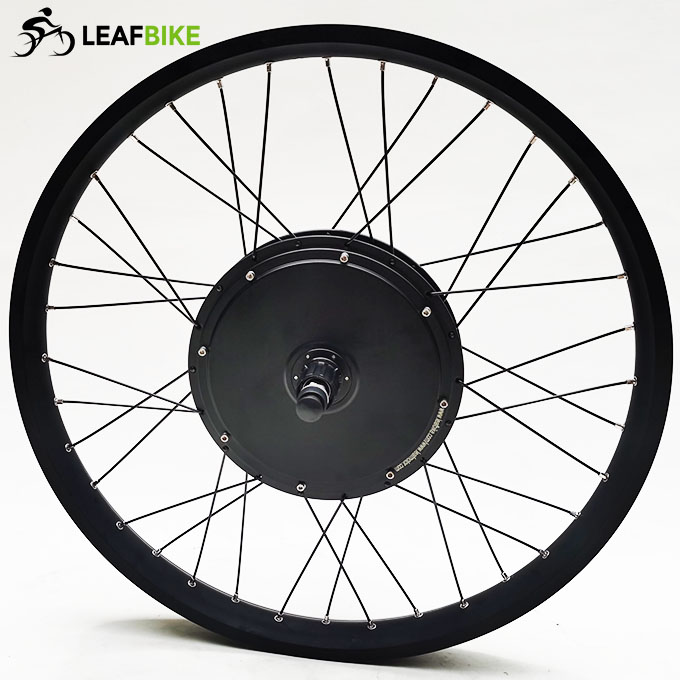

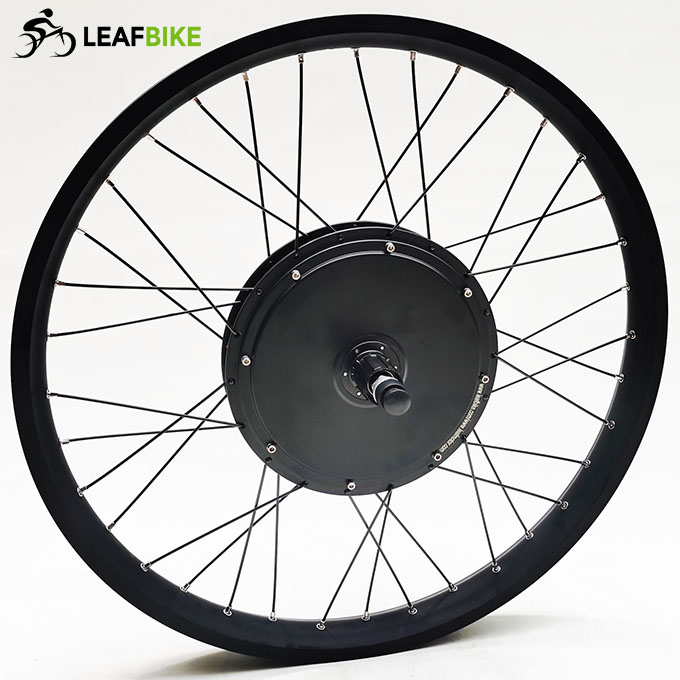

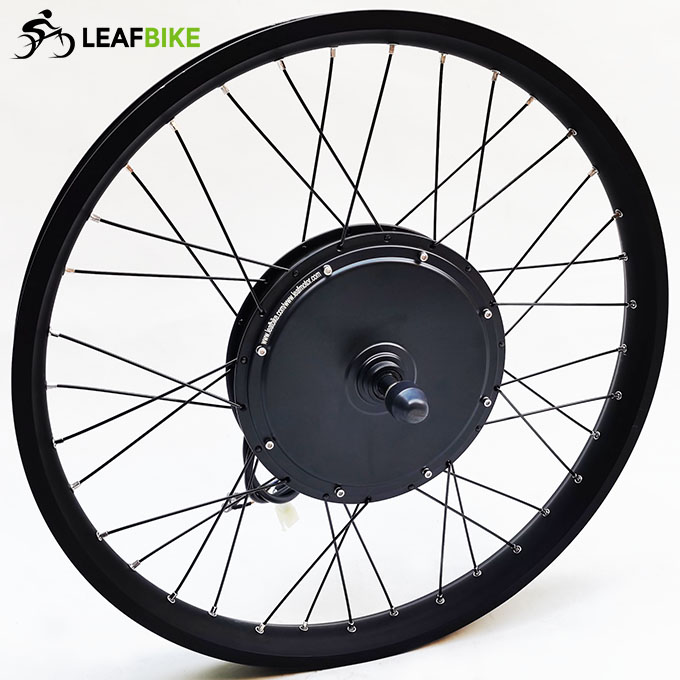

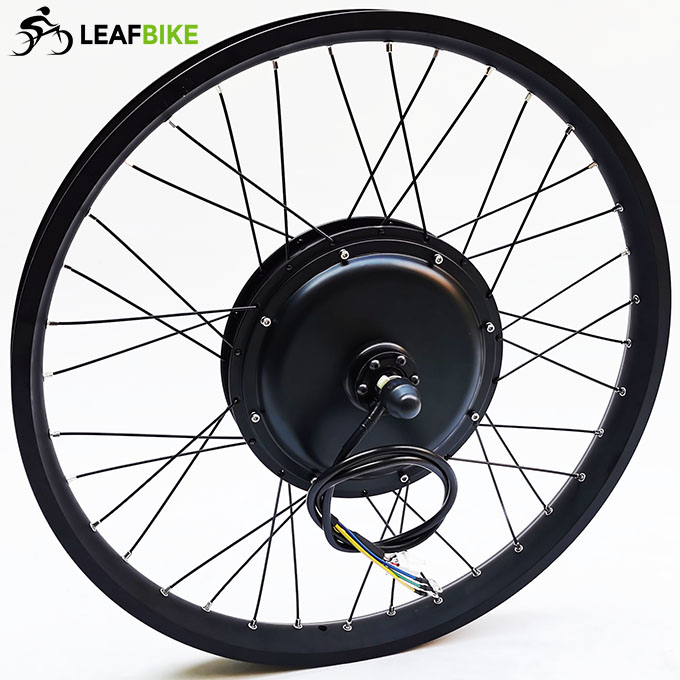

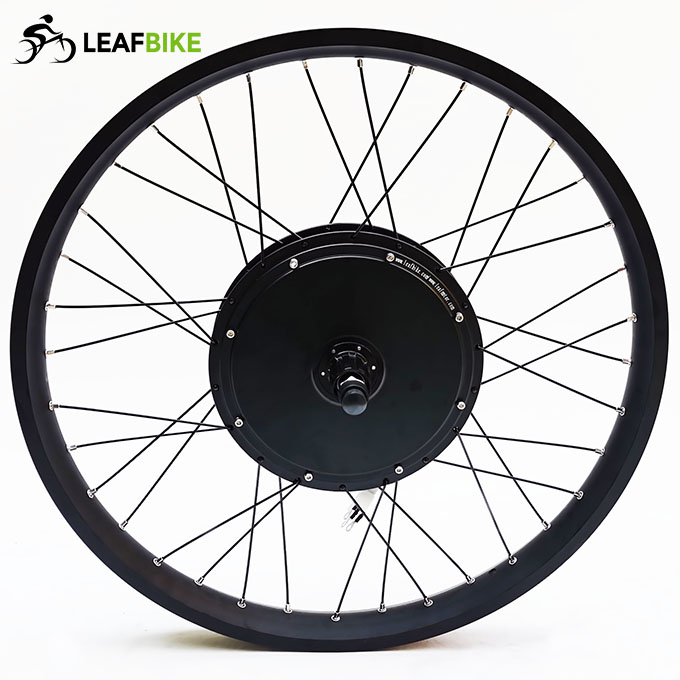

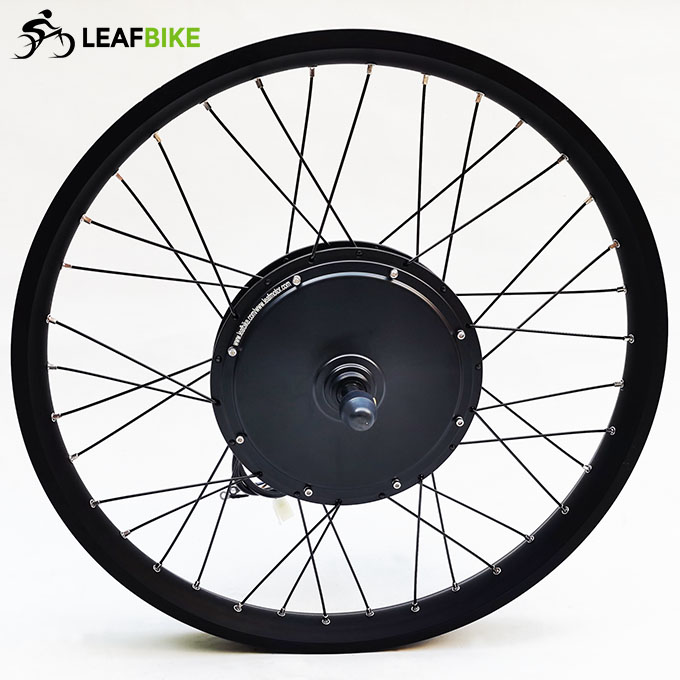

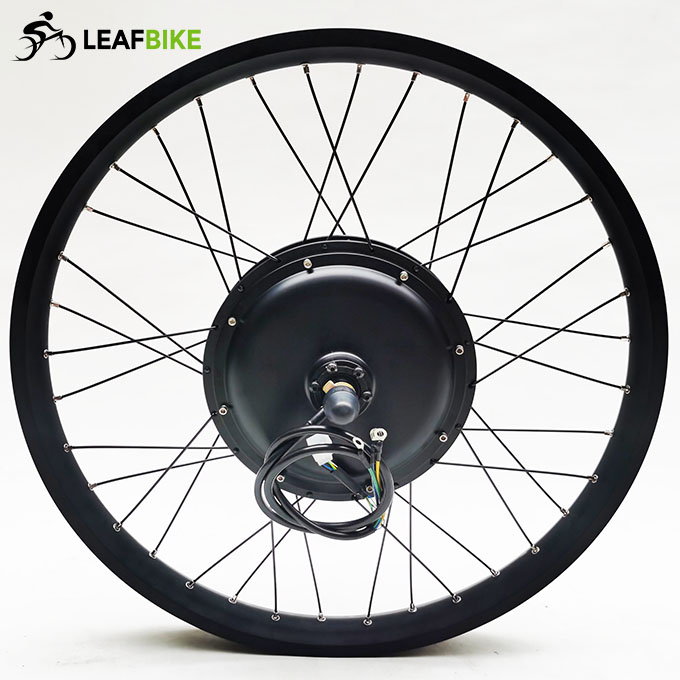

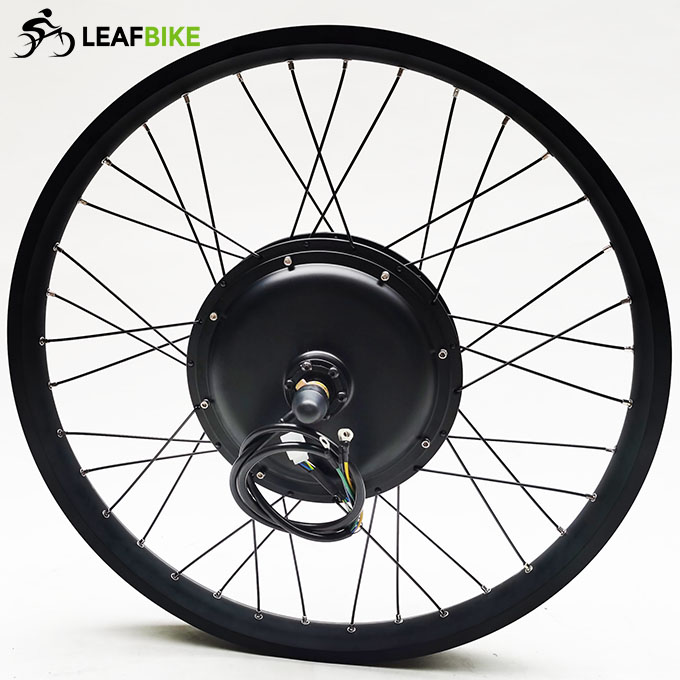

1 x Wide rim - 26 inch 60V 2000W rear hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 26 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box
* This motor & controller system can handle with a 60V battery.

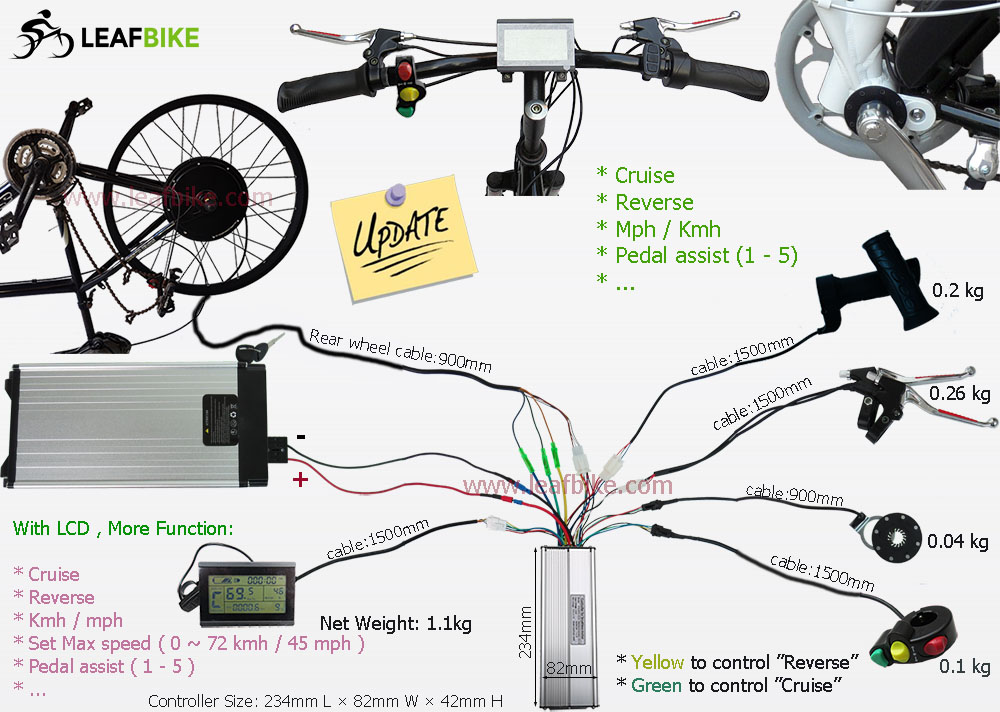

Wire Diagram:
2000W rear Motor Drw.
2000W Cassette Drw.
