Please watch videos for 26 inch 60V 2000W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
Share Video:
* This 26 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

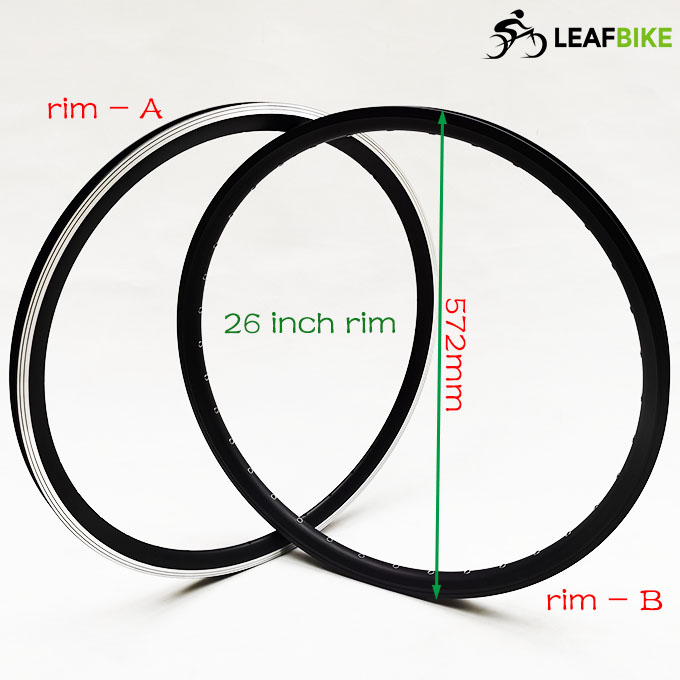

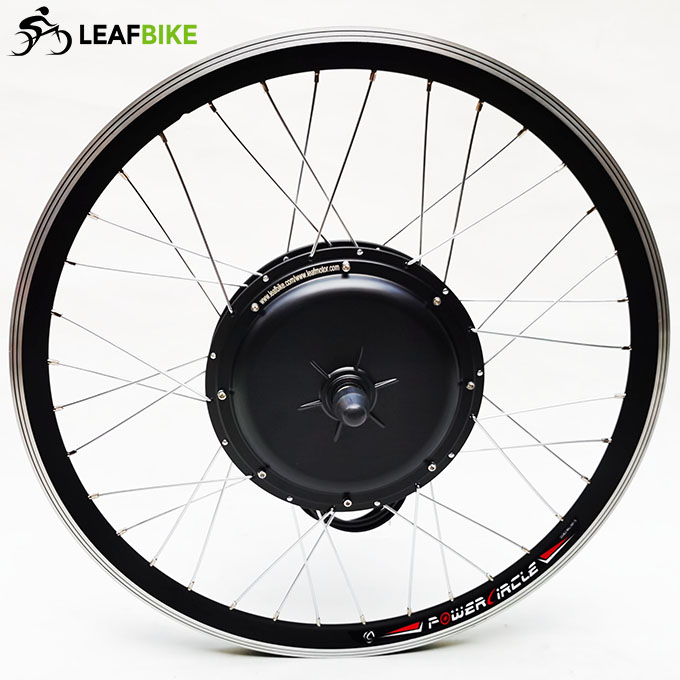

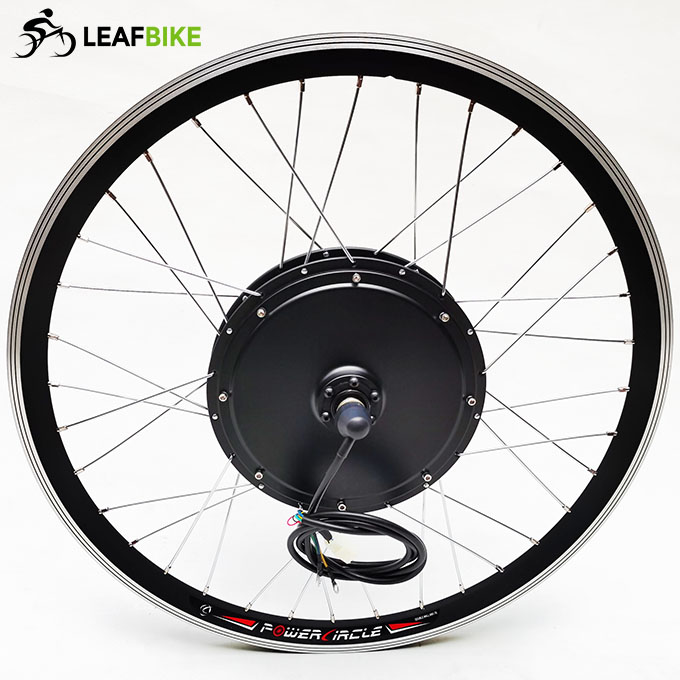

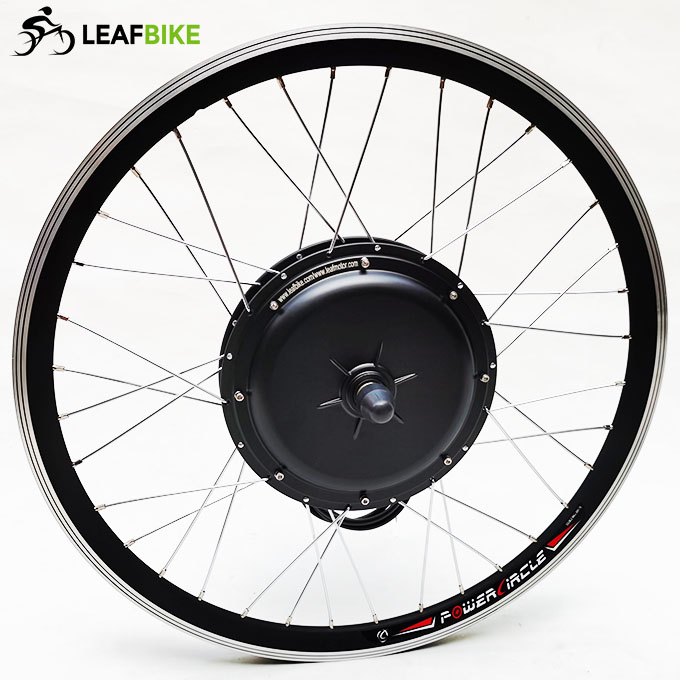

>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

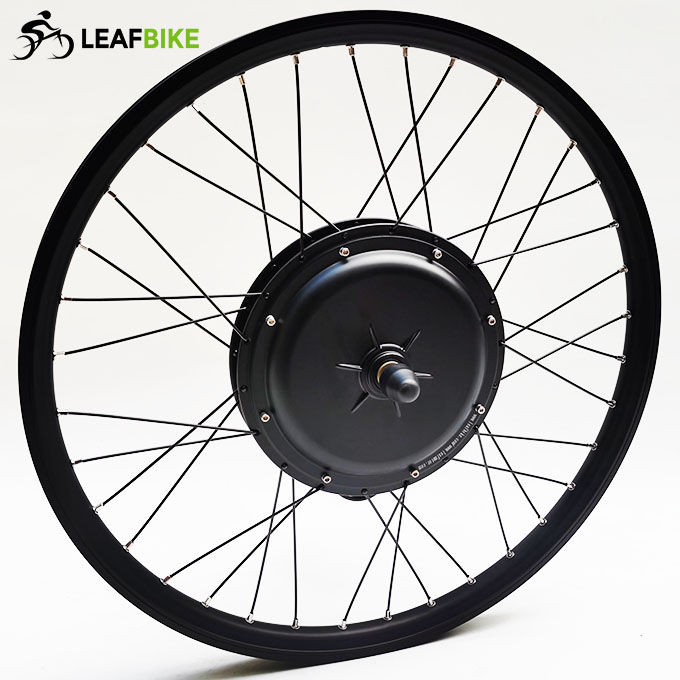

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 72.9 kmh - 45.2 mph Default (Free customization other speeds: 40mph or 30mph, 25mph, 20mph, 15mph...)
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminum
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
With LCD-003, More Function:
* Cruise
* Reverse
* Kmh / mph
* Pedal assist ( 0 - 5 )
* ...

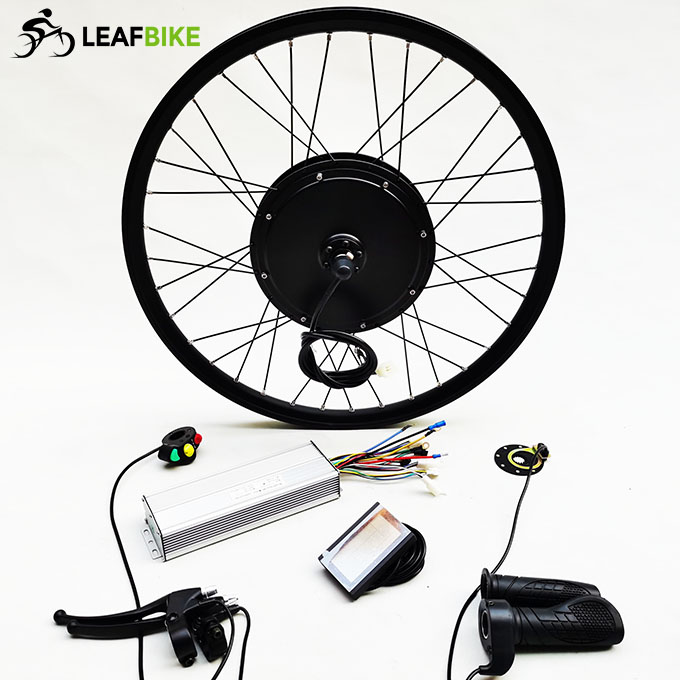

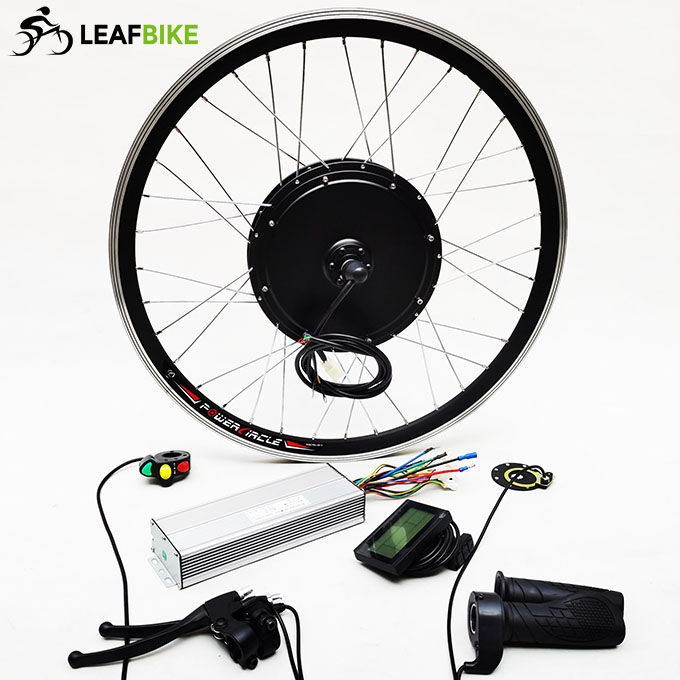

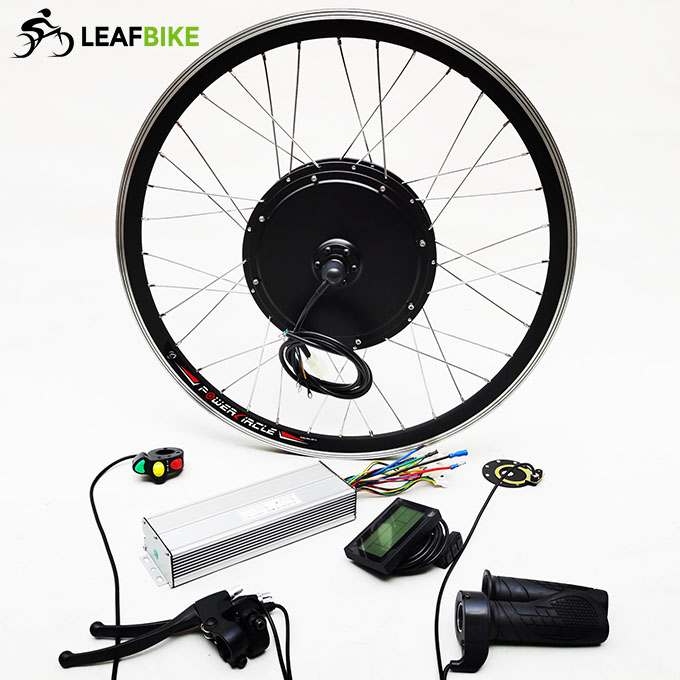

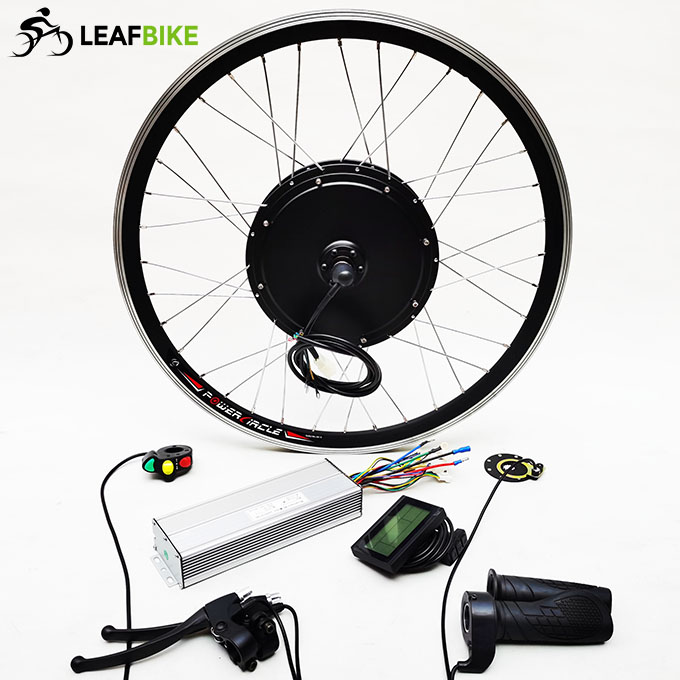

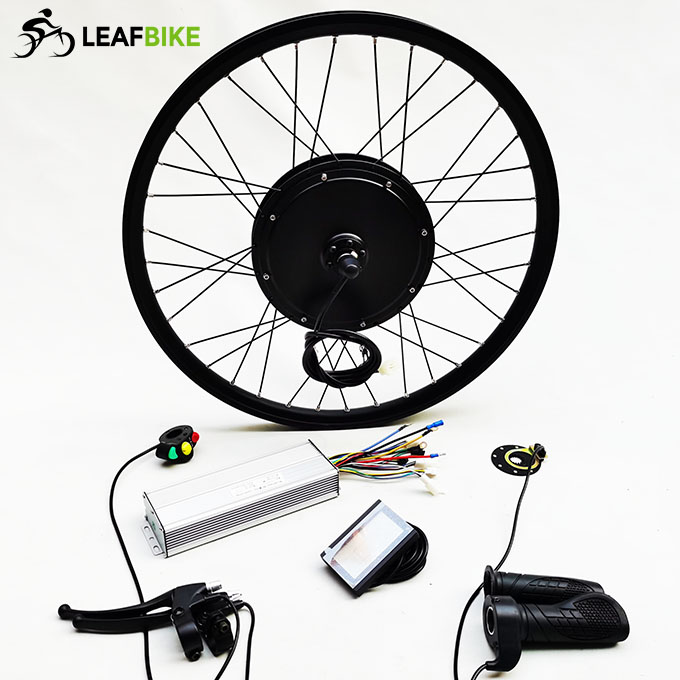

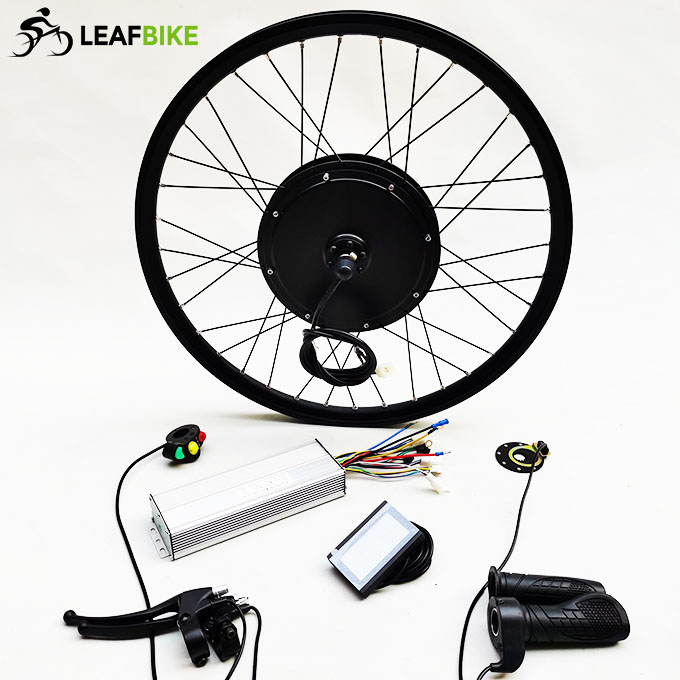

Package Content:

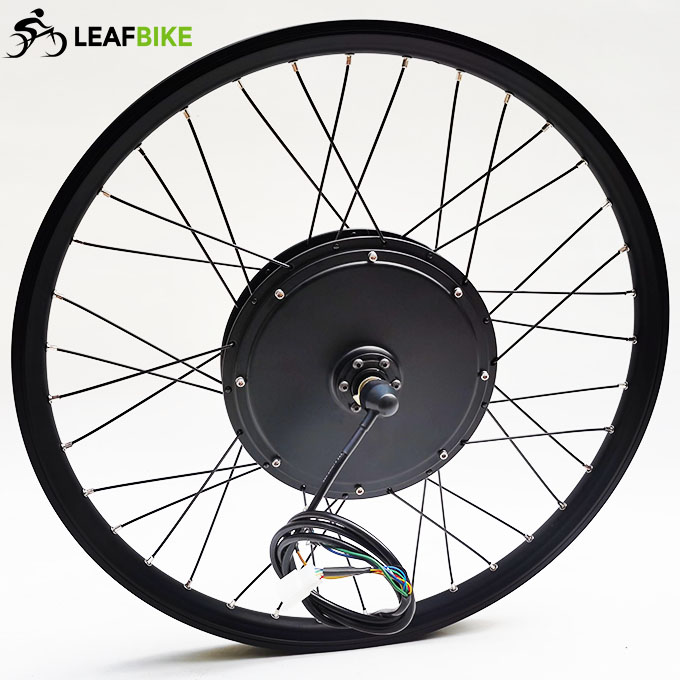

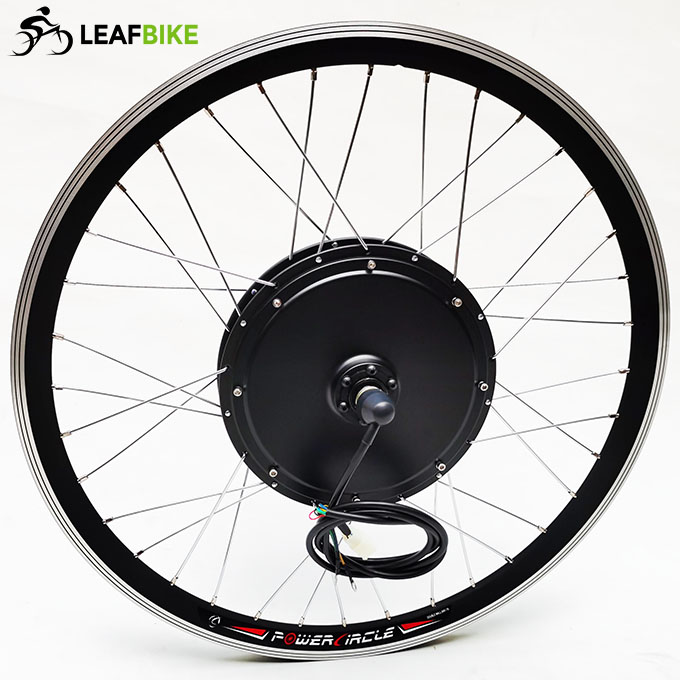

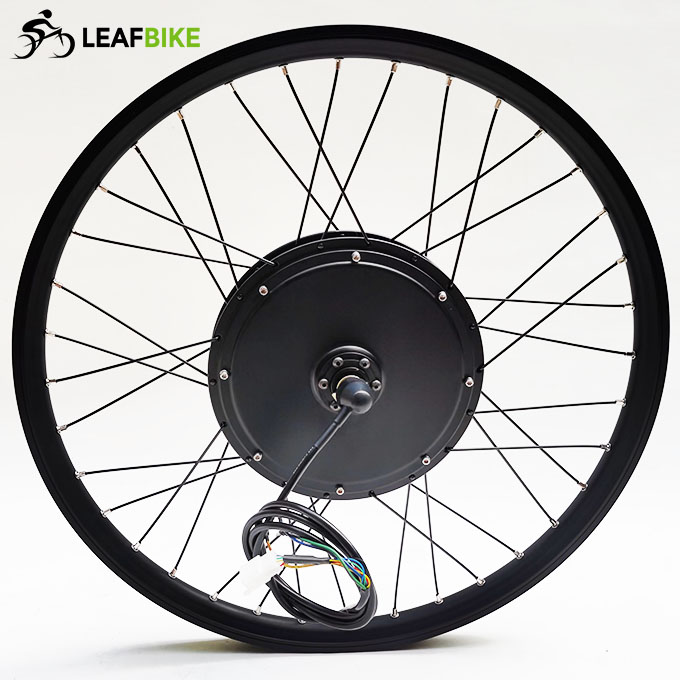

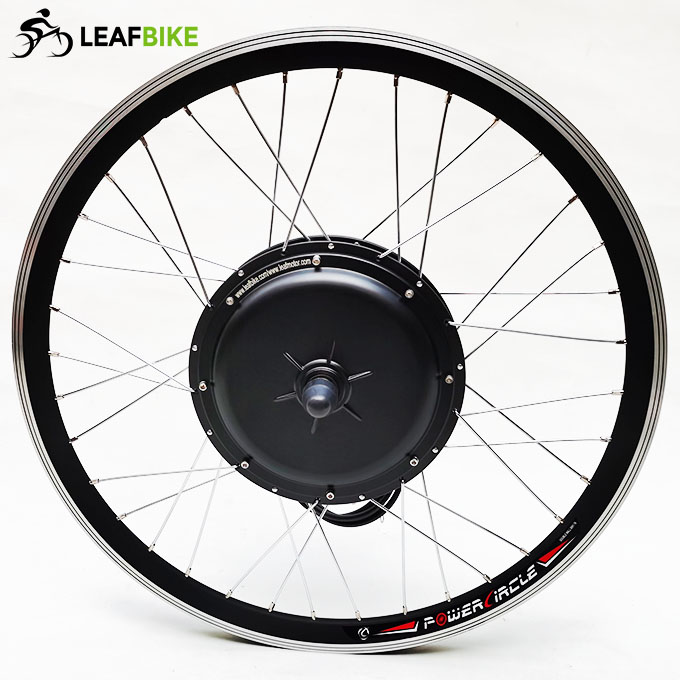

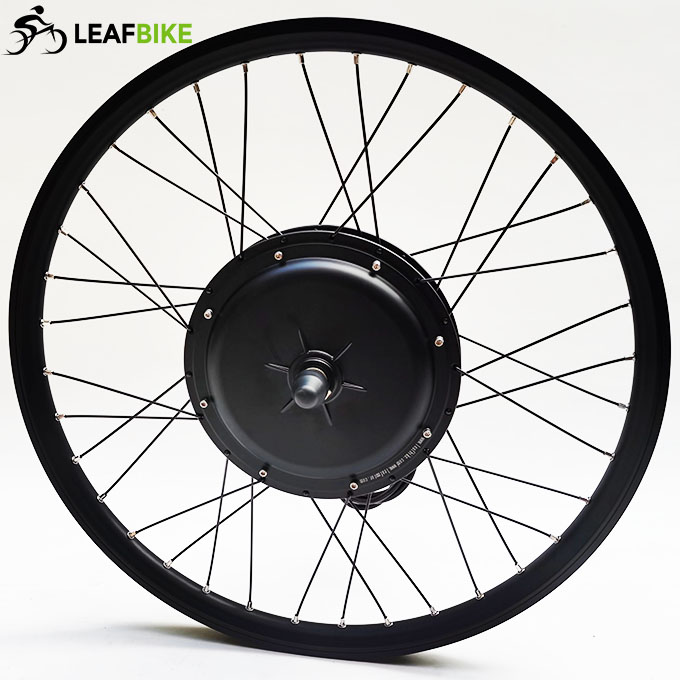

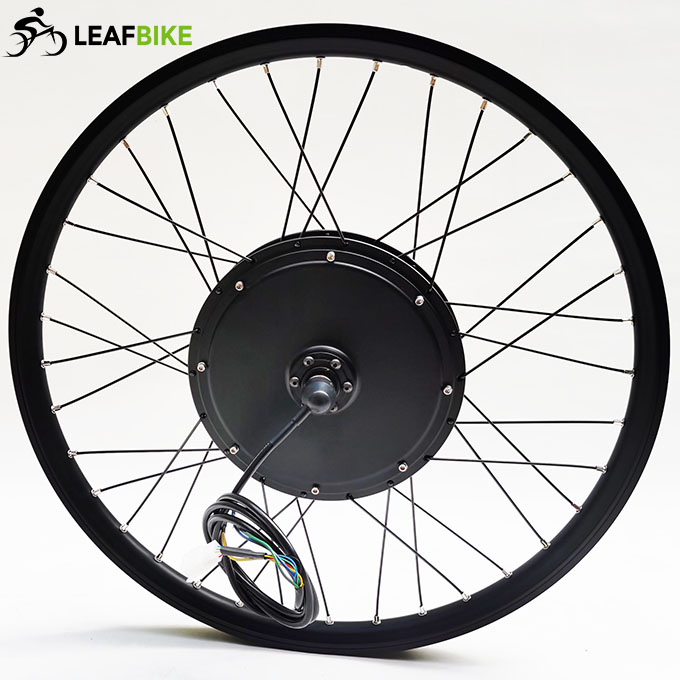

1 x 26 inch 60V 2000W front hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 25.6 lb
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box

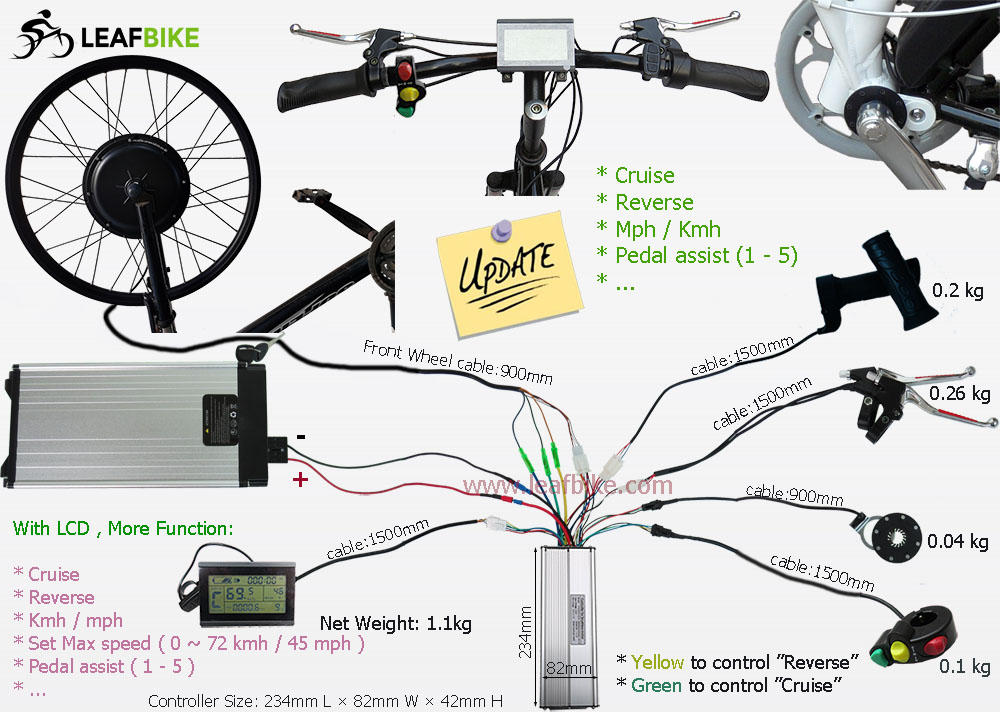

Wire Diagram:
Front Motor Drw.
