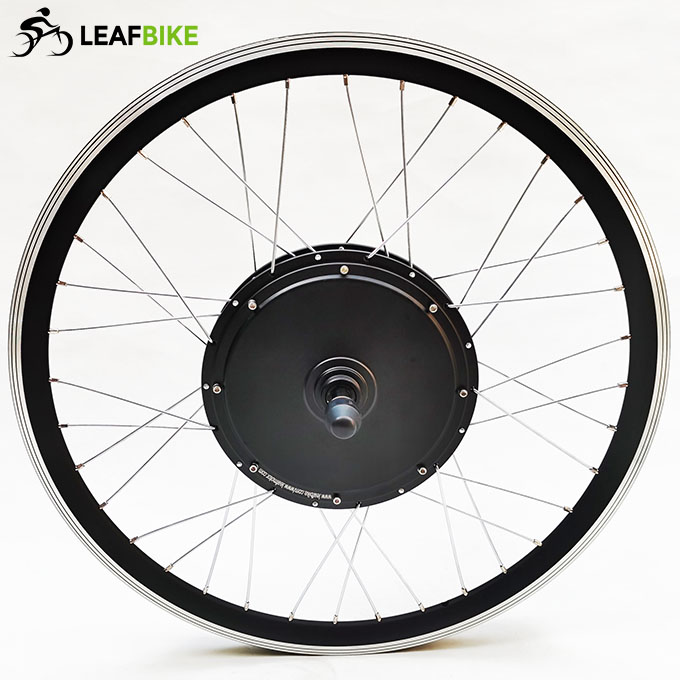

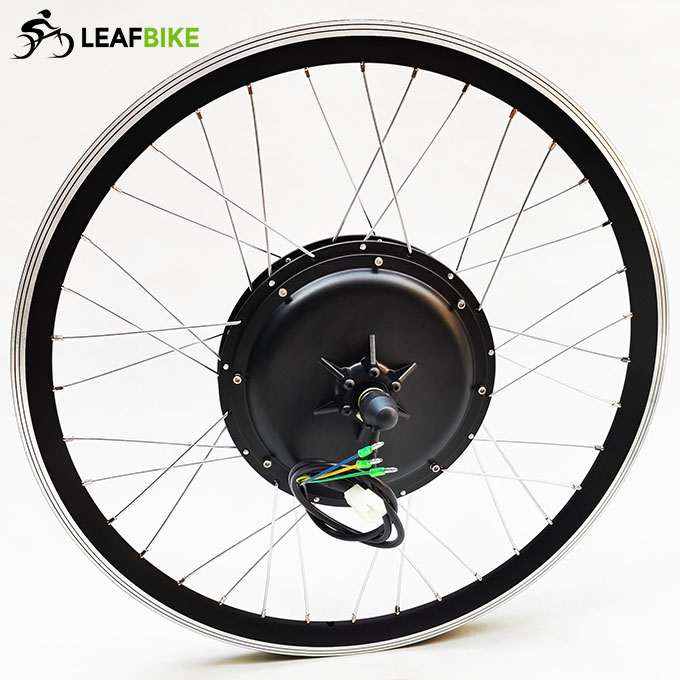

26 inch 36V 750W rear electric hub motor kit

Name: 26 inch 36V 750W rear electric hub motor kit
Brand: Leaf Bike
SKU: LBCK2636750RNK
Price: 341 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2636750RNK

$341.00 ~~$385.00~~

Please select the information you wantX

Tyre Size :

26 x 1.5" / 1.75"

26 x 1.95" / 2.0" ~ 2.5"
Sprocket :

Freewheel

Cassette
LCD :

LCD-003

LCD-005

LCD-07U

LCD-08HUP

Quantity :

Maybe You Need These

Description

Please watch videos for 26 inch 36V 750W rear hub motor - electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

26 inch 36V 750W rear electric hub motor kit video

Share Video:

The 26 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

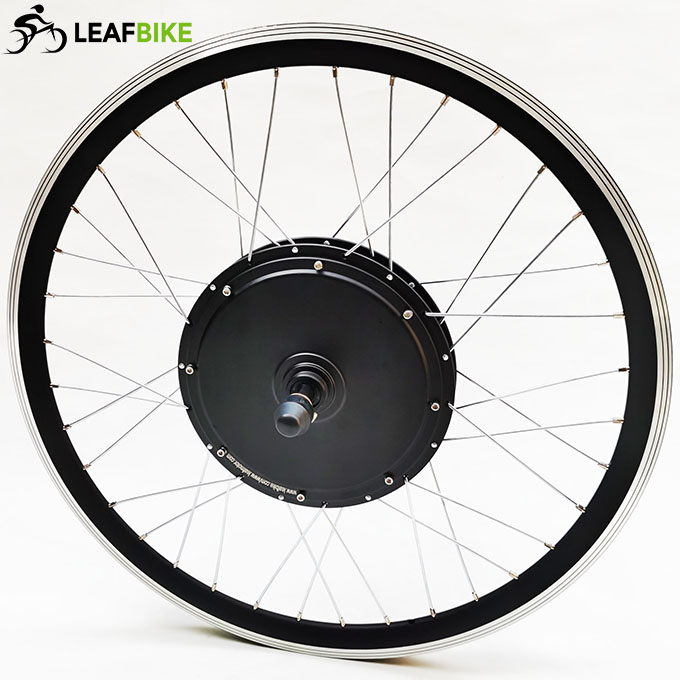

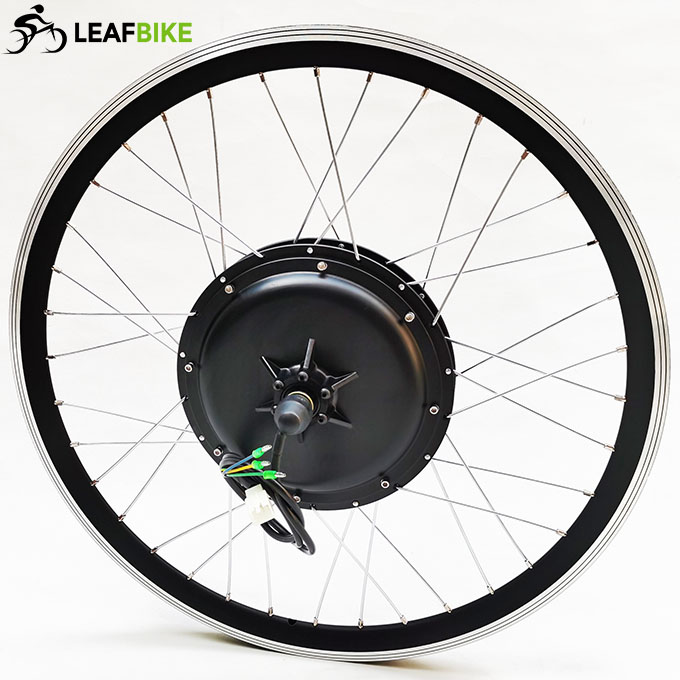

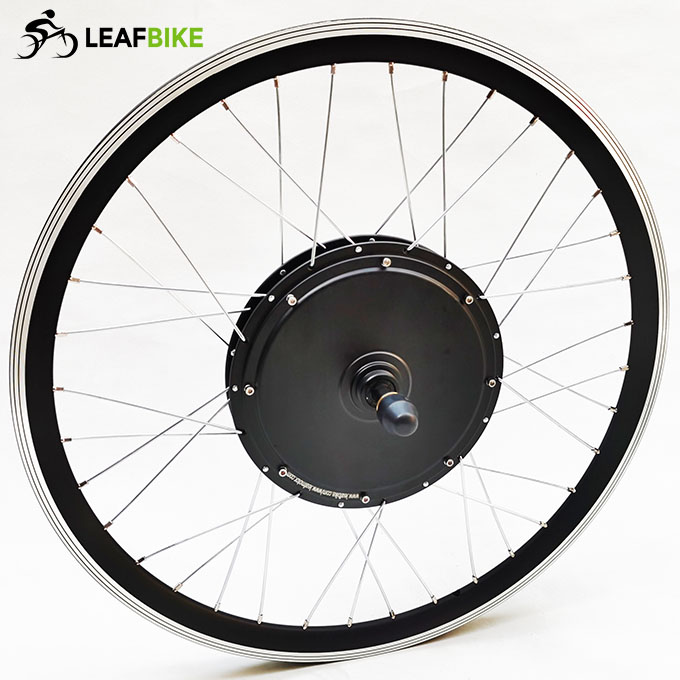

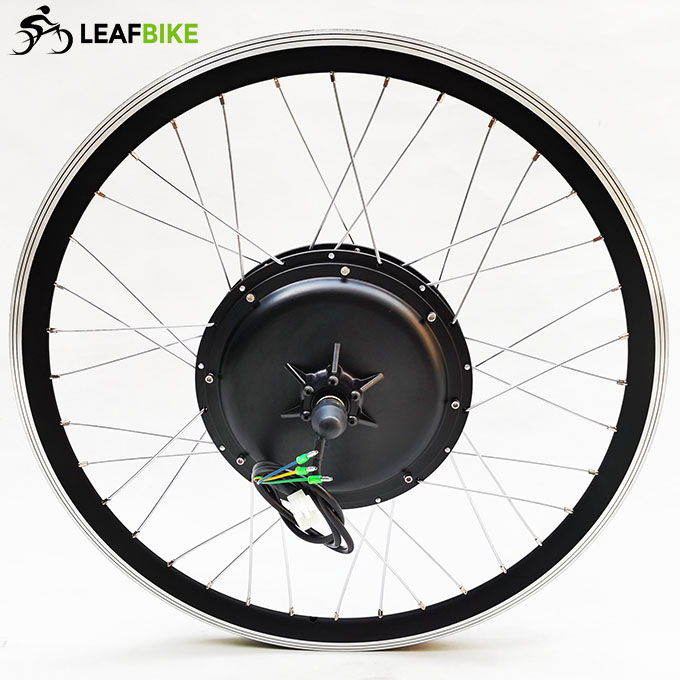

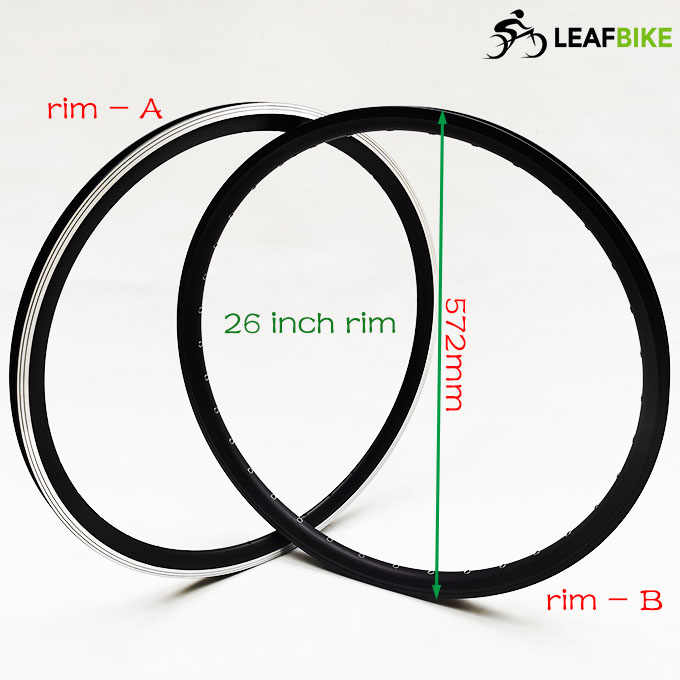

>. Rim: 26 inch / 559 double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: 12 gauge / 154mm Length × 36 pcs

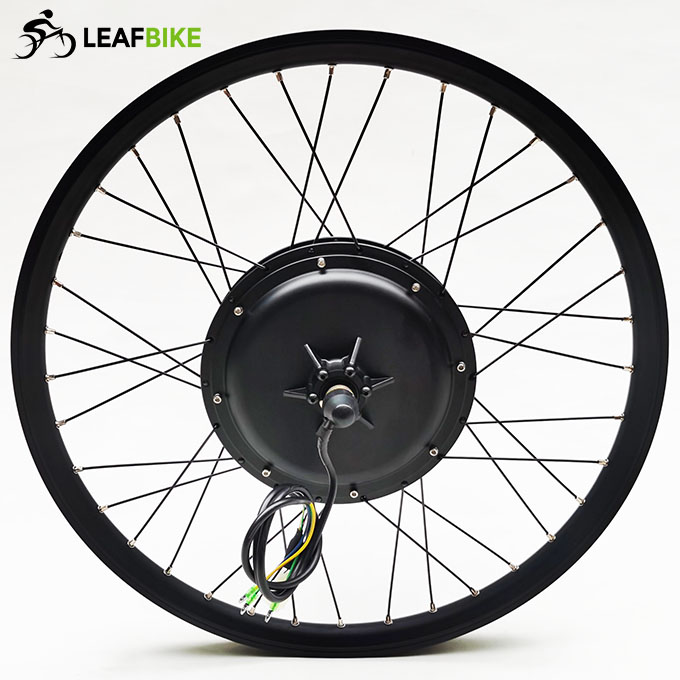

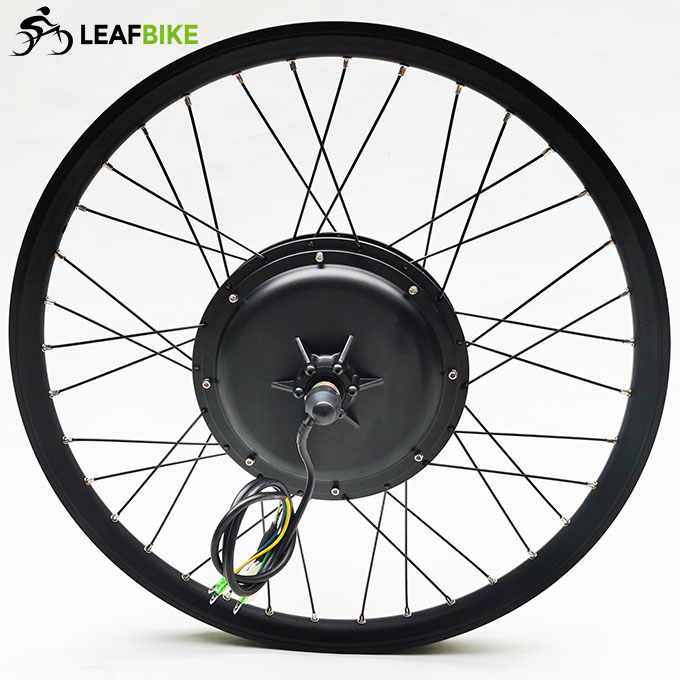

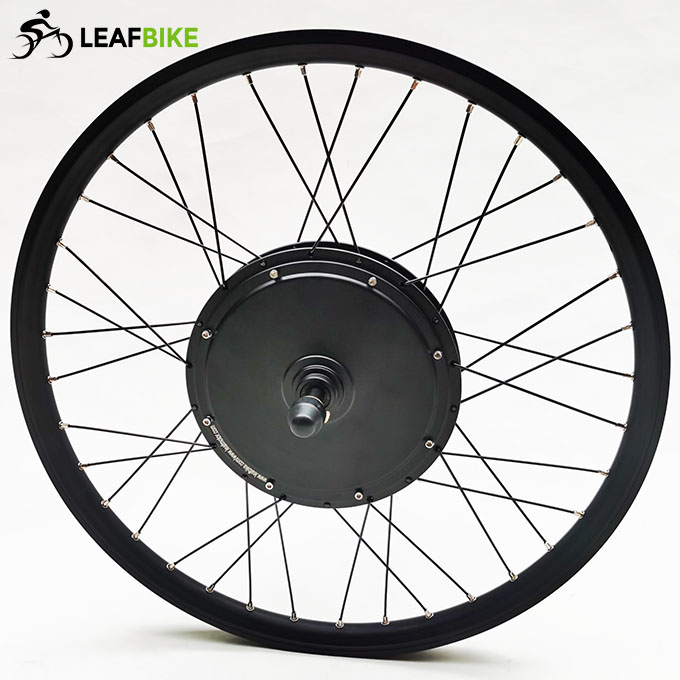

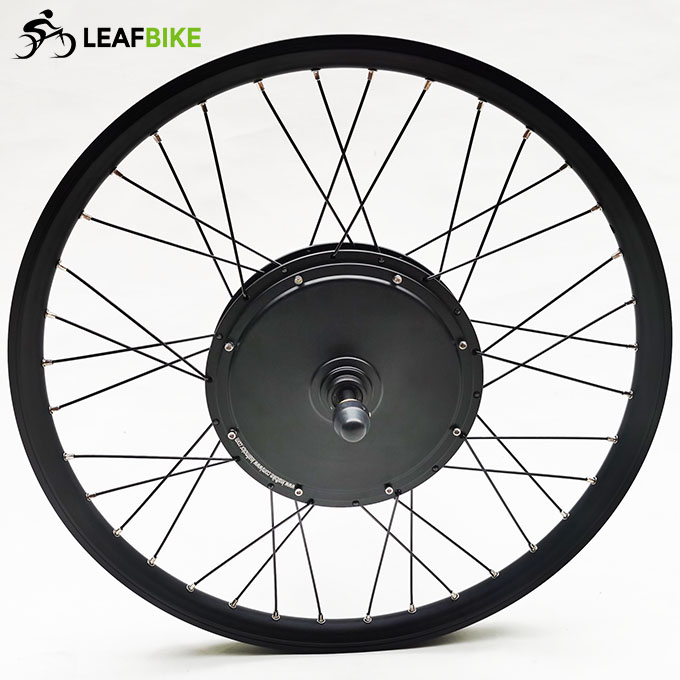

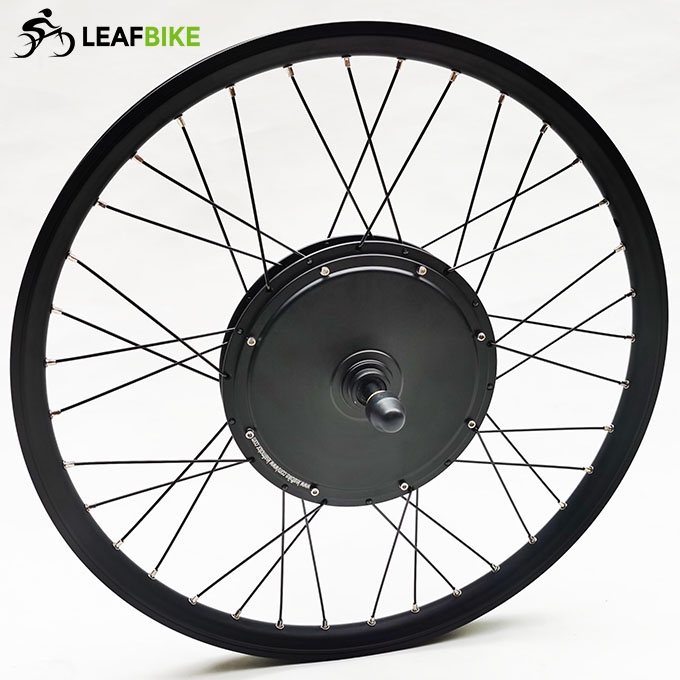

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 60.5 kmh – 37.6 mph
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* ...

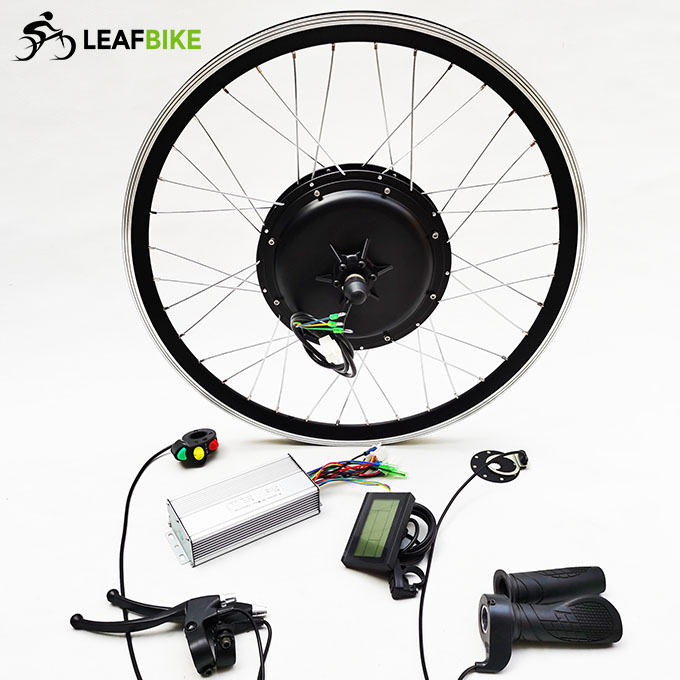

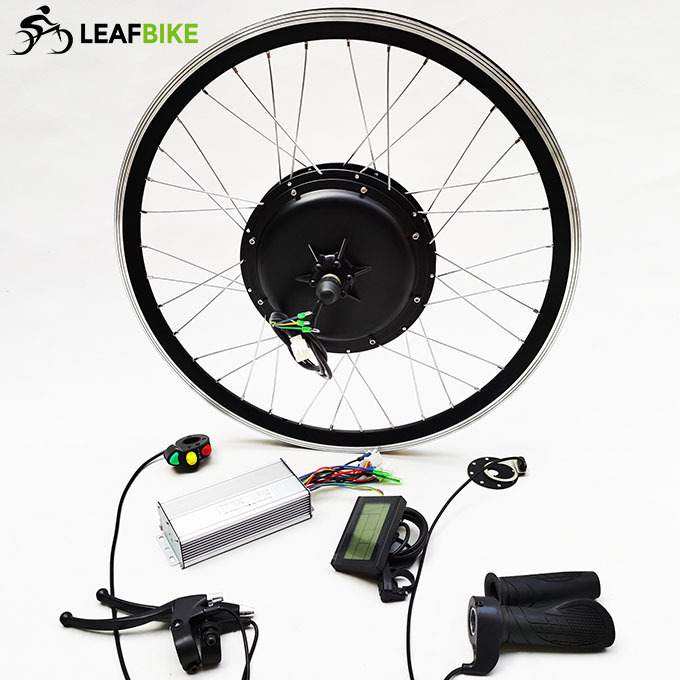

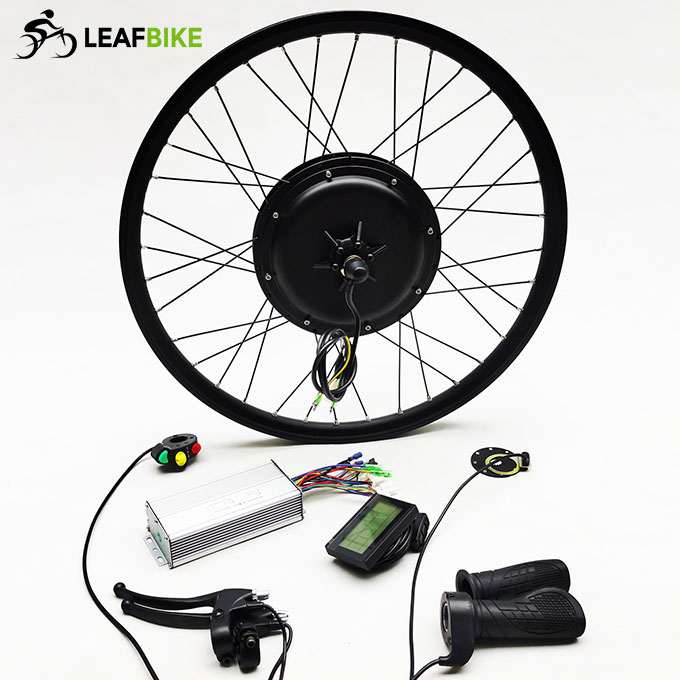

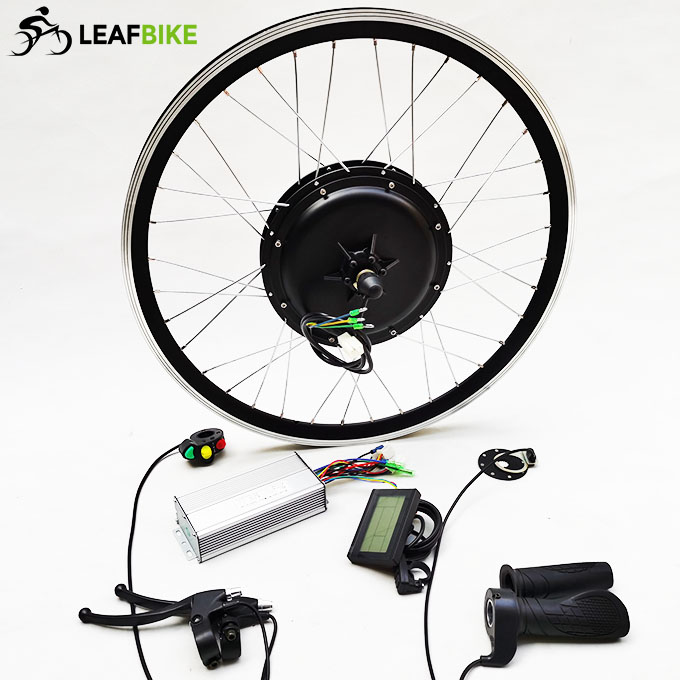

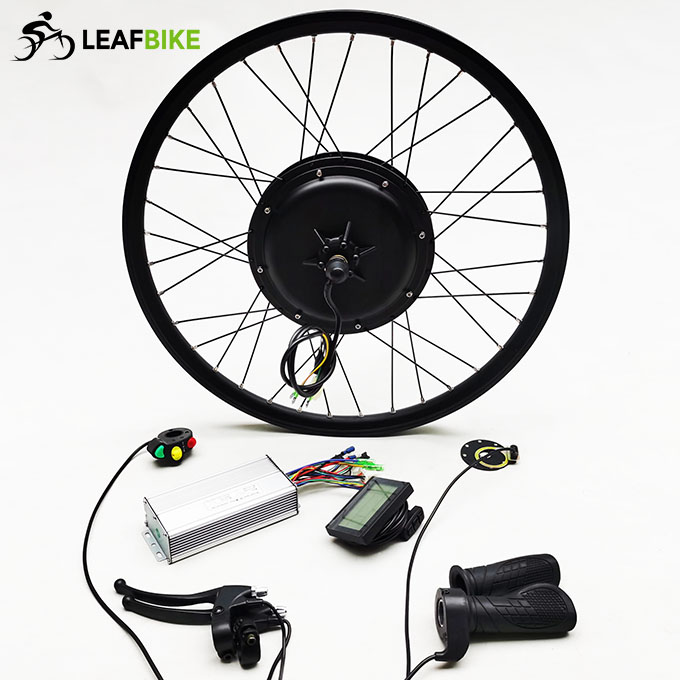

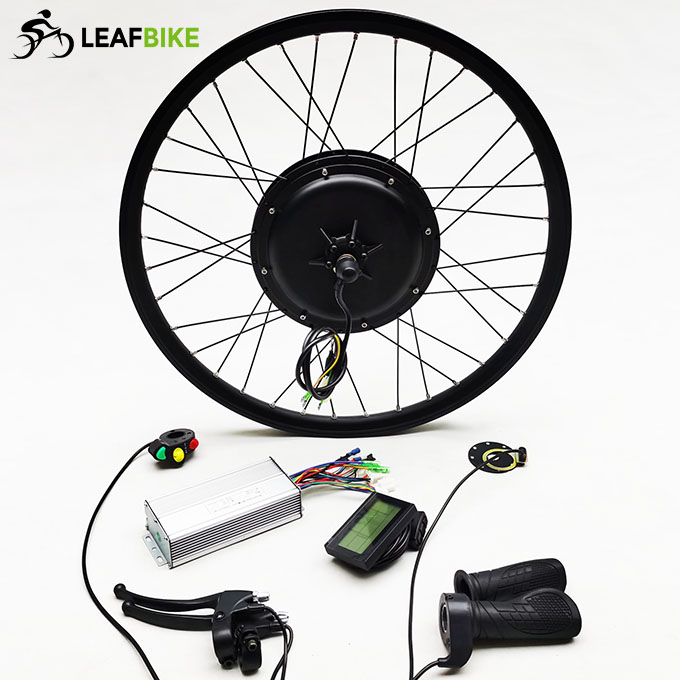

Package Content:

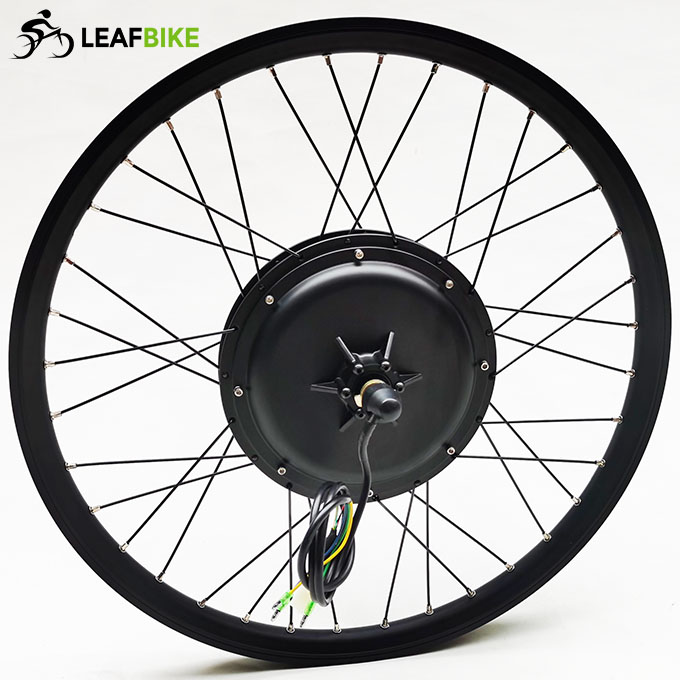

1 x 26 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.9 kg
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box

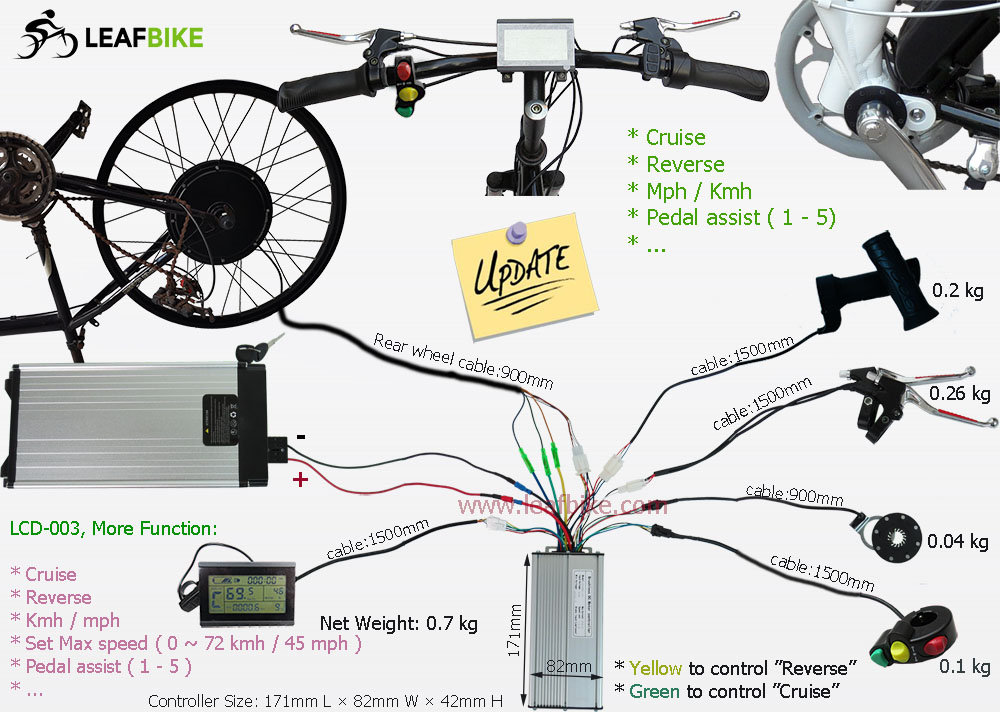

Wire Diagram:

750W Rear Drw.

750W Cassette Drw.

Performance Data:
