Please watch video for wide rim 26 inch 48V 1500W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
* The 26 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

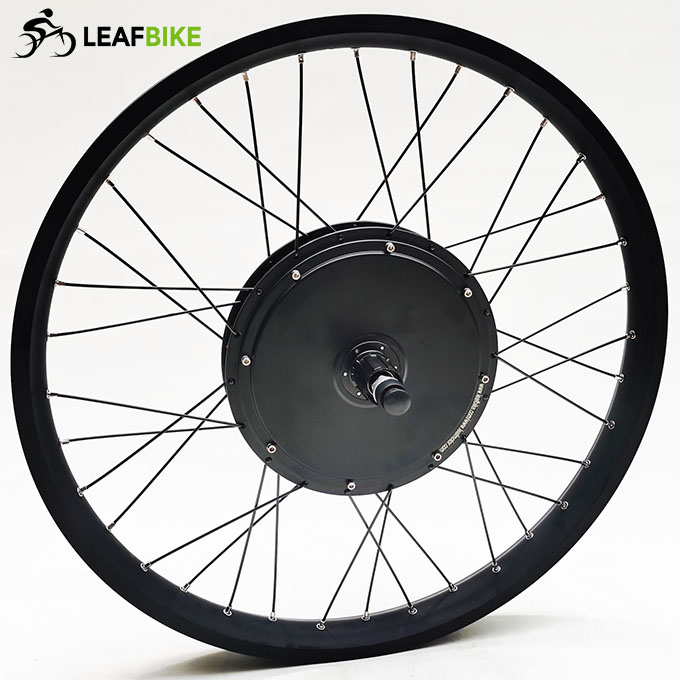

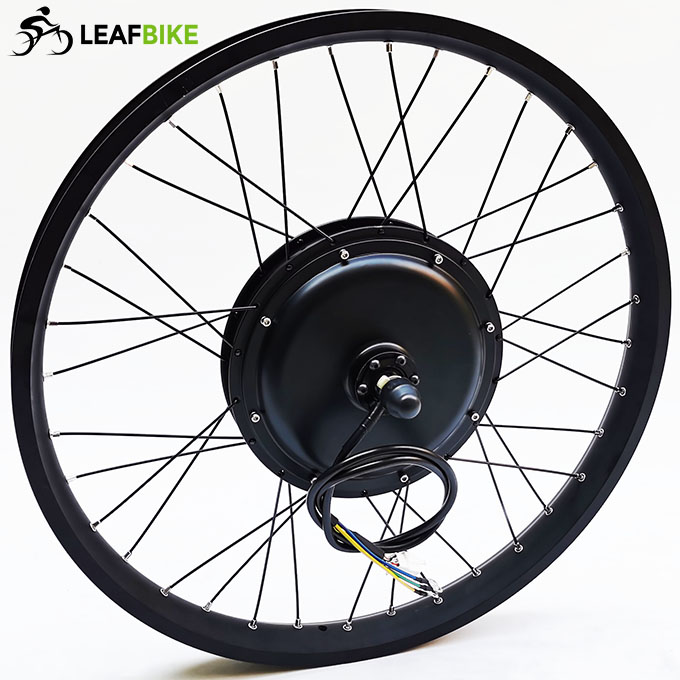

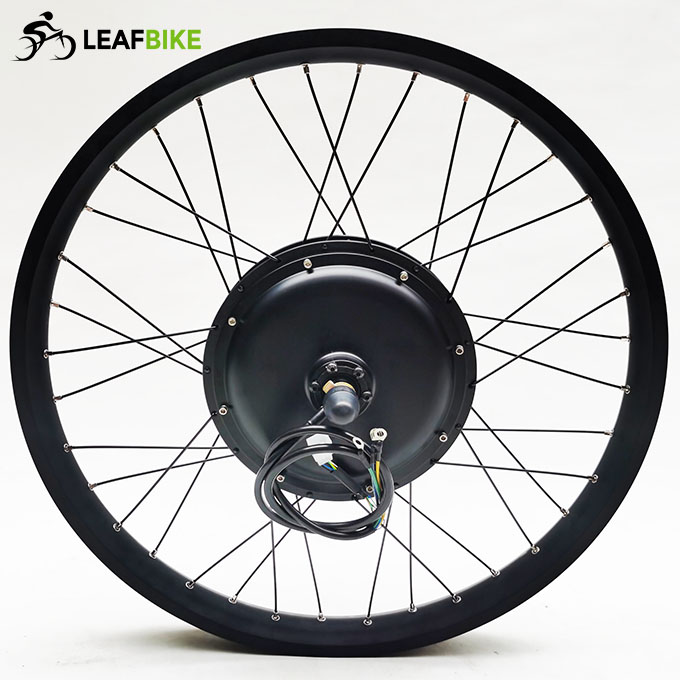

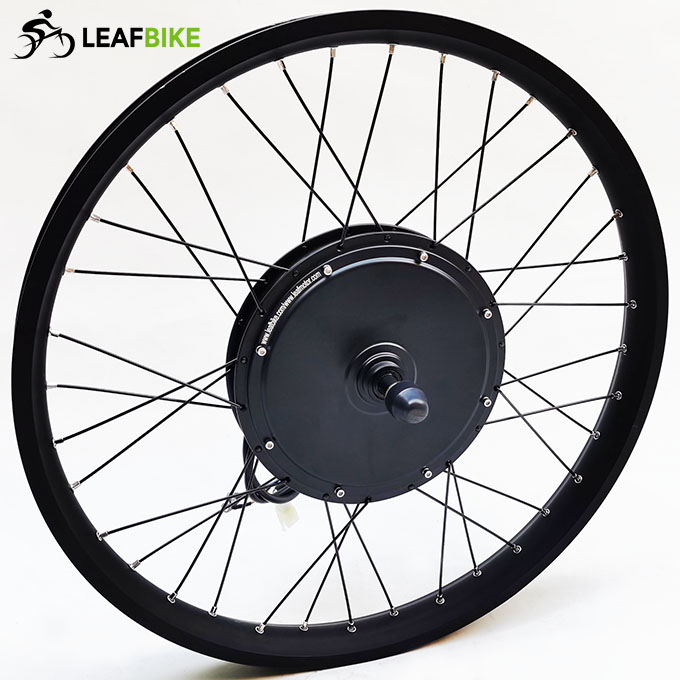

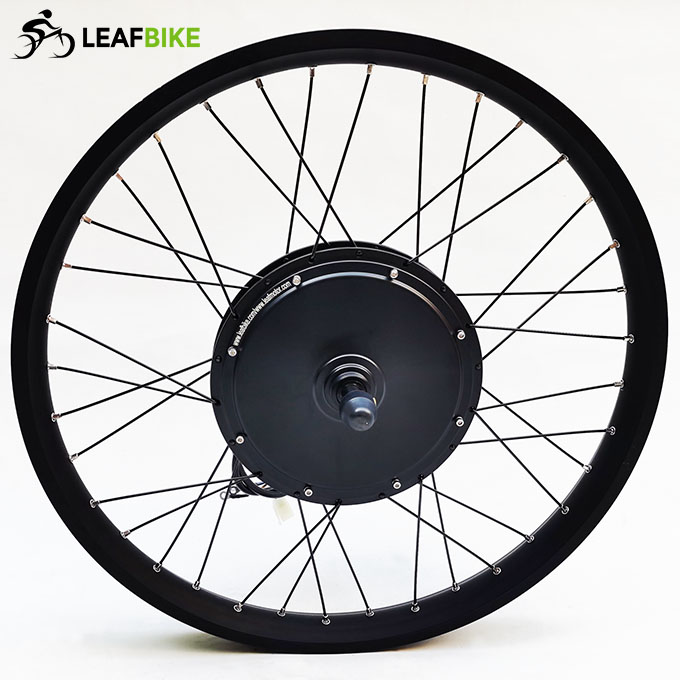

>. Rim: 26 inch 59mm external double wall Alloy (Rim Fit For: 26 × 2.8 ~ 3.0" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs -- (Default black spokes / please leave message for silver spokes)
>. Engine : Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 40mph Default (Optional other speed: 30mph or 25mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min.135mm ~ Max.155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

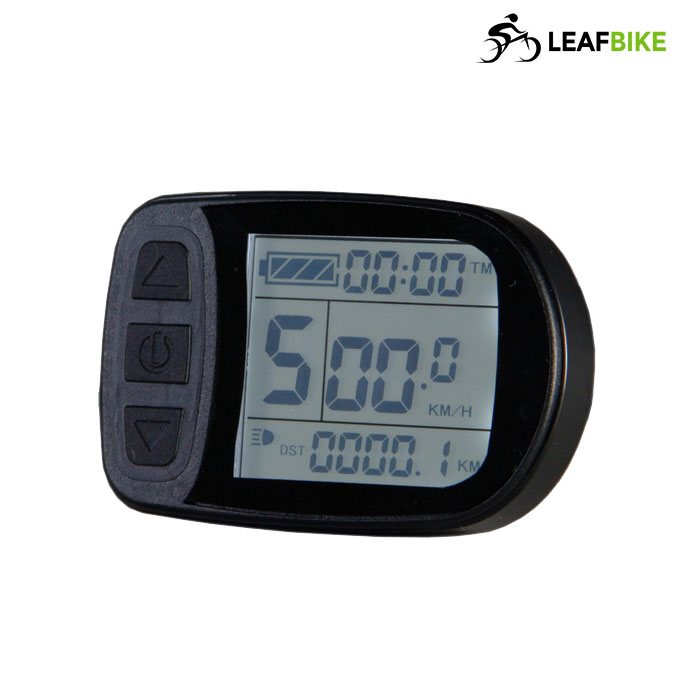

LCD-003, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Max speed ( 0 ~ 72 kmh / 45 mph ) -- If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 1 - 5 )
* ...

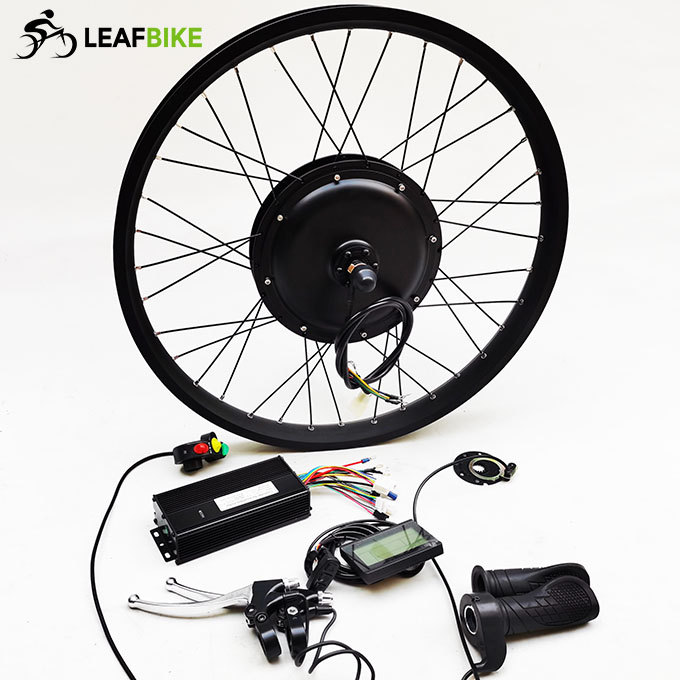

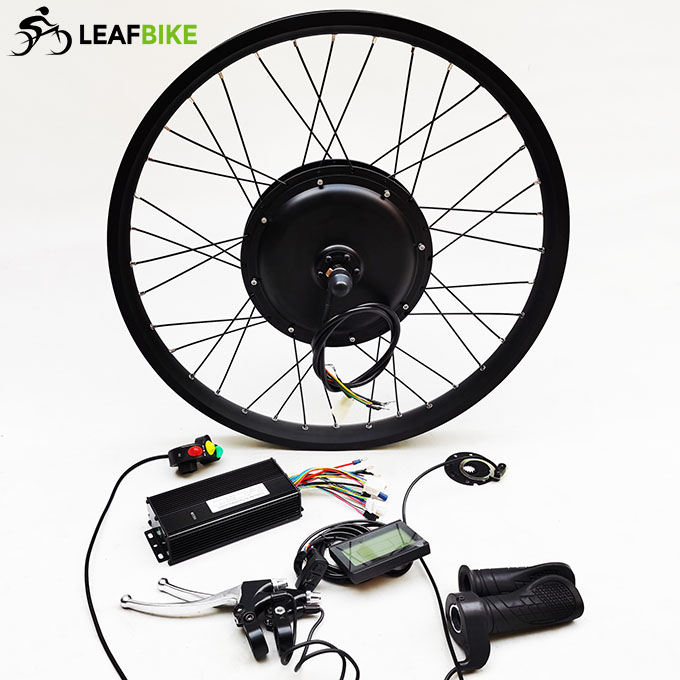

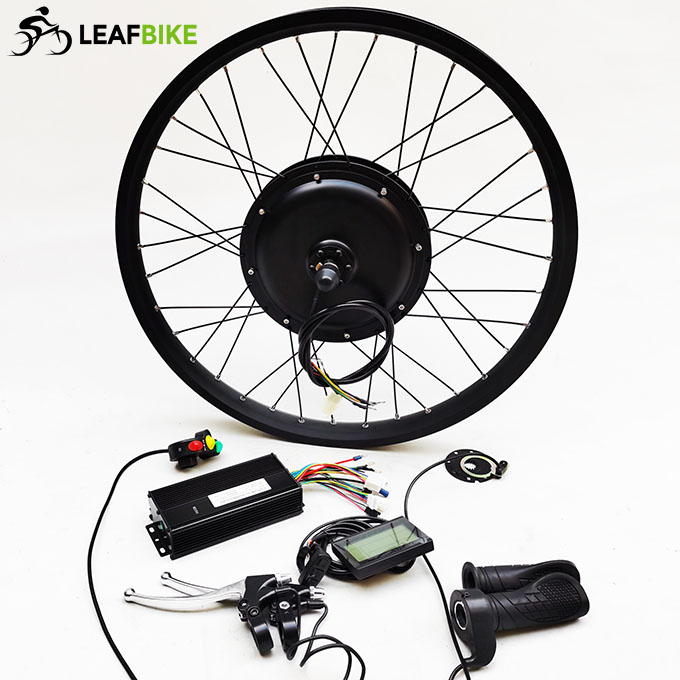

Package Content:

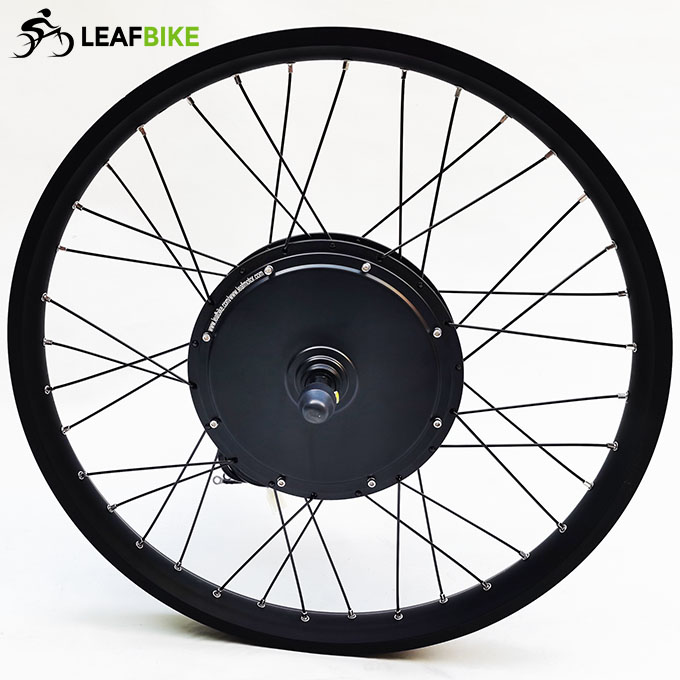

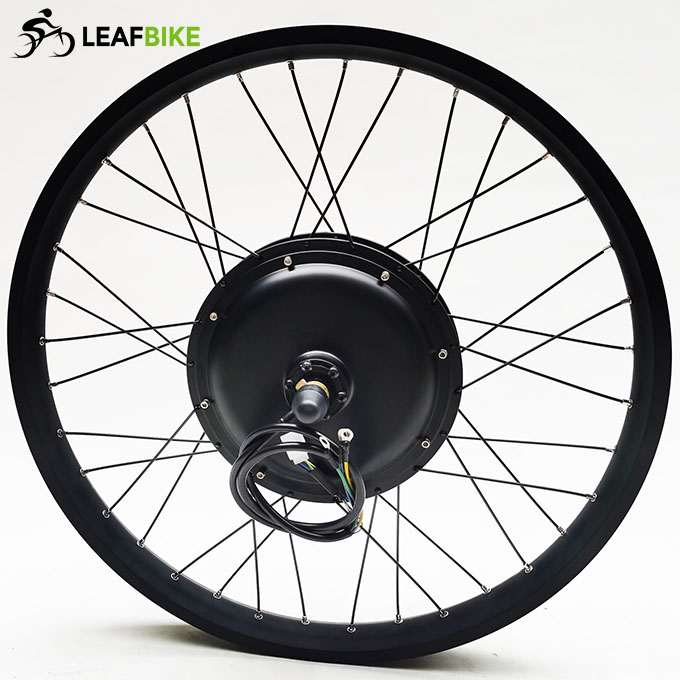

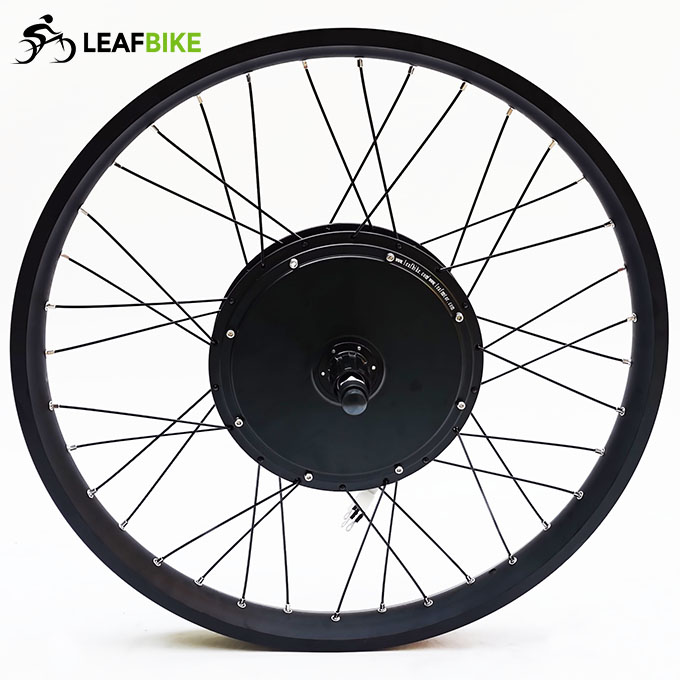

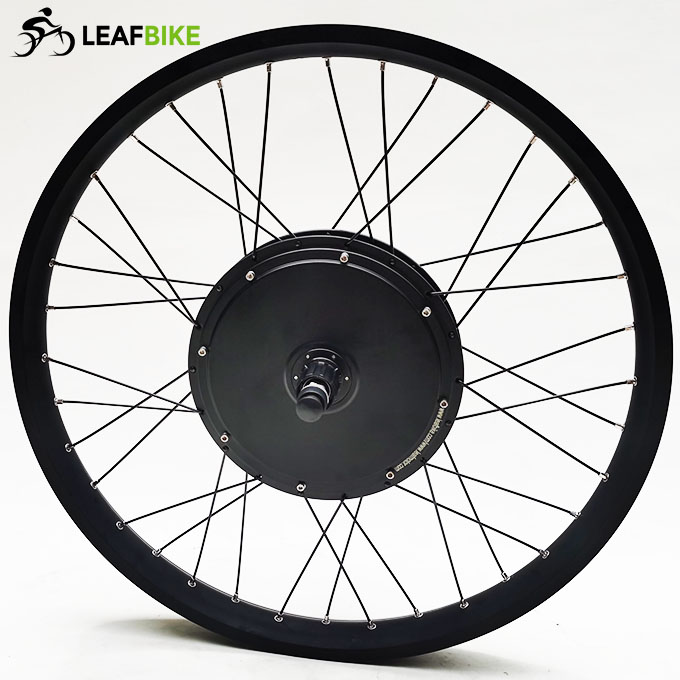

1 x Wide rim - 26 inch 48V 1500W rear hub motor wheel
1 x 48V 1500W 12-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 25.8 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box
* This motor & controller system can handle with a 48V battery.
Wire Diagram:
1500W rear Motor Drw.
1500W Cassette Drw.
Performance Data:
