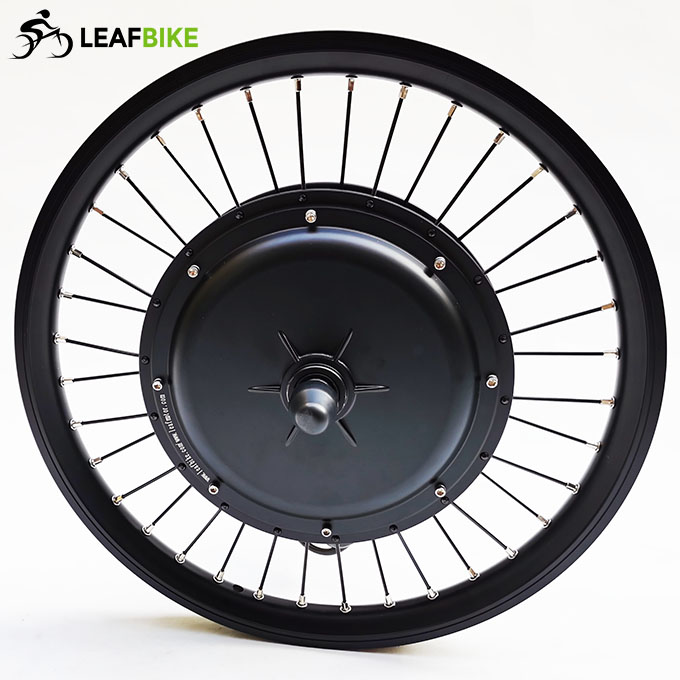

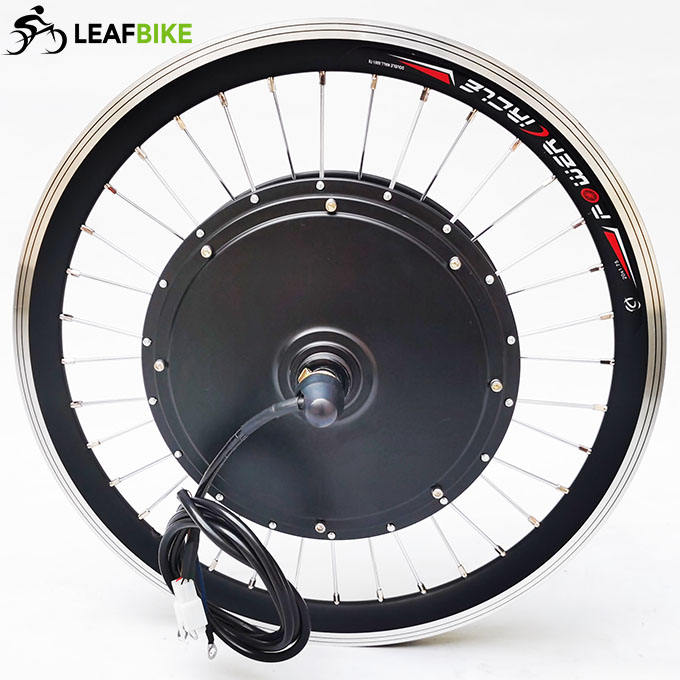

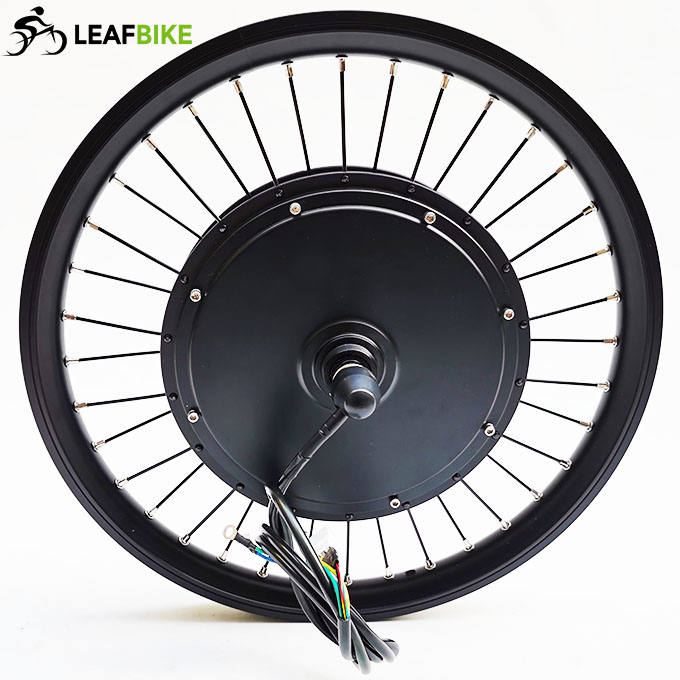

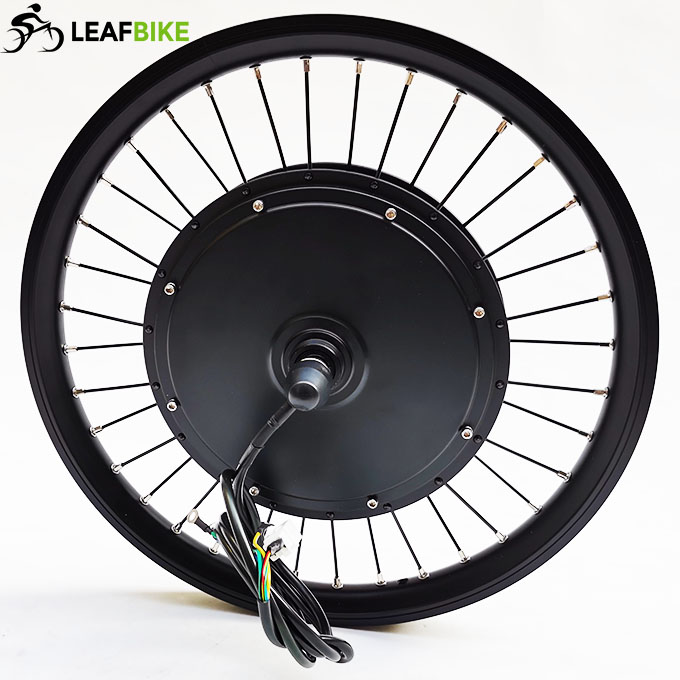

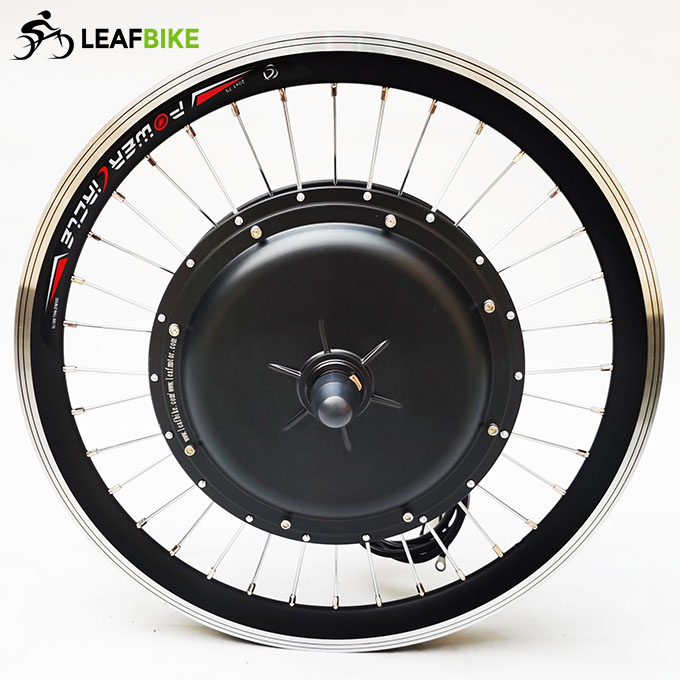

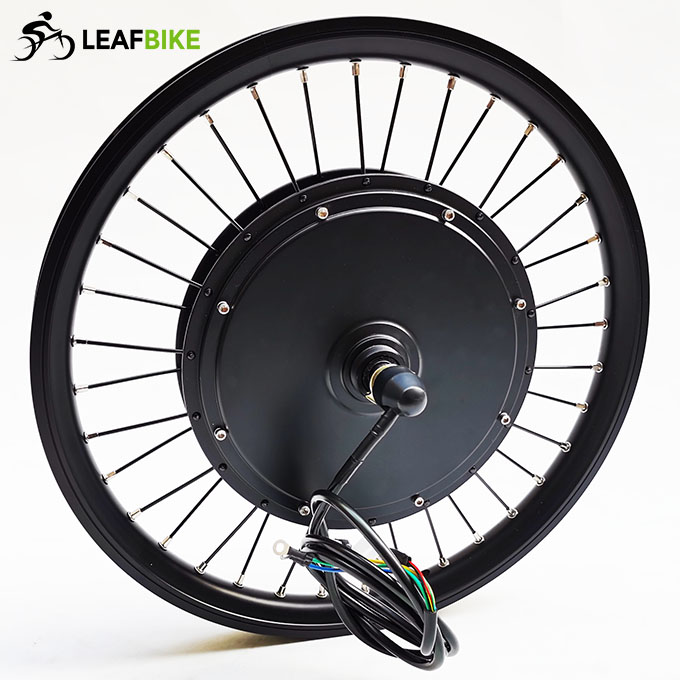

BMX 20 inch 60V 2000W rear hub motor - electric bike conversion kit

Name: BMX 20 inch 60V 2000W rear hub motor - electric bike conversion kit
Brand: Leaf Bike
SKU: LBCK20602000RNBK
Price: 428 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20602000RNBK

$428.00 ~~$472.00~~

Maybe You Need These

Description

Please watch videos for BMX 20 inch 60V 2000W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

BMX 20 inch 60V 2000W rear hub motor electric bike conversion kit video

Share Video:

20 inch 60V 2000W BMX rear hub motor electric bike conversion kit video

* This 20 inch BMX bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

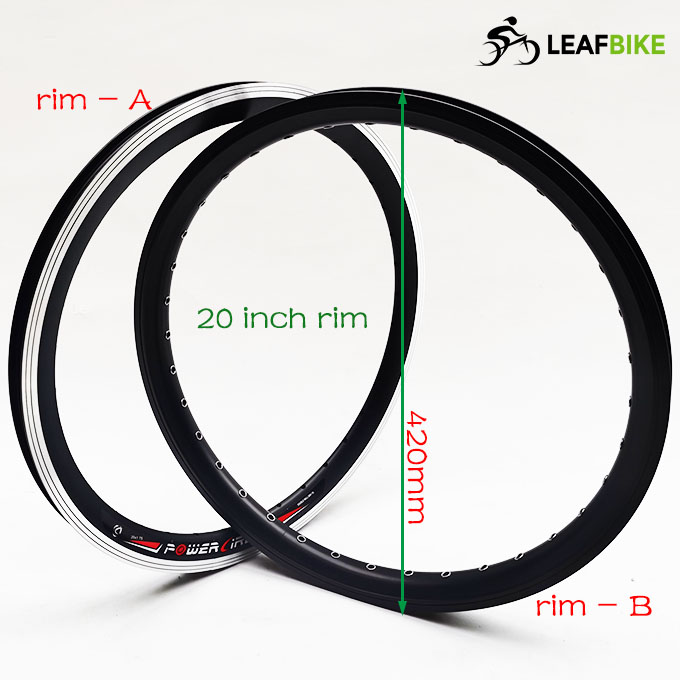

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.35" / 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 42.7 mph
>>. Mechanical brake: V
>>. Freewheel: single speed cog
>>. Cable location: Shaft end, Right
>>. Cable length:150cm / 60"
>>. Install: spacing of 110mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42mm H

With LCD, More function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

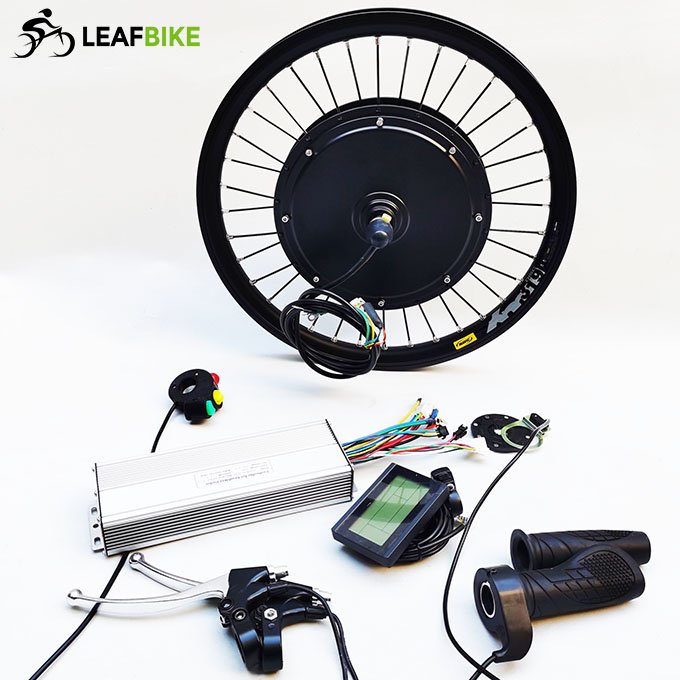

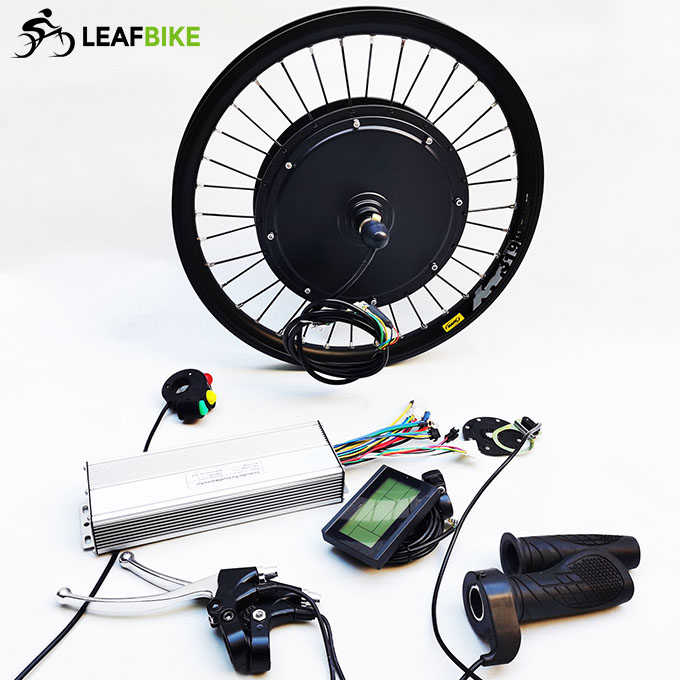

Package Content:
1 x BMX 20 inch 60V 2000W rear hub motor wheel (Fit for 110mm rear dropout)
1 x 60V 2000W motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.0 kg
Package Size: 50cm L x 50cm W x 23cm H
Package Type: Cardboard Box

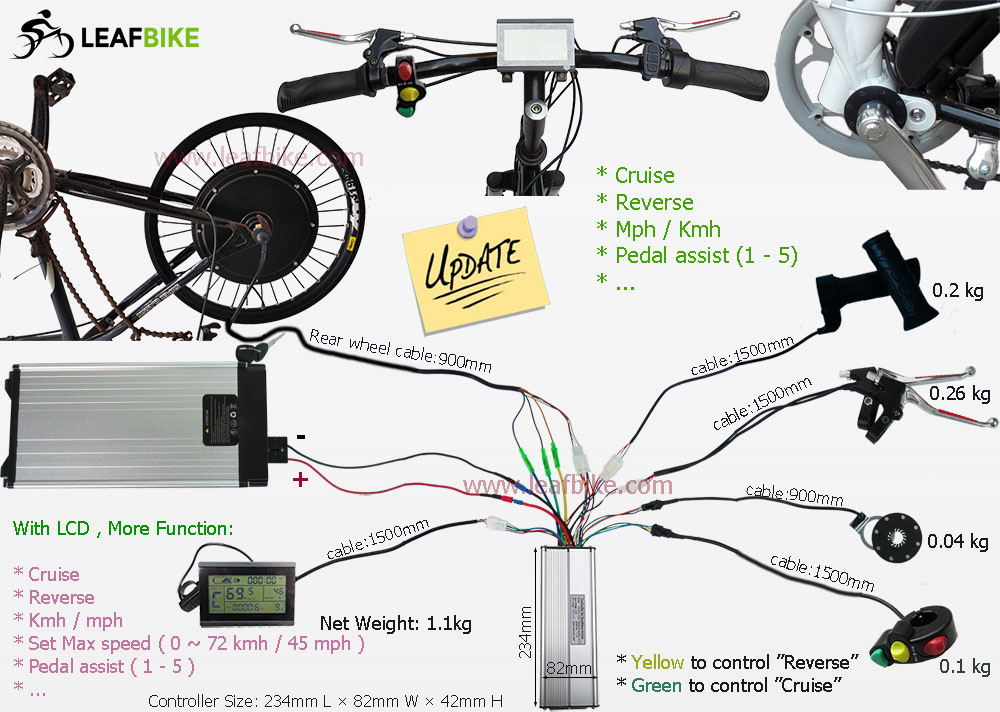

Wire Diagram:

BMX Motor Drw.
