BMX 20 inch 36V 400W 600W 800W rear geared hub motor - electric bike kit

Name: BMX 20 inch 36V 400W 600W 800W rear geared hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK2036GRNB
Price: 385 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2036GRNB

$385.00 ~~$432.00~~

Please select the information you wantX

Tyre Size :

20 x 1.95" / 2.0" ~ 2.5"

20 x 1.5" / 1.75"
LCD :

S830

SW900

08HU

08SU
Power :

36V 400W

36V 600W

36V 800W

Quantity :

Maybe You Need These

Description

The 20 inch BMX bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

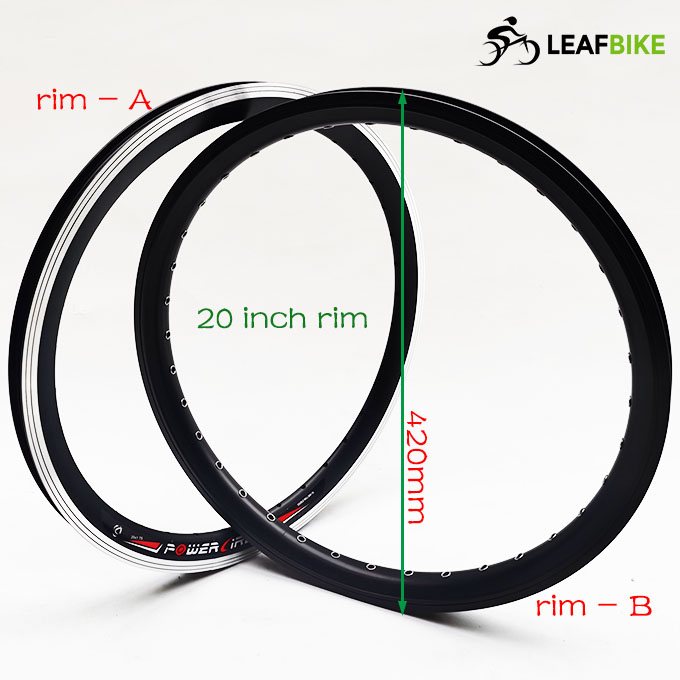

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 118mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 123mm Length × 36 pcs

>. Engine: BMX rear geared hub motor
>>. Voltage: 36V
>>. Power: 400W / 600W / 800W
>>. Efficiency: 86.3%
>>. Max speed: 20.2 kmh - 12.5 mph Default (Optional other speed:20mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Freewheel: space for single speed
>>. Cable location: shaft end, RIGHT
>>. Cable length:100cm / 40"
>>. Install: spacing of 110mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: 36V controller & LCD
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 400 / 600 / 800 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backward (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours.
https://www.leafbike.com/products/diy-bike-conversion-kit/bmx-20-inch-36v-300w-500w-750w-rear-geared-hub-motor-electric-bike-kit-1519.html
* ...

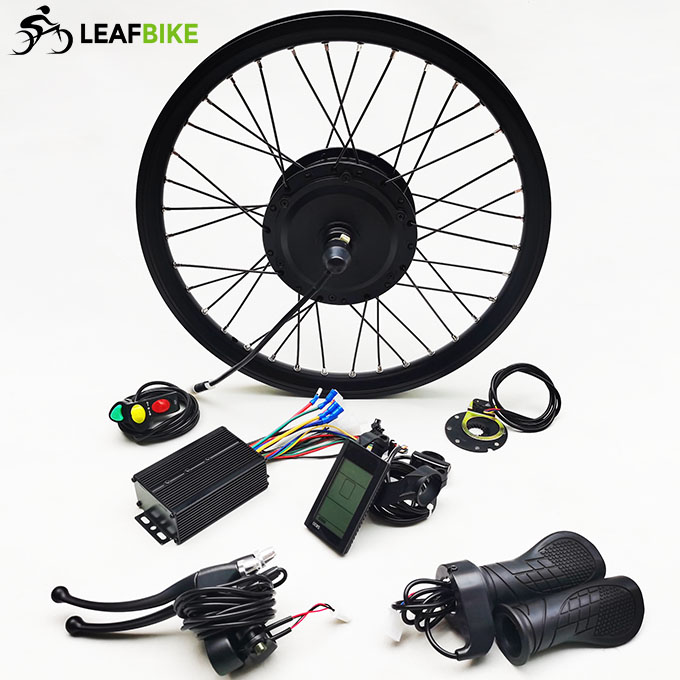

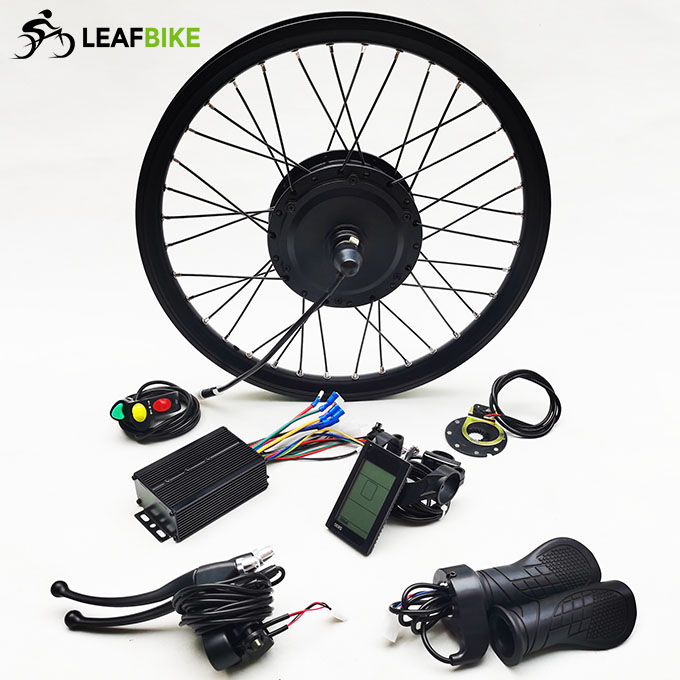

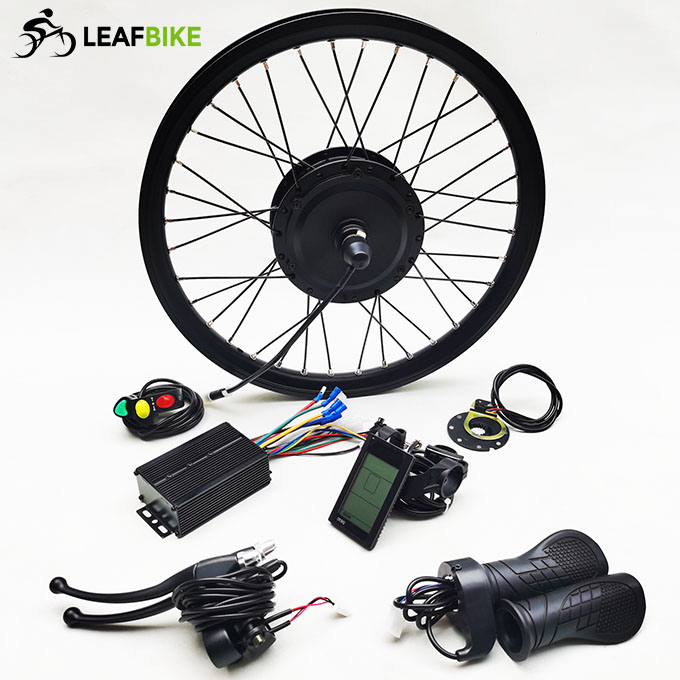

Package Content:

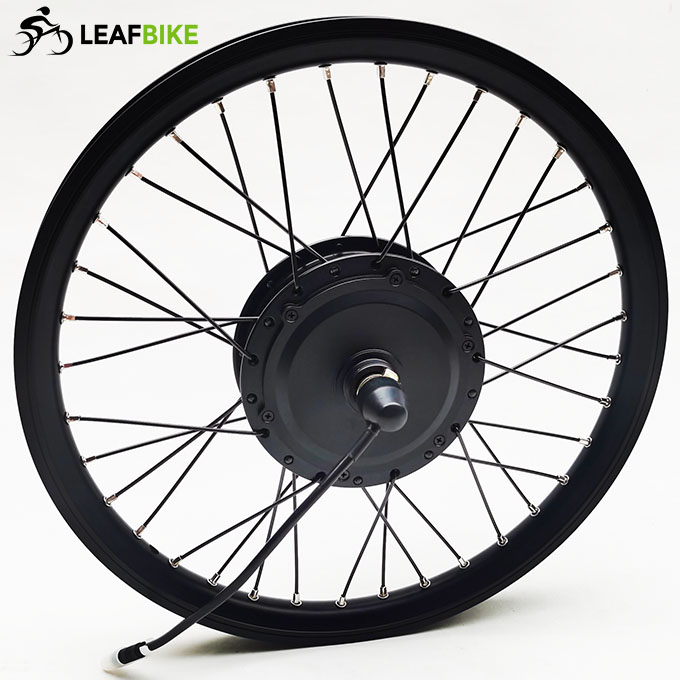

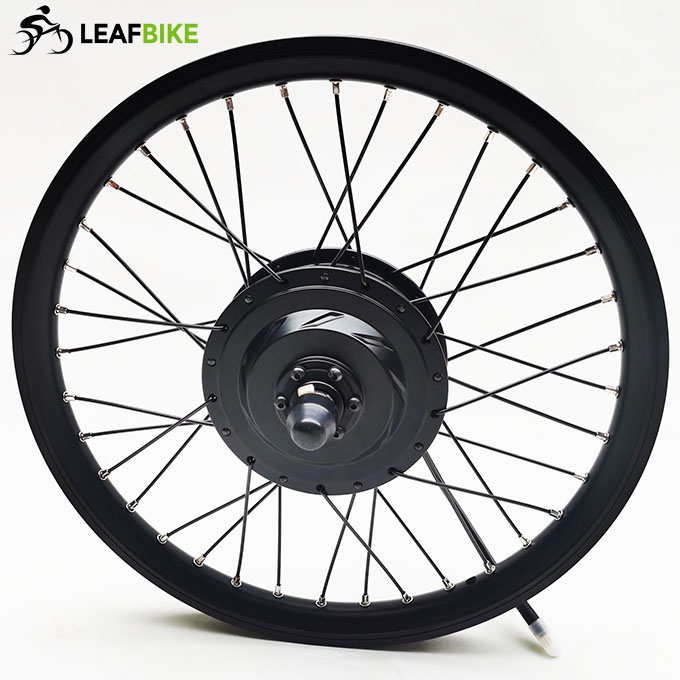

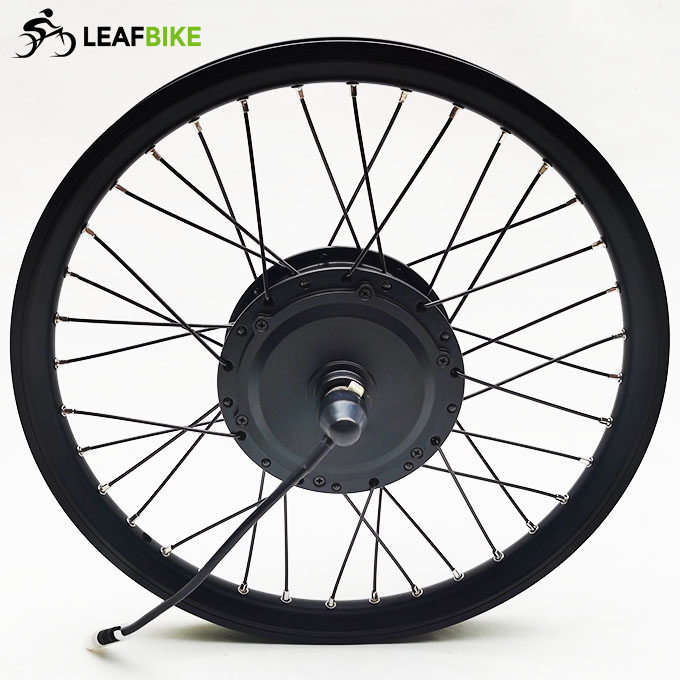

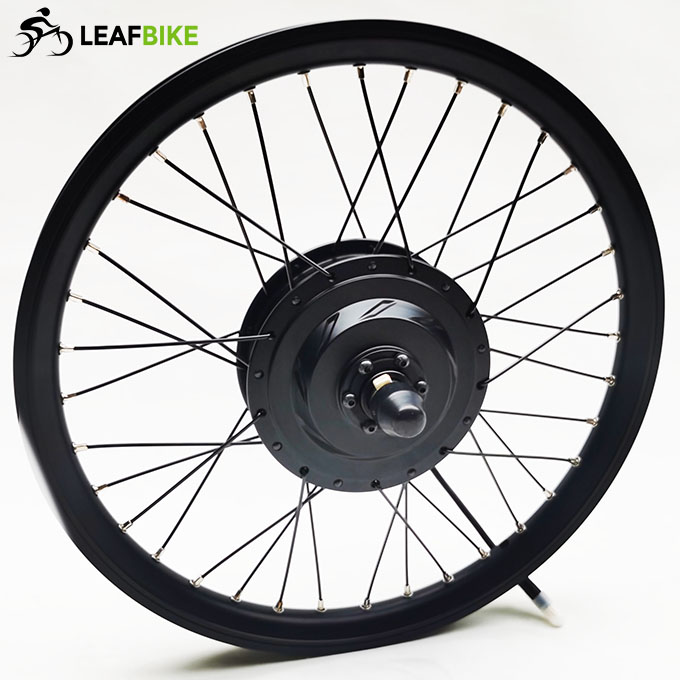

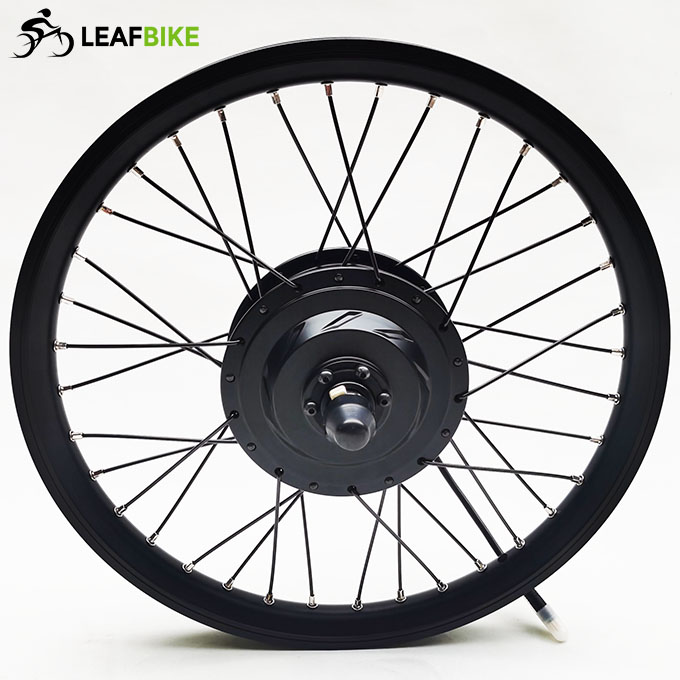

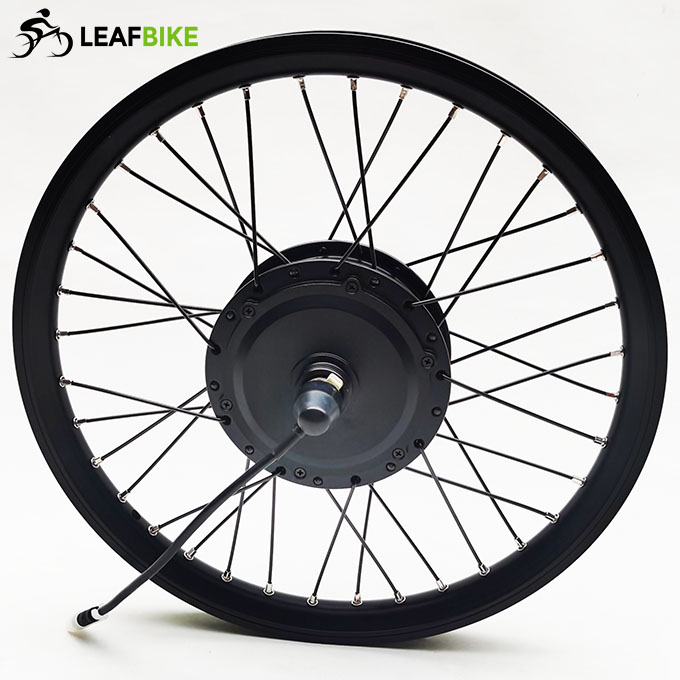

1 x 20 inch 36V rear BMX geared hub motor wheel
1 x 36V motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 5.7 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

BMX Geared Motor Drw.

BMX 36V 400W 600W 800W rear hub motor drawing

Performance Data:
