20 inch 36V 750W front electric hub motor conversion kit

Name: 20 inch 36V 750W front electric hub motor conversion kit
Brand: Leaf Bike
SKU: LBCK2036750FNK
Price: 315 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2036750FNK

$315.00 ~~$359.00~~

Maybe You Need These

Description

Please watch videos for 20 inch front 36V 750W hub motor bike conversion kits that only show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh..

20 inch hub motor kit

20 inch 36v 750w front hub motor kit video

Share Video:

Share Video:

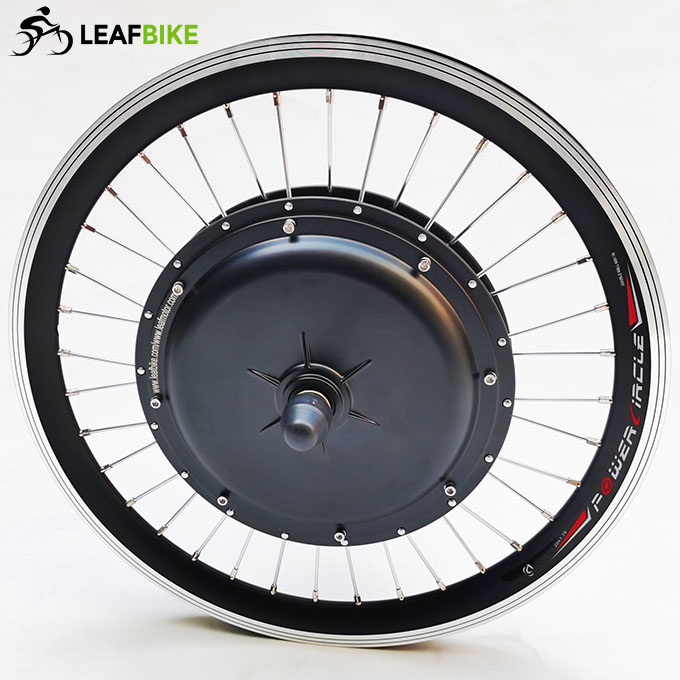

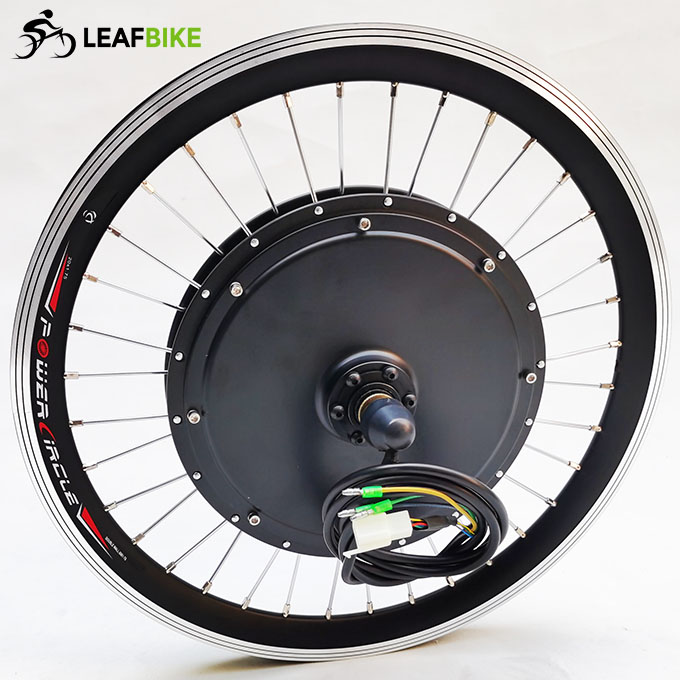

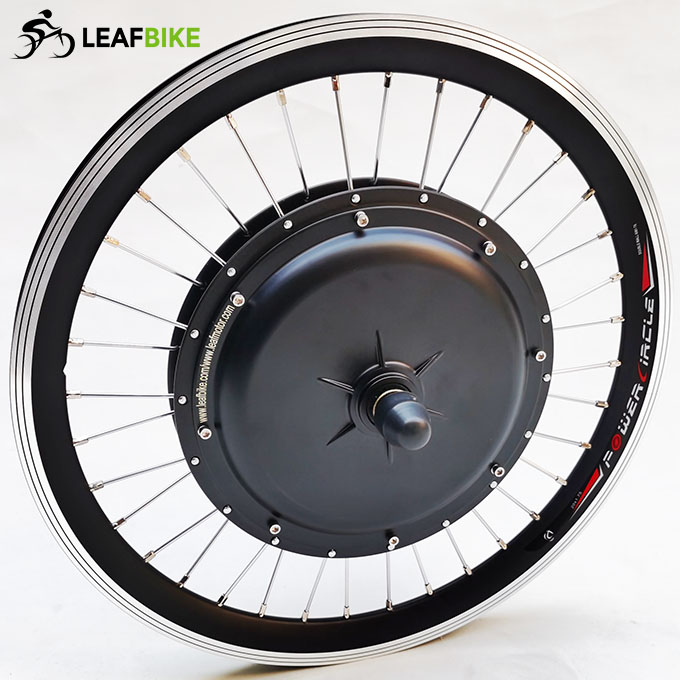

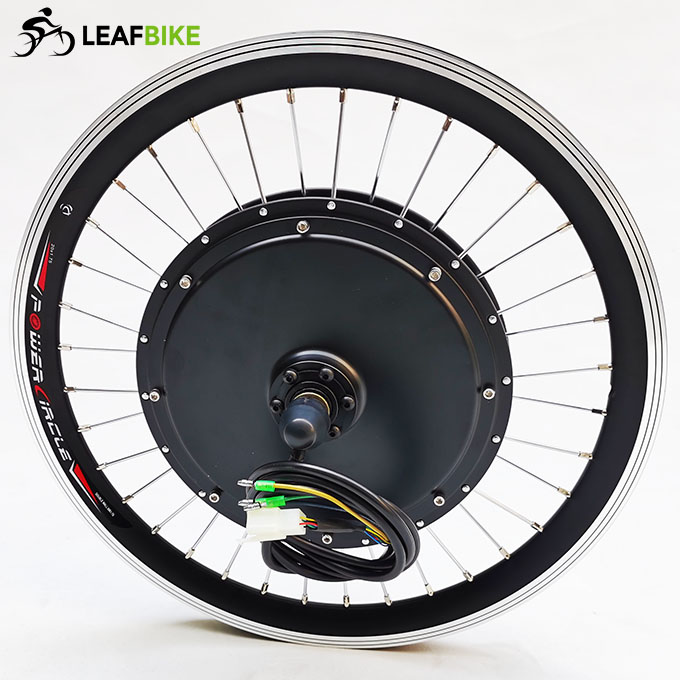

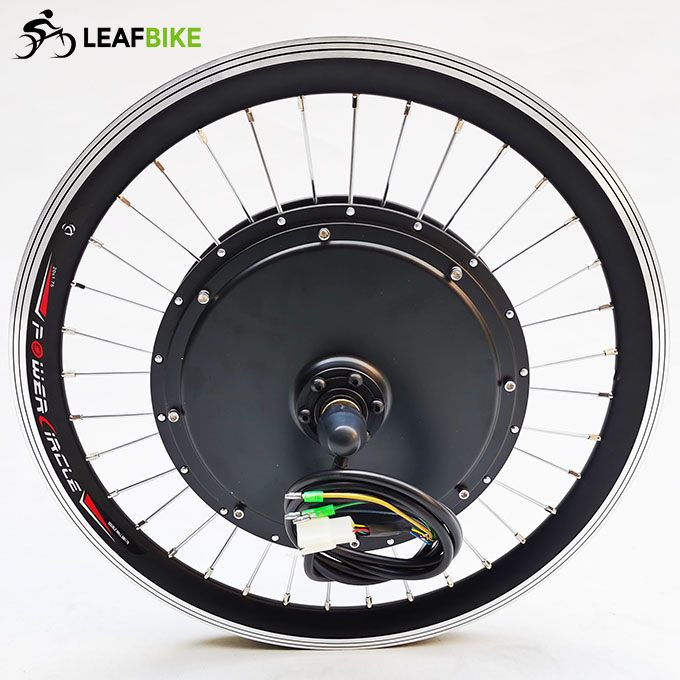

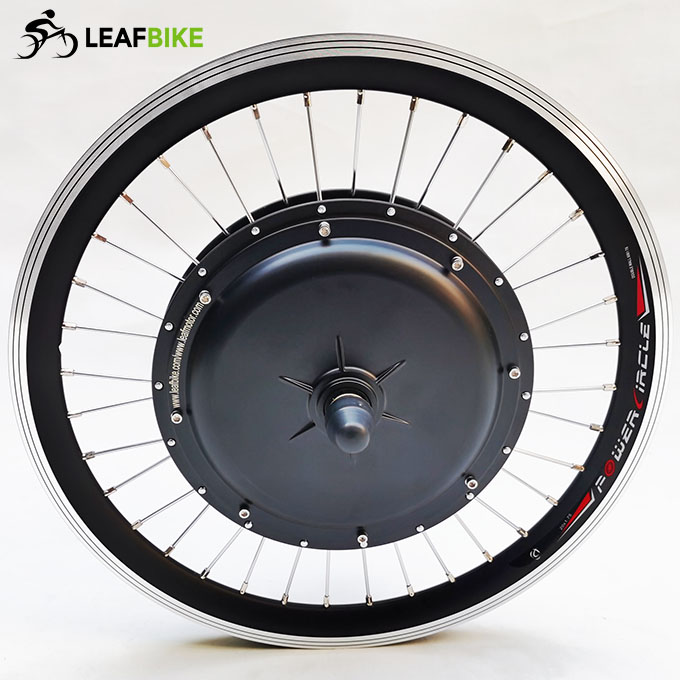

20 inch 36v 750w front electric hub motor - bike conversion kit

The 20 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

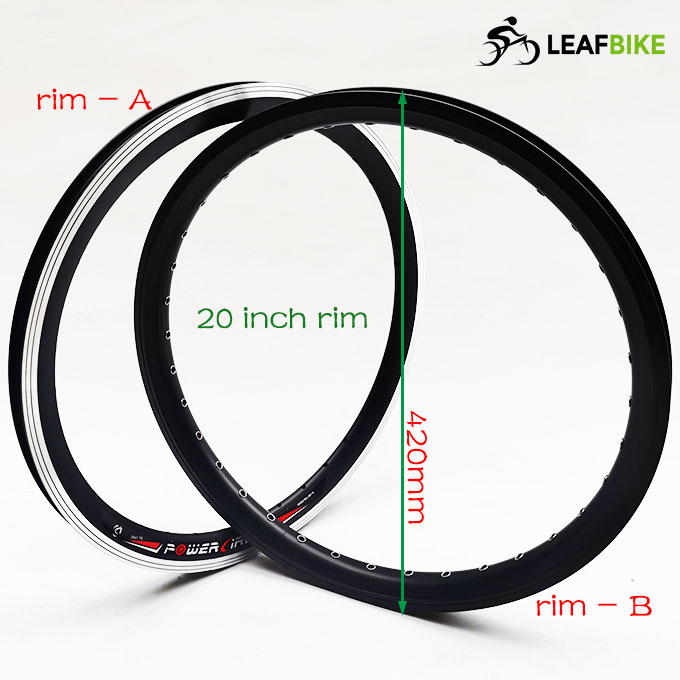

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 29 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end , LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

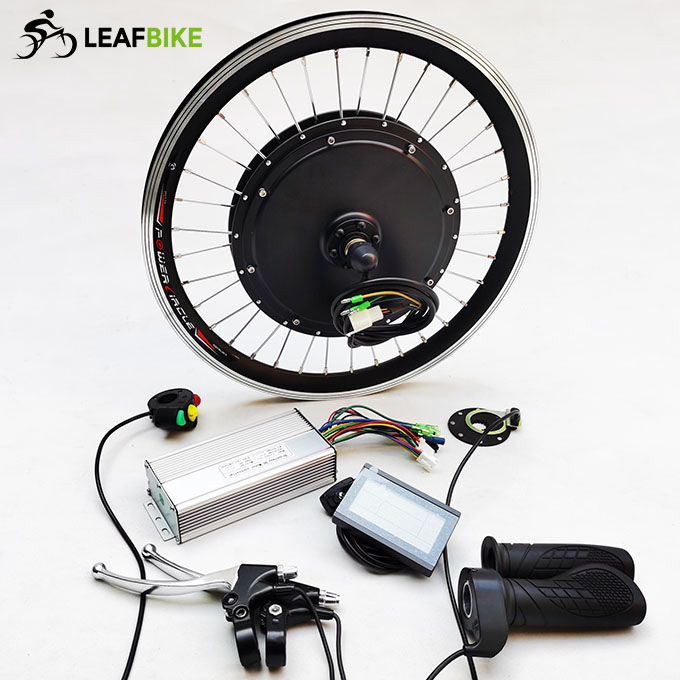

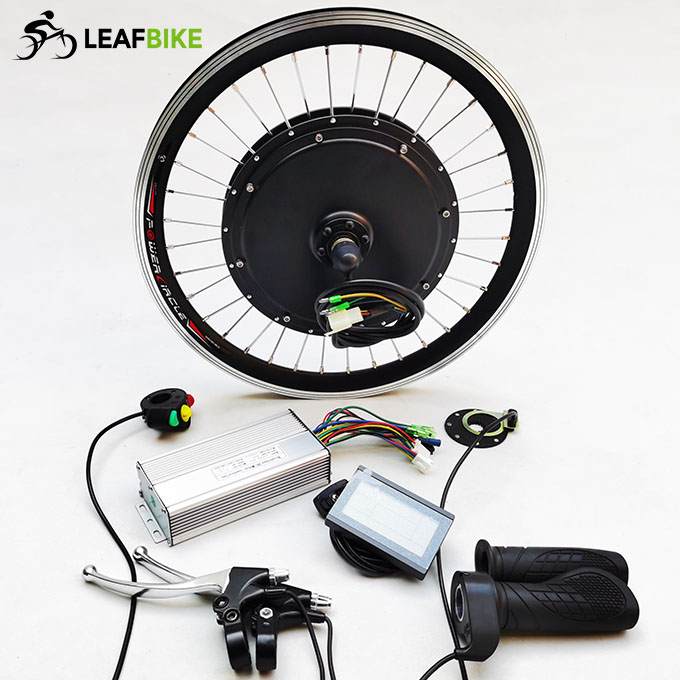

Package Content:
1 x 20 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 9.3 kg / 20.5 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

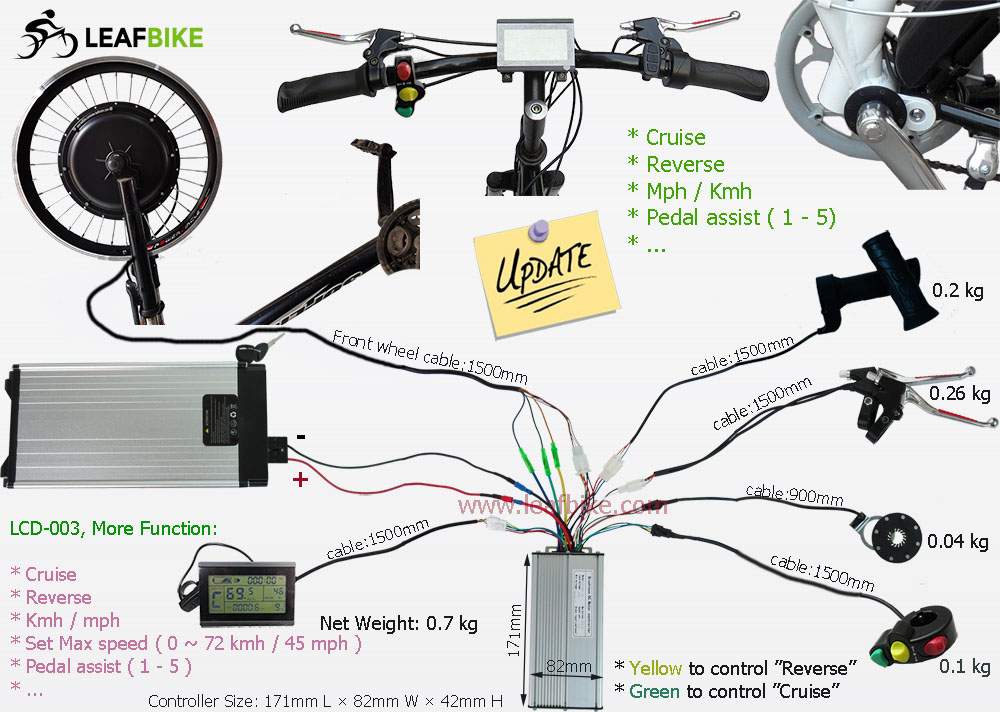

Wire Diagram:

750w Front Drw.

Performance Data:
