26 inch snow fat tire LBM481500RNC 26x4 52v1500w front hub assembly 26x4 front motor 48v 20 inch

BMX 20 inch 48V 500W 750W 1000W rear geared hub motor - electric bike kit

Name: BMX 20 inch 48V 500W 750W 1000W rear geared hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK2048GRNBK
Price: 385 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2048GRNBK

$385.00 ~~$427.00~~

Please select the information you wantX

Tyre Size :

20 x 1.95" / 2.0" ~ 2.5"

20 x 1.5" / 1.75"
LCD :

LCD-003

LCD-005

LCD-07U

LCD-08HUP
Power :

48V 500W

48V 750W

48V 1000W

Quantity :

Maybe You Need These

Description

Please watch videos for BMX 20 inch 48V 500W 750W 1000W rear geared hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh ..

48V 750W:

48V 500W:

* The 20 inch BMX bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

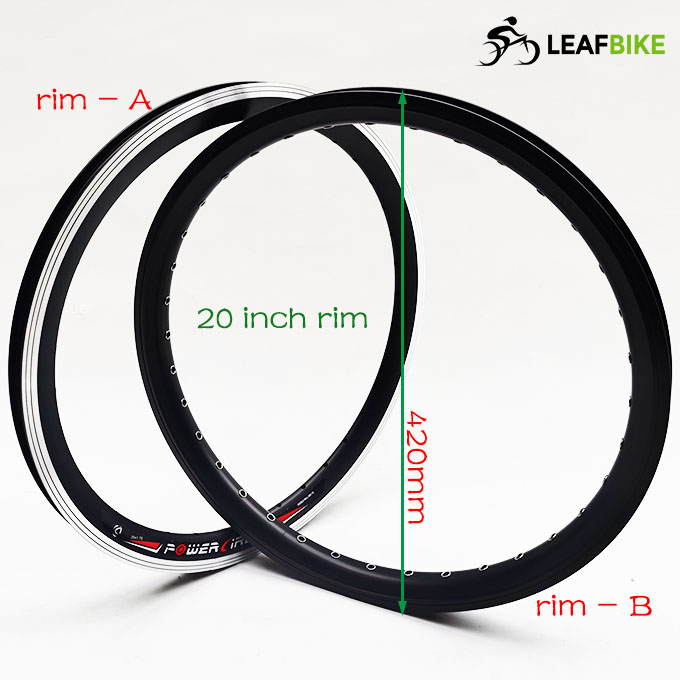

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 118mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 123mm Length × 36 pcs

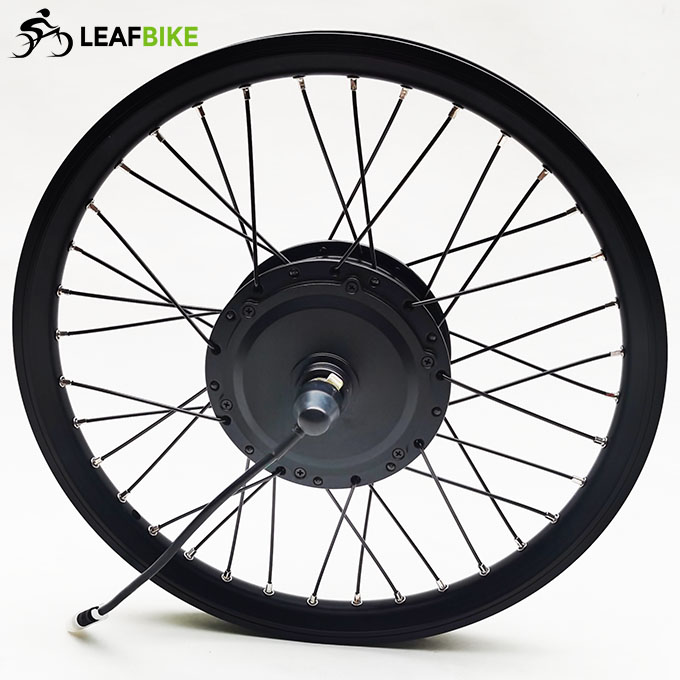

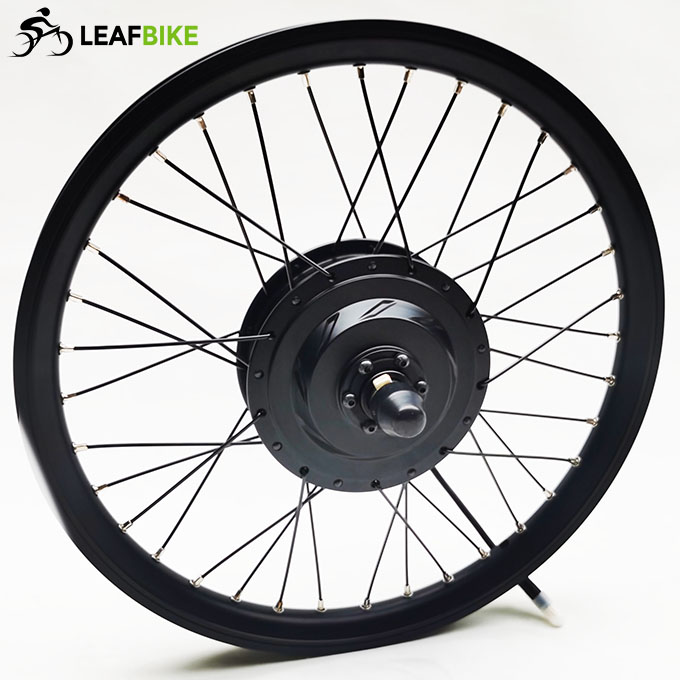

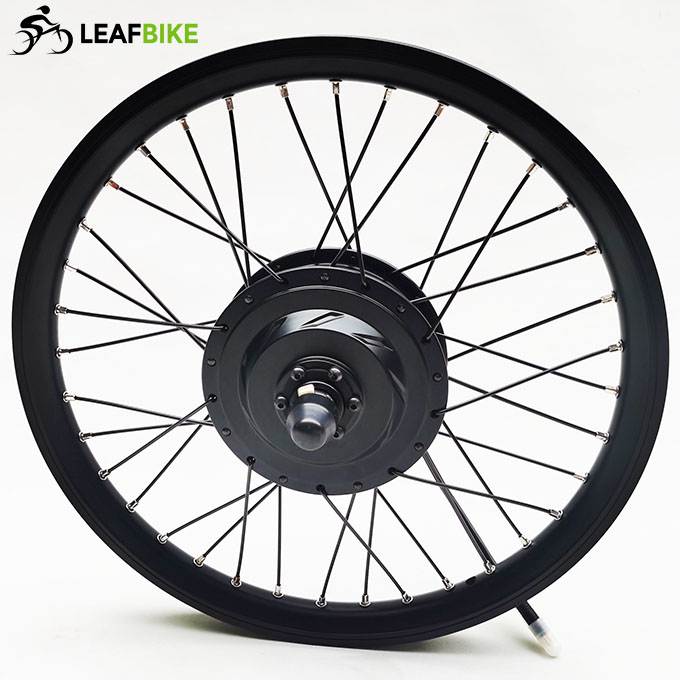

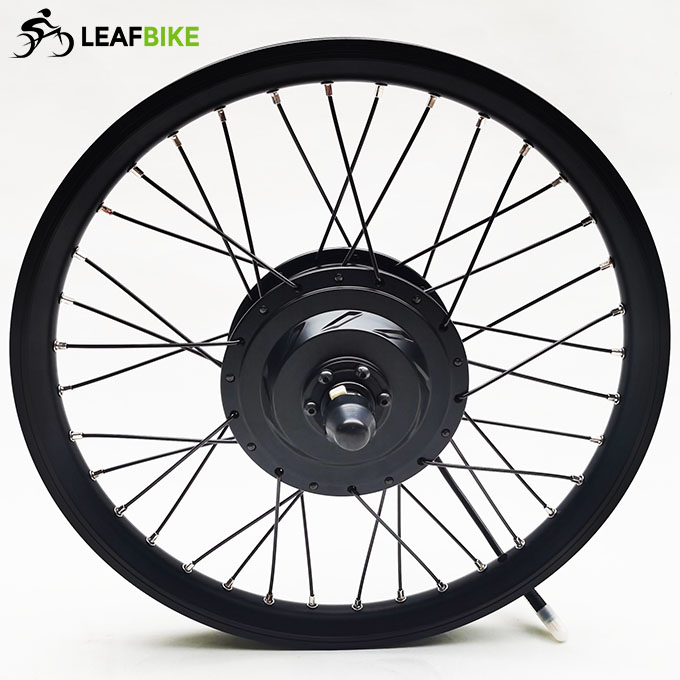

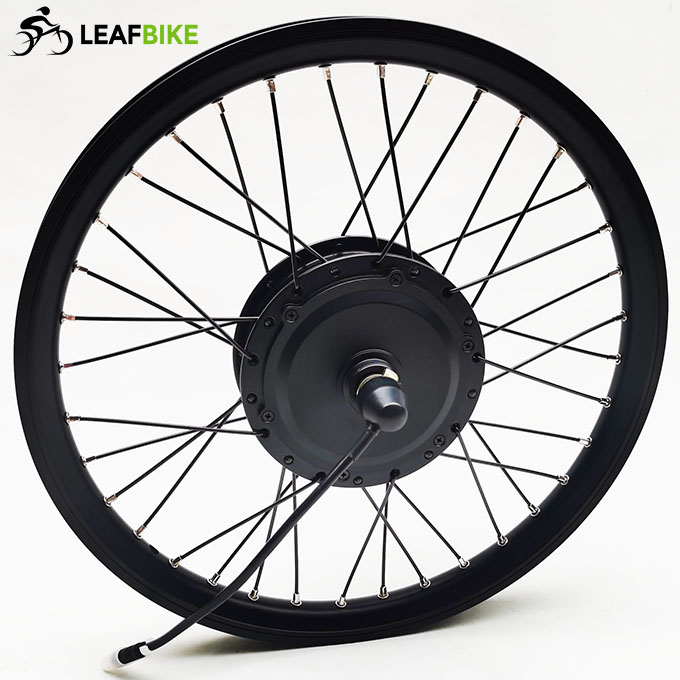

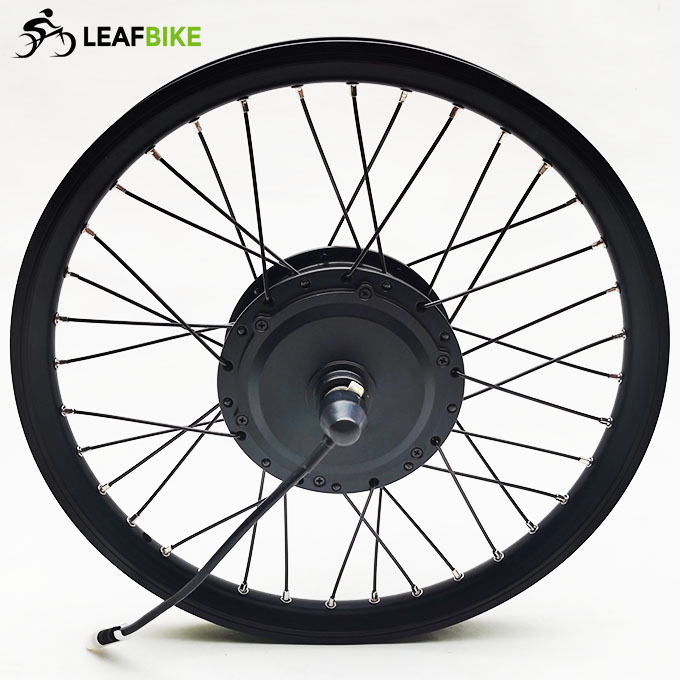

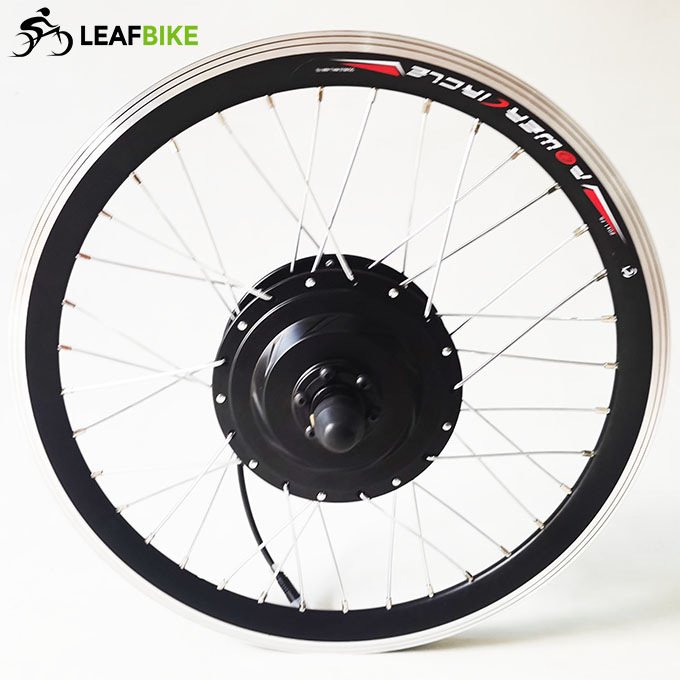

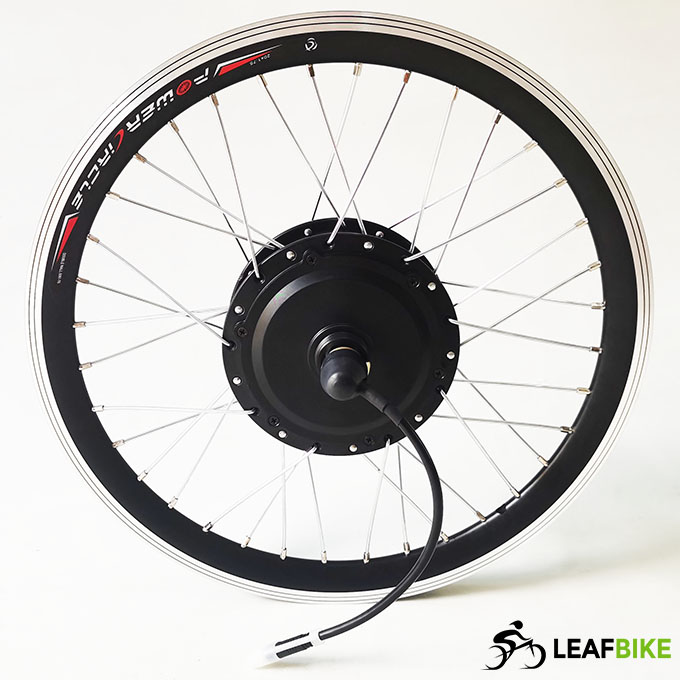

>. Engine: BMX rear geared hub motor
>>. Voltage: 48V
>>. Power: 500W / 750W / 1000W
>>. Efficiency: 86.8%
>>. Max speed: 26.9 kmh - 16.7 mph Default (Optional other speed:25mph or 15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Freewheel: space for single speed
>>. Cable location: shaft end, RIGHT
>>. Cable length:100cm / 40"
>>. Install: spacing of 110mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: 48V controller & LCD
>>. MOSFET: 9 or 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 / 750 / 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 25 A ± 1 Amps (750W / 1000W)
20 A ± 1 Amps (500W)
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 125 mm L × 66 mm W × 39 mm H (750W / 1000W)
95 mm L × 61 mm W × 35 mm H (500W)

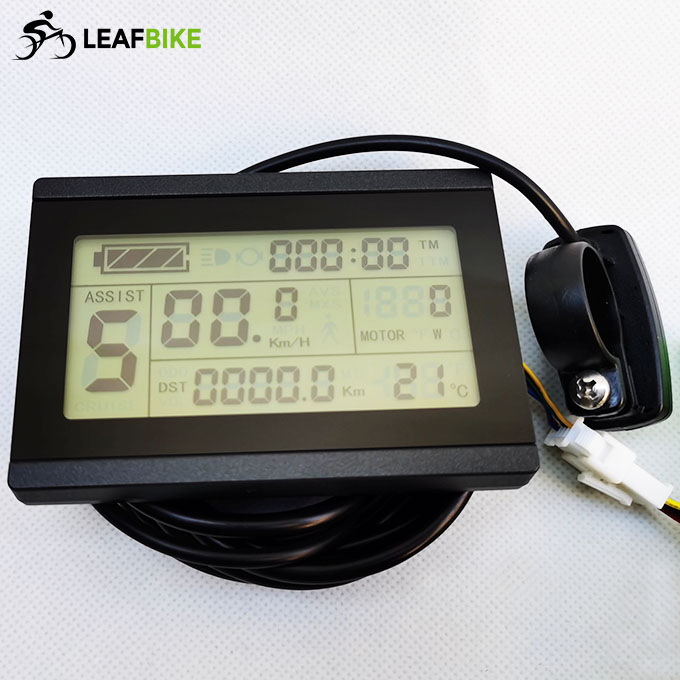

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backward (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Pedal assist ( 1 - 5 )
* Battery gauge
* ...

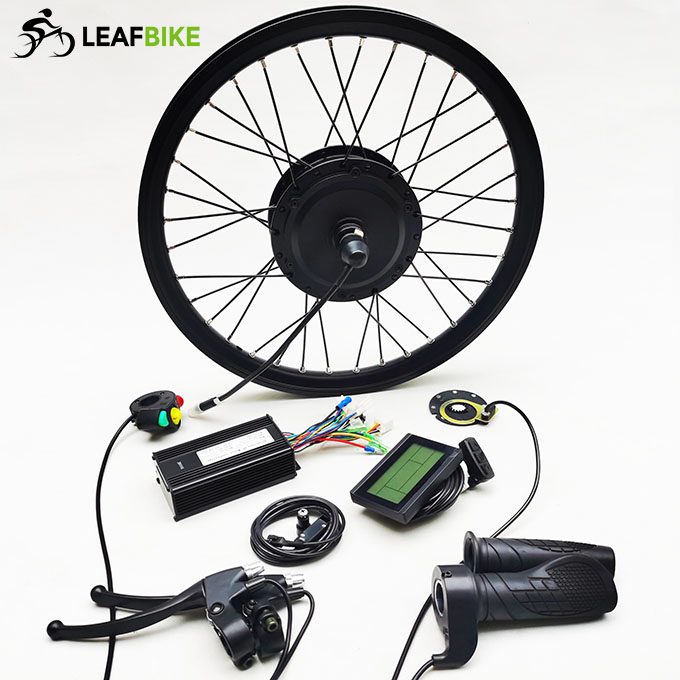

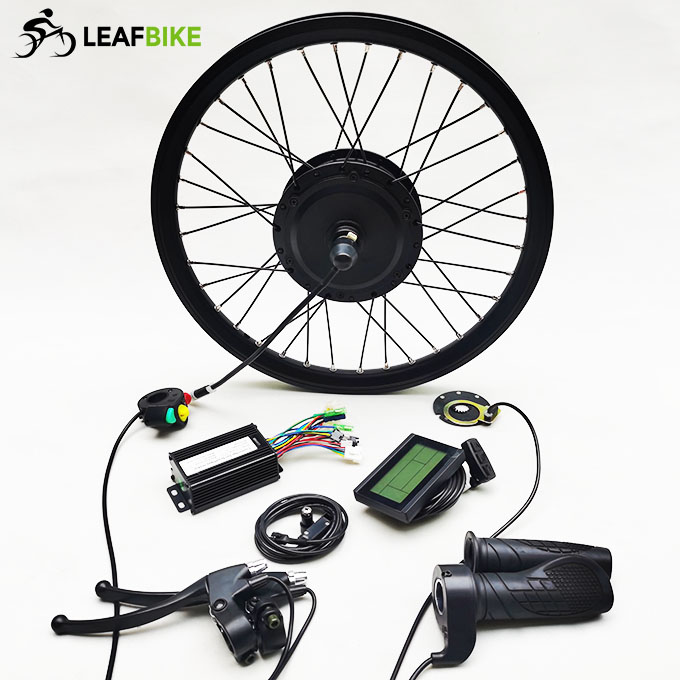

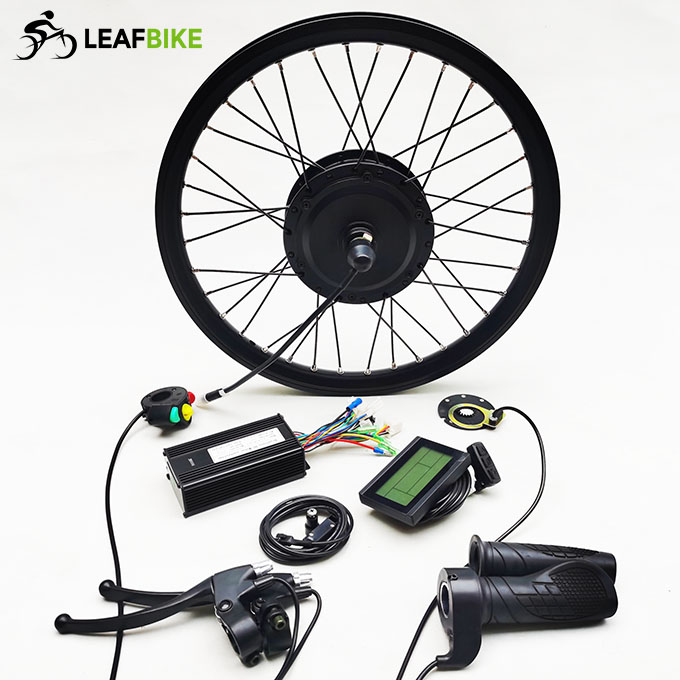

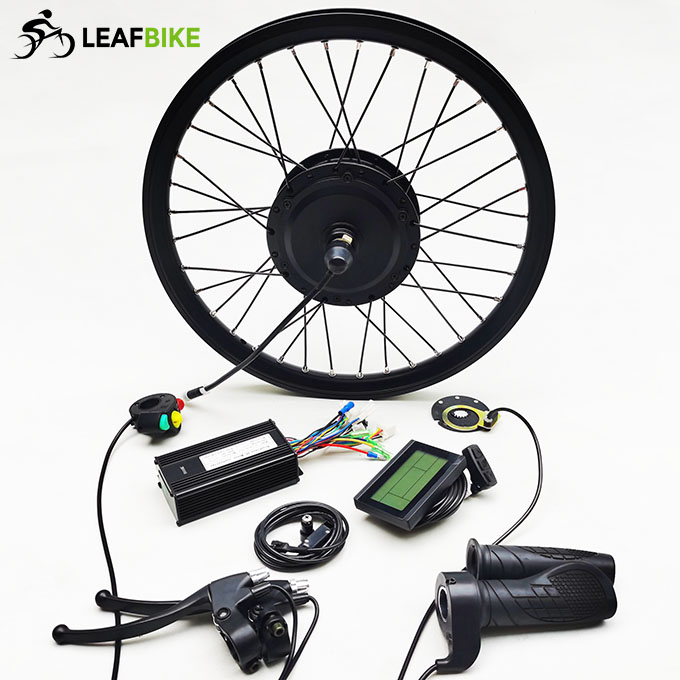

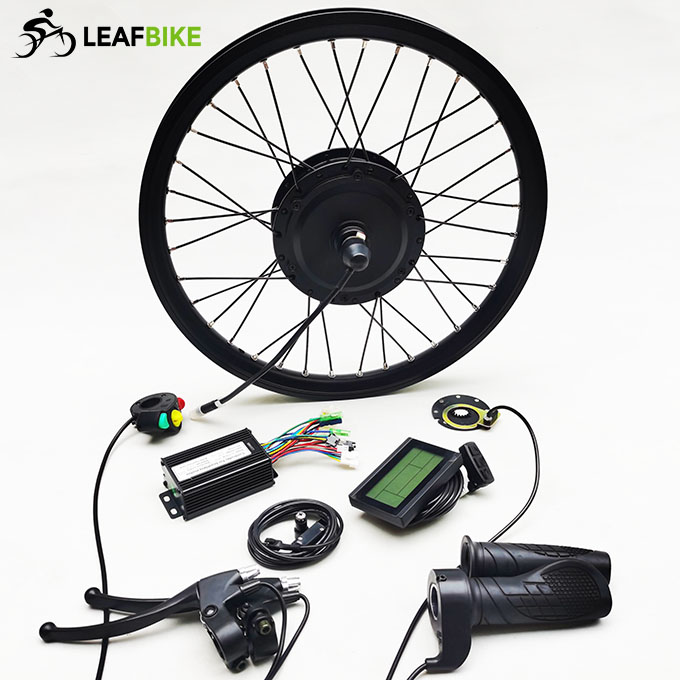

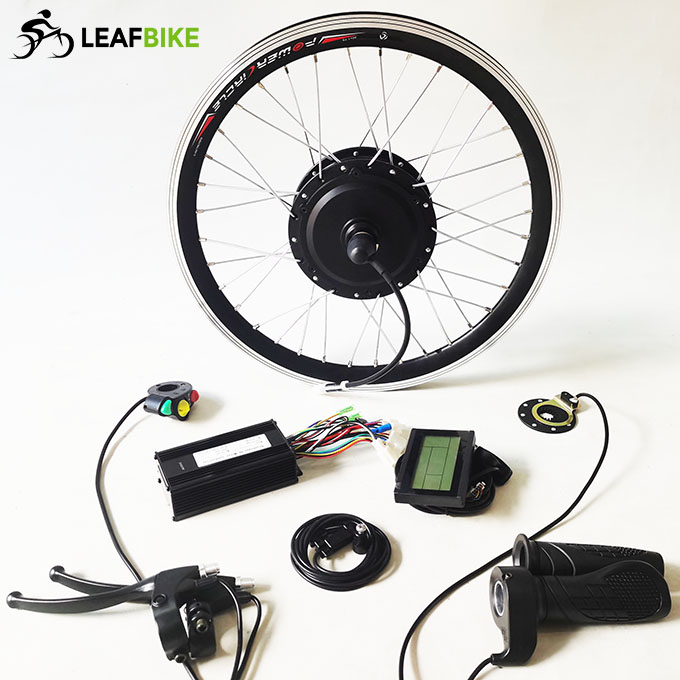

Package Content:
1 x 20 inch 48V rear BMX geared hub motor wheel
1 x 48V motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 5.7 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

BMX Geared Motor Drw.

BMX 48V 500W 750W 1000W rear geared hub motor drawing

Performance Data:
