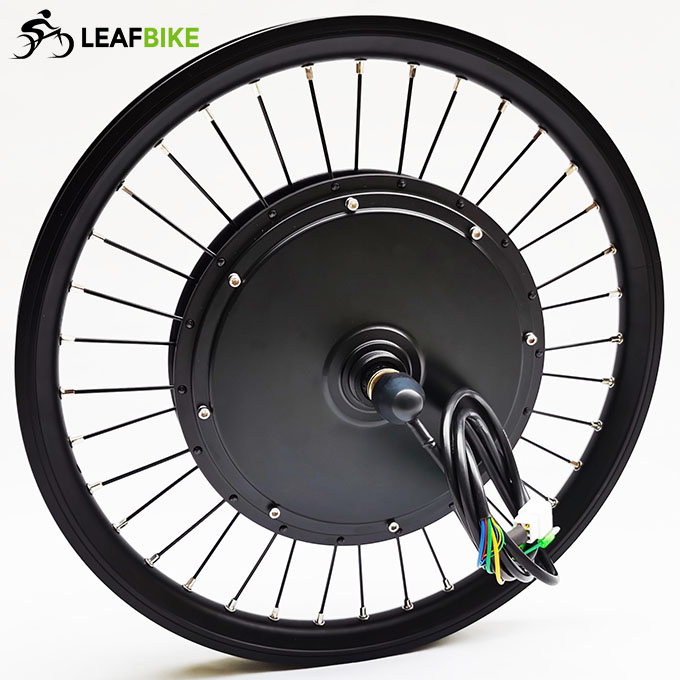

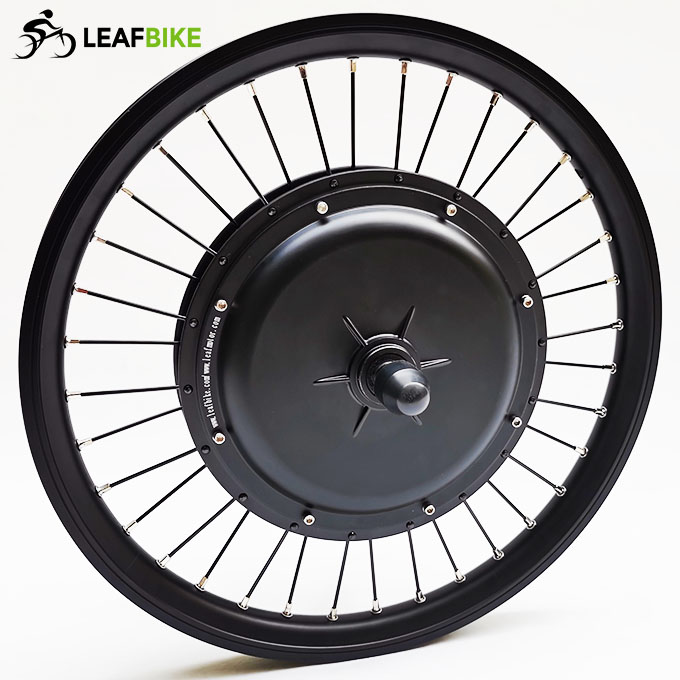

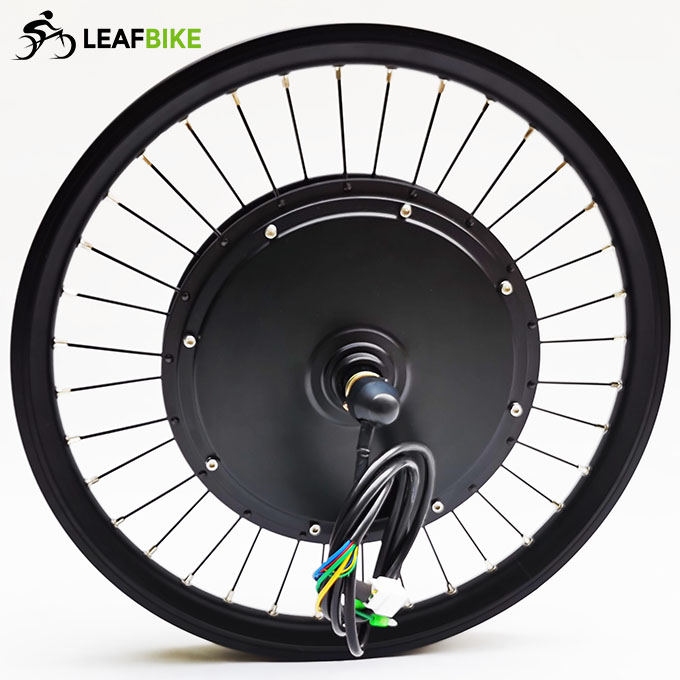

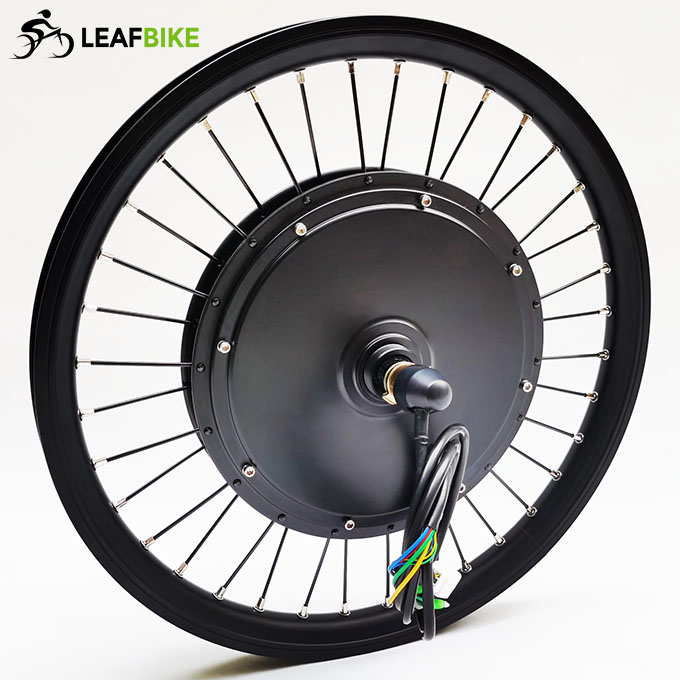

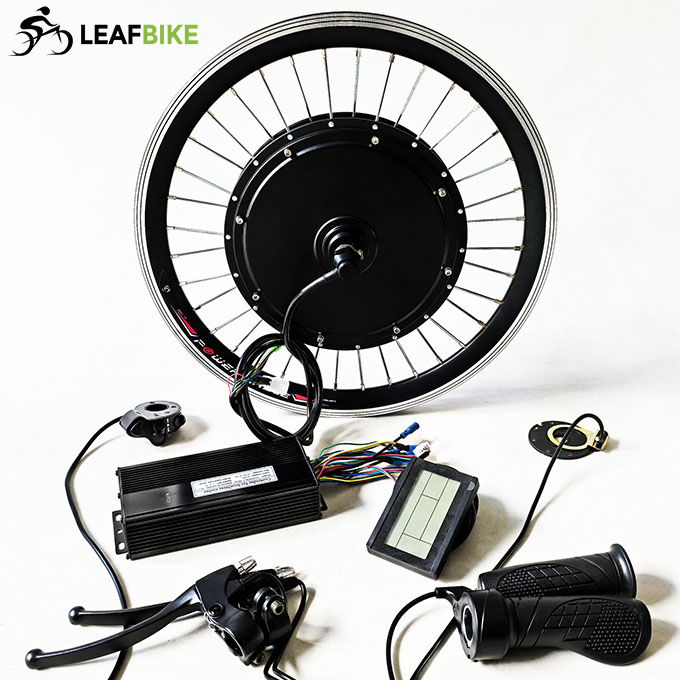

BMX 20 inch 48V 1000W rear hub motor - electric bike conversion kit

Name: BMX 20 inch 48V 1000W rear hub motor - electric bike conversion kit
Brand: Leaf Bike
SKU: LBCK20481000RNBK
Price: 355 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20481000RNBK

$355.00 ~~$357.00~~

Maybe You Need These

Description

Please watch video for BMX 20 inch 48V 1000W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

* The 20 inch 1000W BMX bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

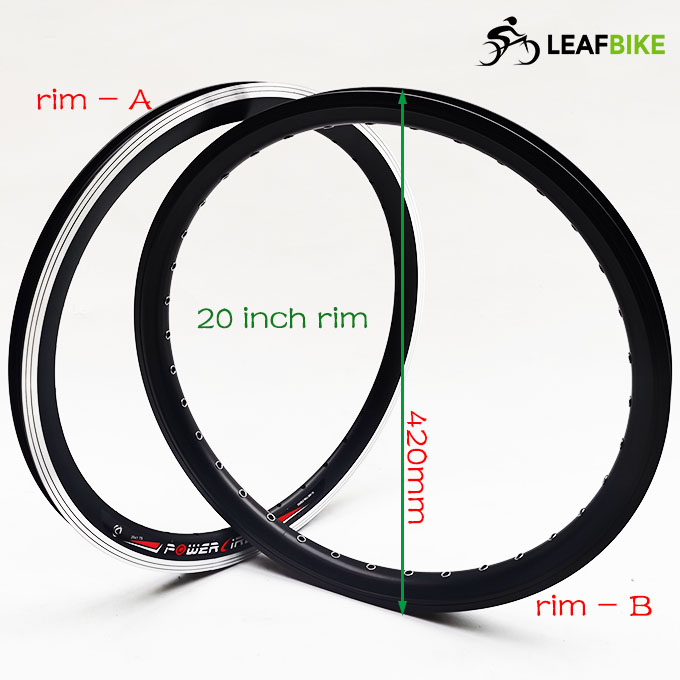

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs

>. Engine: BMX rear hub motor
>>. Voltage: 48V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 38 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: V
>>. Freewheel: space for single speed
>>. Cable location: shaft end, RIGHT
>>. Cable length:100cm / 40"
>>. Install: spacing of 110mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: 48V controller & LCD
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

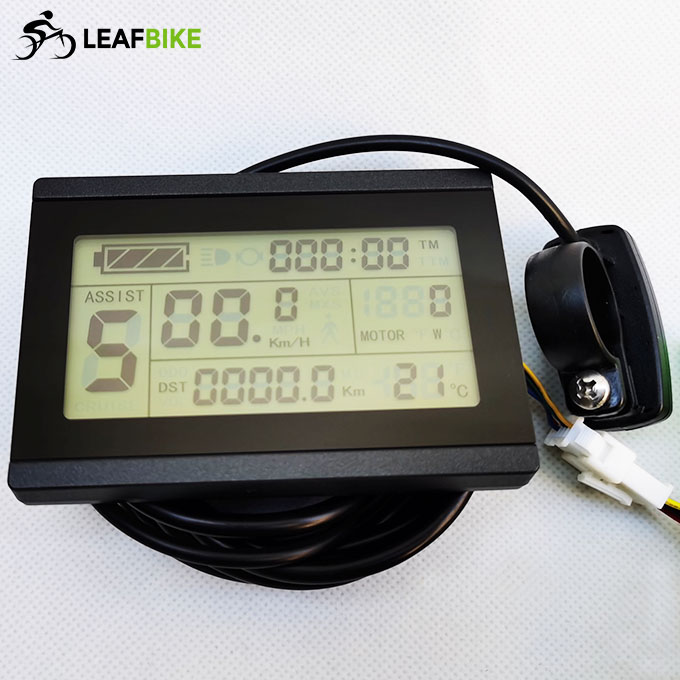

With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backward (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Pedal assist ( 1 - 5 )
* Battery gauge
* ...

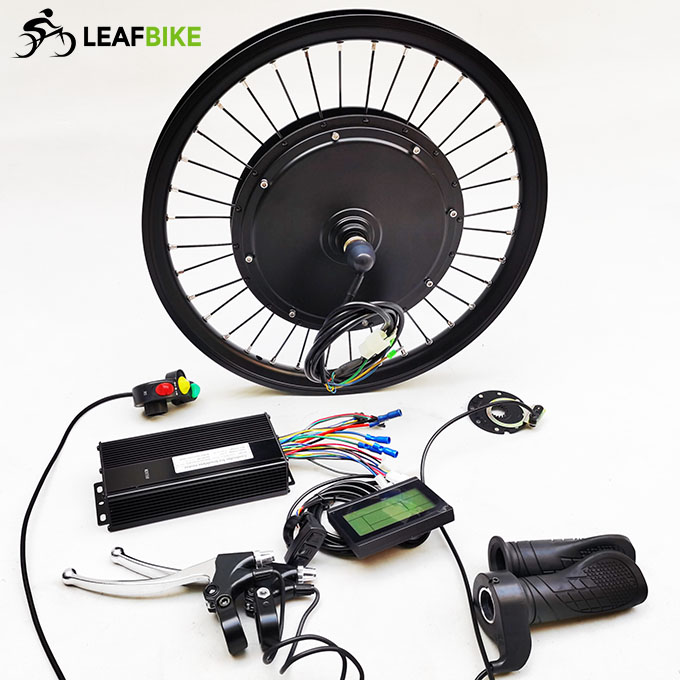

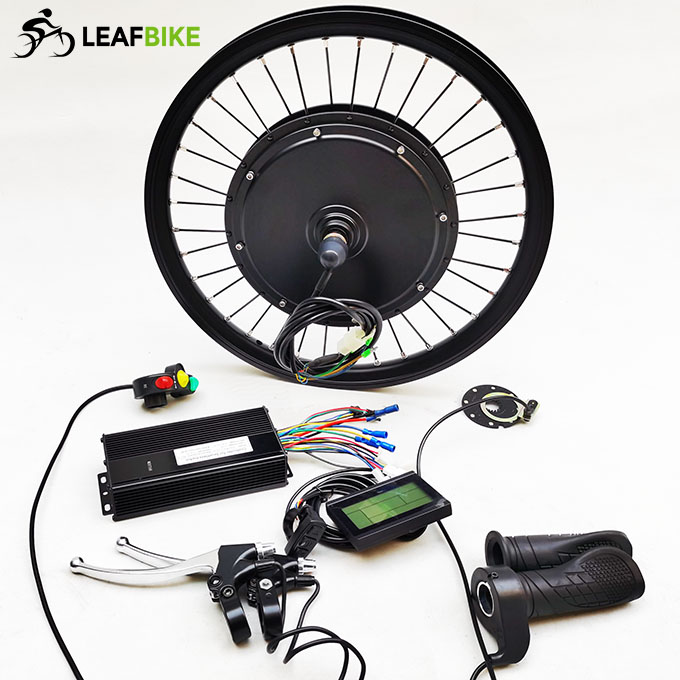

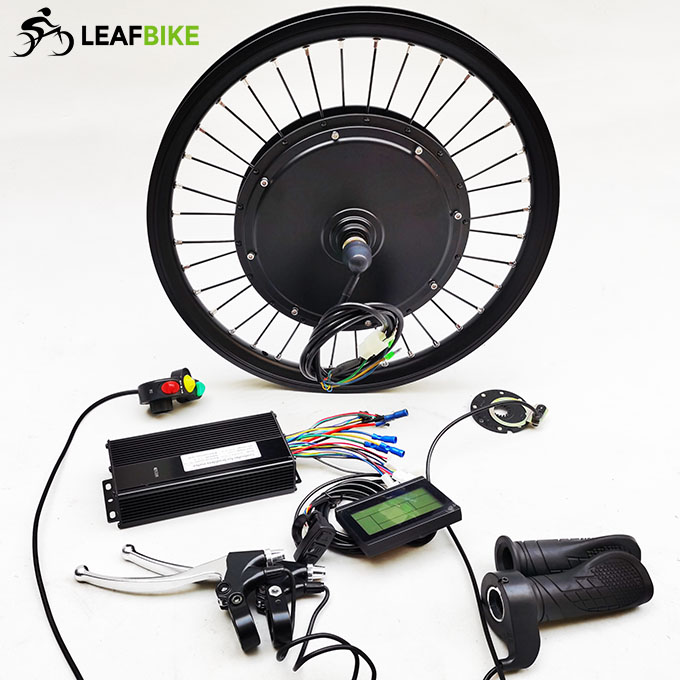

Package Content:
1 x 20 inch 48V 1000W rear BMX hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.8 kg / 21.6 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

1000w BMX Motor Drw.

Performance Data:
