Please watch video for 26 inch 48V 500W front brushless geared hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free.
Share Video:
This 26 inch 48V 500W brushless geared hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

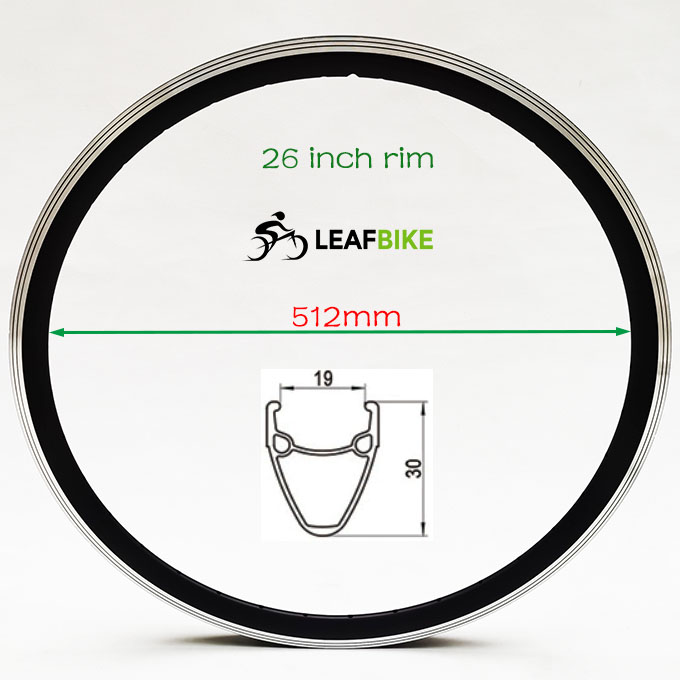

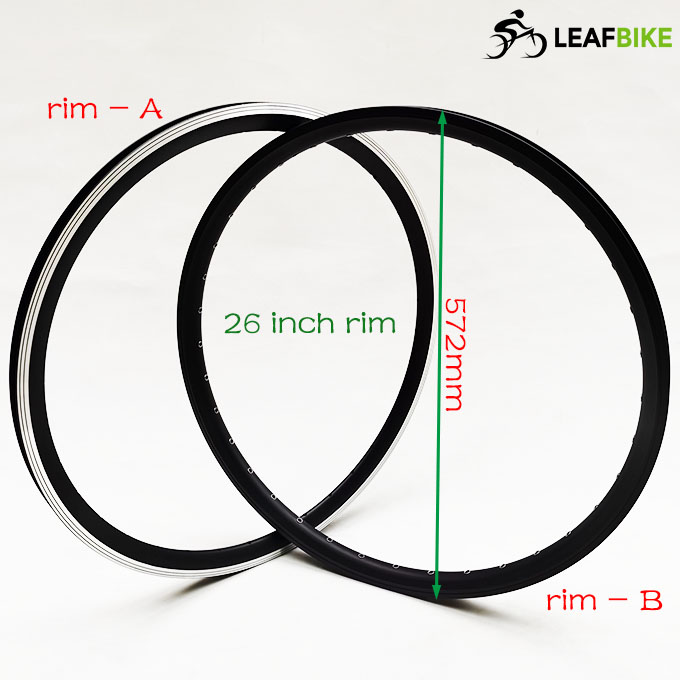

>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 190mm Length × 36 pcs

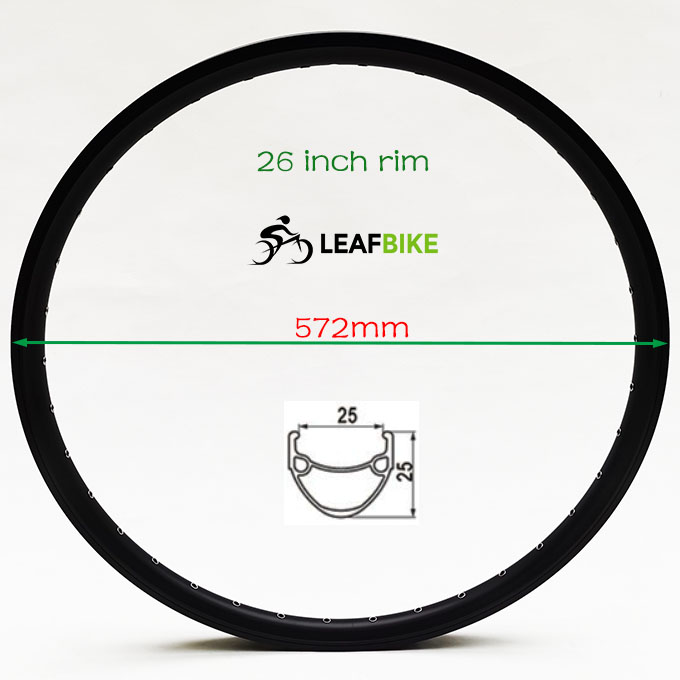

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 195mm Length × 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 500W
>>. Efficiency: 86.8%
>>. Max speed: 40 kmh -- 25mph
>>. Mechanical brake: V or Disk
>>. Freewheel:
>>. Cable location: shaft end, Right
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 20 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 94.5 mm L × 61 mm W × 35 mm H

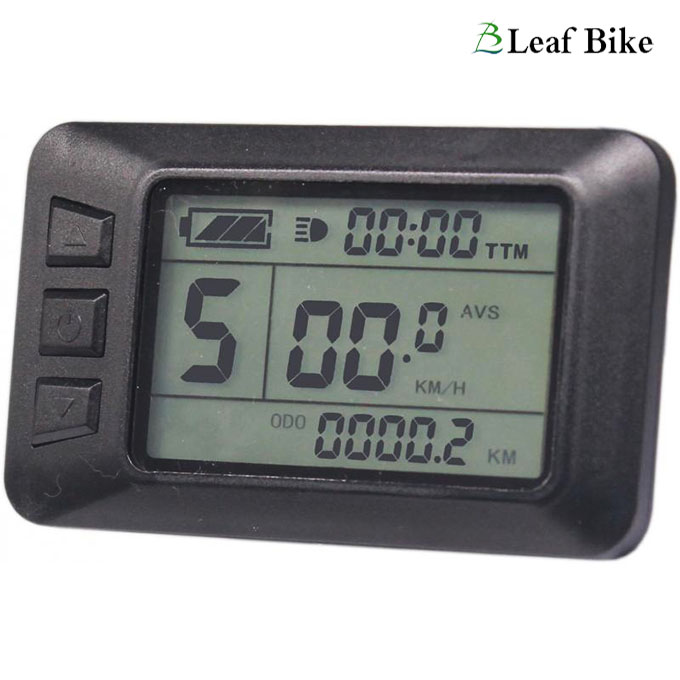

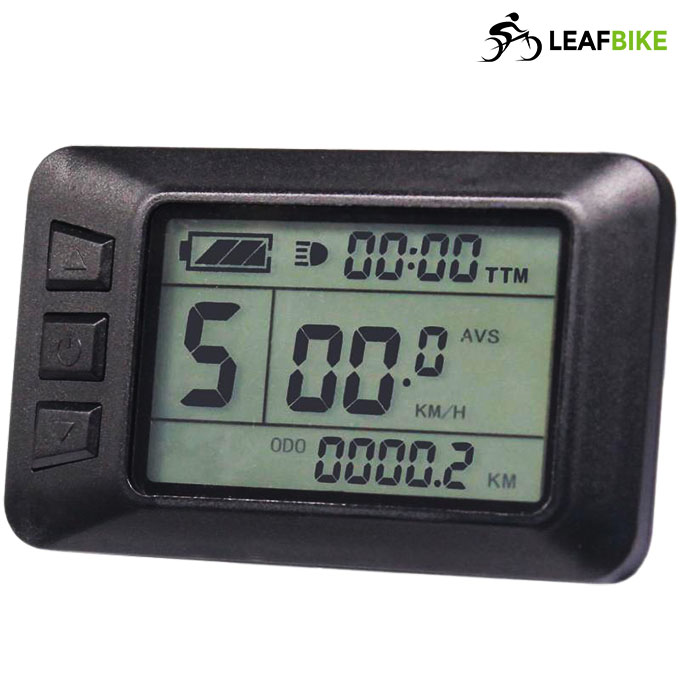

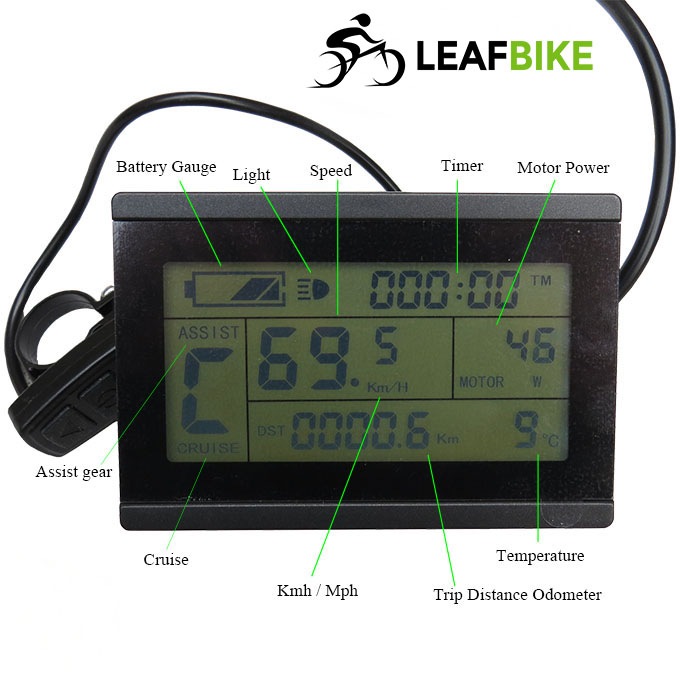

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward") (Motor can't work in reverse)
* Regen brake -- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph ) -- If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 ) -- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

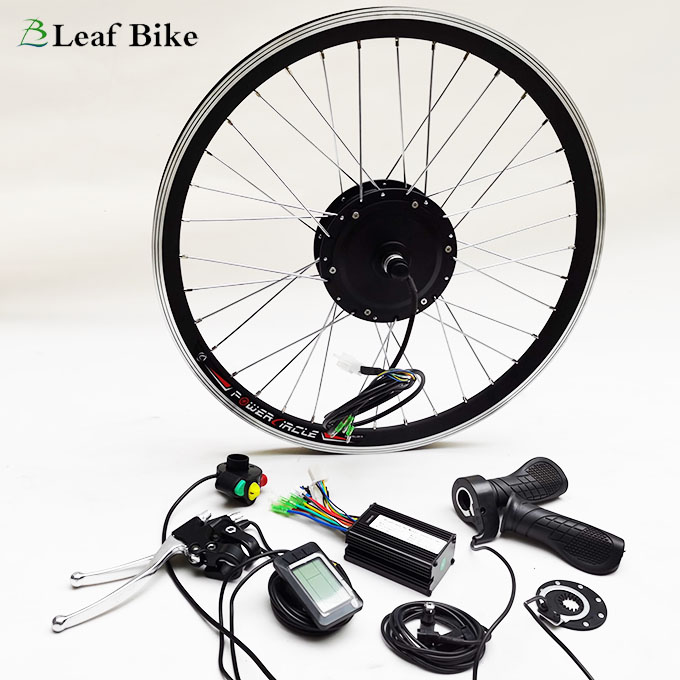

Package Content:

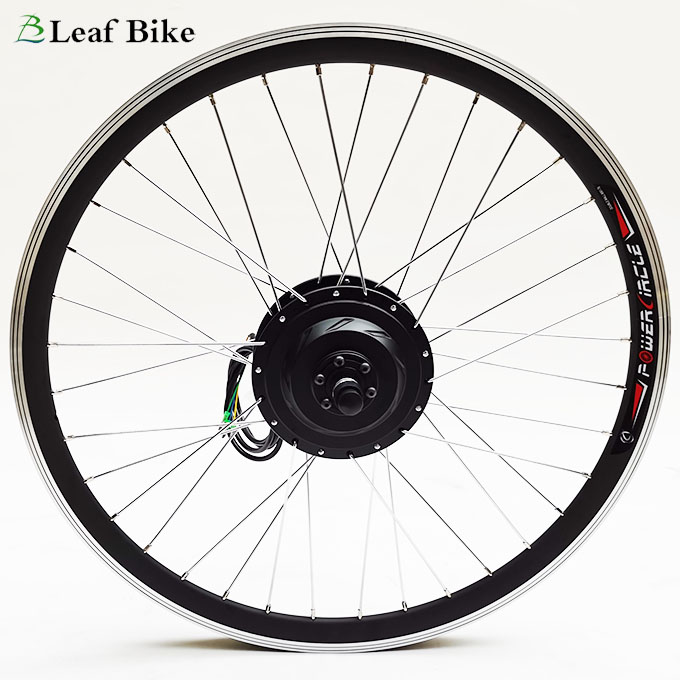

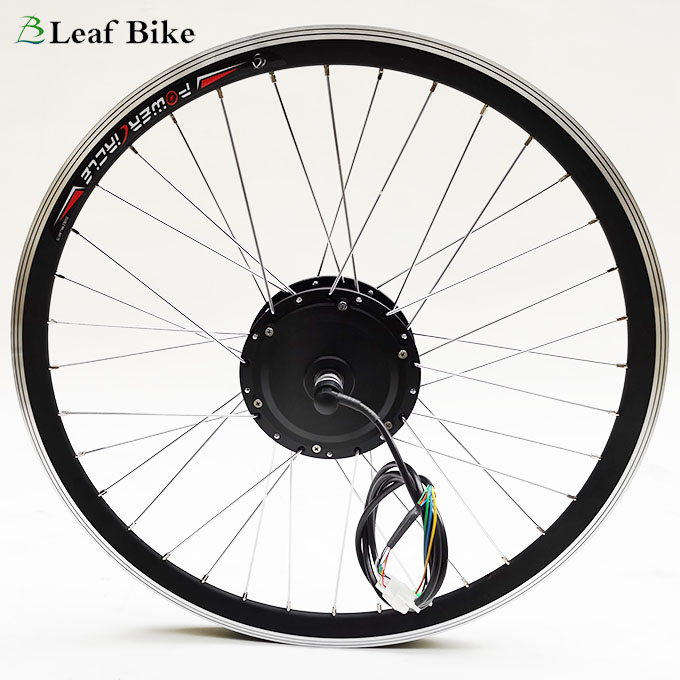

1 x 26 inch 48V 500W front brushless geared hub motor wheel
1 x 48V 500W 6-MOSFET 20A motor controller

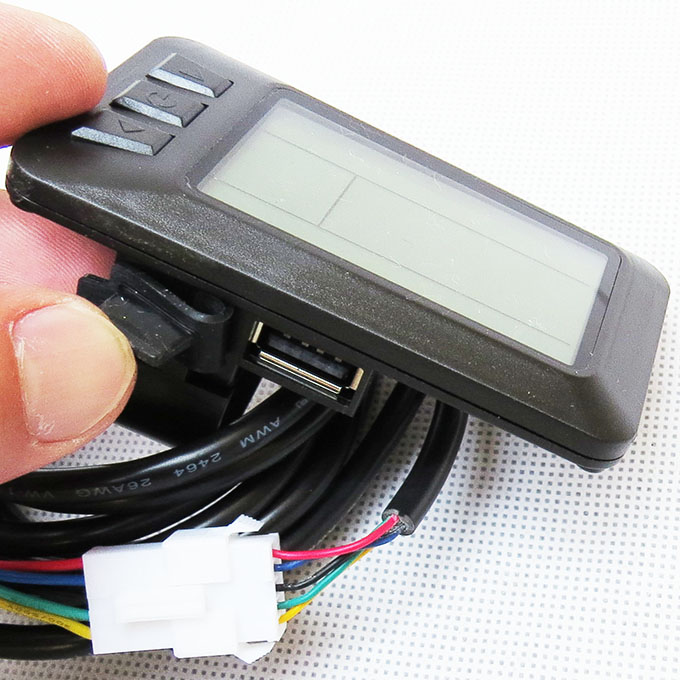

1 x LCD
1 x Speed signal wire
1 x Twist throttle
1 x Brake levers
1 x Three button switches (control cruise..)
1 x Pedal assist
Net weight: 5.1 kg / 11.2 lbs
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box
* This motor & controller system can handle with a 48V or 52V battery.
Wire Diagram:
Geared Hub Motor Drw.
Performance Data:
