This 26 inch 24V 250W - 300W front hub motor electric bike conversion kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

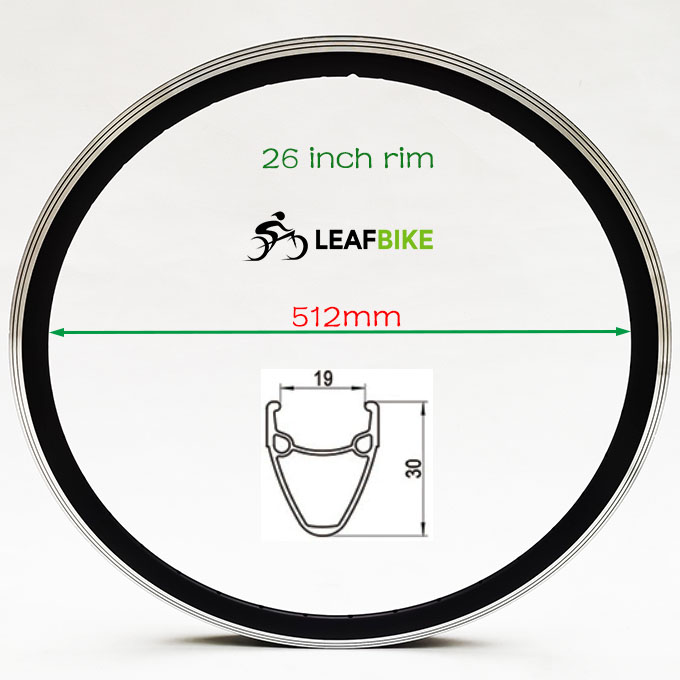

>. Rim: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: 12 gauge / 186 mm Length × 36 pcs
>. Engine : Bldc hub motor -- Brushless Geared
>>. Voltage: 24V
>>. Power: 250W
>>. Efficiency: 78%
>>. Max speed: 19.7 kmh -- 12.2 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, RIGHT
>>. Cable length:160cm / 63"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC24 Volts
>>. Min. Voltage: DC 20 ± 0.5 V
>>. Rated power: 250 Watts
>>. Casing material: aluminium
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H
LCD-003, More Function:
* Cruise
* Reverse ( The motor does not support the reversal )
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

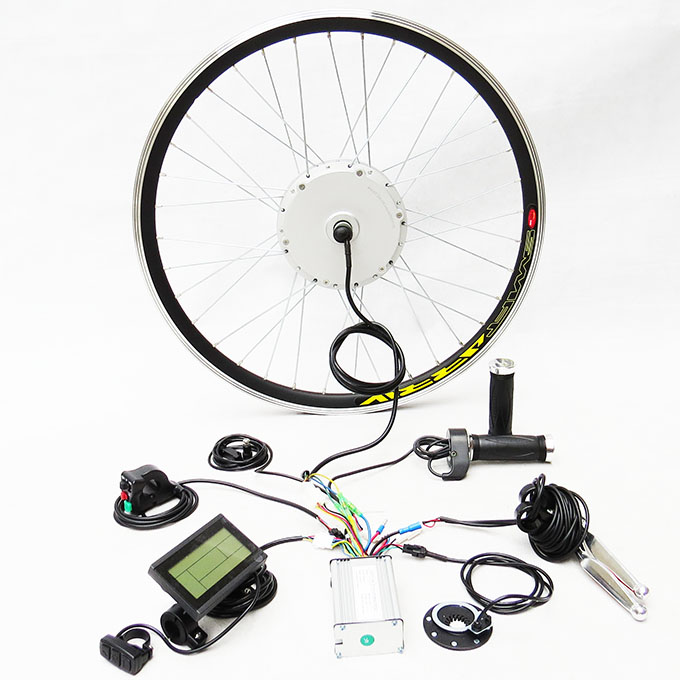

Package Content:

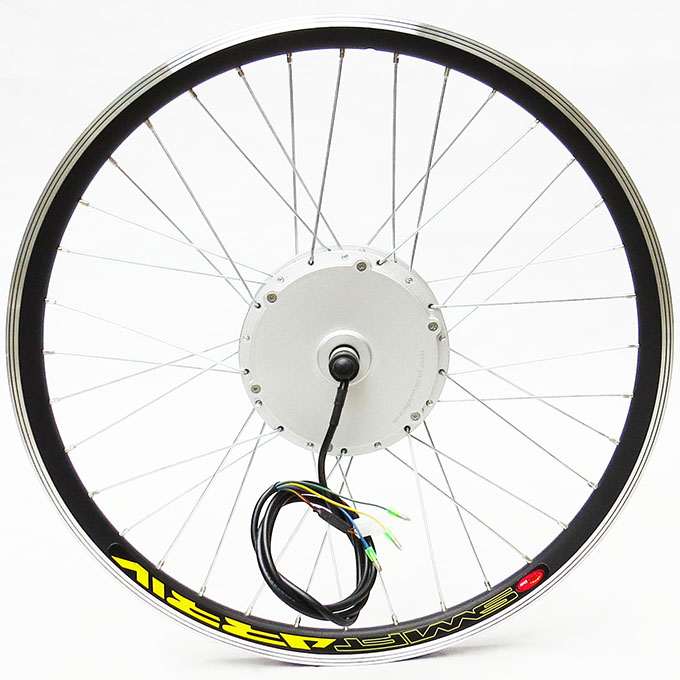

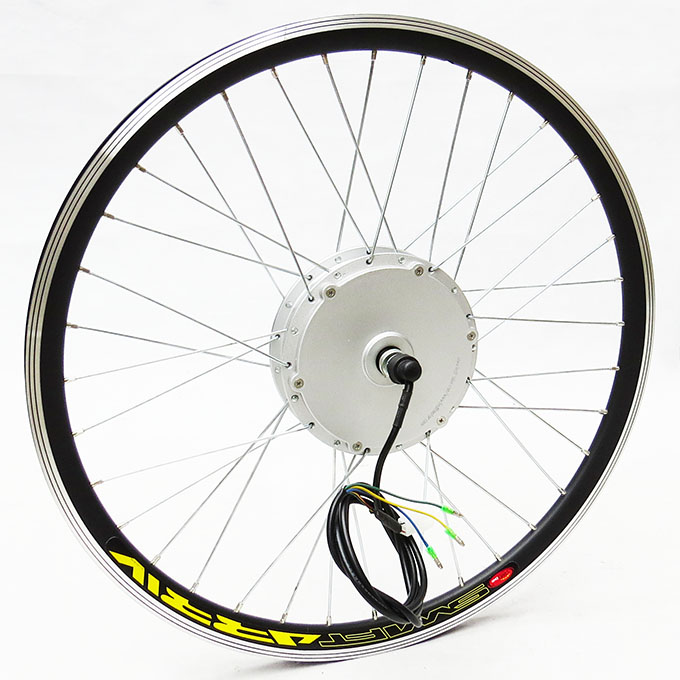

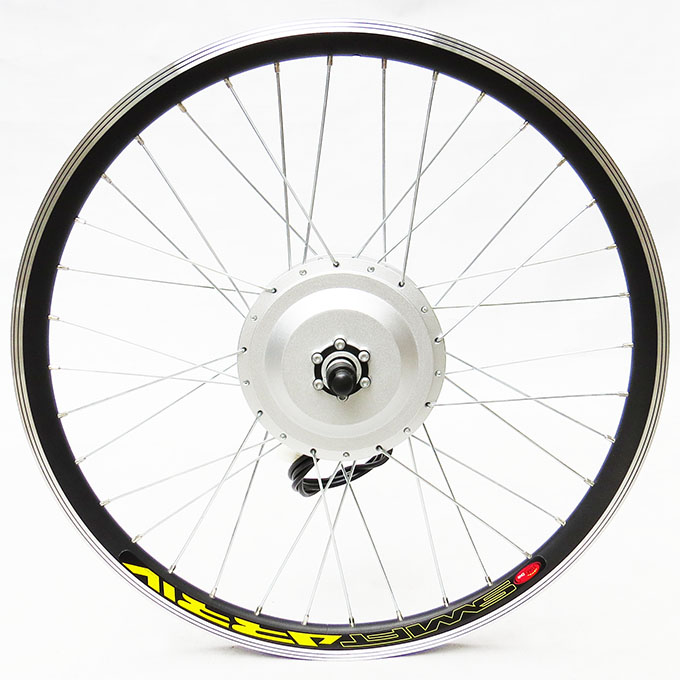

1 x 26 inch 24V 250W front bldc hub motor wheel
1 x 24V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Brake lever
1 x Three button switches
1 x Pedal assist
Net Weight: 6.0 kg / 13.2 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box
Wire Diagram:
