16 inch 36V 750W electric hub motor kit - front wheel

Name: 16 inch 36V 750W electric hub motor kit - front wheel
Brand: Leaf Bike
SKU: LBCK1636750F
Price: 287 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK1636750F

$287.00 ~~$370.00~~

Maybe You Need These

Description

Please watch videos for 16 inch 36V 750W electric hub motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

16-inch-36v-750w-front-electric-scooter-motor-kit

Share Video:

video for 16 inch 750w front hub motor kit

This 16 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø321mm Casted Alloy (Hub Fit For: 16 × 2.125" ~ 2.5" tire)
Motor Type: electric hub motor
Controller: LCD display
Max speed: 40.7 kmh -- 25 mph
Mechanical brake: V
Install: spacing of 100mm fork

LCD-003, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed
* Pedal assist ( 1 - 5 )
* ...

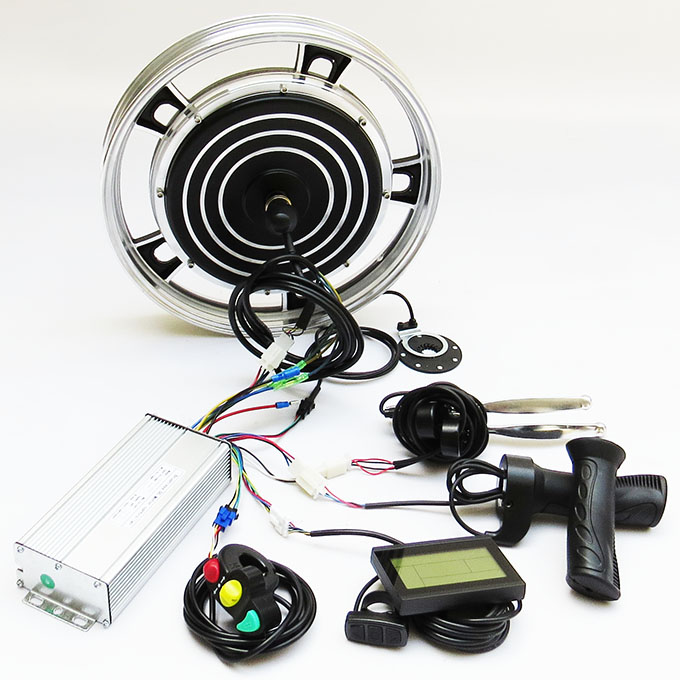

Package Content:

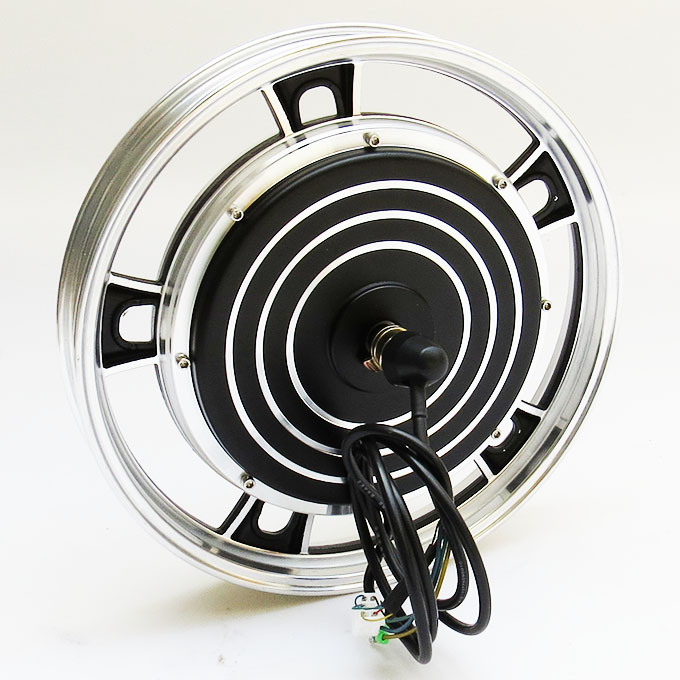

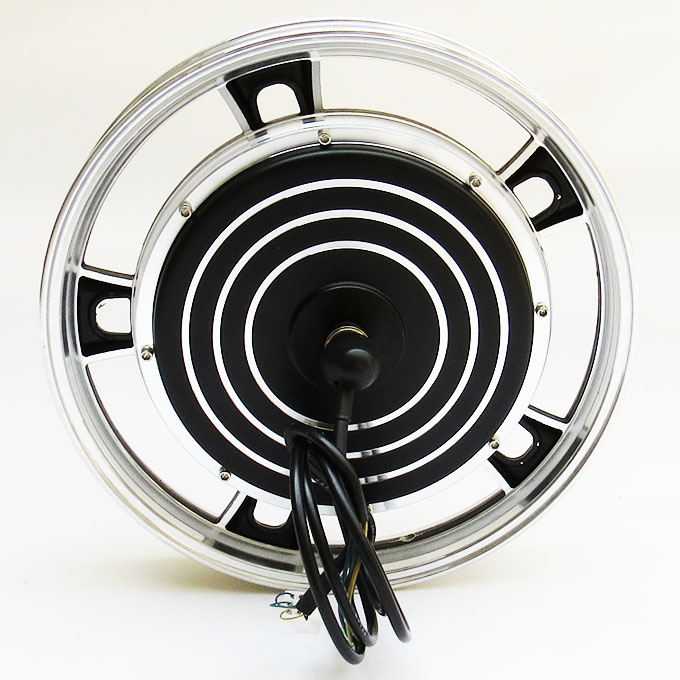

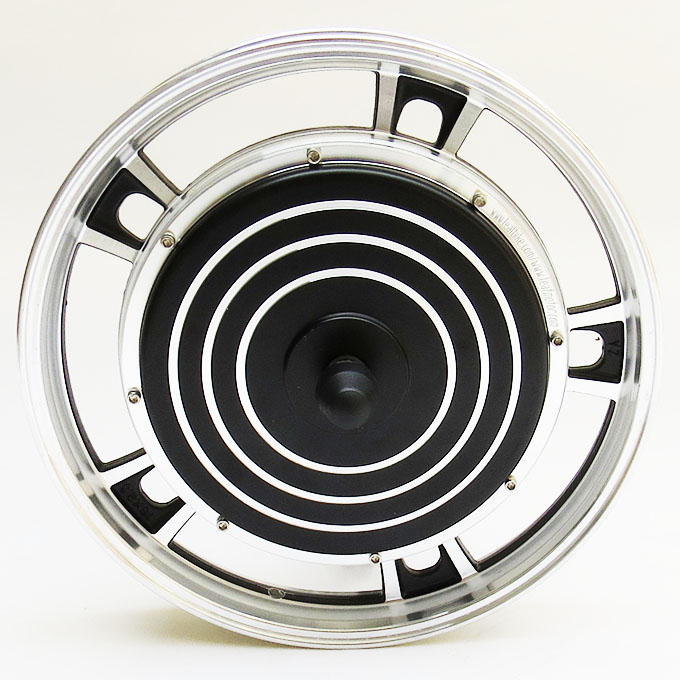

1 x 16 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller

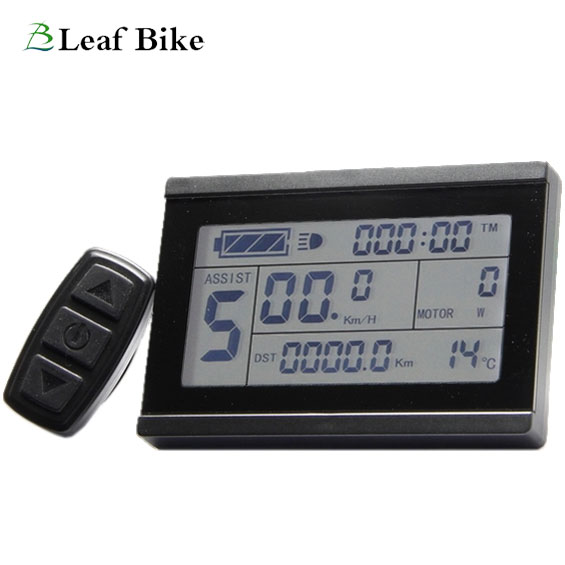

1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 8.96 kg / Gross weight: 10.16 kg
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box

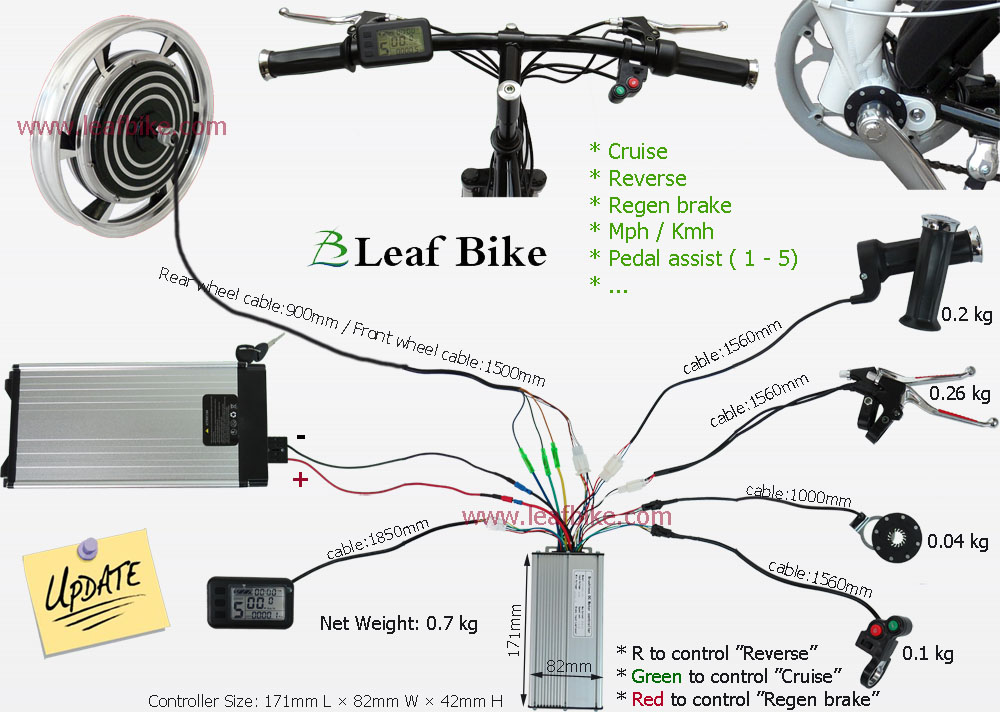

Wire Diagram:

16 inch brushless hub motor electric bike conversin kit

16 inch Front Drw.

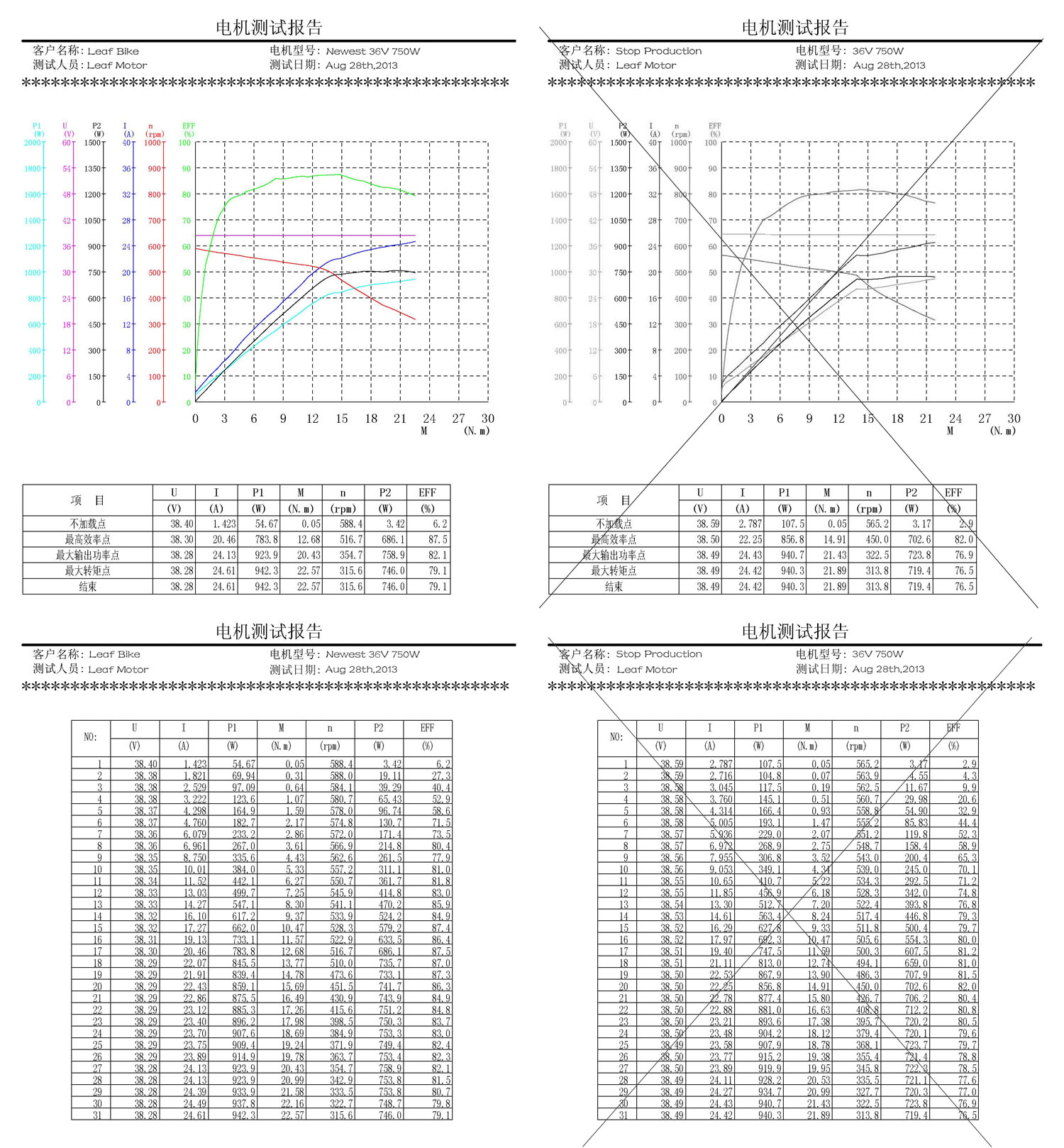

Performance Data:

36v 750w bldc hub motor - electric bike conversion kit

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
