Please watch video for 16 inch 48V 500W front brushless geared hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free.
Share Video:

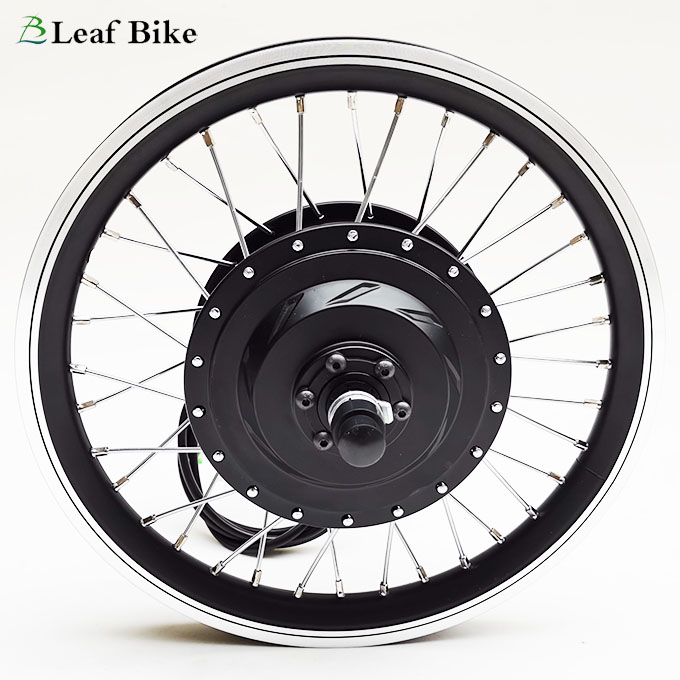

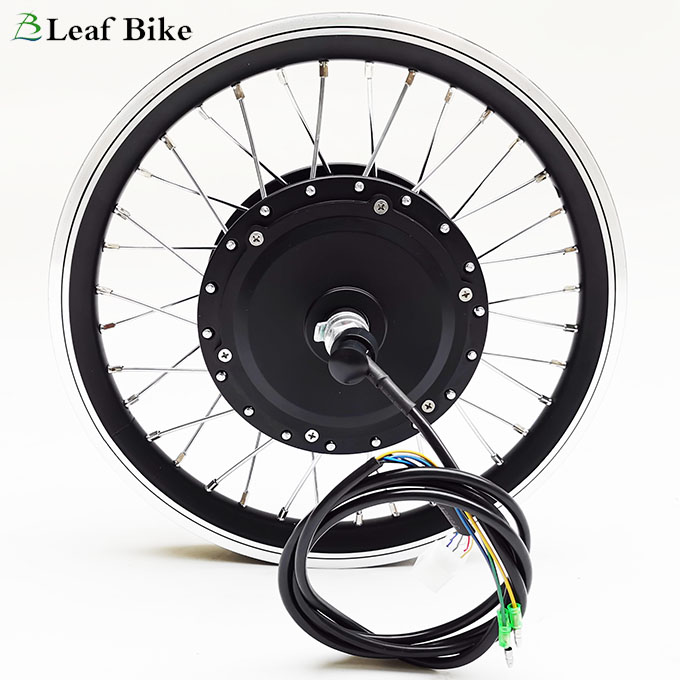

This 16 inch brushless geared hub motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:
Rim: Ø321mm Alloy (Rim Fit For: 16 × 1.5" / 1.75" / 1.95" tire)
Spoke: silver 12 gauge / 68mm Length × 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 500W
>>. Efficiency: 90.5%
>>. Max speed: 25 kmh -- 15mph
>>. Mechanical brake: V or Disk
>>. Freewheel:
>>. Cable location: shaft end, Right
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

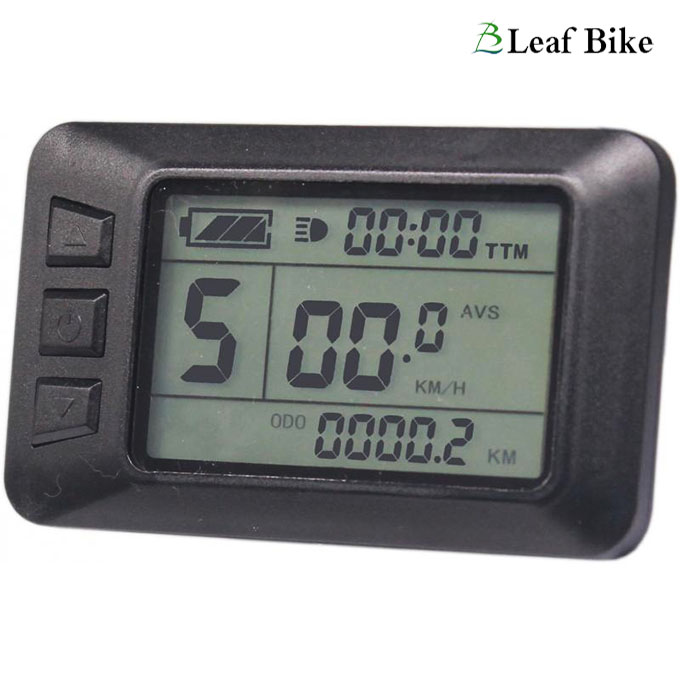

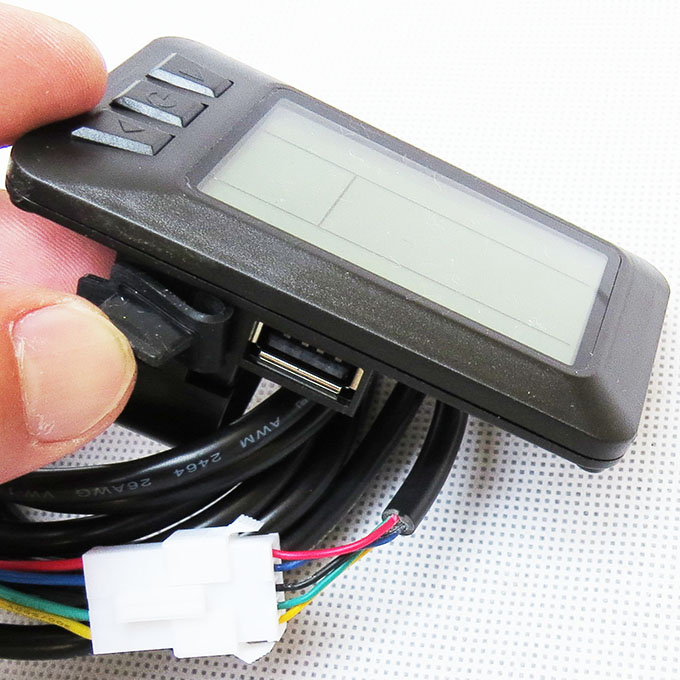

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward") (Motor can't work in reverse)
* Kmh / mph
* Speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest speed. "5" is the the fastest speed.
* ...

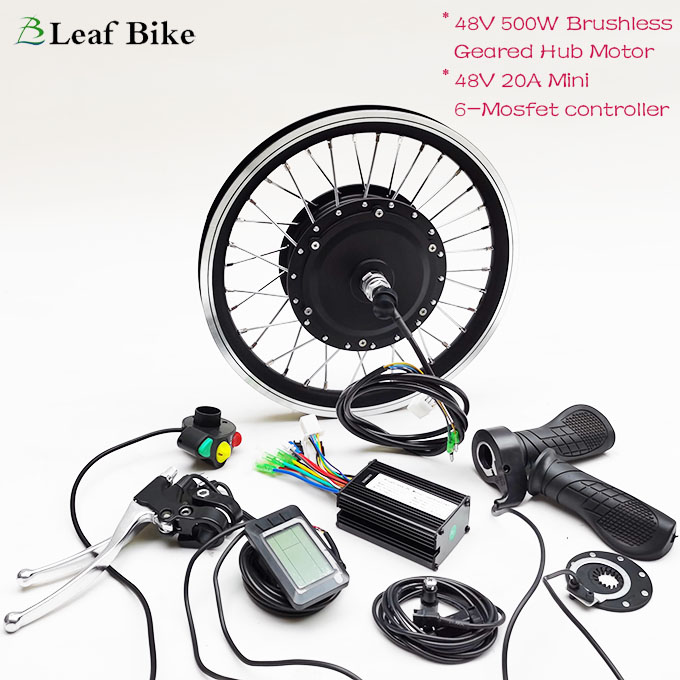

Package Content:
1 x 16 inch 48V 500W front brushless geared hub motor wheel
1 x 48V 500W motor controller
1 x LCD
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise...)
1 x Pedal assist
Net weight: 4.95 kg
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box
* This motor & controller system can handle with a 48V or 52V battery.

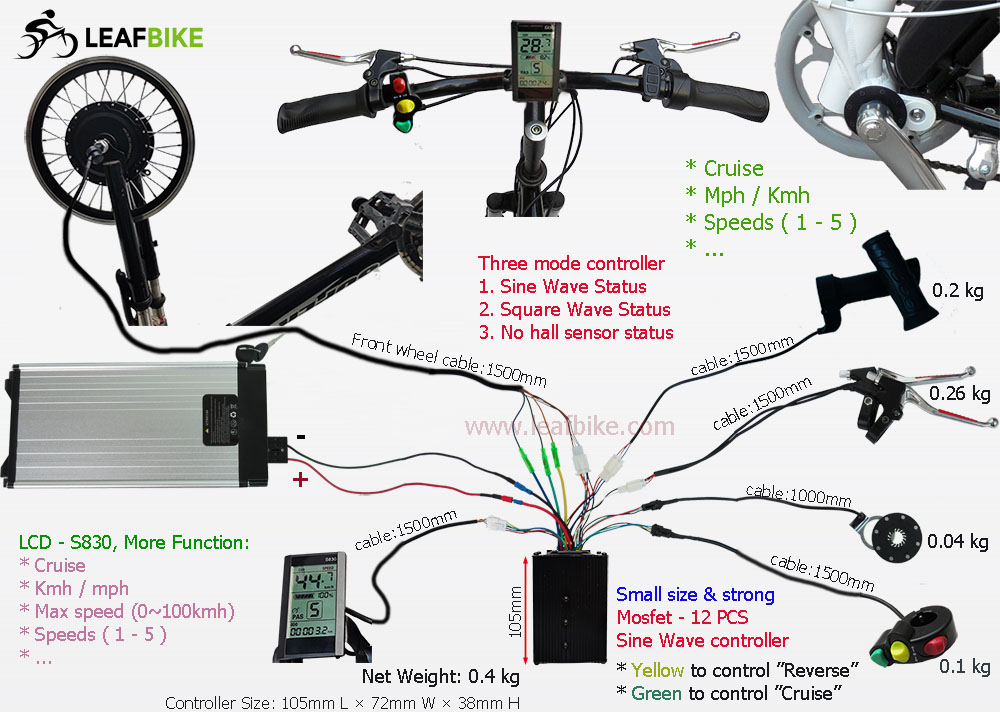

Wire Diagram:
Geared Hub Motor Drw.
