16 inch 48V 52V 1000W electric hub motor kit - front wheel

Name: 16 inch 48V 52V 1000W electric hub motor kit - front wheel
Brand: Leaf Bike
SKU: LBCK16481000F
Price: 299 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK16481000F

$299.00 ~~$370.00~~

Maybe You Need These

Description

Please watch videos for 16 inch 48V 52V 1000W front electric hub motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

16 inch 48V 52V 1000W electric hub motor kit - front wheel

Share Video:

16 inch 48v 1000w front brushless hub motor kit

Share Video:

16 inch 1000w front electric scooter kit video

The 16 inch electric scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

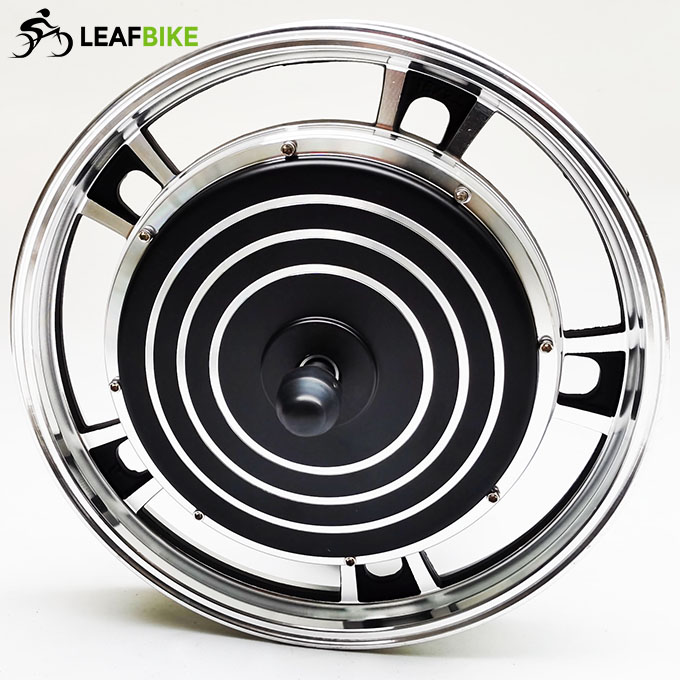

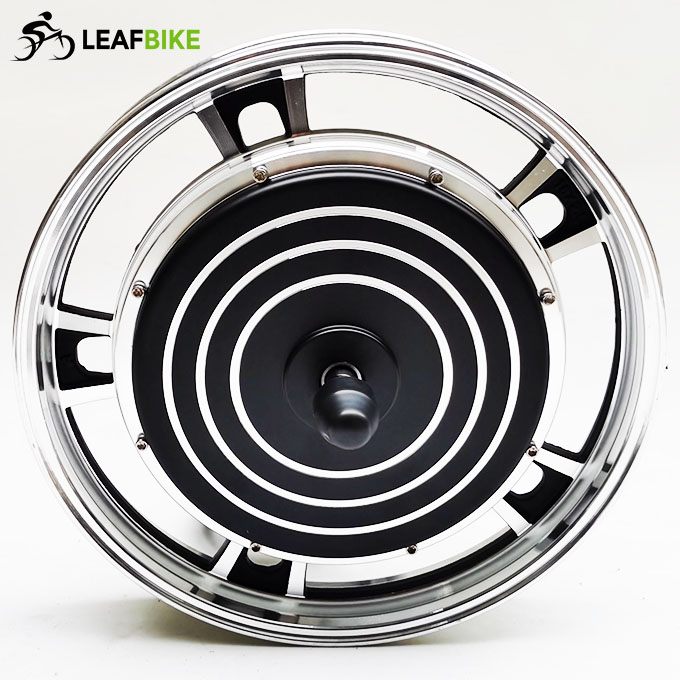

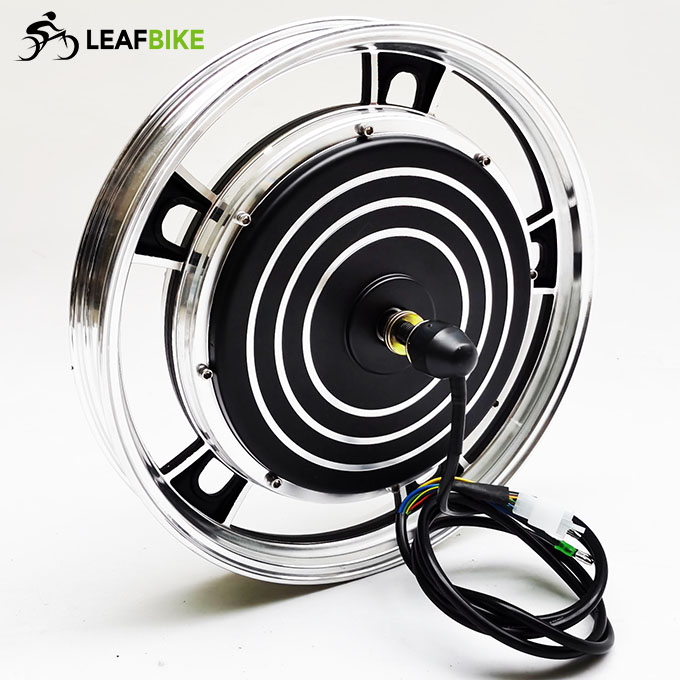

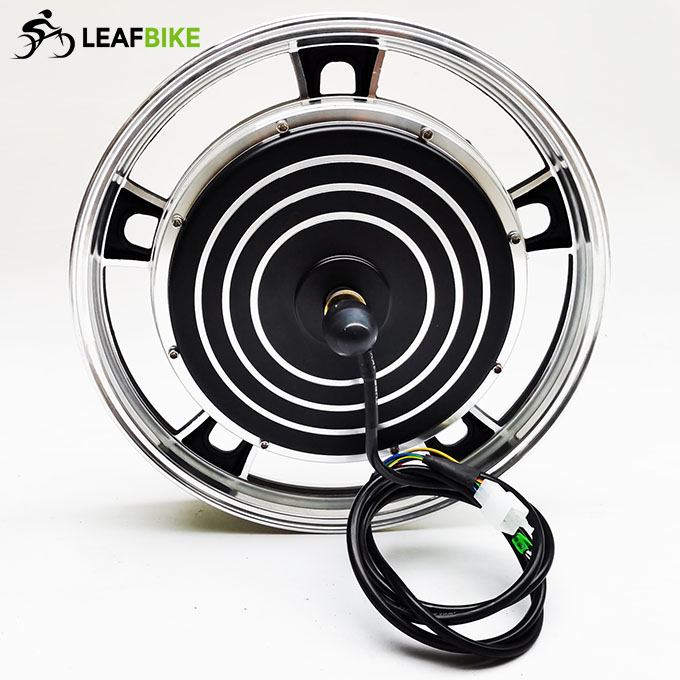

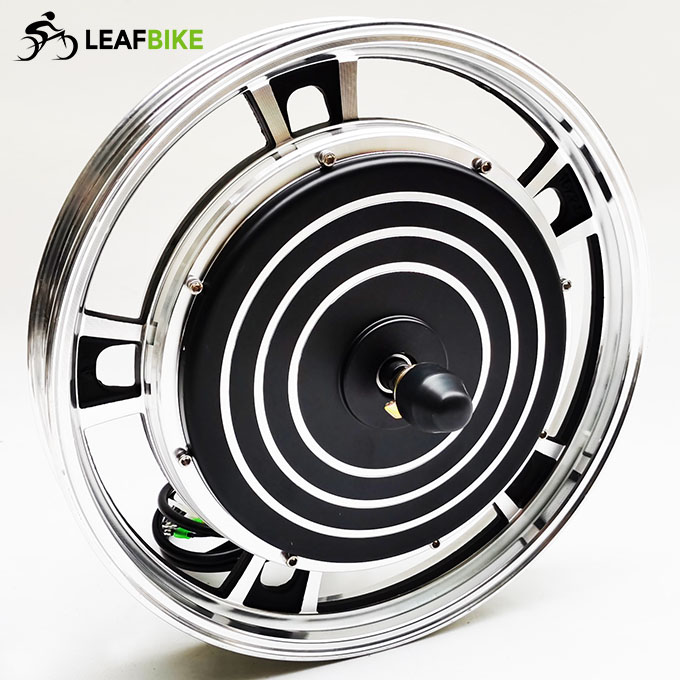

Hub: Ø321mm Casted Alloy (Hub Fit For: 16 × 2.125" ~ 2.5" tire)
Motor Type: electric scooter motor
Controller: LCD display
Max speed: 53.6 kmh
Mechanical brake: V
Install: spacing of 100mm fork

LCD-830, More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

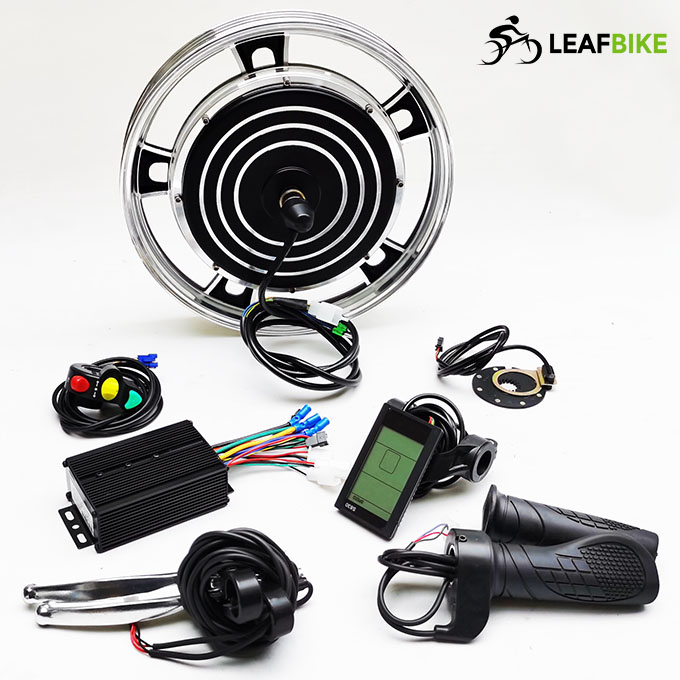

Package Content:
1 x 16 inch 48V / 52V 1000W front hub motor wheel

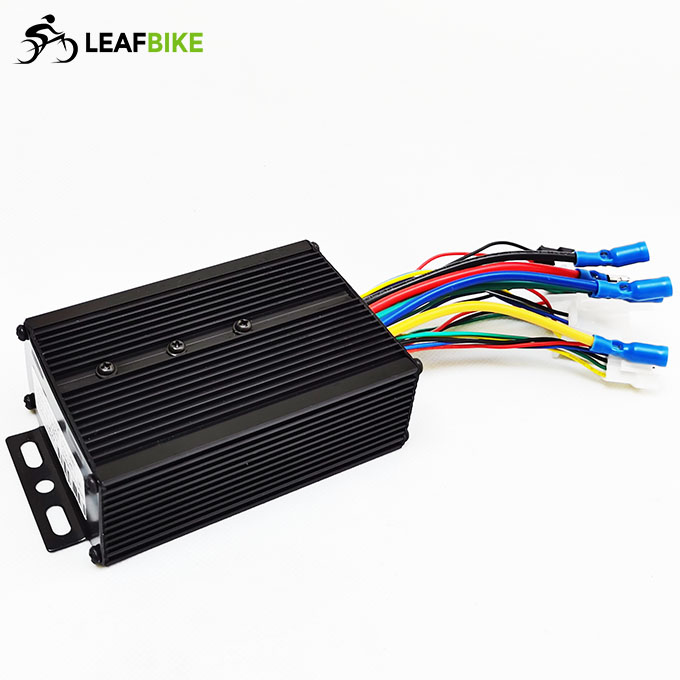

1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 8.95 kg / Gross Weight: 10.15 kg
Package Size: 42cm L x 42cm W x 25cm H
Package Type: Cardboard Box

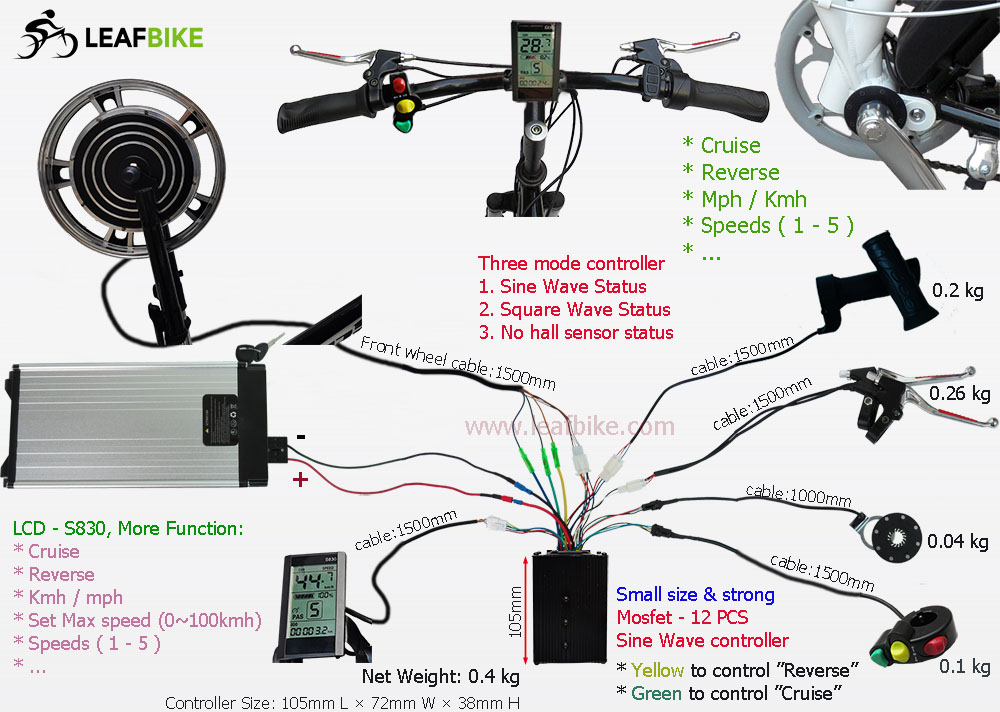

Wire Diagram:

16 inch Front Drw.

16 inch 48v 1000w front bldc hub motor drawing

Performance Data:

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
