This 27 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:
>. Rim: 27 inch double wall Alloy (Rim Fit For: 27 × 1-1/4, 1-3/8 tire)
>. Spoke: 12 gauge / 186mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 69.9 kmh -- 43.4 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H
LCD-S830, More Function:
* Cruise
* Reverse
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

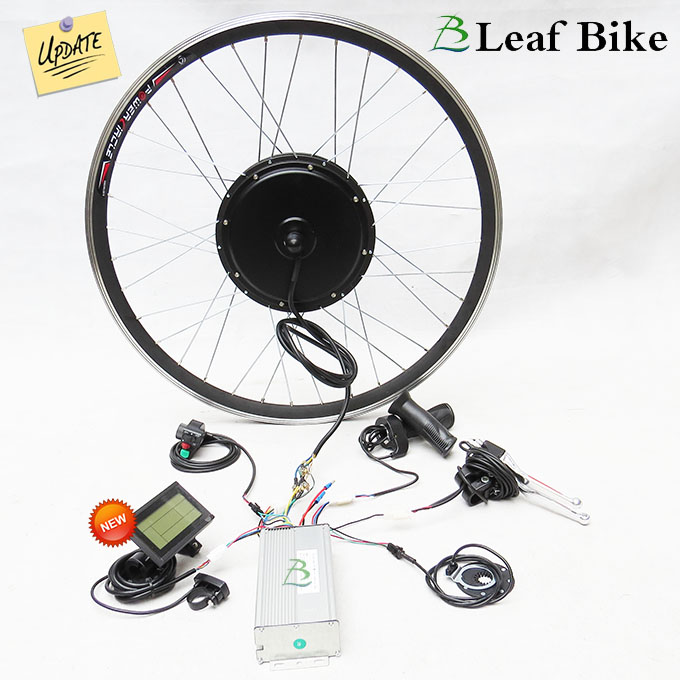

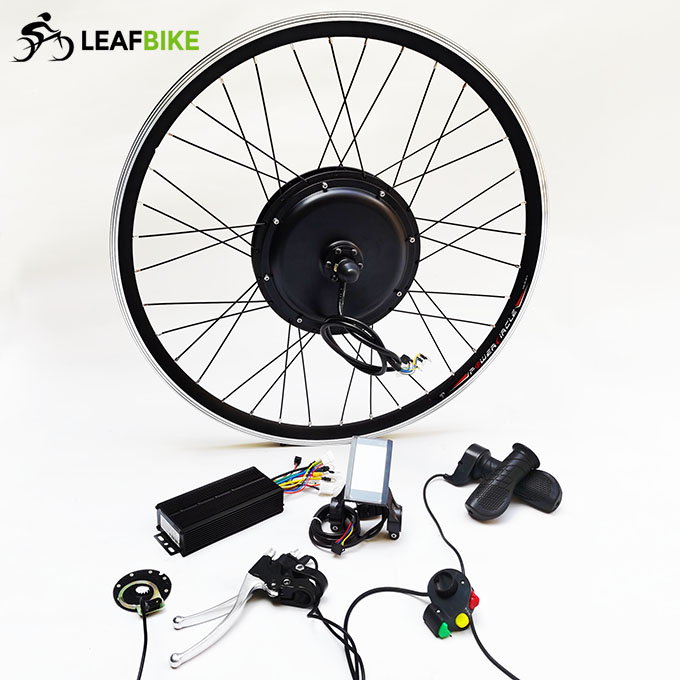

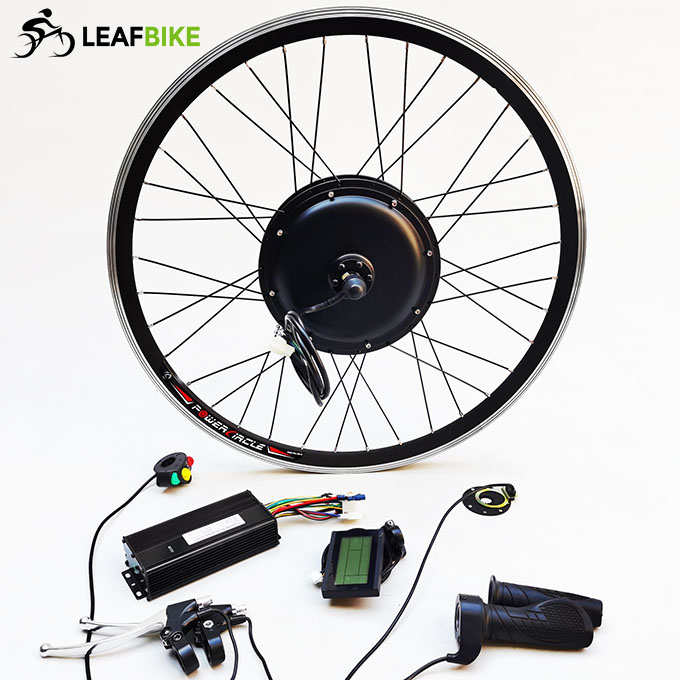

Package Content:

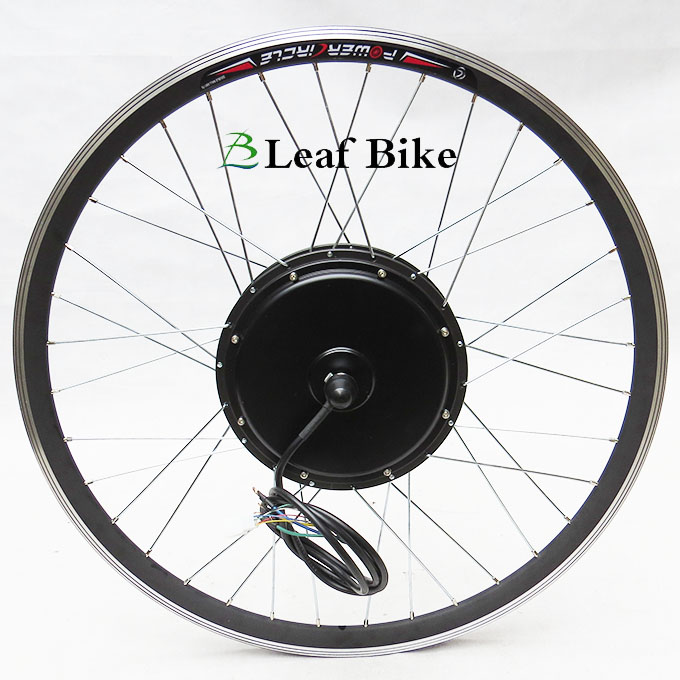

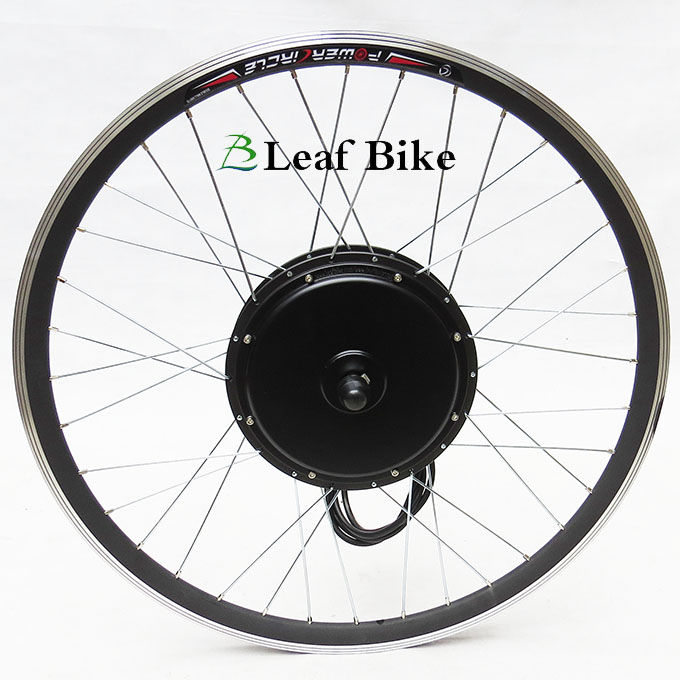

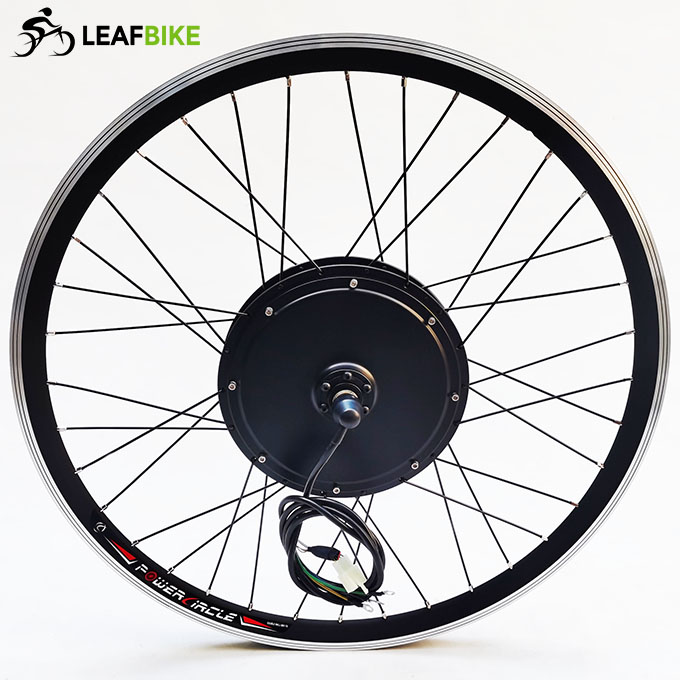

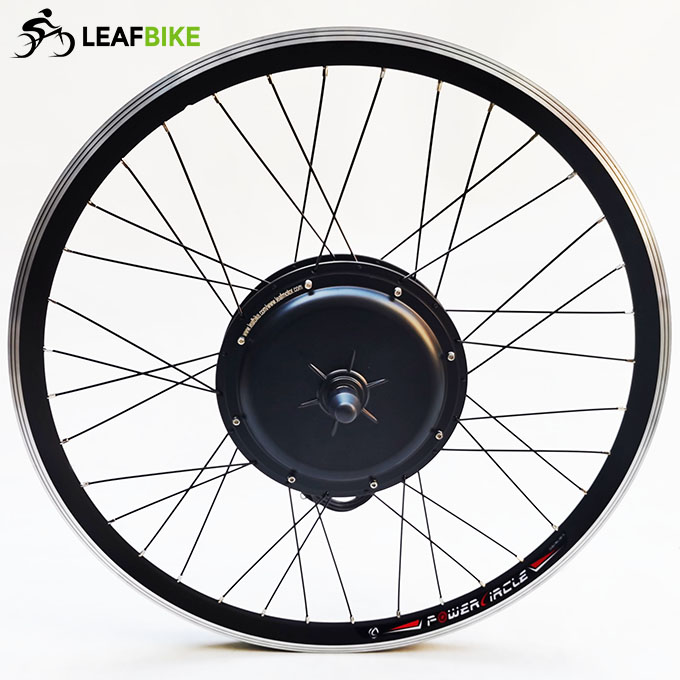

1 x 27 inch 48V / 52V 1500W front hub motor wheel
1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD-S830 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.7 kg
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
1500w Front Drw.
Performance Data:
