27 inch 48V 52V 1000W rear hub motor - bike conversion kit

Name: 27 inch 48V 52V 1000W rear hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK27481000RN
Price: 329 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK27481000RN

$329.00 ~~$378.00~~

Maybe You Need These

Description

Please watch video for 27 inch 48V 52V 1000W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..

Share Video:

700c-1000w-rear-hub-motor-bike-conversion-kit

* This 27 inch electric bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

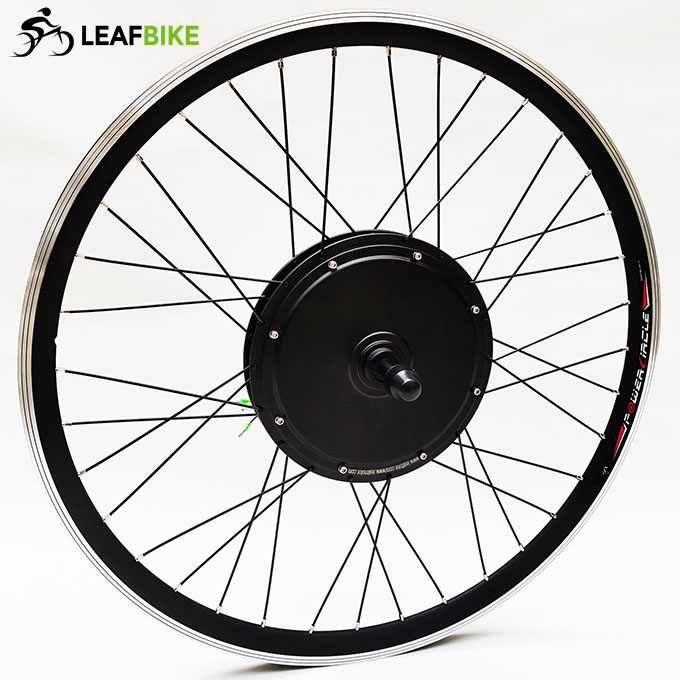

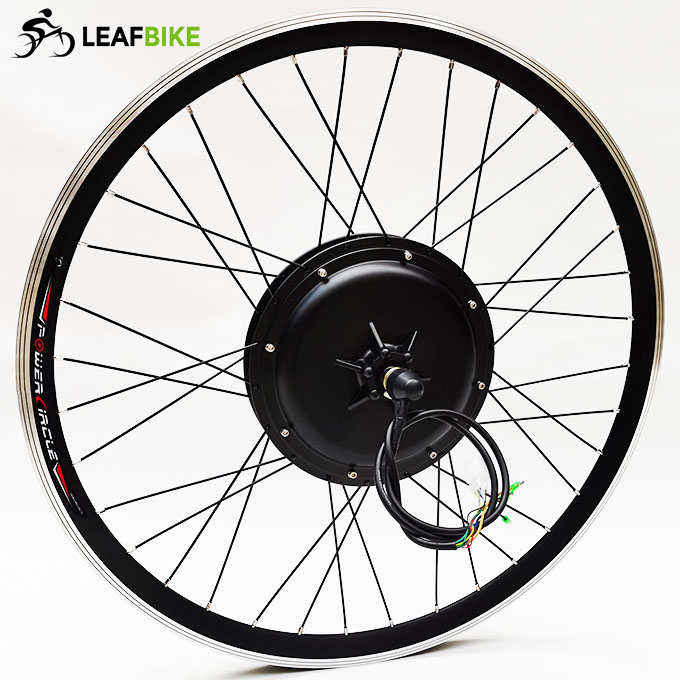

>. Rim: 27 inch double wall Alloy (Rim Fit For: 27 × 1-1/4, 1-3/8 tire)

>. Spoke: 12 gauge / 188mm Length × 36 pcs
Default: Silver spokes
Optional: Black spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 70.0 kmh -- 45mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V

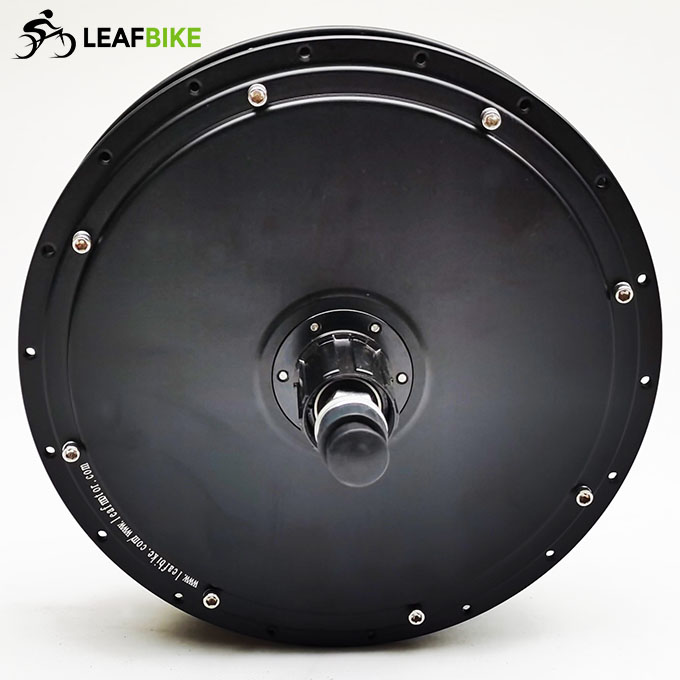

>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. With LCD-S830: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Battery gauge
* ...

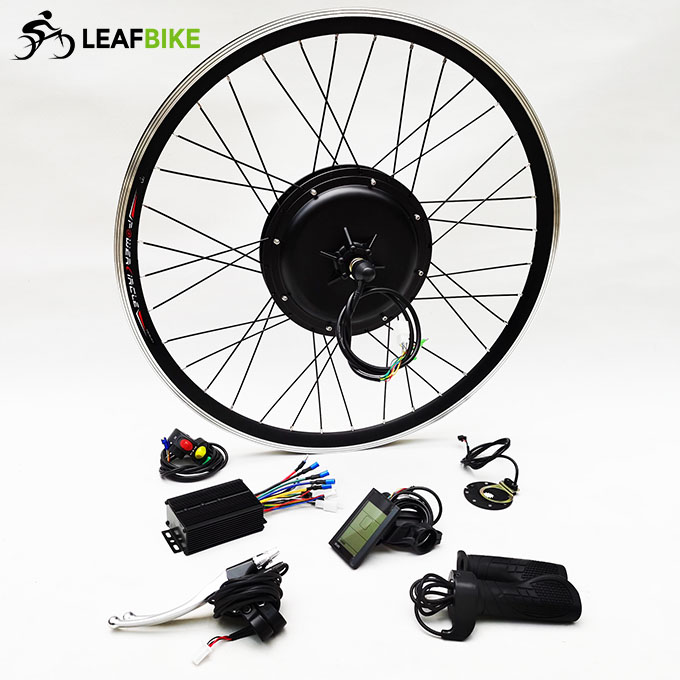

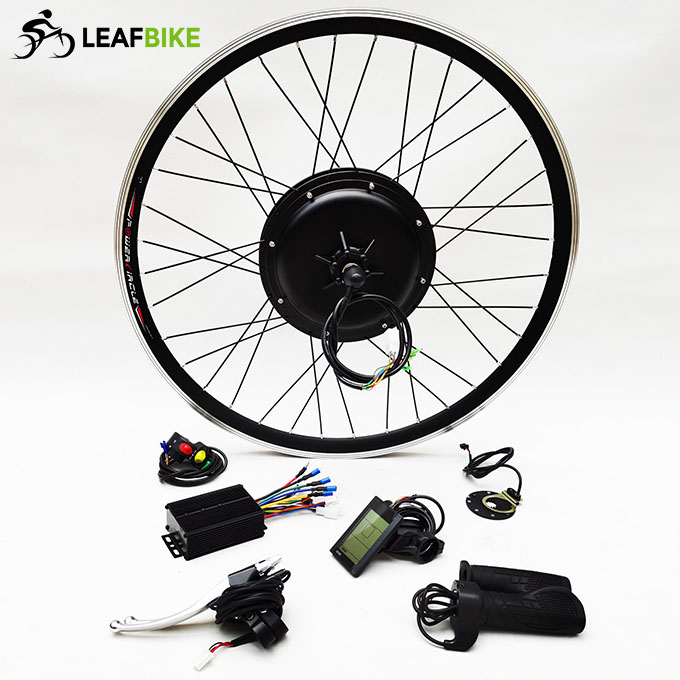

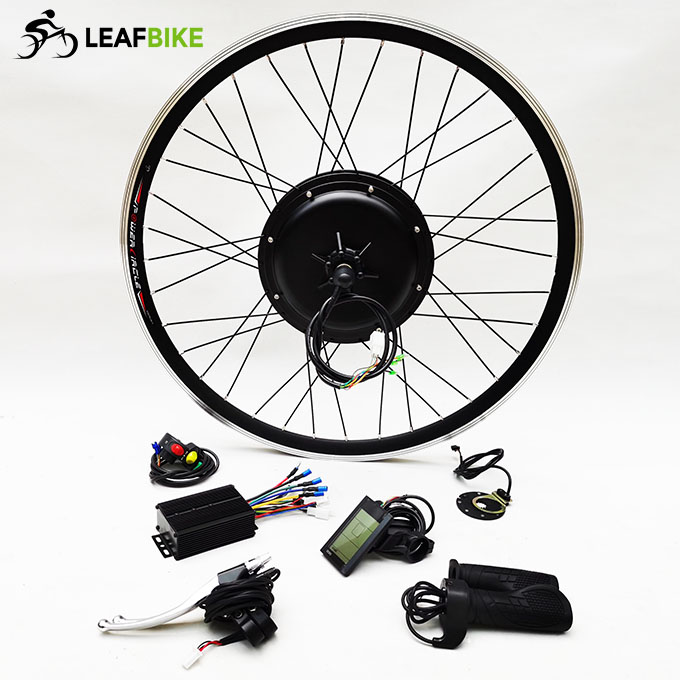

Package Content:

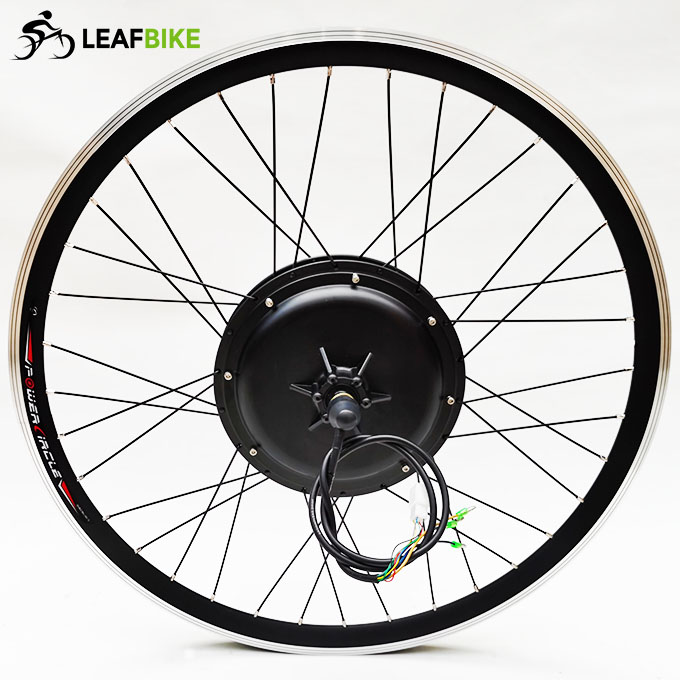

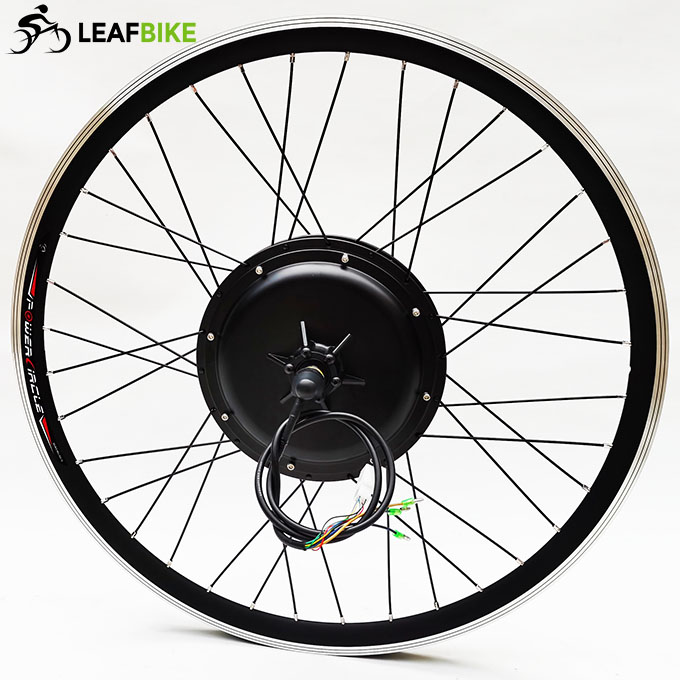

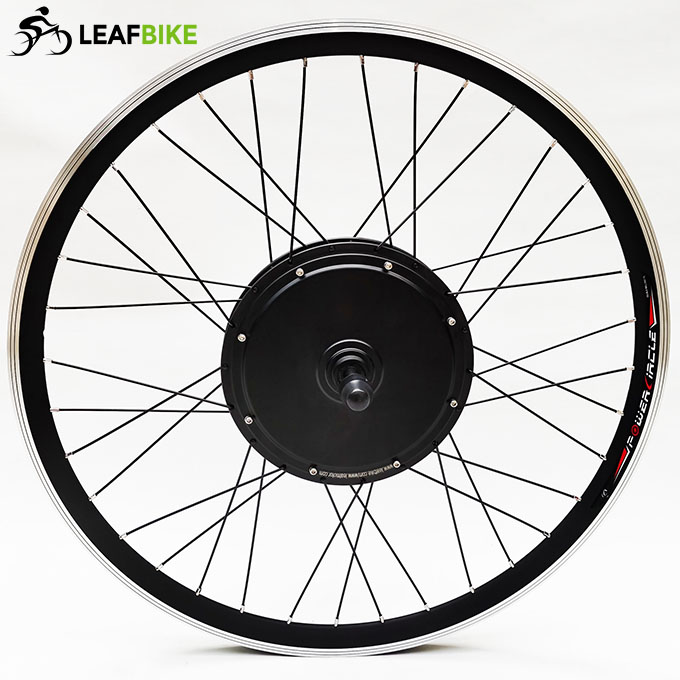

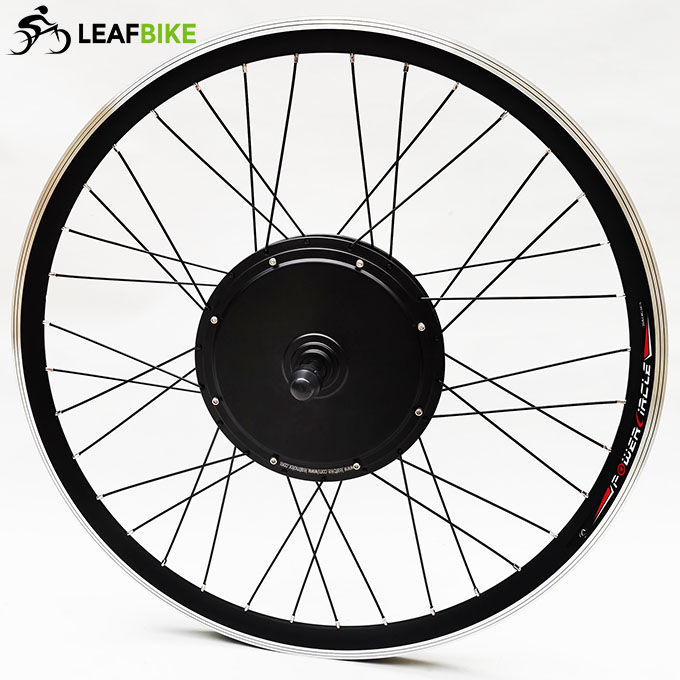

1 x 27 inch 48V 52V 1000W rear hub motor wheel

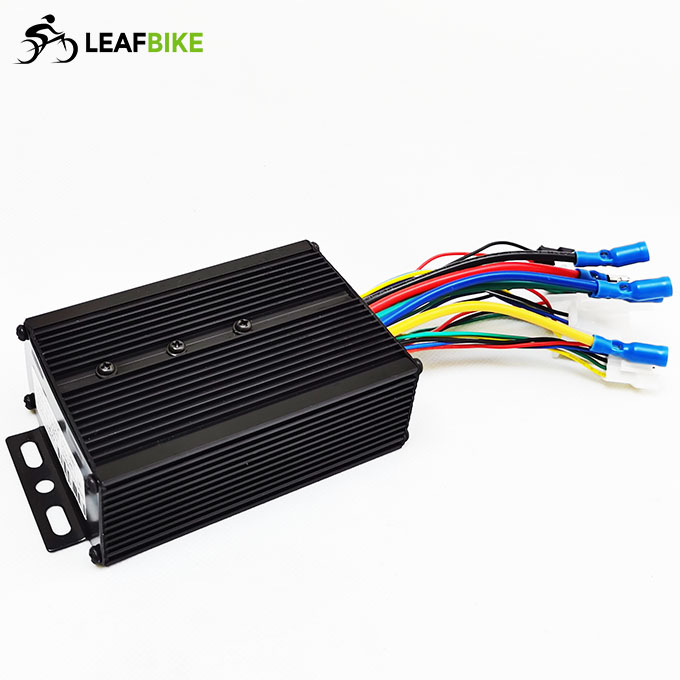

1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg / Gross Weight: 12.5 kg
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box

* This motor & controller system can handle with a 48V or 52V battery.

Wire Diagram:

1000W Rear Drw.

1000W Cassette Drw.

Performance Data:
