27 inch 48V 52V 1500W rear hub motor - bike conversion kit

Item ID #LBCK27481500RN
$378.00 $428.00
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These

* This 27 inch electric bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
>. Rim: 27 inch double wall Alloy (Rim Fit For: 27 × 1-1/4, 1-3/8 tire)
>. Spoke: 12 gauge / 186mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 73.3 kmh -- 45.5 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed... 6 speed or 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>.  Cable location: shaft end, Left
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min.135mm to Max.155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Max speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

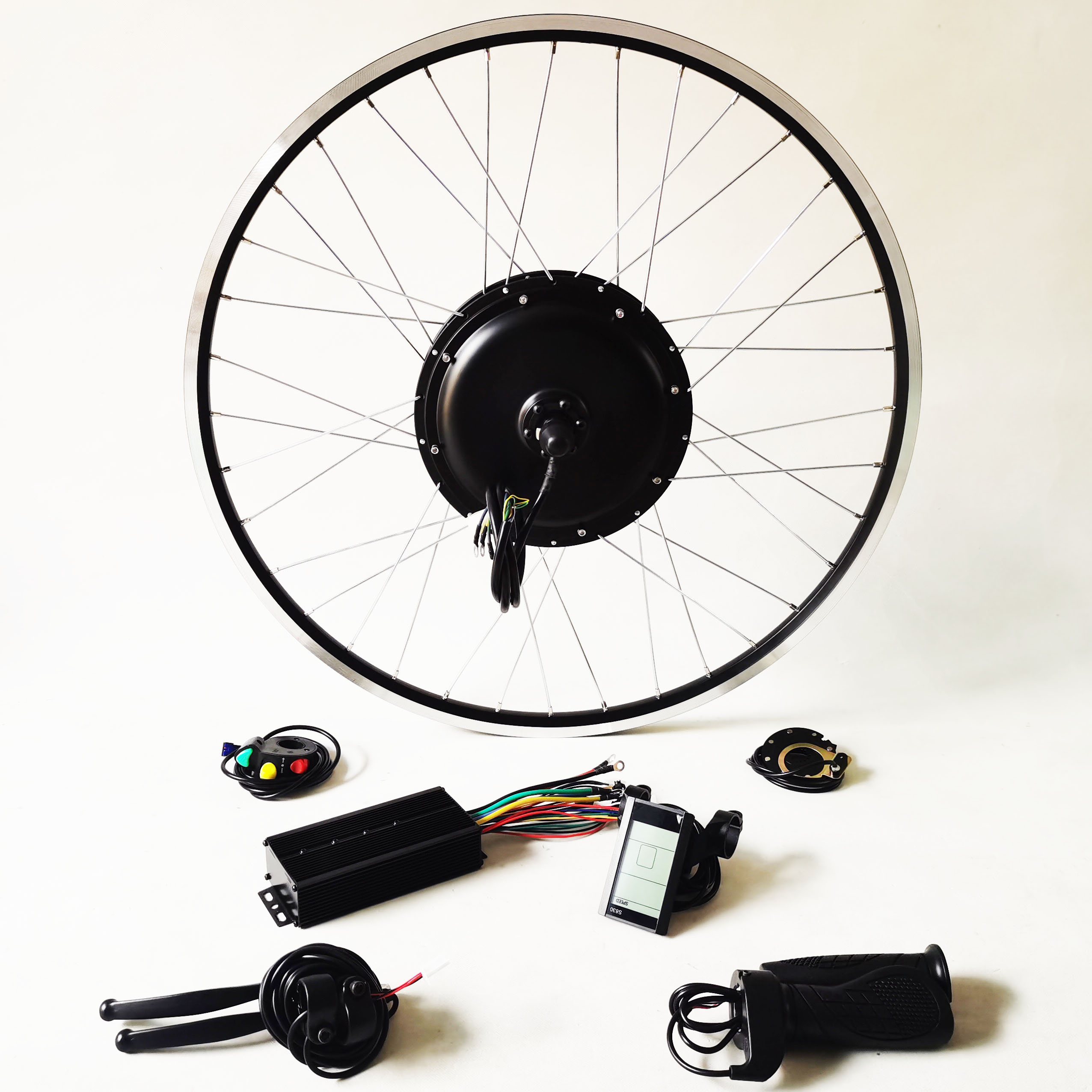

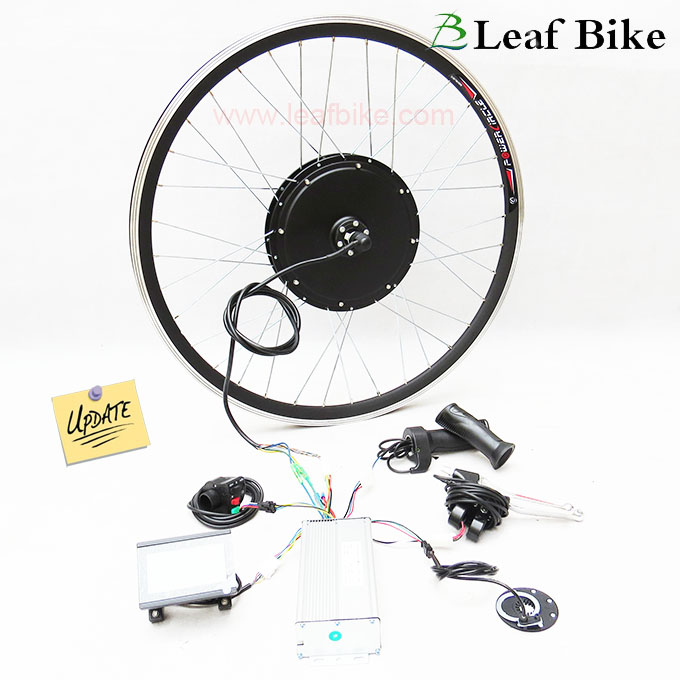

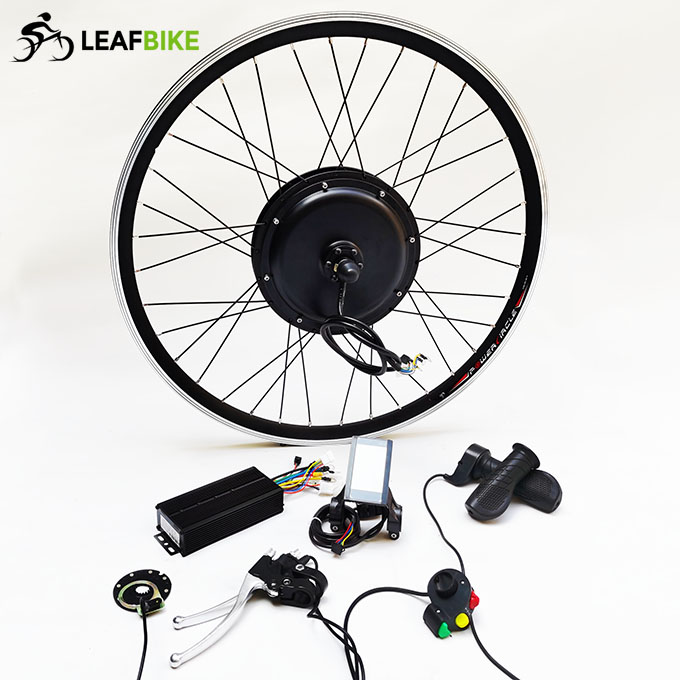

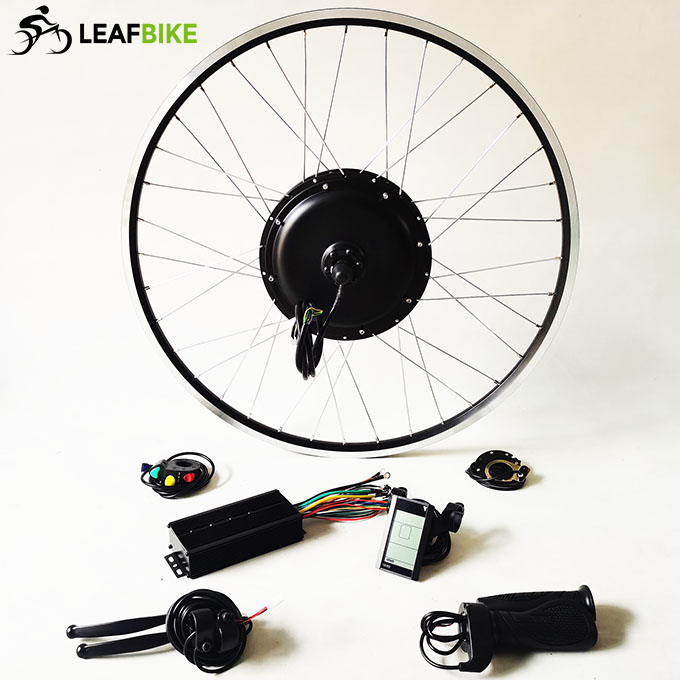

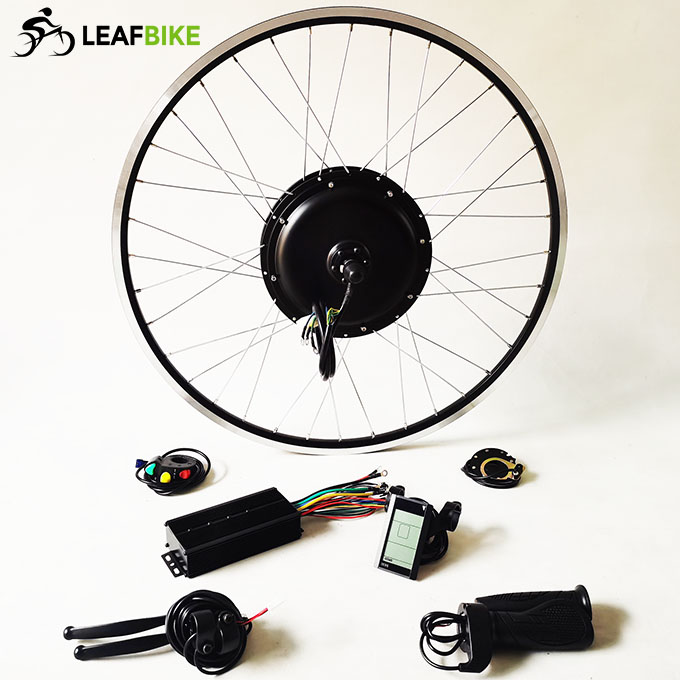

Package Content:

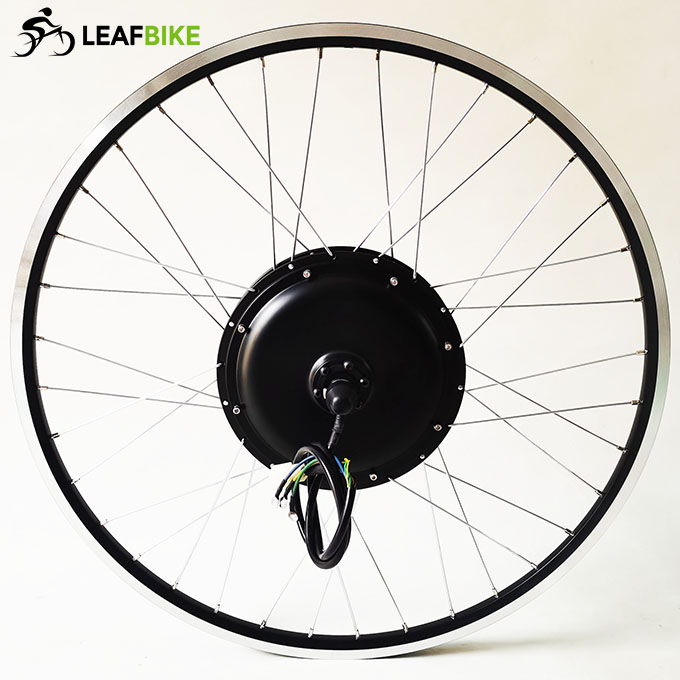

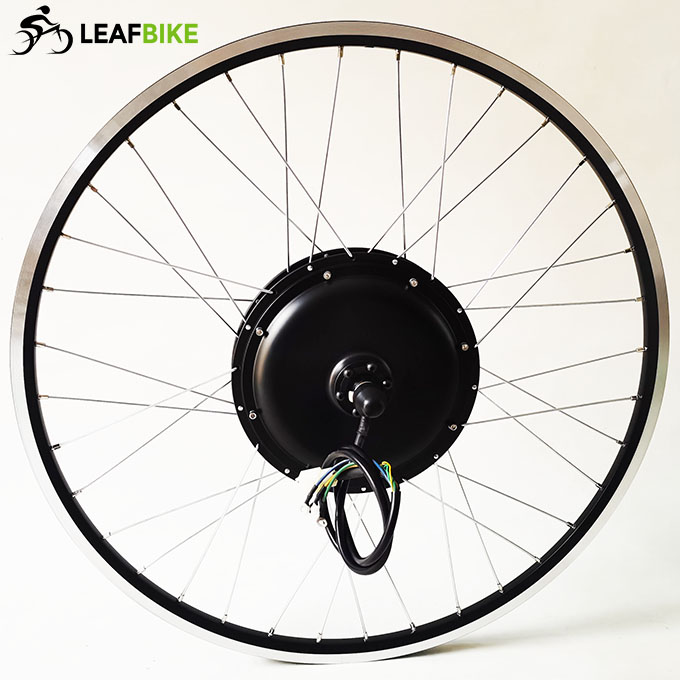

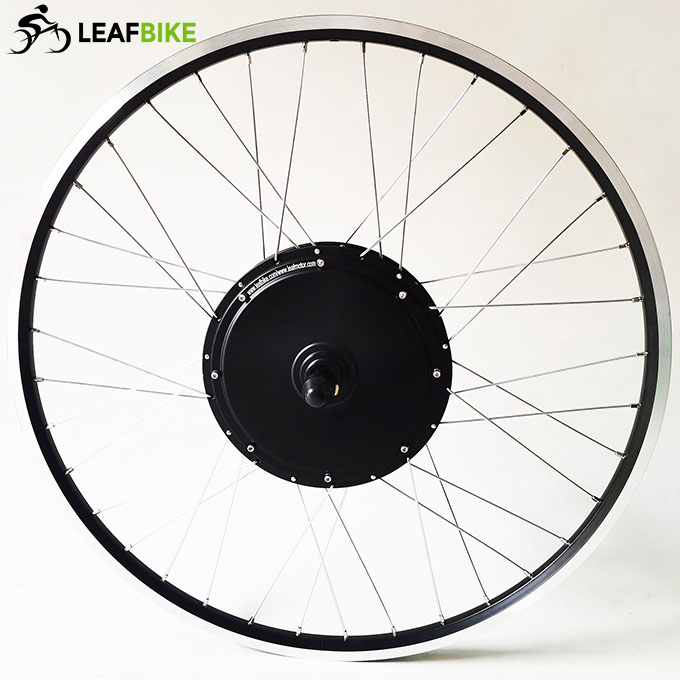

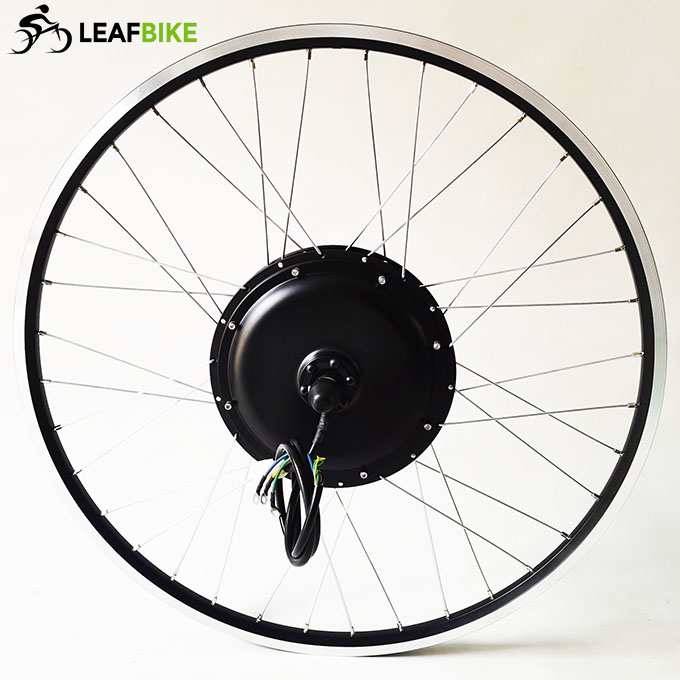

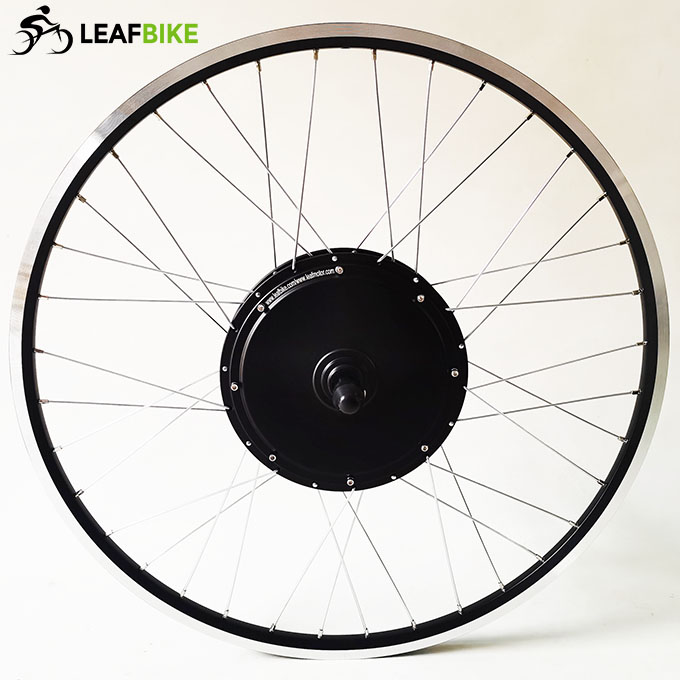

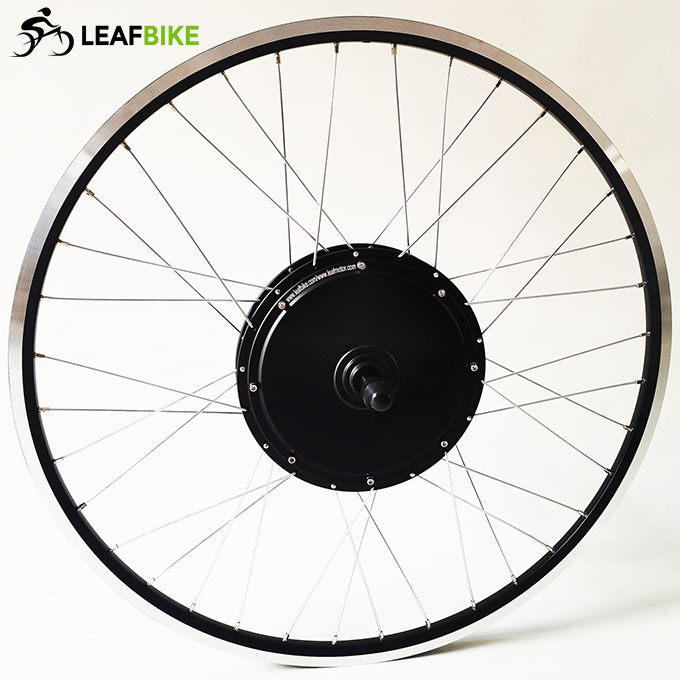

1 x 27 inch 48V / 52V 1500W rear hub motor wheel
1 x 48V / 52V 40A motor controller
1 x LCD-S830 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 11.7 kg
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:
700c-48v-1500w-rear-hub-motor-electric bike conversion kit
Wire Diagram:
27 inch 1500w rear hub motor kit wire diagram
1500W rear Motor Drw.
1500w rear freewheel hub motor drawing
1500W Cassette Drw.
1500w cassette hub motor drawing
Performance Data:
