Name: 20 inch 72V 3000W rear hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK20723000RSK
Price: 528 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20723000RSK

$528.00 ~~$577.00~~

Maybe You Need These

Description

Please watch video for 20 inch 72V 3000W rear hub motor electric bike conversion kit Beach Snow Fat Tire kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

190mm Freewheel:

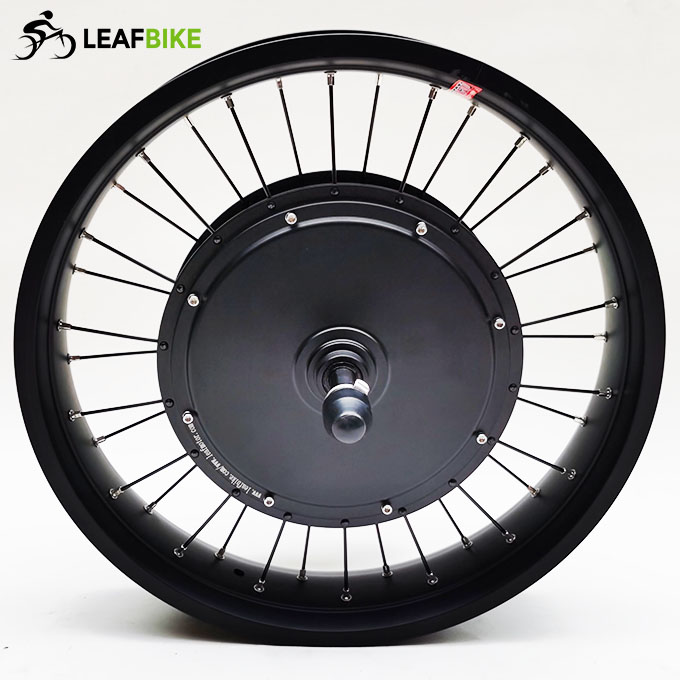

20 inch 72V 3000W rear fat hub motor electric snow bike conversion kit

* This 20 inch 72v 3000w beach snow fat bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

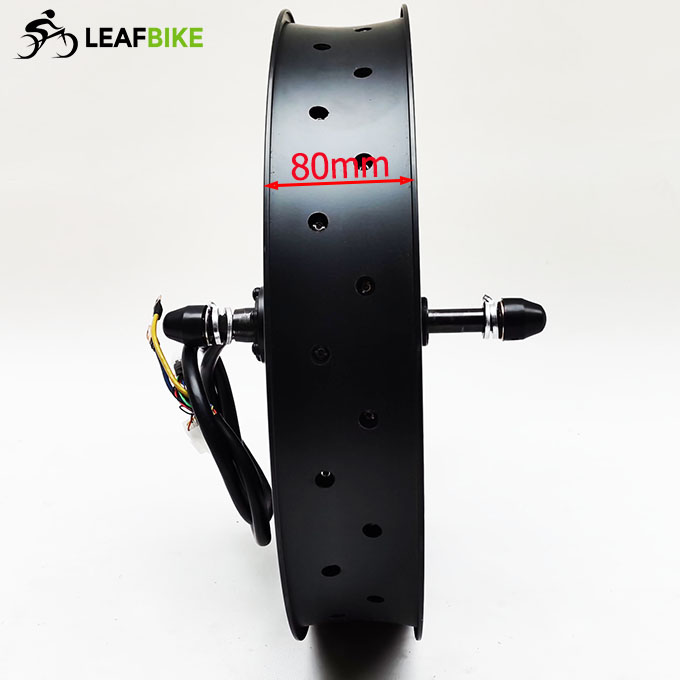

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 72V
>>. Power: 3000W
>>. Efficiency: 90.5%
>>. Max speed: 45 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm ~ 200mm (170mm version Default or 190mm version optional)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 72 Volts
>>. Min. Voltage: DC 60 ± 0.5 V
>>. Rated power: 3000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

With LCD-007, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72kmh )
* Pedal assist ( 1 - 5 )
* Battery gauge
* ...

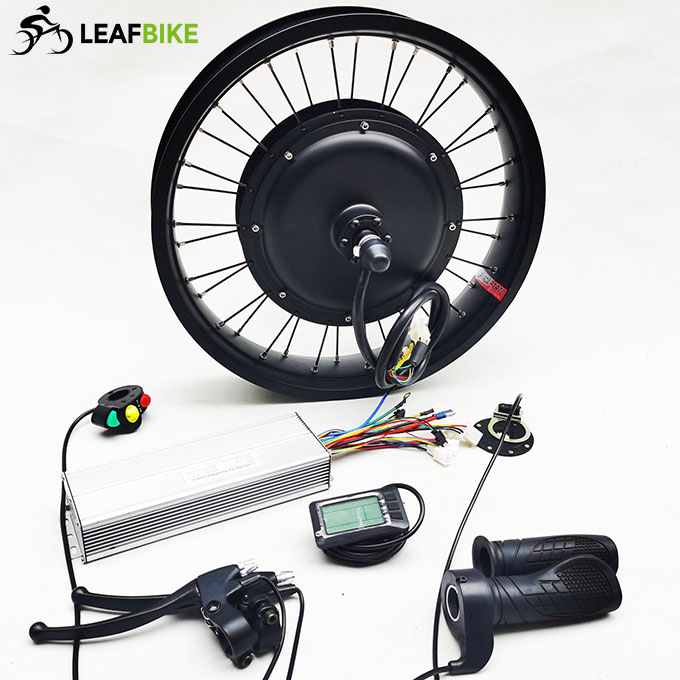

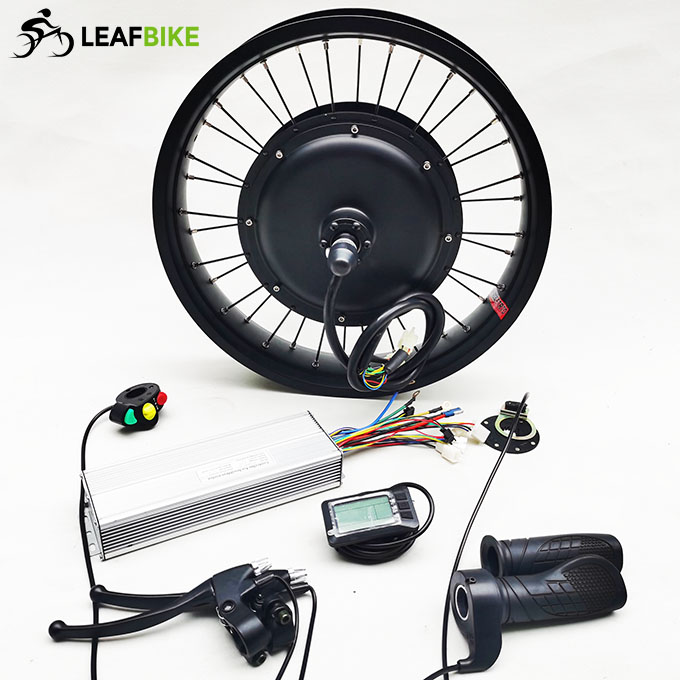

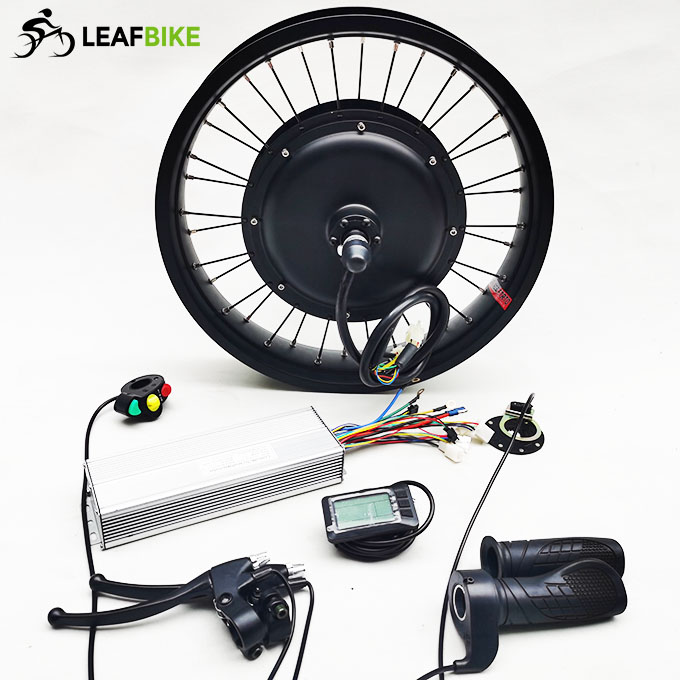

Package Content:

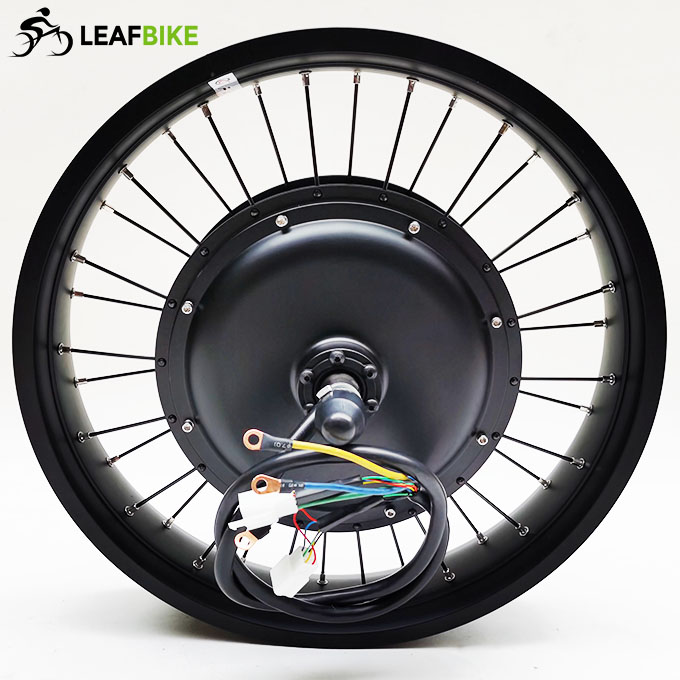

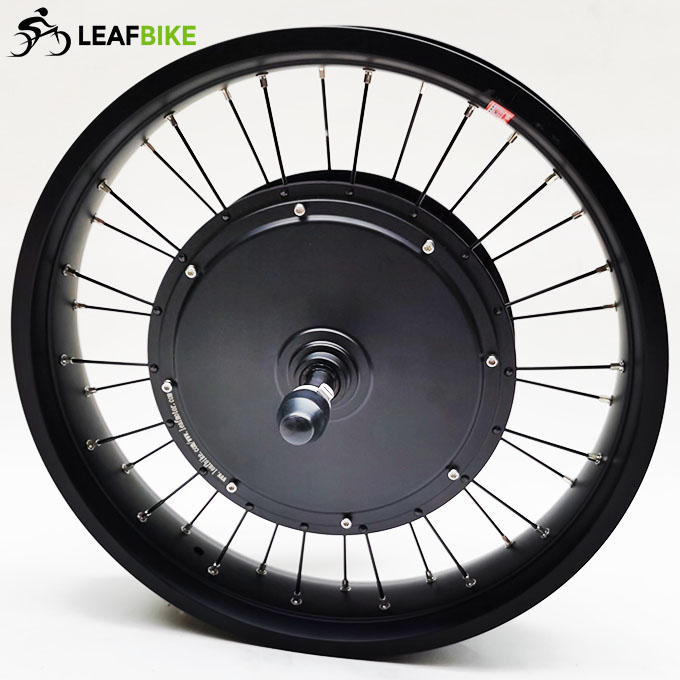

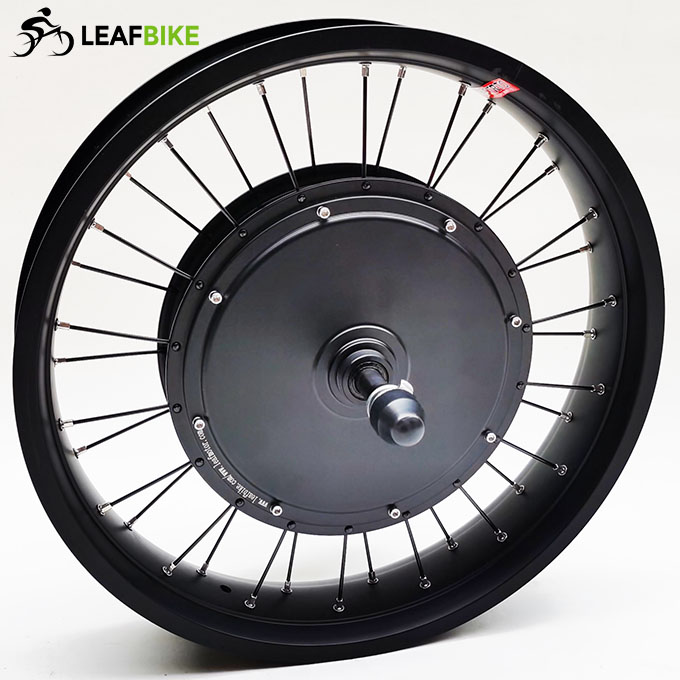

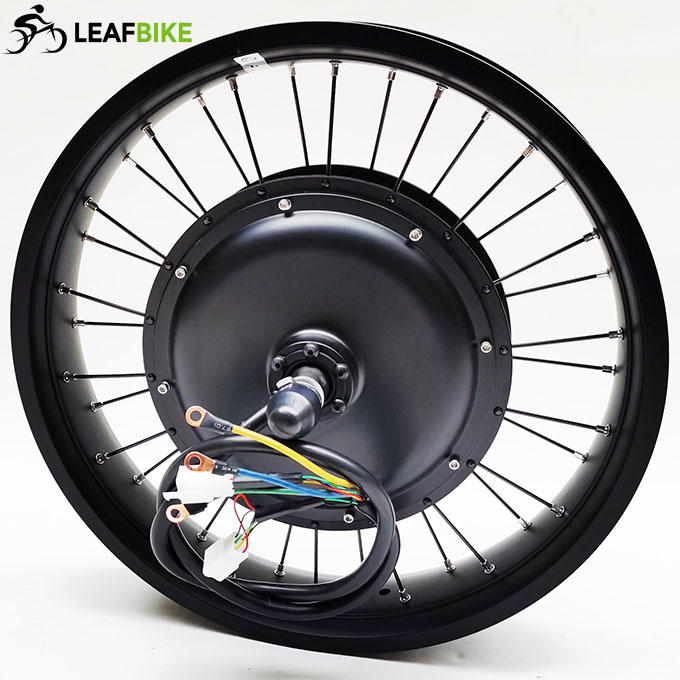

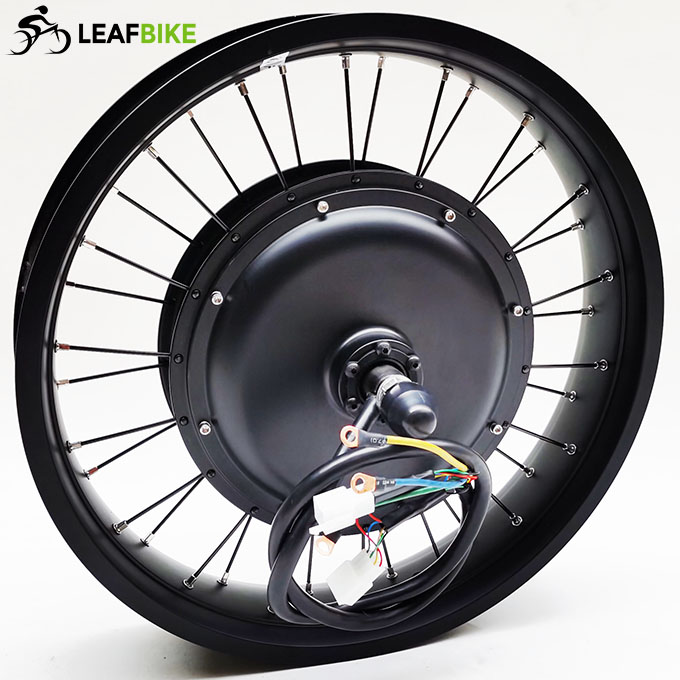

1 x 20 inch 72V 3000W rear hub motor wheel - 20 * 4.00 fat tire / snow / beach
1 x 72V 18-MOSFET 55A motor controller
1 x LCD-007 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12.8kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box

Wire Diagram:

170mm Freewheel:

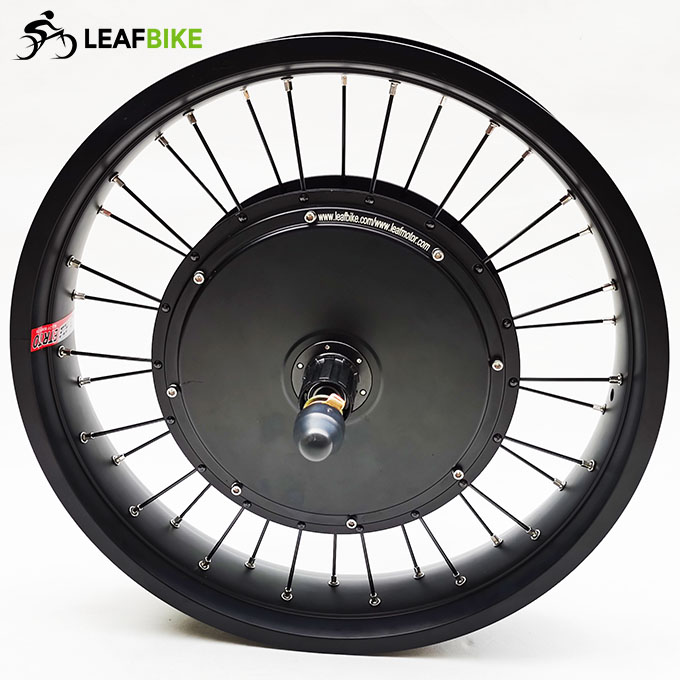

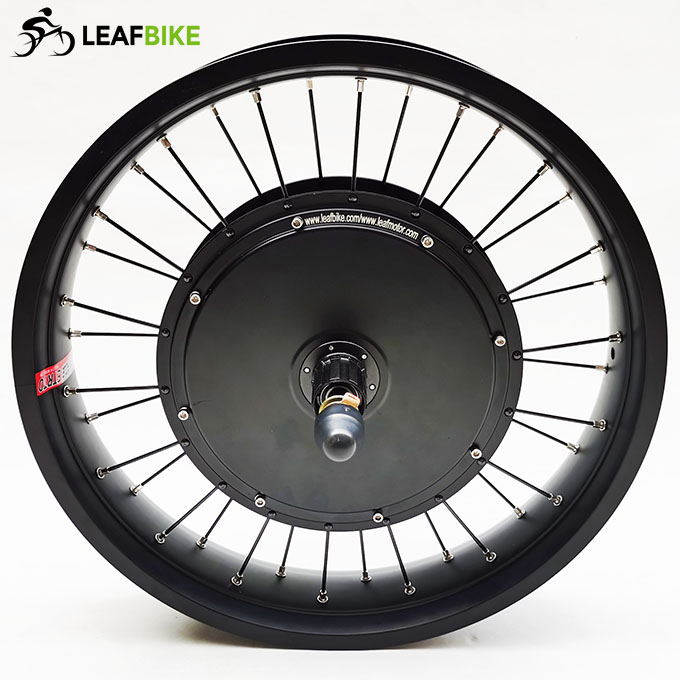

170mm Cassette:

190mm dropout Drw.

190mm dropout beach snow fat bike motor drawing
