Please watch video for 20 inch 60V 3000W rear fat hub motor electric bike conversion kit that only show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh,45kmh..
190mm Freewheel:

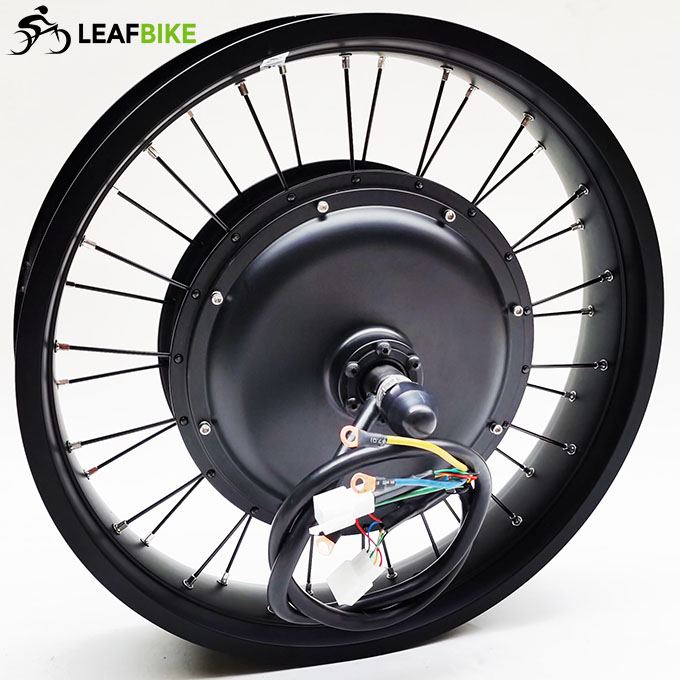

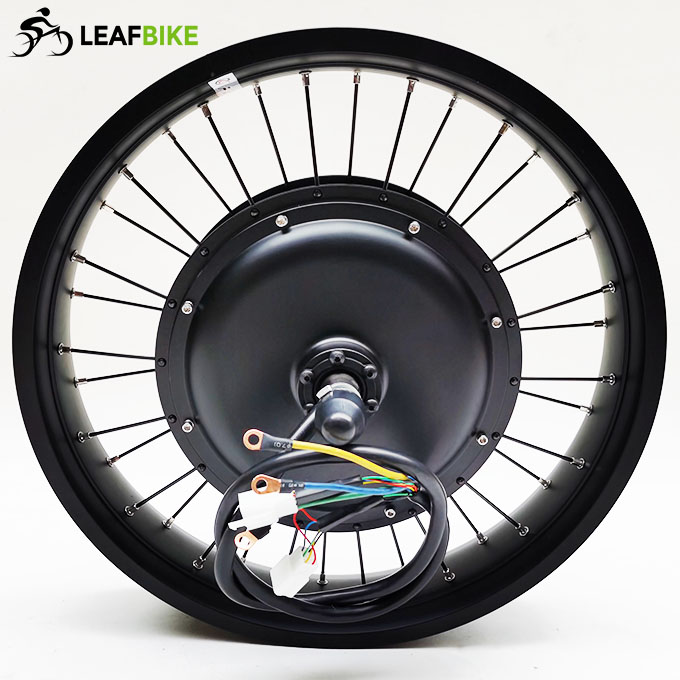

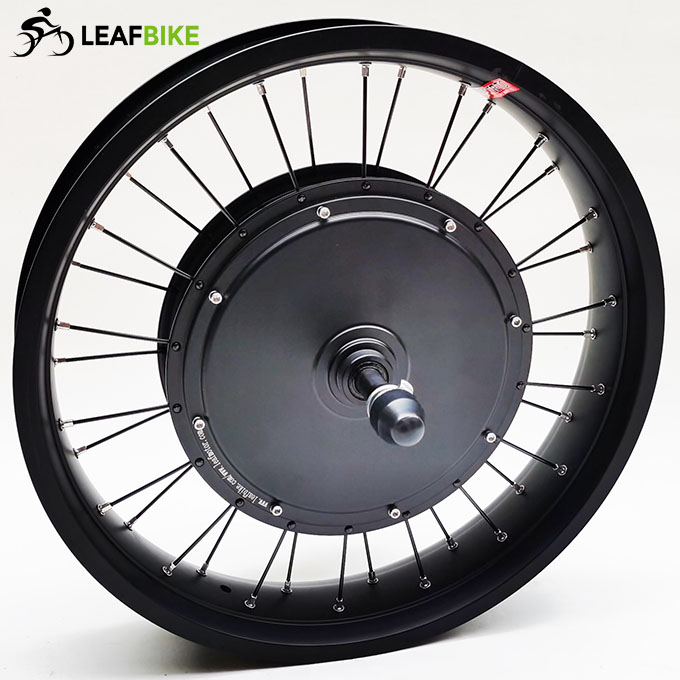

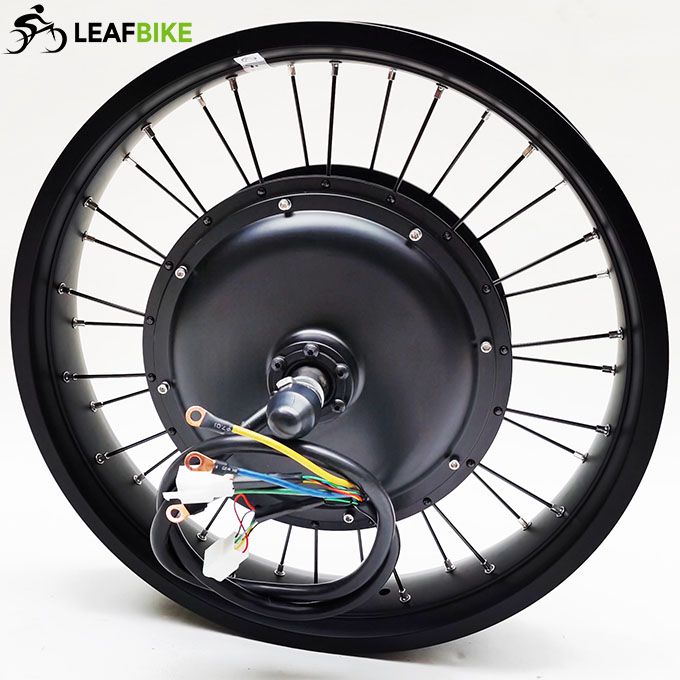

* This 20 inch fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

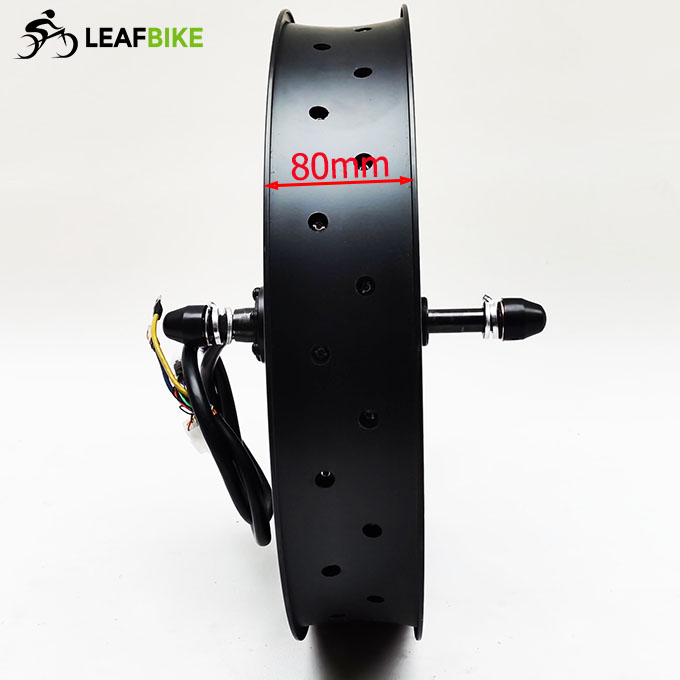

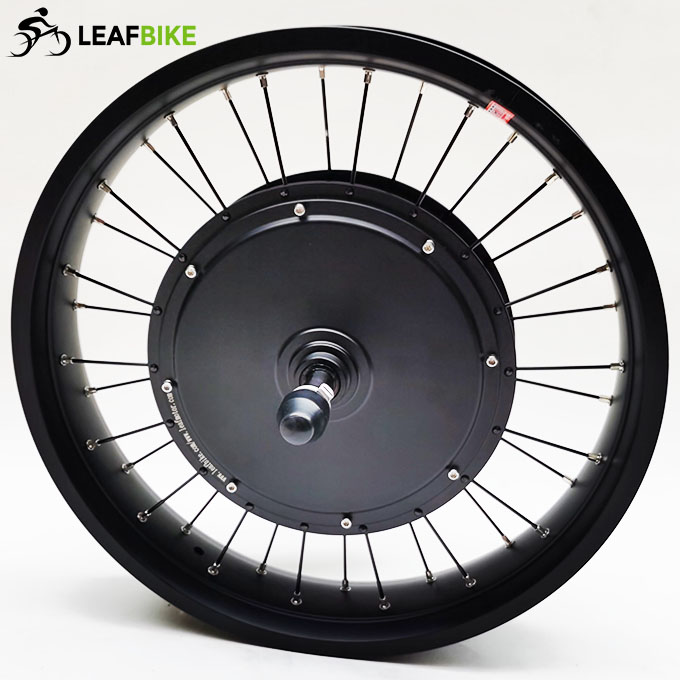

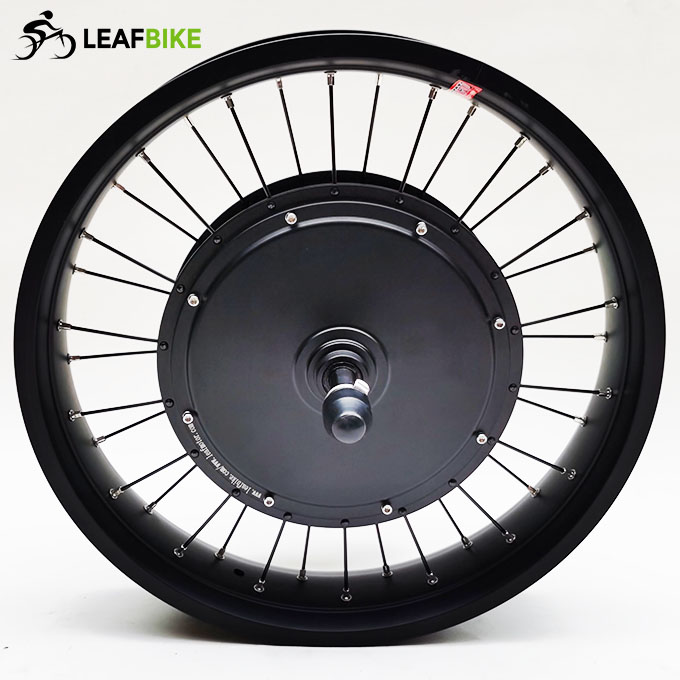

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs
>. Hub: 55mm Wide
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 3000W
>>. Efficiency: 90.5%
>>. Max speed: 65.1 - 40.4 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V

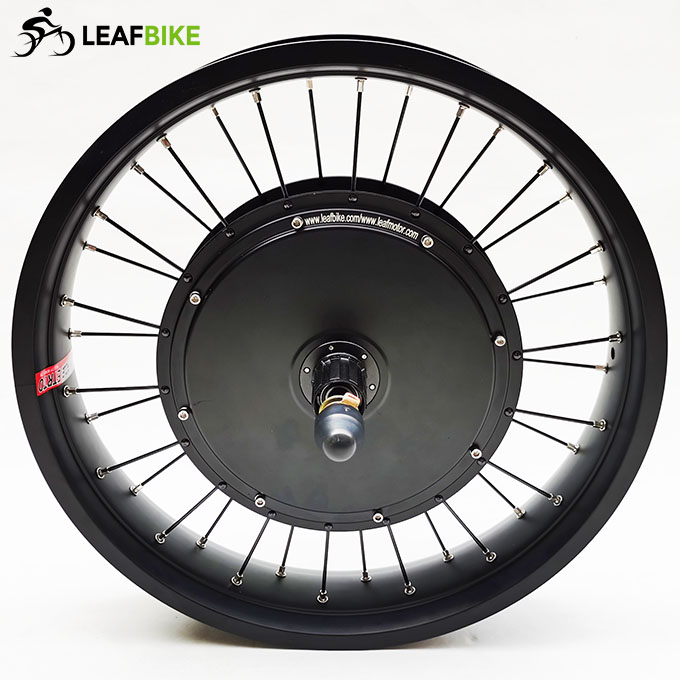

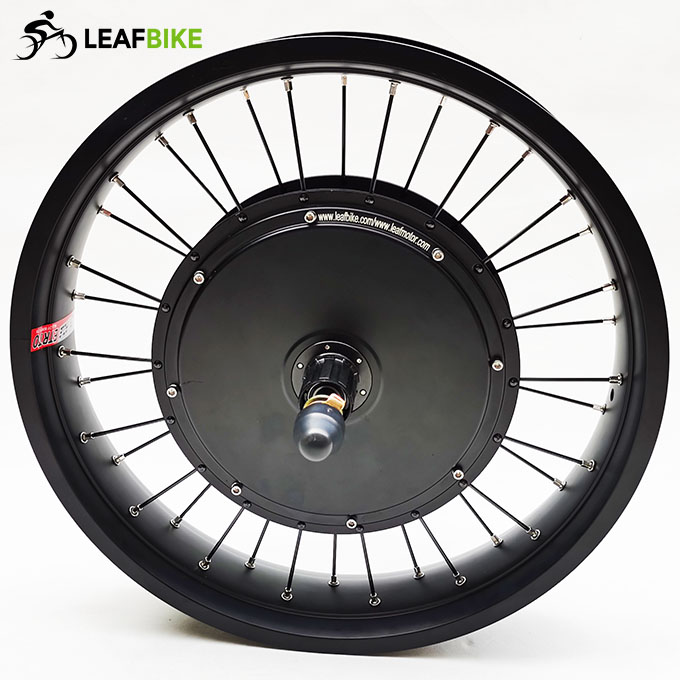

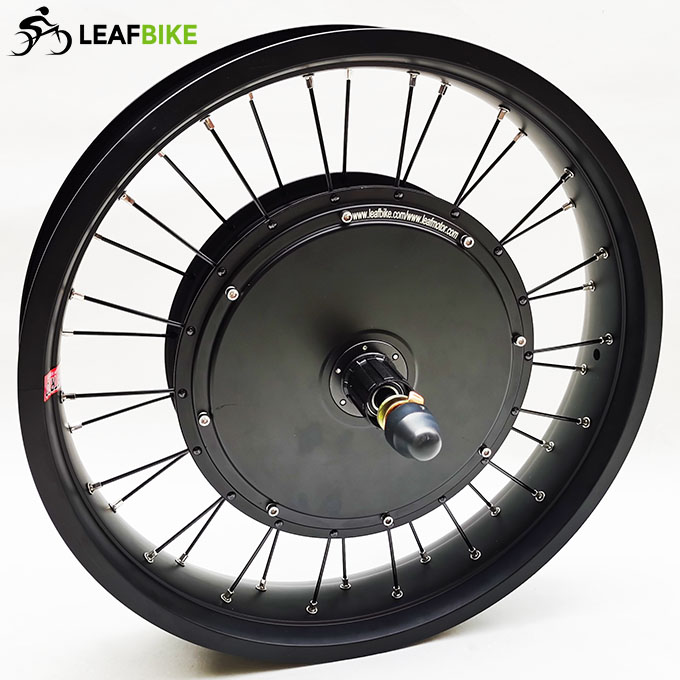

>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40" (6mm phase wire with 2 sets of hall sensor?
>>. Rear frame fork / Install: spacing of 170mm or 190mm
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS5
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 3000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

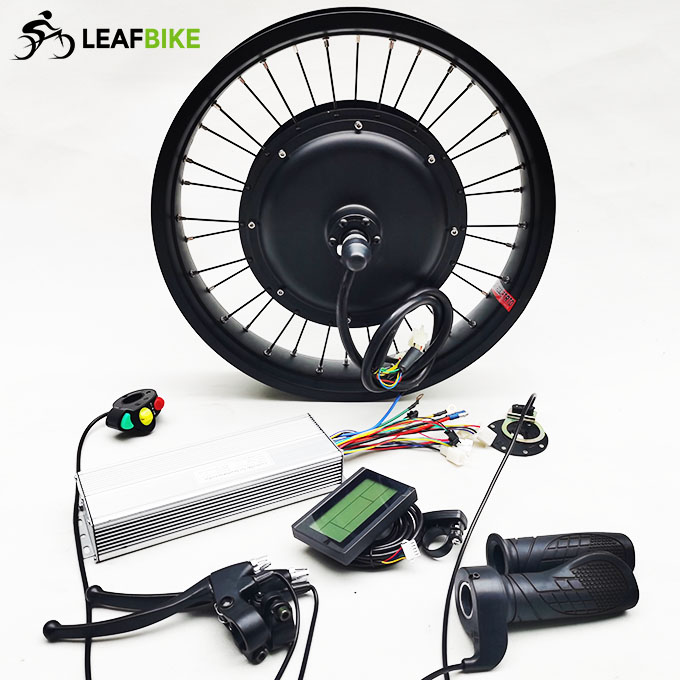

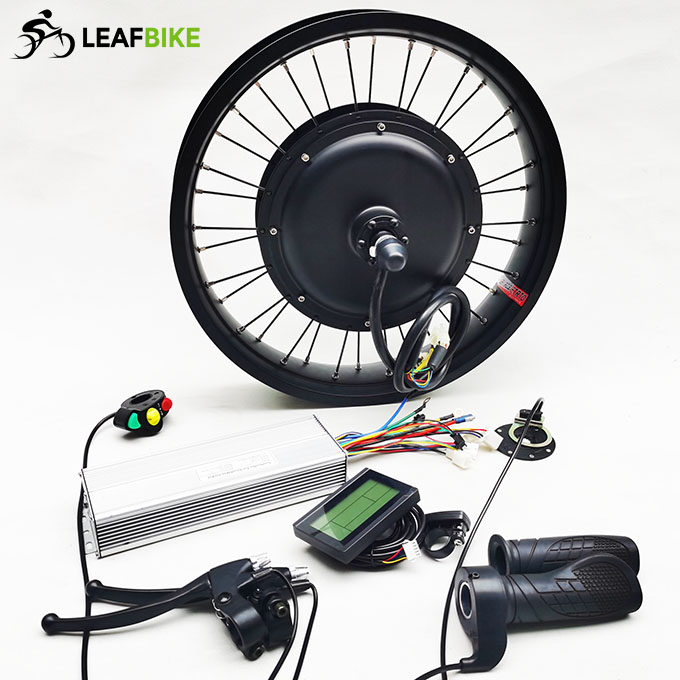

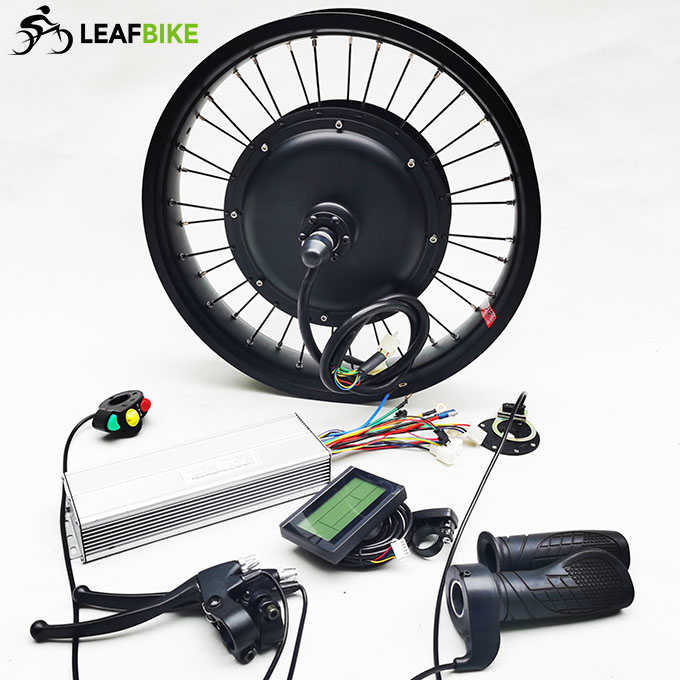

Package Content:
1 x 20 inch 60V 3000W rear beach snow fat hub motor wheel - (Rim Fit For: 20 × 4.00" fat tire)
1 x 60V 18-MOSFET motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11 kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box

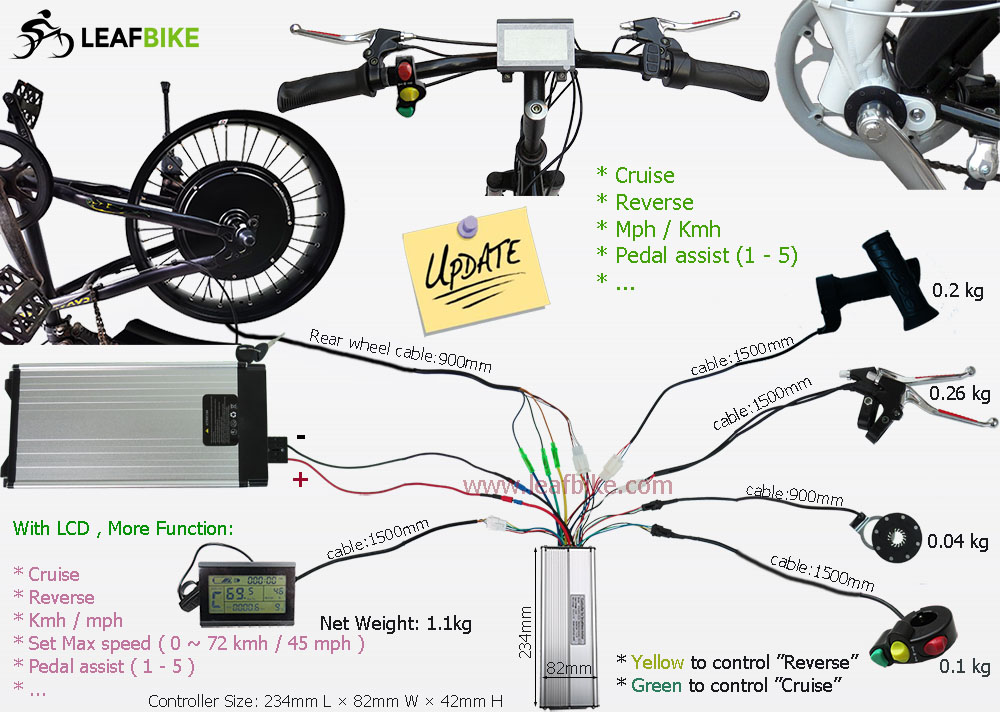

Wire Diagram:
170mm Drw.
190mm dropout Drw.
