20 inch 60V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit

Name: 20 inch 60V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK20602000FSK
Price: 456 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20602000FSK

$456.00 ~~$505.00~~

Maybe You Need These

Description

Please watch video for 20 inch 60V 2000W front hub motor electric bike conversion kit beach snow fat tire kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 32kmh, 45kmh ..

Max 25kmh:

20 inch 60V 2000W front fat hub motor electric bike conversion kit video

* This 20 inch fat bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

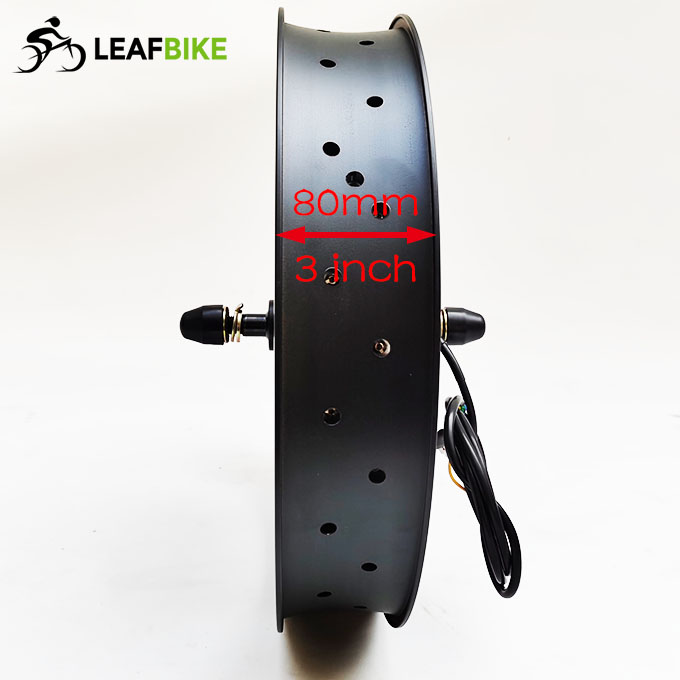

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 40 mph Default (Optional other speed: 30mph, 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

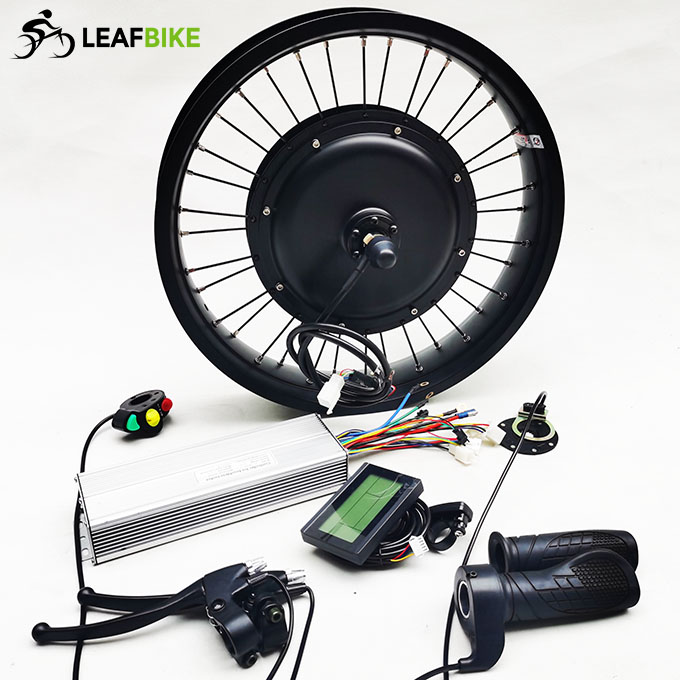

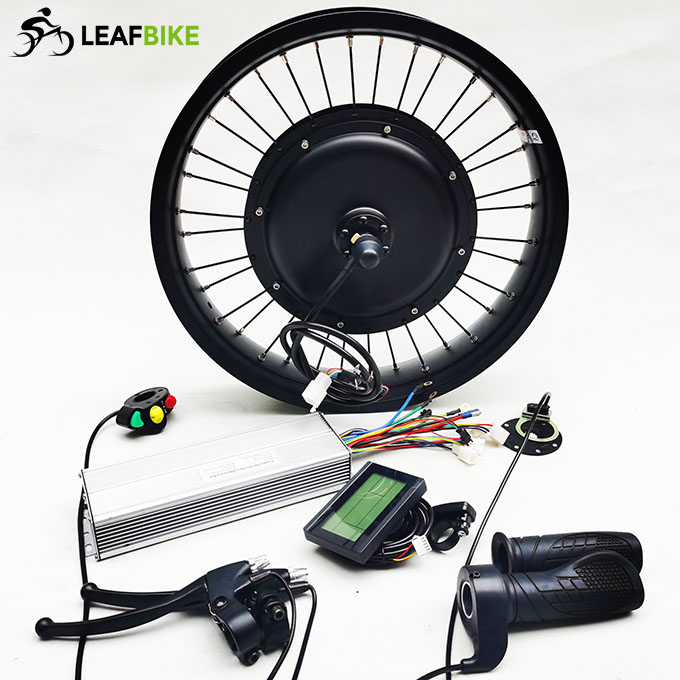

Package Content:

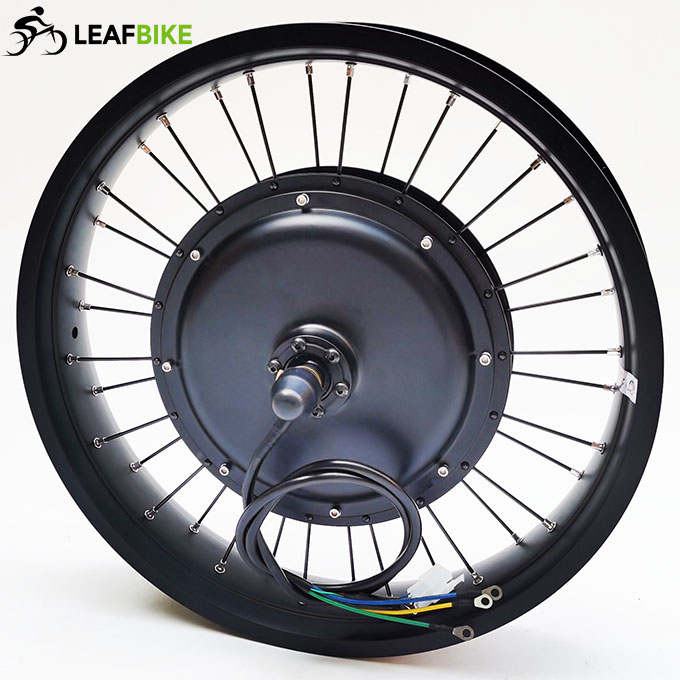

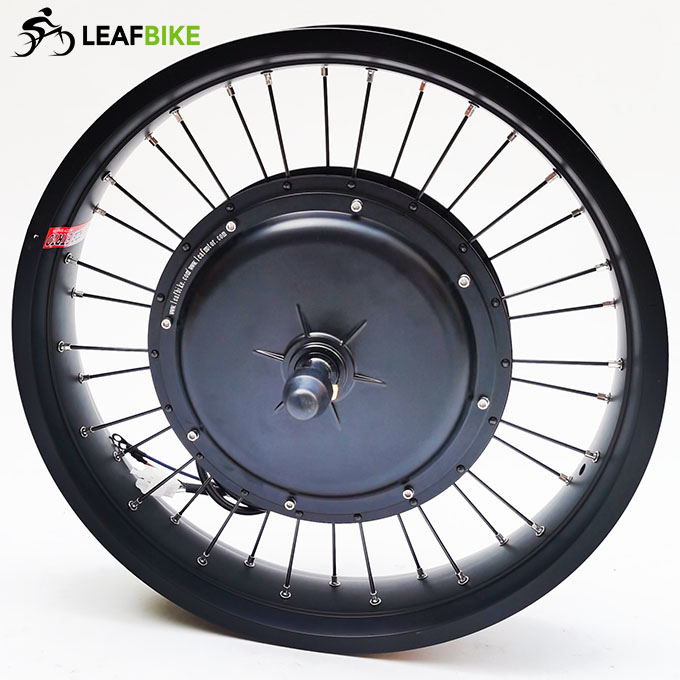

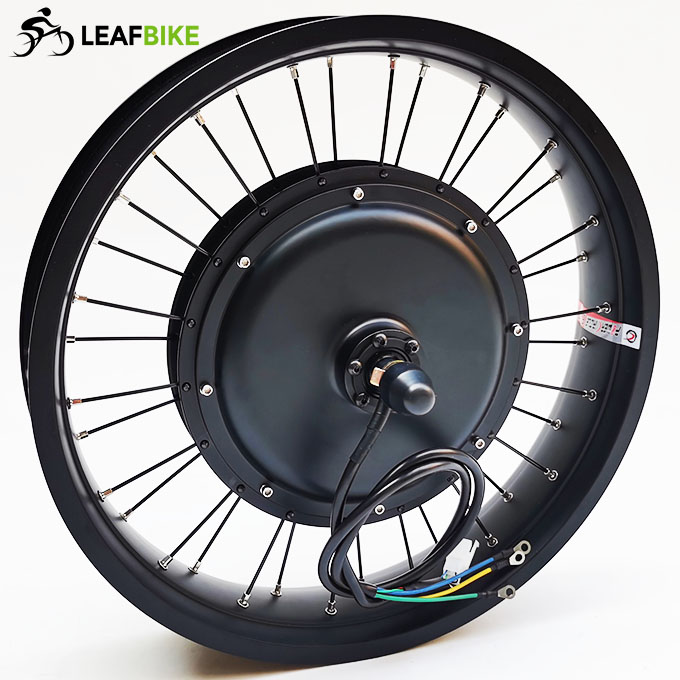

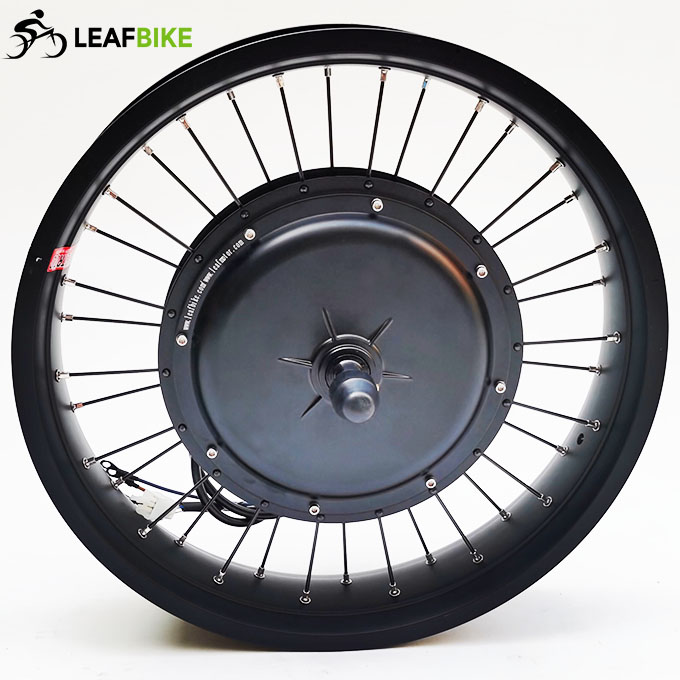

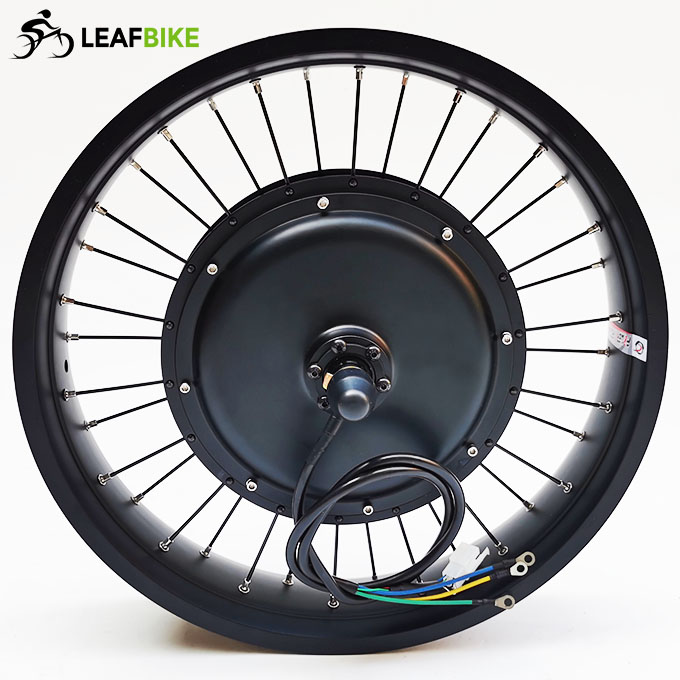

1 x 20 inch 60V 2000W front hub motor wheel - (Rim Fit For: 20 x 4.00 fat tire / snow / beach)
1 x 60V 18-Mosfet motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

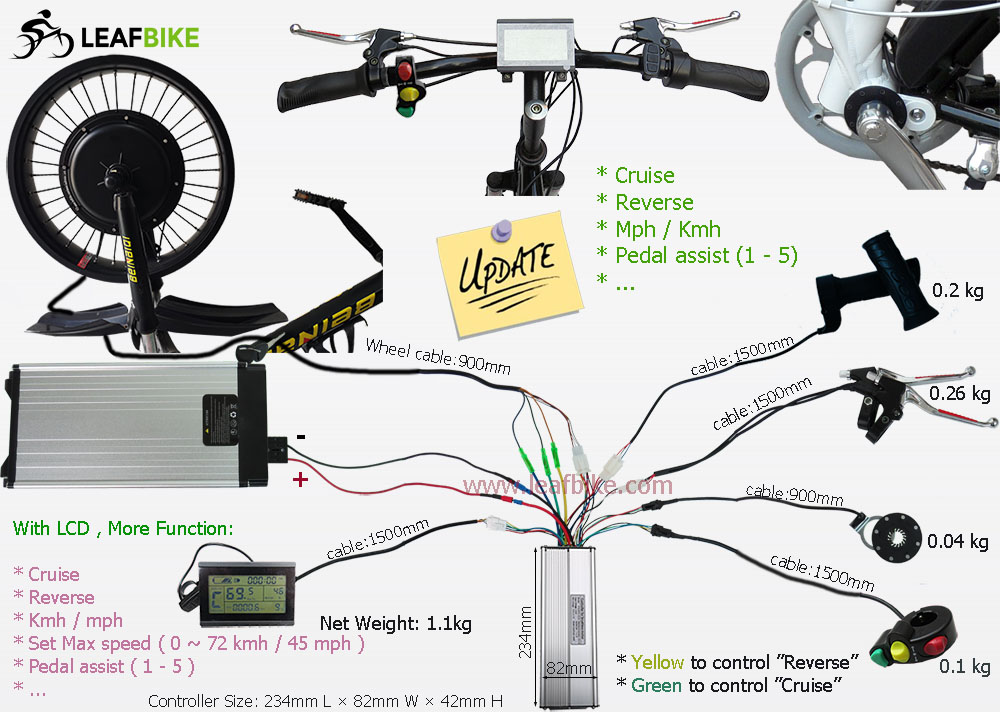

Wire Diagram:

Fat Snow Front Drw.

1500W front beach snow fat bike motor drawing
