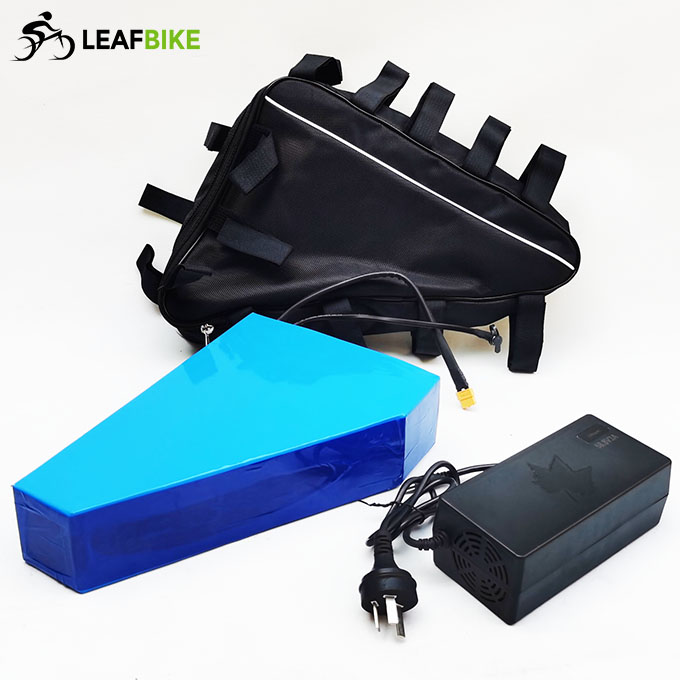

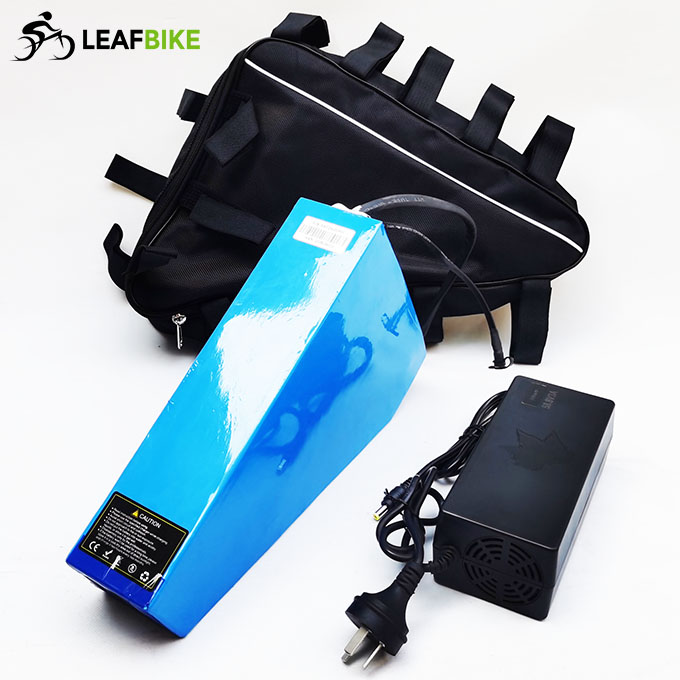

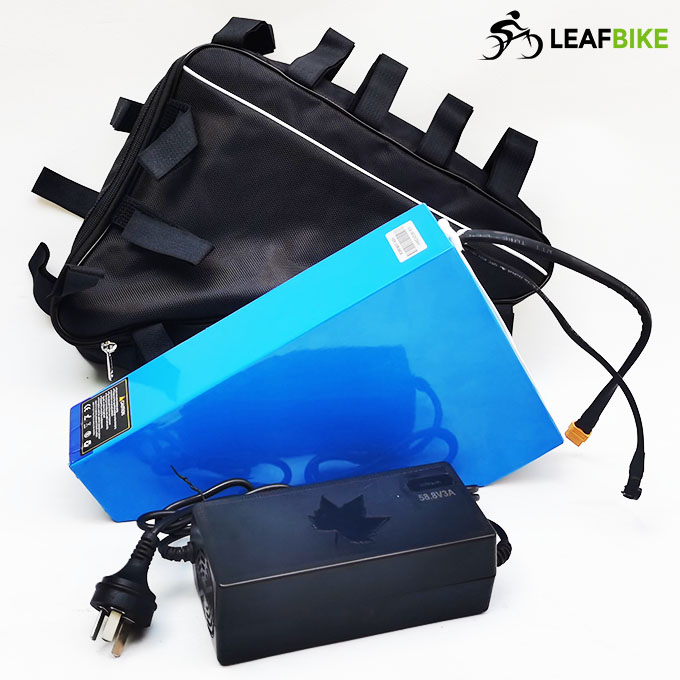

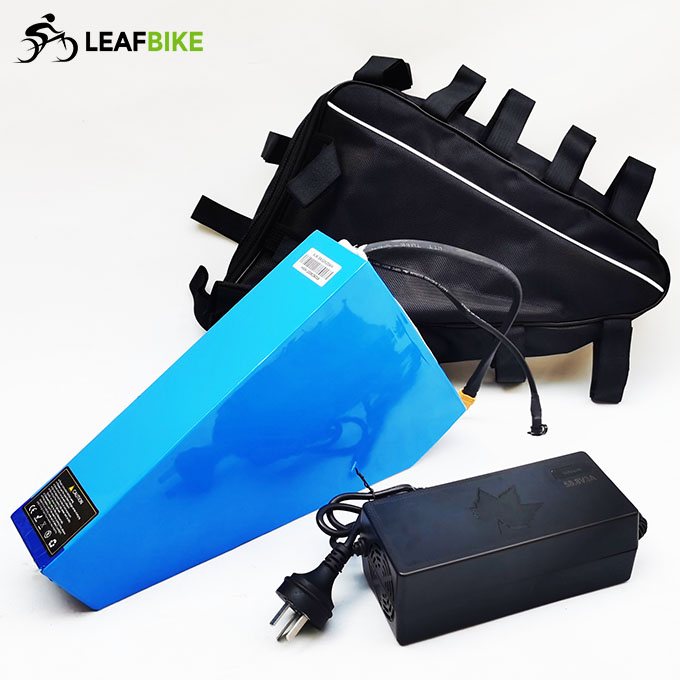

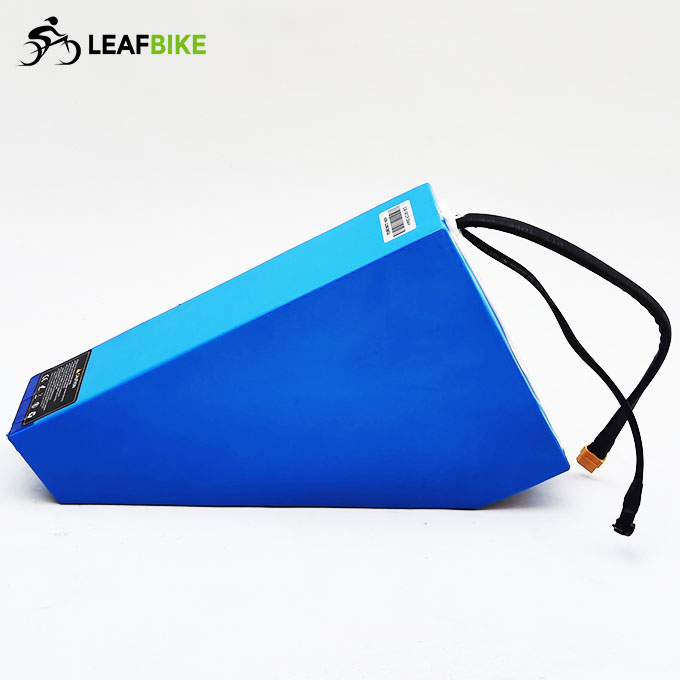

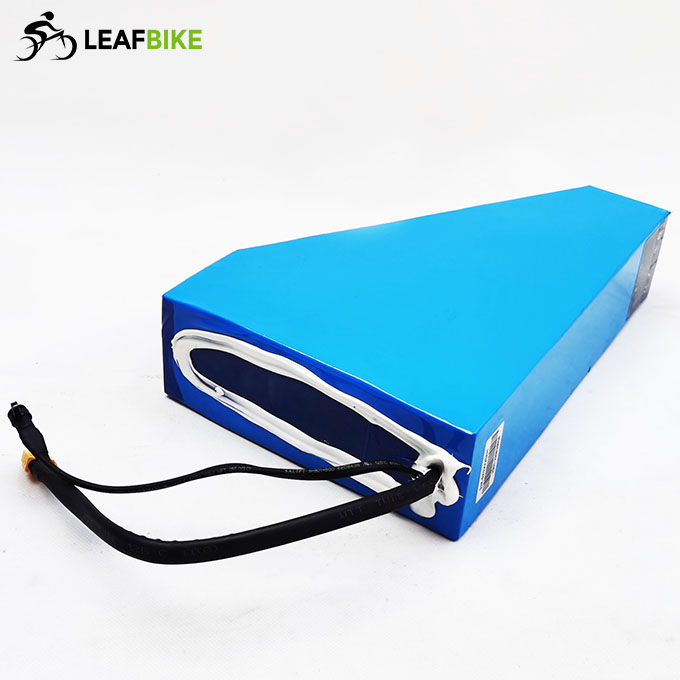

52V 20Ah 30Ah electric bike battery - triangle battery
$540.00
$589.00
|
* Nominal Voltage (V):
|
52
|
|
* Nominal Capacity (Ah):
|
20 / 30
|
|
* Source Resistance (mΩ):
|
40
|
|
* Cell Combination:
|
4-parallels
|
|
14-series
|
|
|
*Cell Quantity (parallel*series):
|
56
|
|
* Discharge Cut off Voltage (V):
|
40.5
|
|
* Charge Cut off Voltage (V):
|
58.6
|
|
* Max Discharge Current (A):
|
50
|
|
* Max Continuous Discharge Current (A):
|
30
|
|
* Charge Mode:
|
CC-CV
|
|
* Standard Charge Current (A):
|
3
|
|
* Charge Time under Standard Charge Current
|
6~8 hours
|
|
* Charge Temperature Range:
|
-20~55 °C
|
|
* Discharge Temperature Range:
|
-20~55 °C
|
|
* Charging Cycles:
|
>1500 times
|
|

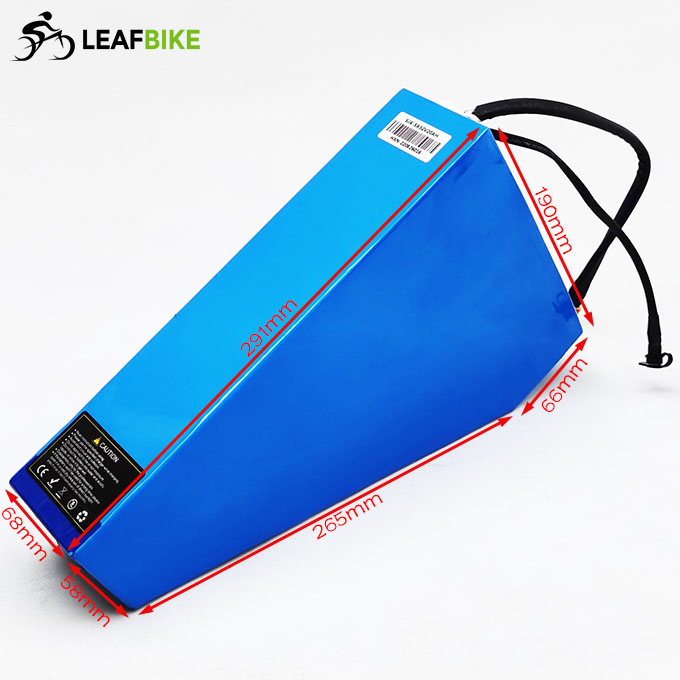

* Dimensions:
|
291×190×265×58×66×70mm
|
|
* Battery Net Weight:
|
5.1 kgs
|
|
* Battery Gross Weight(with charger):
|
5.8 kgs
|
