* Nominal Voltage (V):
|
52
|
|
* Nominal Capacity (Ah):
|
20 / 30
|
|
* Source Resistance (mΩ):
|
40
|
|
* Cell Combination:
|
4-parallels
|
|
14-series
|
|
|
*Cell Quantity (parallel*series):
|
56
|
|
* Discharge Cut off Voltage (V):
|
40.5
|
|
* Charge Cut off Voltage (V):
|
58.6
|
|
* Max Discharge Current (A):
|
50
|
|
* Max Continuous Discharge Current (A):
|
30
|
|
* Charge Mode:
|
CC-CV
|
|
* Standard Charge Current (A):
|
2
|
|
* Charge Time under Standard Charge Current
|
8~10 hours
|
|
* Charge Temperature Range:
|
-20~55°C
|
|
* Discharge Temperature Range:
|
-20~55°C
|
|
* Charging Cycles:
|
>1000 times
|
|

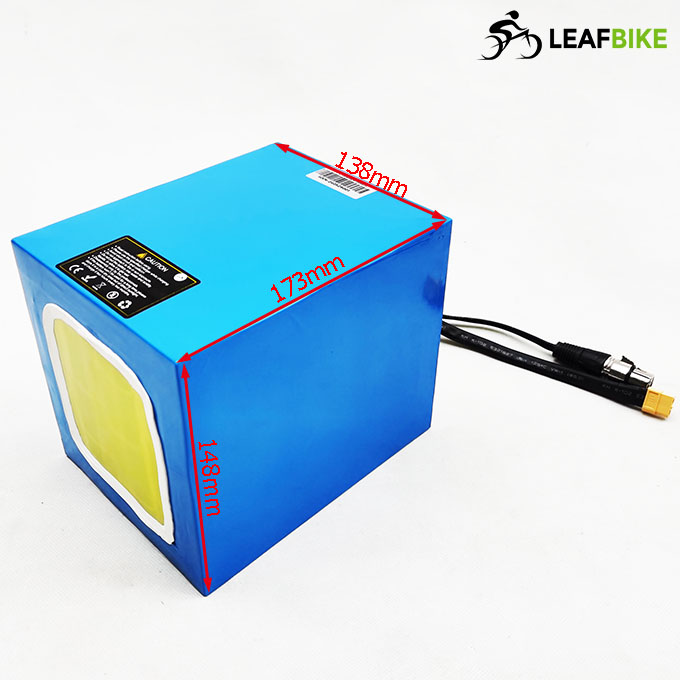

* Dimensions:
|

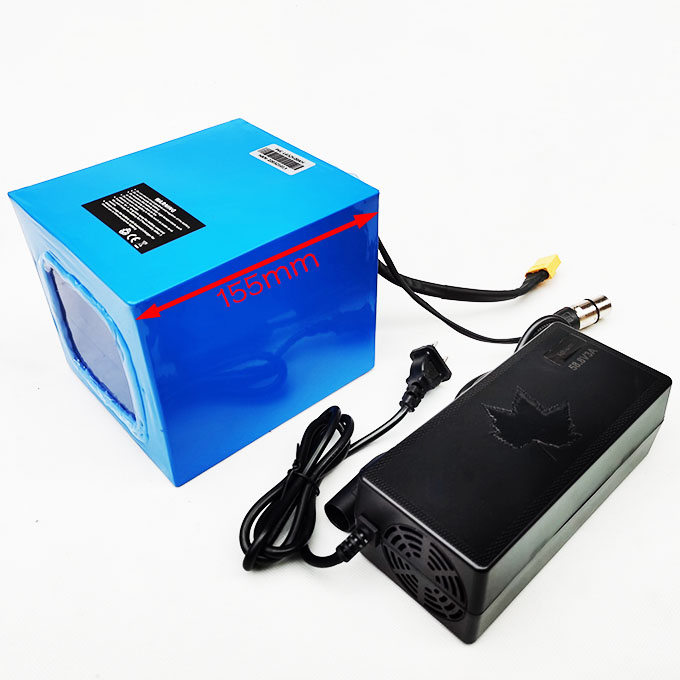

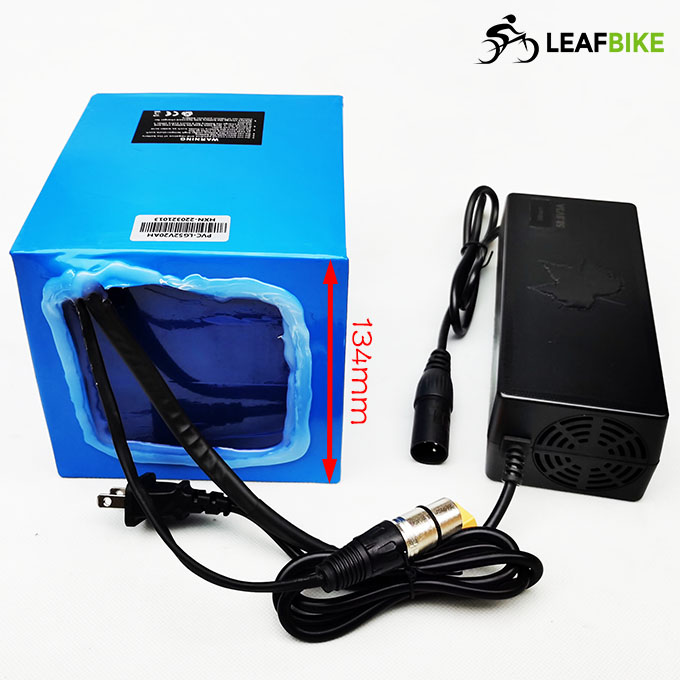

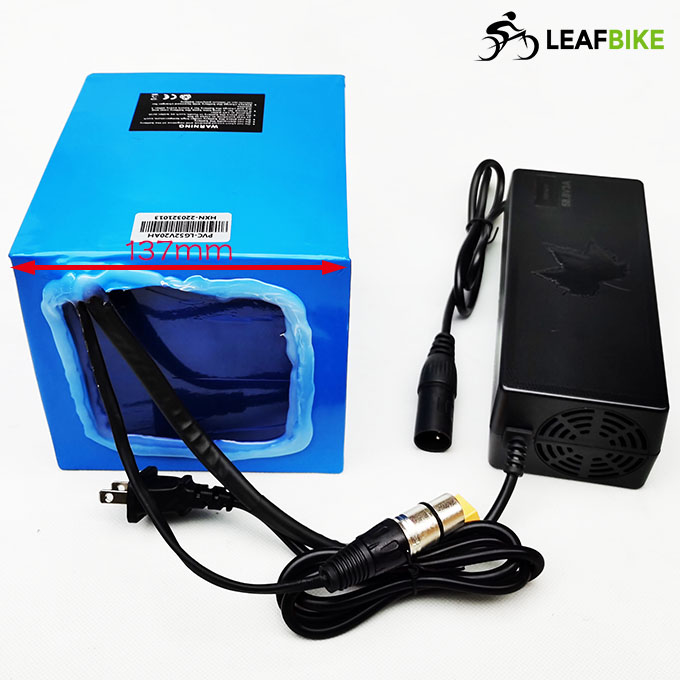

52V 20Ah - 155mm L × 137mm W × 134mm H

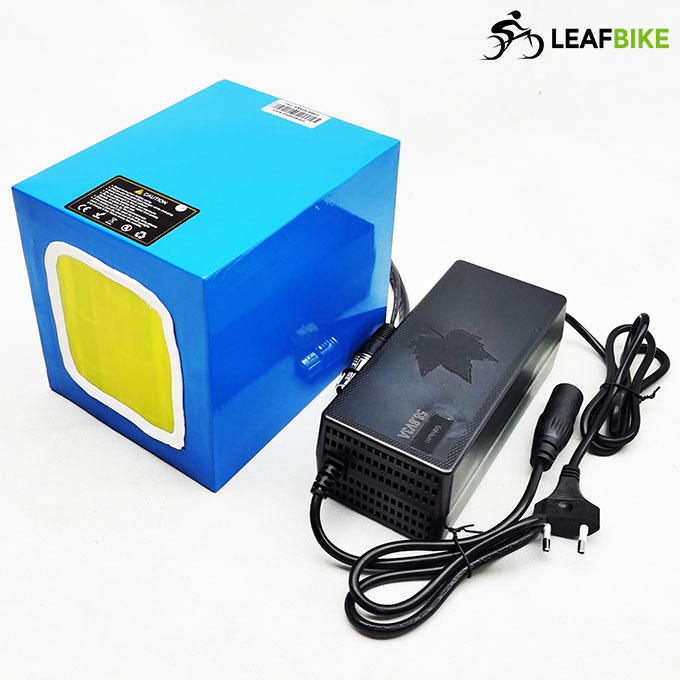

52V 30Ah - 173mm L × 138mm W × 148mm H |
|
* Battery Net Weight:
|
5.1 kgs / 6.85kgs
|
|
* Battery Gross Weight(with charger):
|
5.55 kgs / 7.35kgs
|
