1/1
|
* Nominal Voltage (V): ::
|
36V
|
|
* Nominal Capacity (Ah):
|
15Ah
|
|
* Source Resistance (mΩ):
|
40mΩ
|
|
* Cell Combination:
|
3-parallels
|
|
10-series
|
|
|
*Cell Quantity (parallel*series): )
|
30 pcs
|
|
* Discharge Cut off Voltage (V):
|
20V
|
|
* Charge Cut off Voltage (V):
|
42V
|
|
* Max Discharge Current (A):
|
50A
|
|
* Max Continuous Discharge Current (A):
|
30A
|
|
* Charge Mode:
|
CC-CV
|
|
* Standard Charge Current (A):
|
1.8A
|
|
* Charge Time under Standard Charge Current
|
7 hours
|
|
* Charge Temperature Range:
|
-20-55°C
|
|
* Discharge Temperature Range:
|
-20-55°C
|
|
* Charging Cycles:
|
>2000 times
|
|

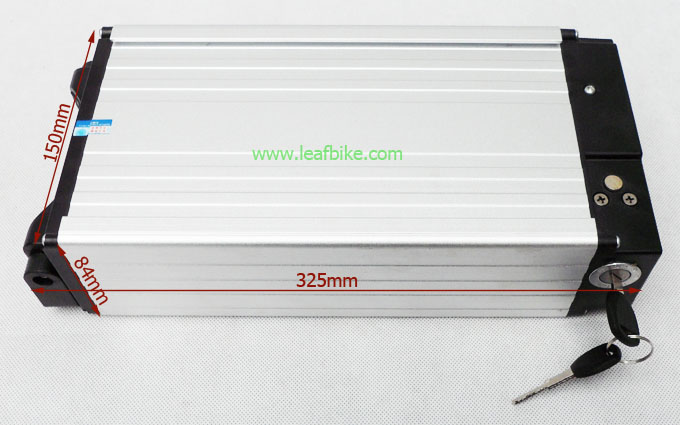

* Dimensions:
|
325mm L × 150 mm W × 84 mm H HHHh h
|
|
* Battery Net Weight:
|
5.5 kgs
|
|
* Battery Gross Weight(with all parts and package):
|
7.5 kgs
|
