* Mode No.: LBB3613B
* Voltage: 36V
* Capacity: 13ah
* Inner Resistance: 140~220mΩ
* Charging Voltage Limit: 42.5V
* Charging method: CC-CV (constant voltage with limited current)
* Charging current max: 5amp
* Discharge Voltage Limit: 27.5V
* Burst Discharge Current: 40amp
* Continuous Discharge Current: 20amp
* Operating Temperature: Charge : 0 ~ 45°C & Discharge: -20 ~ 60°C
* Weight: 4.0 kg
* Size: 368mm L x 90mm W x 88mm H
* Configuration: 10S5P
* Cells: 50 pcs
* Cycle Life: > 2000 Times
* PCB Safety Function:
*) Cell balancing
*) Over-discharge
*) Over-current protection
*) Over-charge
*) Temperature protection
*) Secondary protection
Package Content:

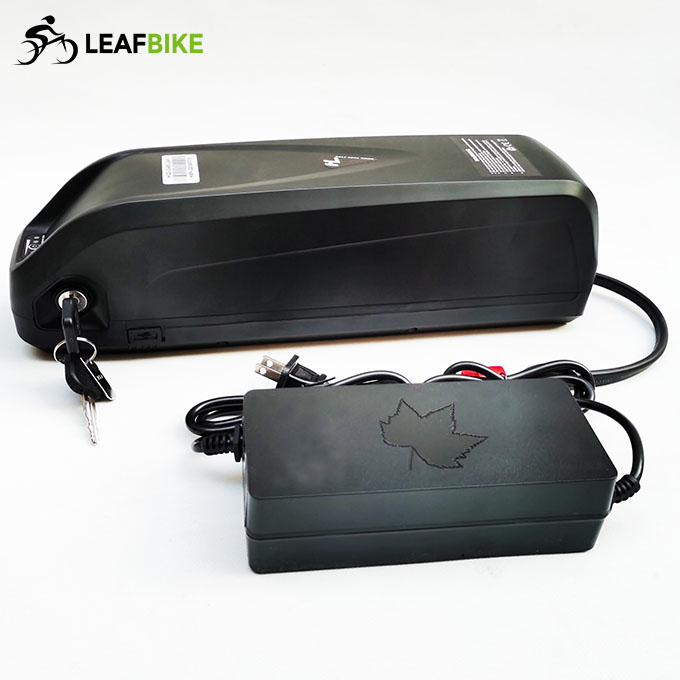

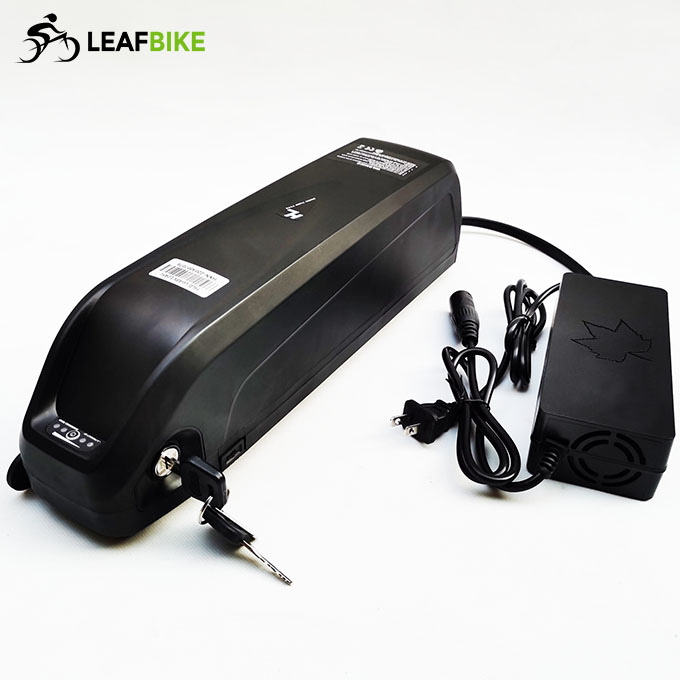

1 x 36V 13Ah lithium battery (Item: LBB3613B)
