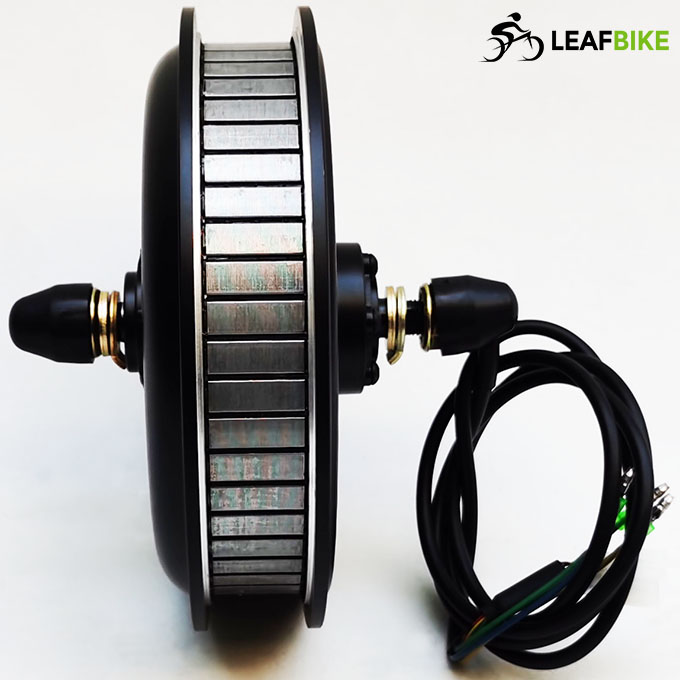

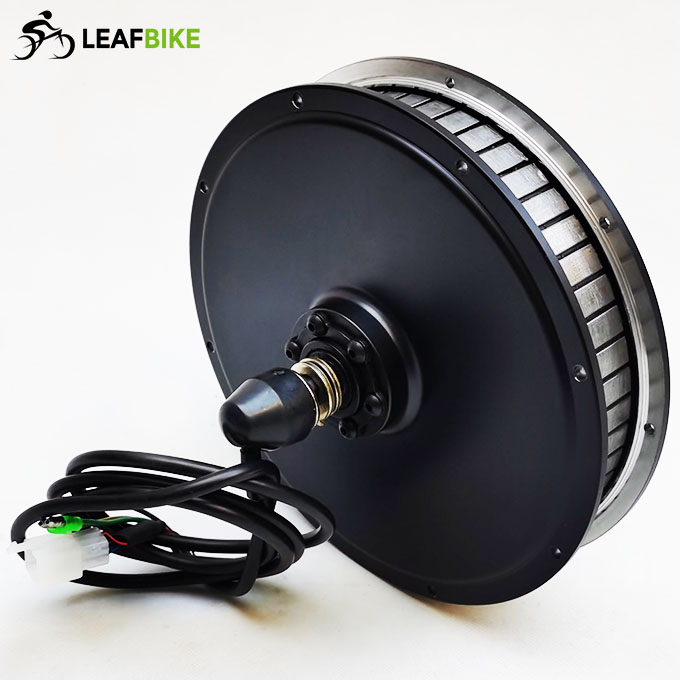

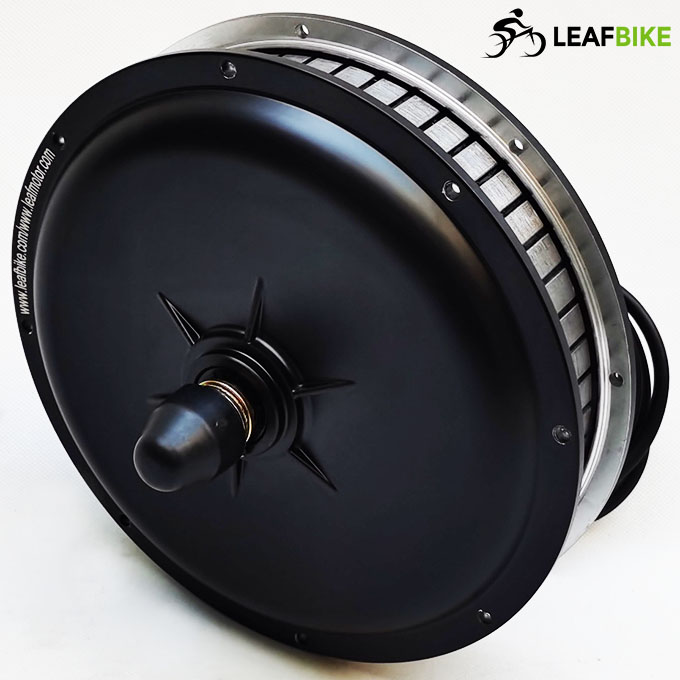

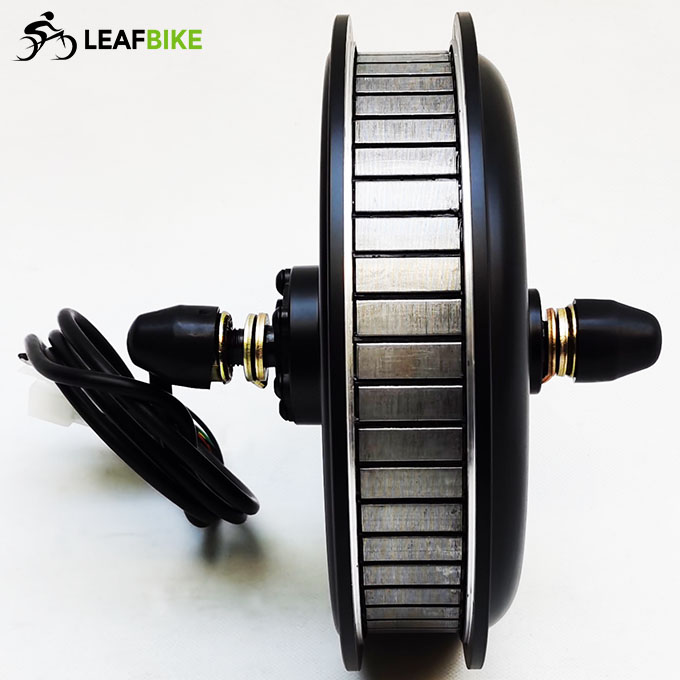

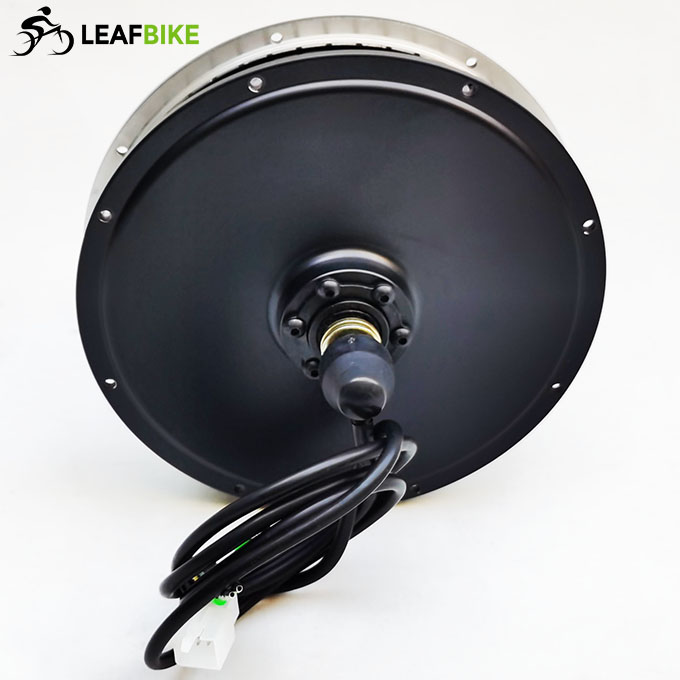

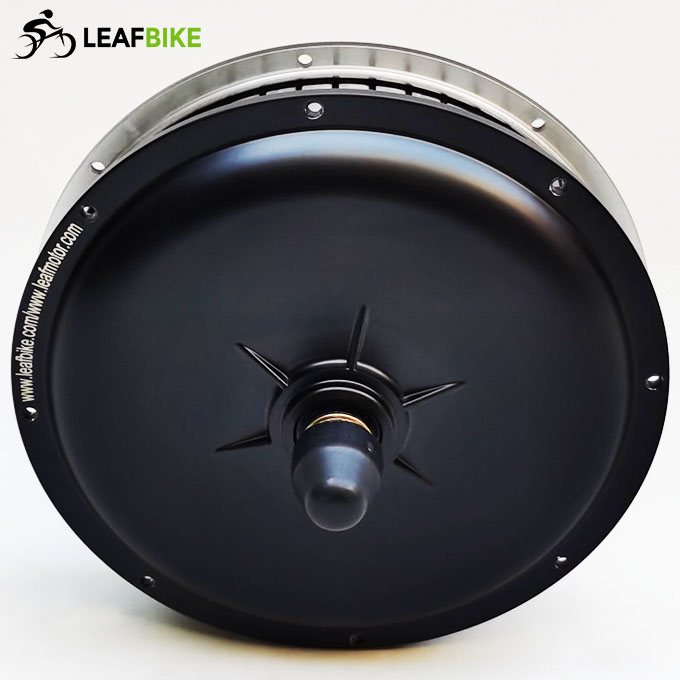

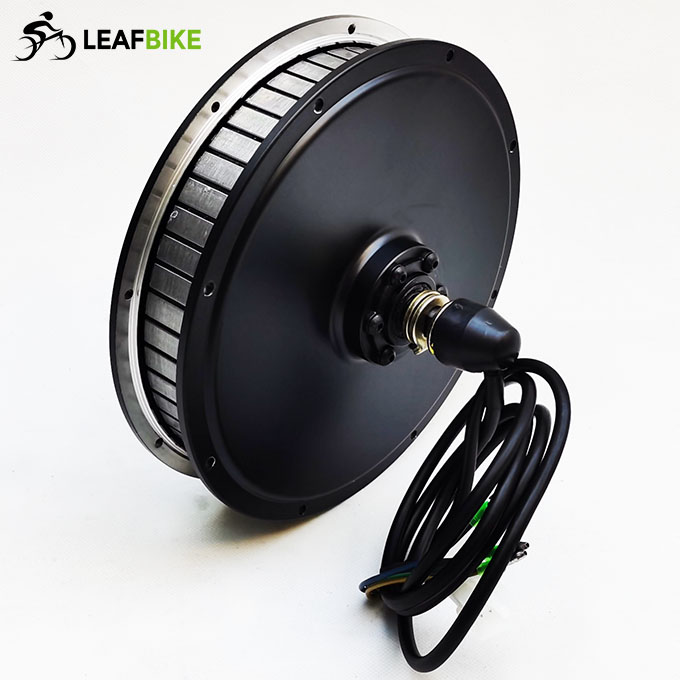

Front Rotor Winding 60V 2000W electric bike motor part

Name: Front Rotor Winding 60V 2000W electric bike motor part
Brand: Leaf Bike
SKU: LBM602000FN-WRP
Price: 165 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBM602000FN-WRP

$165.00 ~~$165.00~~

Maybe You Need These

Description

BRAND NEW LEAF BIKE 2025 Version Black Lightning Brushless, Gearless hub motor !
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This 2000w front winding rotor has the more acceleration at low end, better mid range, and more top end.

Detail:
Motor type: electric bike motor part
Voltage: 60V
Power: 2000W
Efficiency: ≥ 90%
RPM: 650
Mechanical brake: V
Cable location: shaft end, Left
Cable length:100cm / 40"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.3 kg
Gross weight: 7.3 kg ( after packing )

Package Content:
1 x 60V 2000W front rotor winding with two front covers - #LBM602000FN - WRP

Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box

It takes about 10 minutes to replace. Very easy.
Tool: ONLY ONE M4 Inner hexagon spanner
Do it as below / uninstall:
1. Disconnect 16 pcs of screw nut from your motor (two side) – It takes about 3 minutes to do it.
2. Knock the shaft end (NO cable side) on the ground,then the cover will off from hub – It takes 2 seconds to do it.
3. Two hands hold on hub(Not rim), still knock the shaft end (No cable side) on the ground,then the whole of winding rotor will out of hub.. – It takes 2 seconds to to it.

Do it as below / Install:
1. Put the cover on the hub and put 8 pcs of screw nut on..tight them. – It takes about 2 minutes to do it.
2. Check and make sure no other thing around magnet – It takes 10 seconds to check it.
3. Put the whole of winding rotor into hub – It takes 2 seconds to do it.
4. Put the other 8 pcs of screw nut on – It takes about 2 minutes to do it.

2000W Front Drw.
