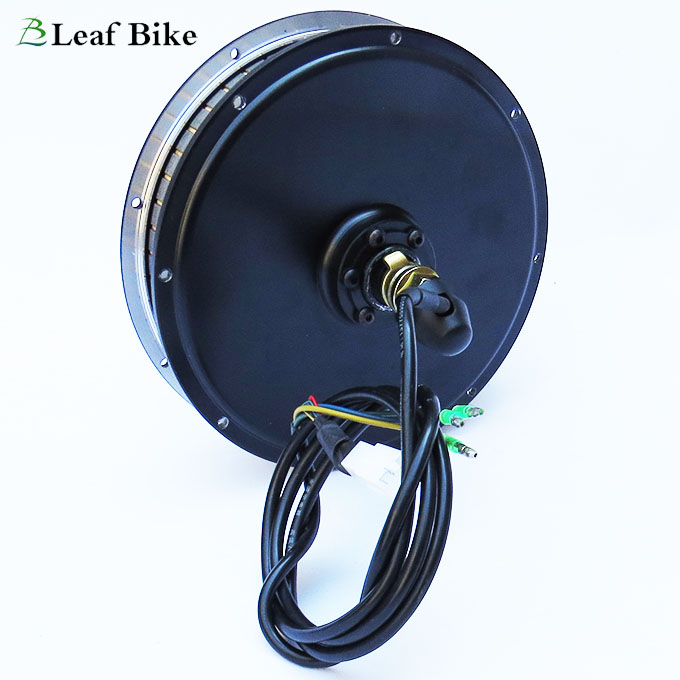

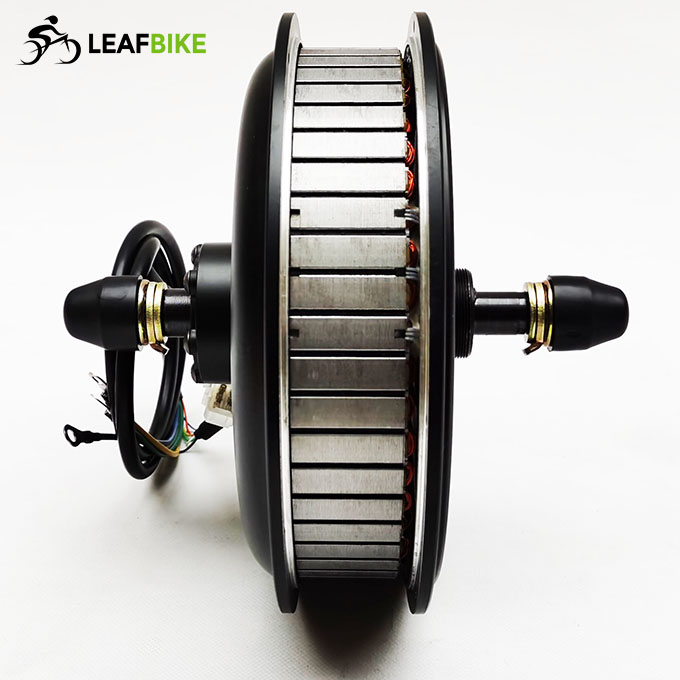

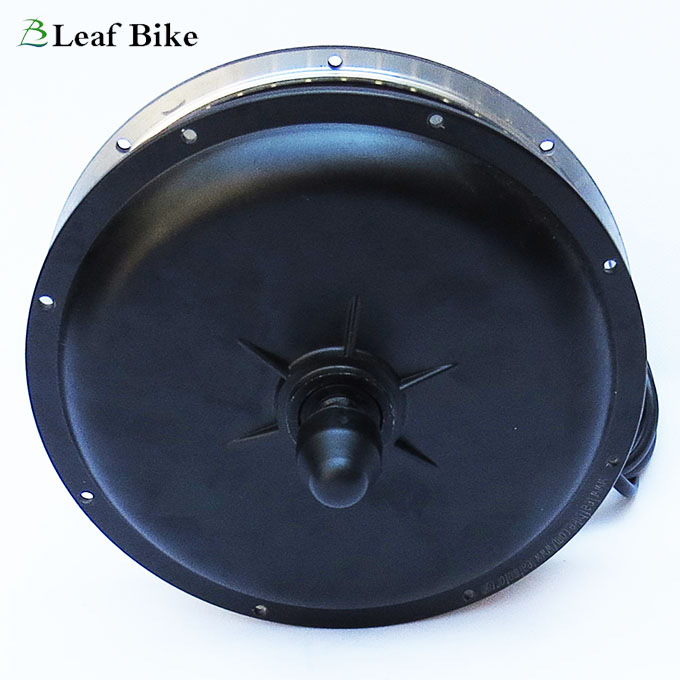

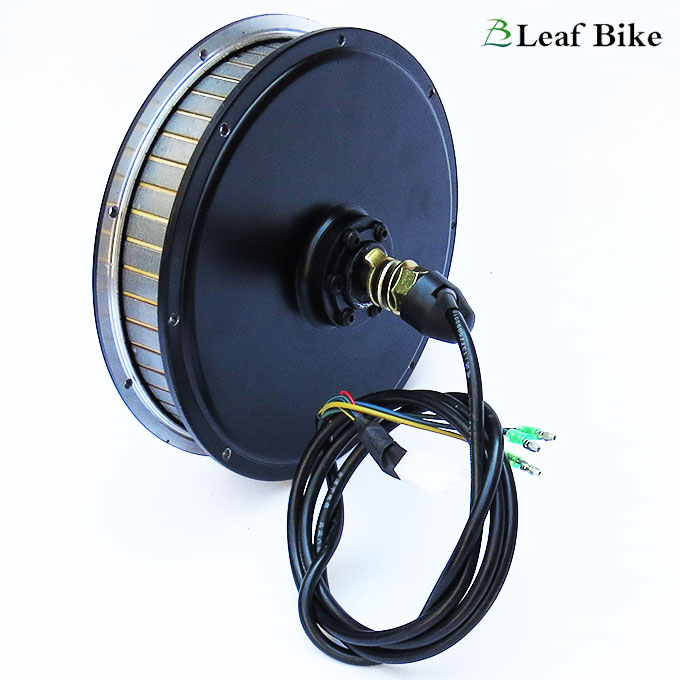

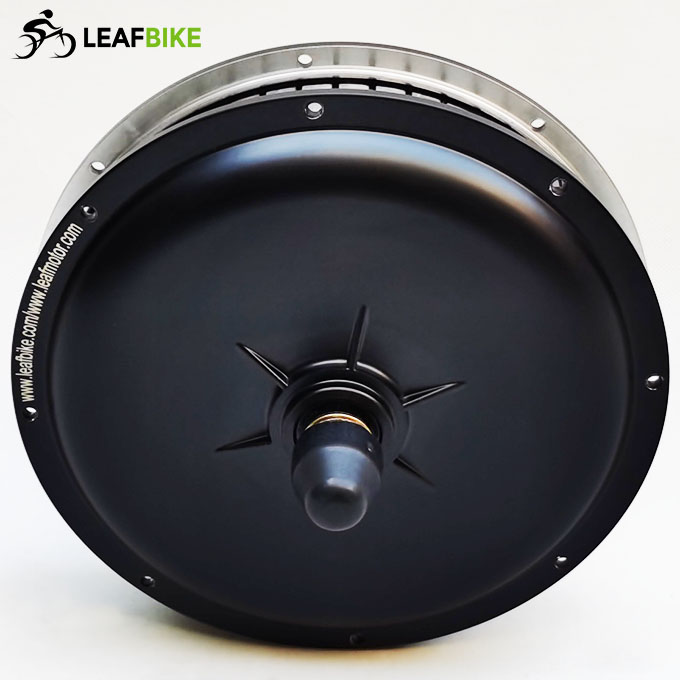

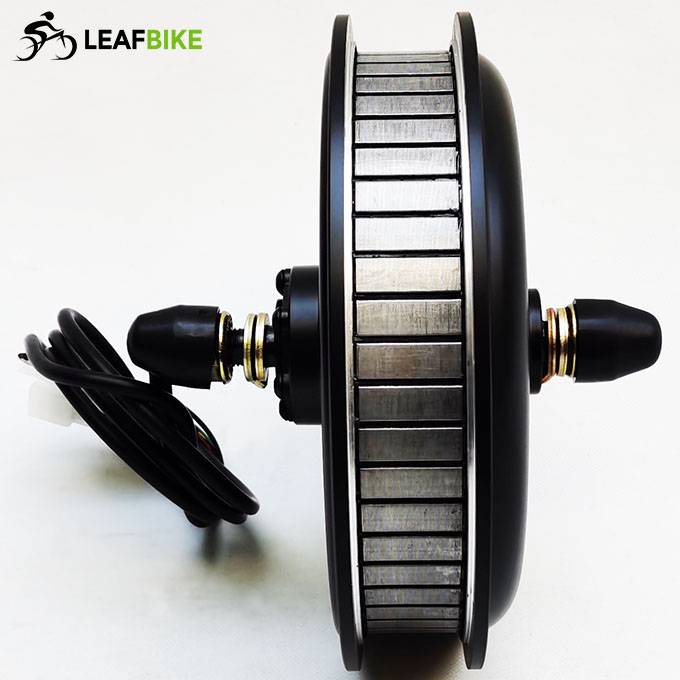

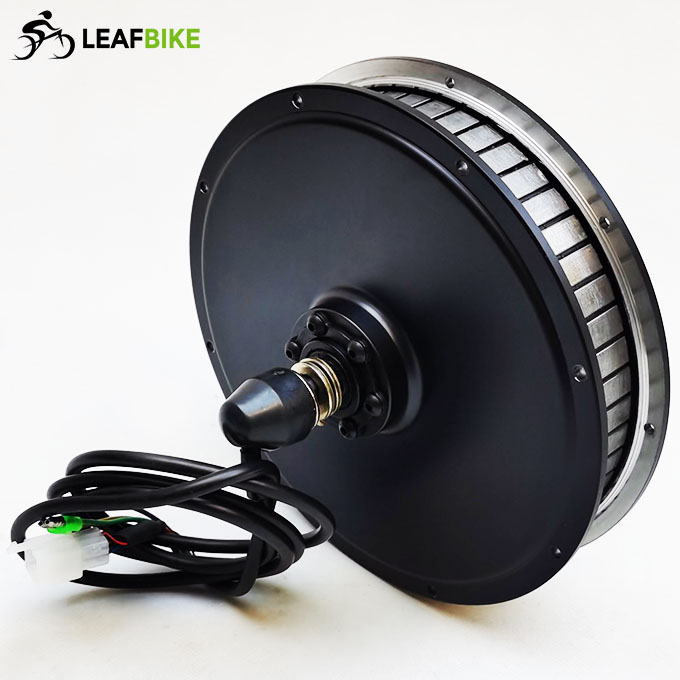

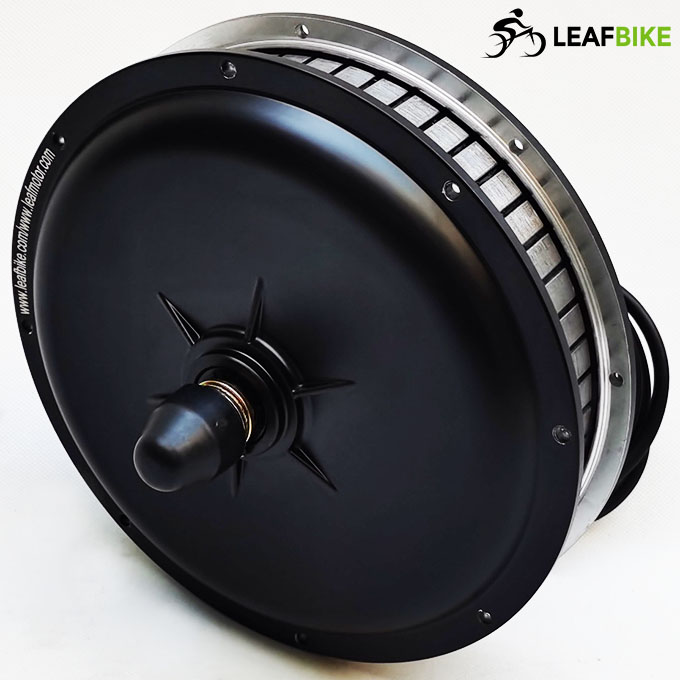

Front Rotor Winding 48V 52V 1500W electric bike motor part

Name: Front Rotor Winding 48V 52V 1500W electric bike motor part
Brand: Leaf Bike
SKU: LBM481500FN-WRP
Price: 145 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBM481500FN-WRP

$145.00 ~~$145.00~~

Inquiry Now

Description

BRAND NEW LEAF BIKE 2025 Version Black Lightning Brushless, Gearless hub motor !
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
This 1500w front winding rotor has the more acceleration at low end, better mid range, and more top end.

Detail:
Motor type: electric bike motor part
Voltage: 48V / 52V
Power: 1500W
Efficiency: ≥ 90%
RPM: 650
Mechanical brake: V
Cable location: shaft end, Left
Cable length:150cm / 60"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.2 kg / 13.6 lbs
Gross weight: 7.2 kg ( after packing )

Package Content:
1 x 48V 52V 1500W front rotor winding with two front covers - #LBM481500FN - WRP

Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box

It takes about 10 minutes to replace. Very easy.
Tool: ONLY ONE M4 Inner hexagon spanner
Do it as below / uninstall:
1. Disconnect 16 pcs of screw nut from your motor (two side) – It takes about 3 minutes to do it.
2. Knock the shaft end (NO cable side) on the ground,then the cover will off from hub – It takes 2 seconds to do it.
3. Two hands hold on hub(Not rim), still knock the shaft end (No cable side) on the ground,then the whole of winding rotor will out of hub.. – It takes 2 seconds to to it.

Do it as below / Install:
1. Put the cover on the hub and put 8 pcs of screw nut on..tight them. – It takes about 2 minutes to do it.
2. Check and make sure no other thing around magnet – It takes 10 seconds to check it.
3. Put the whole of winding rotor into hub – It takes 2 seconds to do it.
4. Put the other 8 pcs of screw nut on – It takes about 2 minutes to do it.

1500W Front Drw.

Performance Data:

Customer's Reviews

5.0 1 Reviews

Tell us what you think about this item and share your opinions with other people. Please make sure your review focuses only on this item. All reviews are moderated and will be reviewed within two business days. Inappropriate reviews will not be posted. After-sales questions and issues: Contact our Customer Service Department. (A customer representative will get back to you). Please Login first if you want to later edit or manage reviews uploaded by yourself.

Write a review

By PeterMar,08 2022 17:56:40

1500w winding rotor
