Please watch video for 48V 52V 350W front electric bike motor that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 200rpm, max 300rpm, max 400rpm ..
Share Video:
BRAND NEW LEAF BIKE 2025 Version Silver Lightning Brushless, Geared hub motor !
New ULTRA powerful and efficient Geared motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
Leaf also offer this wheel professionally laced into our double wall aluminum rims with 12g/14g spokes. Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" & 29 inch sizes are available.
Detail:
Motor type: freewheel hub motor
Voltage: 48V / 52V
Power: 350W
Efficiency: ≥ 78%
RPM: 380
Mechanical brake: Disk
Cable location: shaft end, right
Cable length:150cm / 60"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: silver painted
Net weight: 2.85 kg / 6.33 lbs
Package Content:

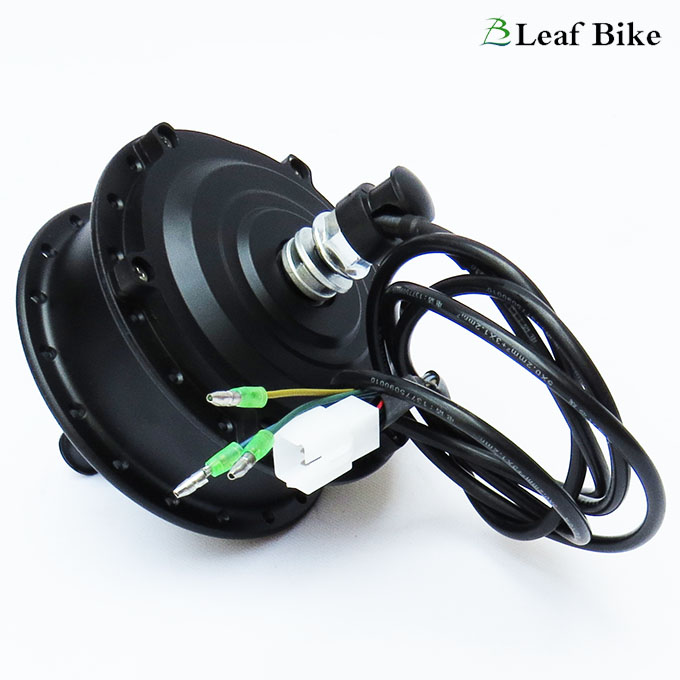

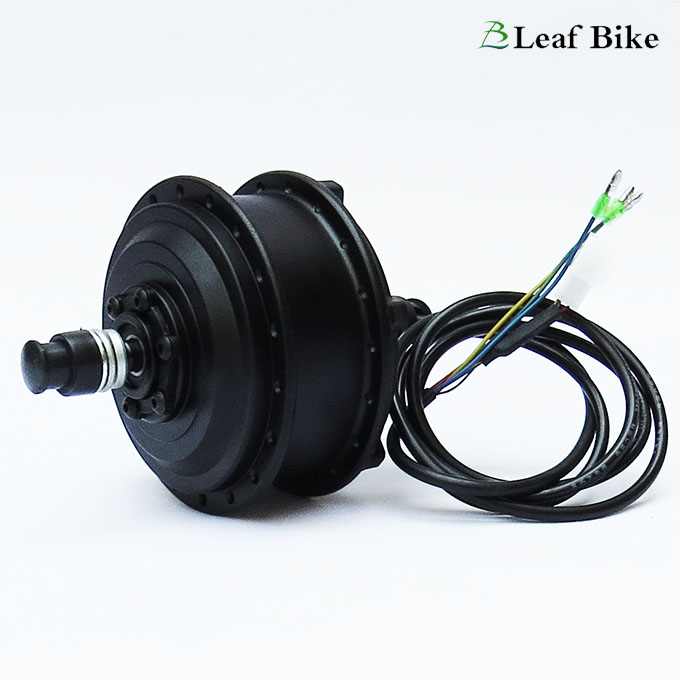

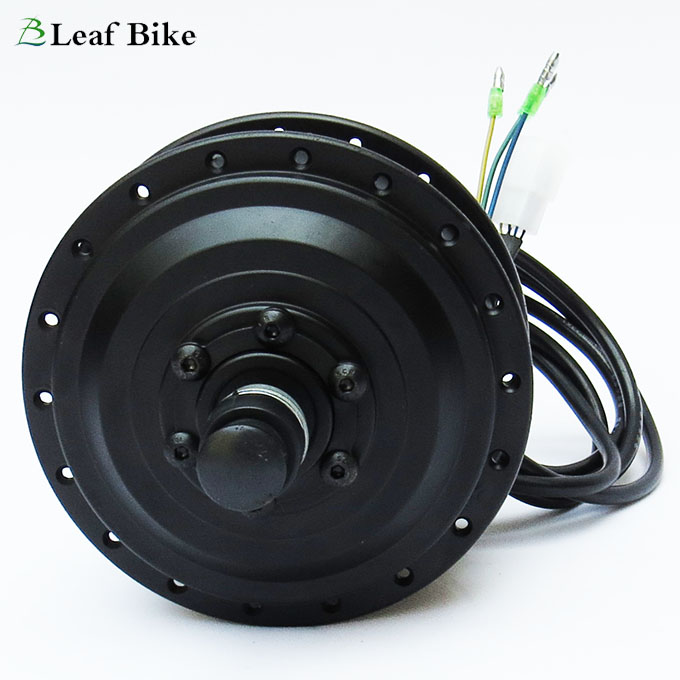

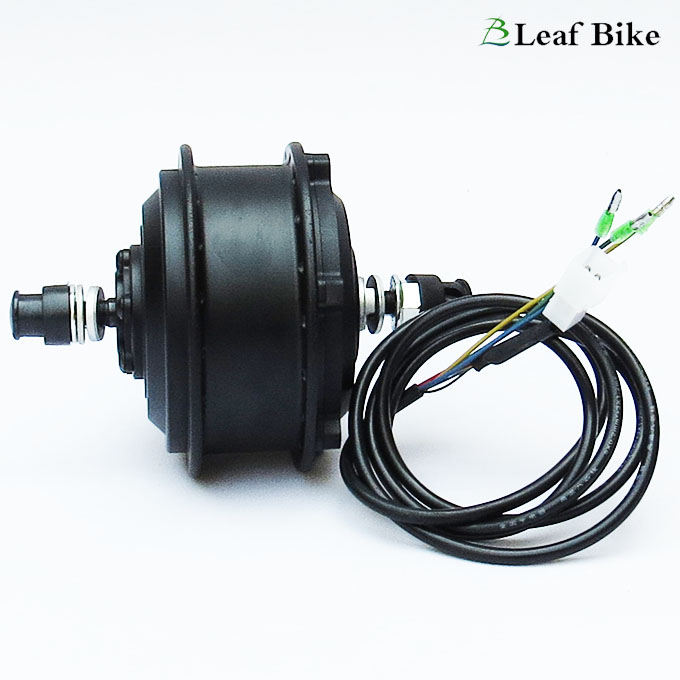

1 x 48V 52V 350W front electric bike motor - freewheel hub motor
Package Size: 28cm L x 25cm W x 26cm H
Package Type: Cardboard Box
Share Video:
Wire Diagram:
Front Motor Drw.
