Please watch video for Electric Fat Bike Motor Brushless Gear Hub 36V 400W 500W 750W freewheel Cassette Snow Tire that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 200rpm, 300rpm, 400rpm..
Share Video:

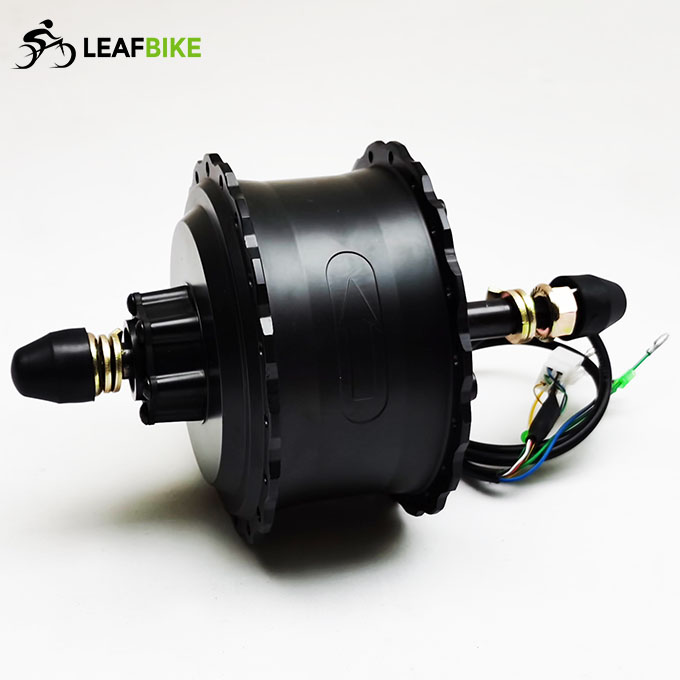

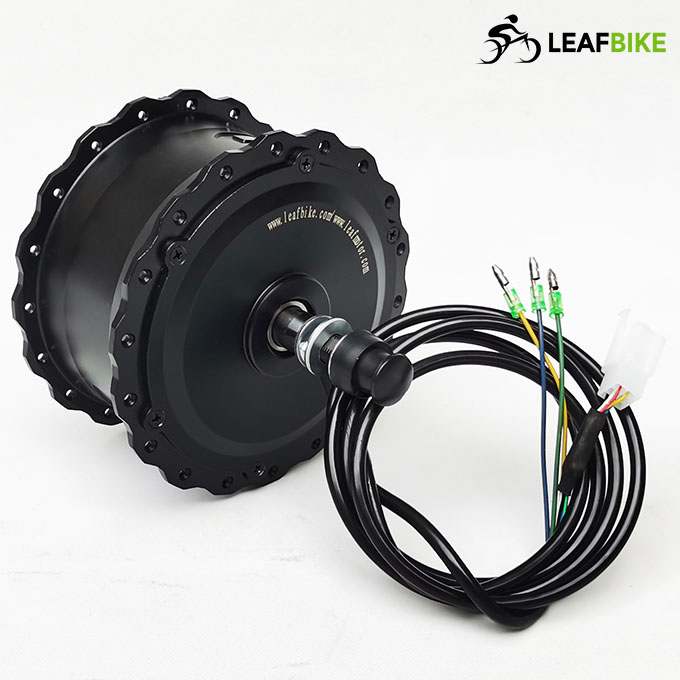

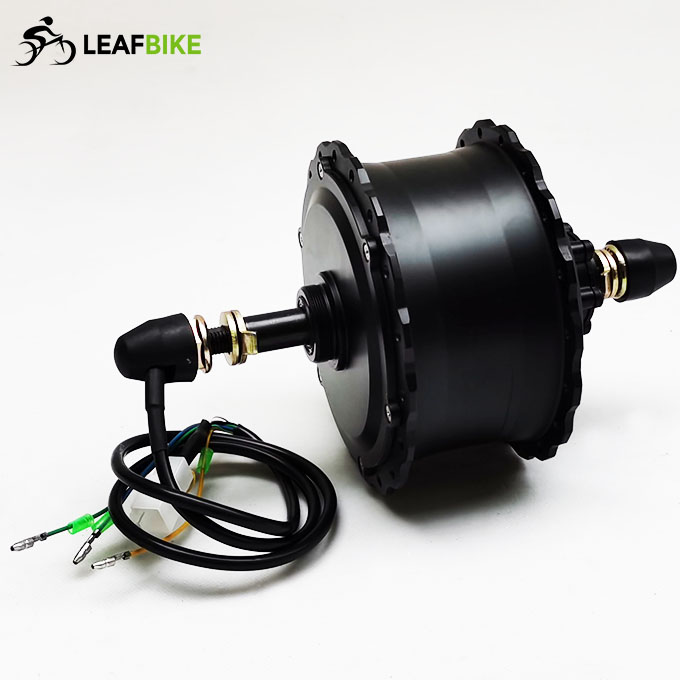

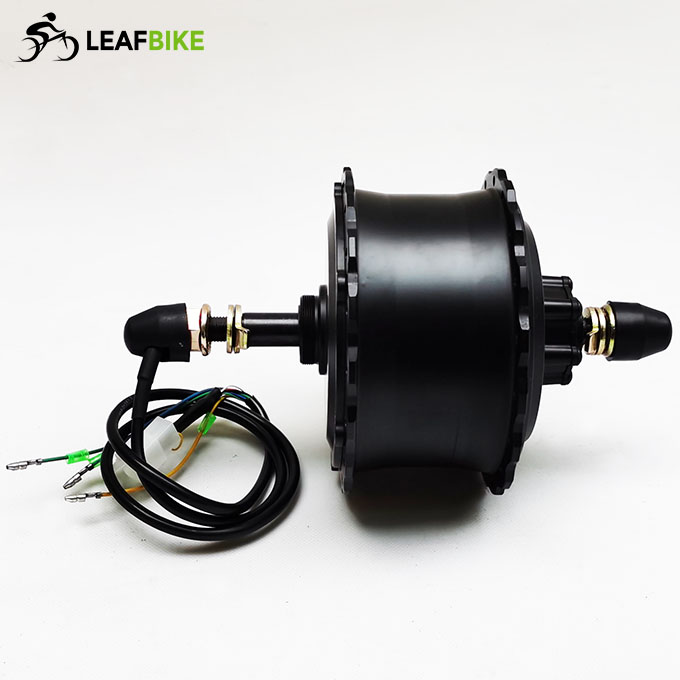

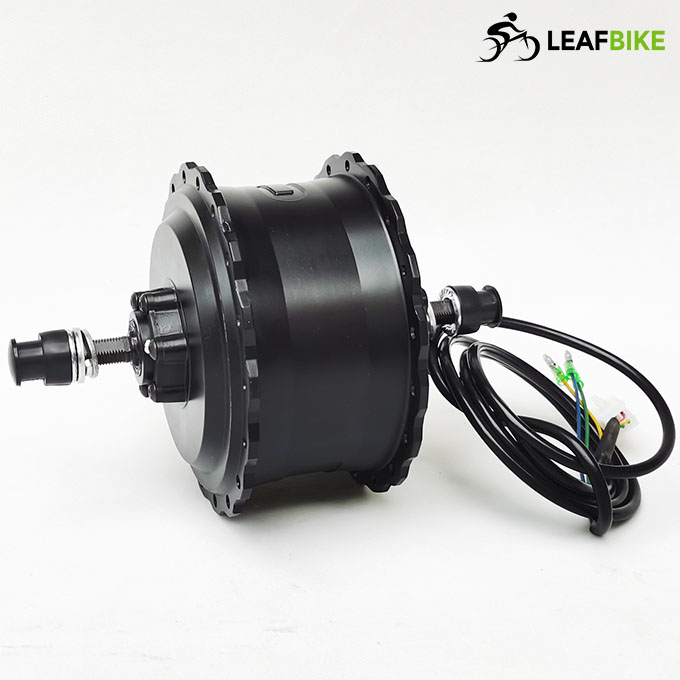

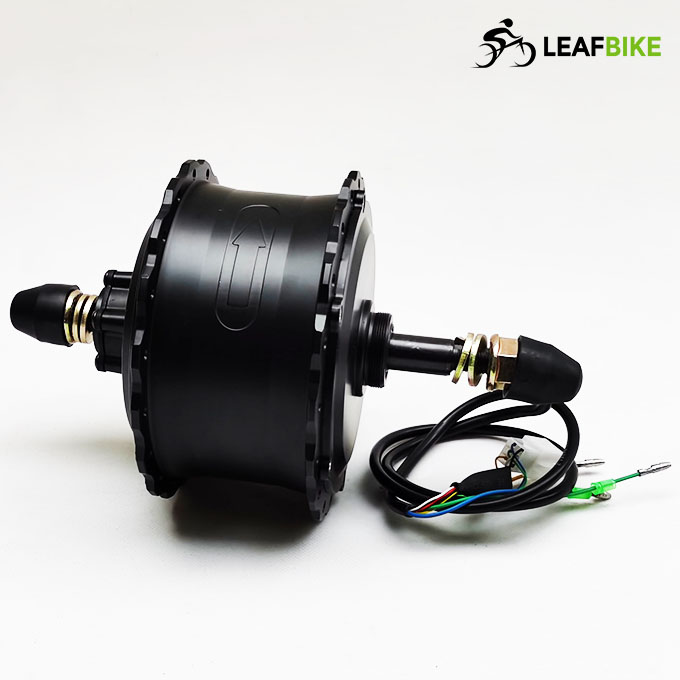

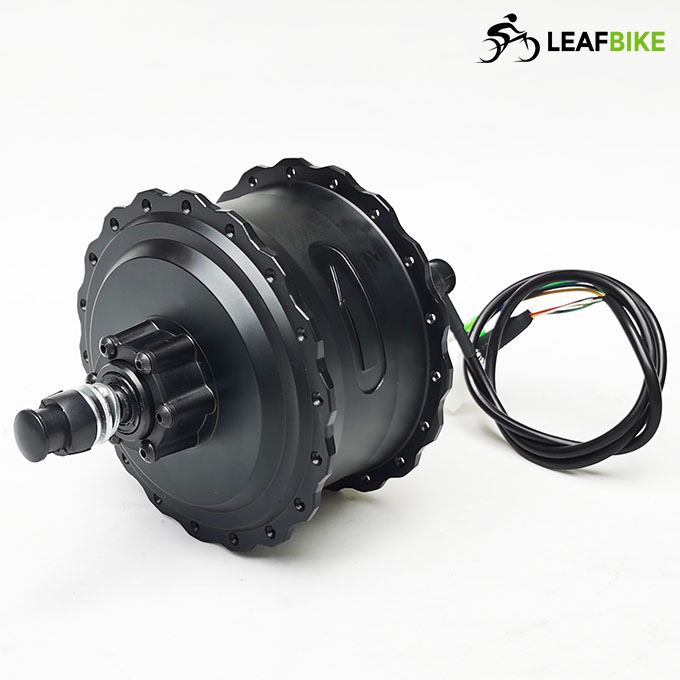

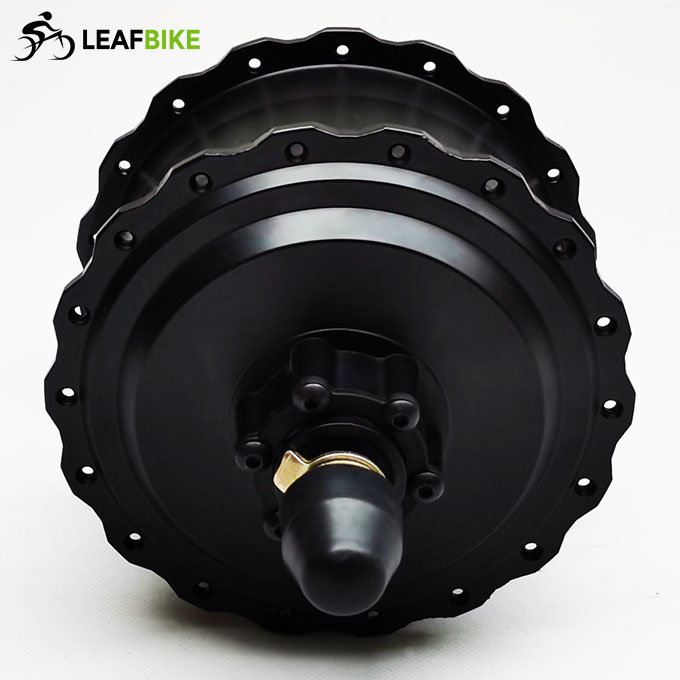

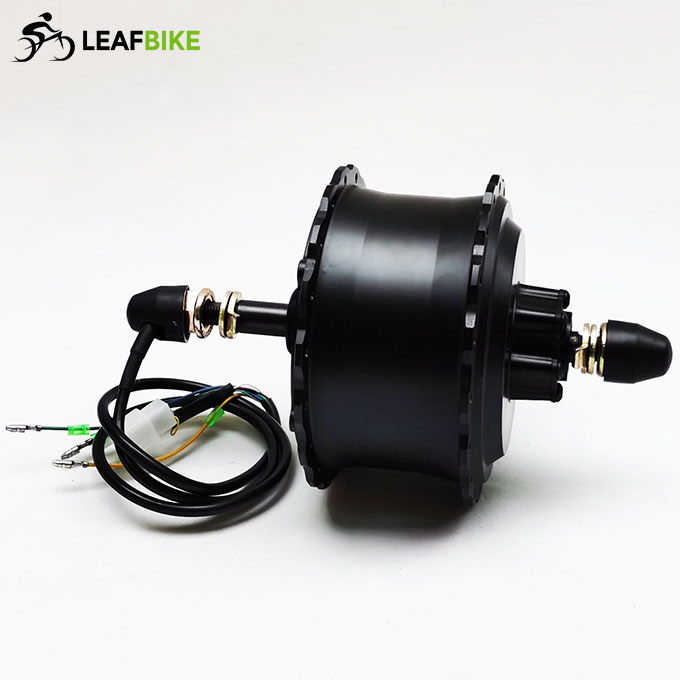

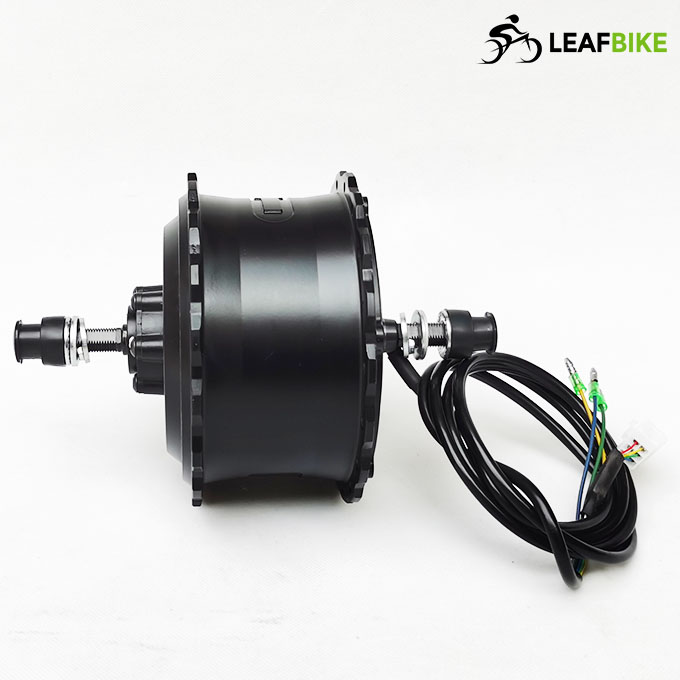

BRAND NEW LEAF BIKE 2025 Version Black Lightning Brushless, Geared hub motor !
New ULTRA powerful and efficient Geared motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
Leaf also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes. Message us for details. 20", 24" & 26 inch sizes are available.
Detail:
Motor type: Freewheel Hub Motor
Voltage: 36V
Power: 400W / 500W / 7500W
Efficiency: 86.3%
RPM: 257
Mechanical brake: Disk
Cable location: shaft end, Right
Cable length:100cm / 40"
Install: spacing of 135mm front fork / 170mm or 190mm rear fork
Noise: < 60 db
Surface: black painted
Net weight: 3.85 kg / 8.47 lbs
Package Content:
1 x 36V 400W 500W 750W Electric Fat Bike Motor - 135mm dropout Front or 170mm / 190mm dropout Rear Brushless Gear Hub
Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box
135mm Front:
170mm Freewheel:
190mm Freewheel:
190mm Cassette:

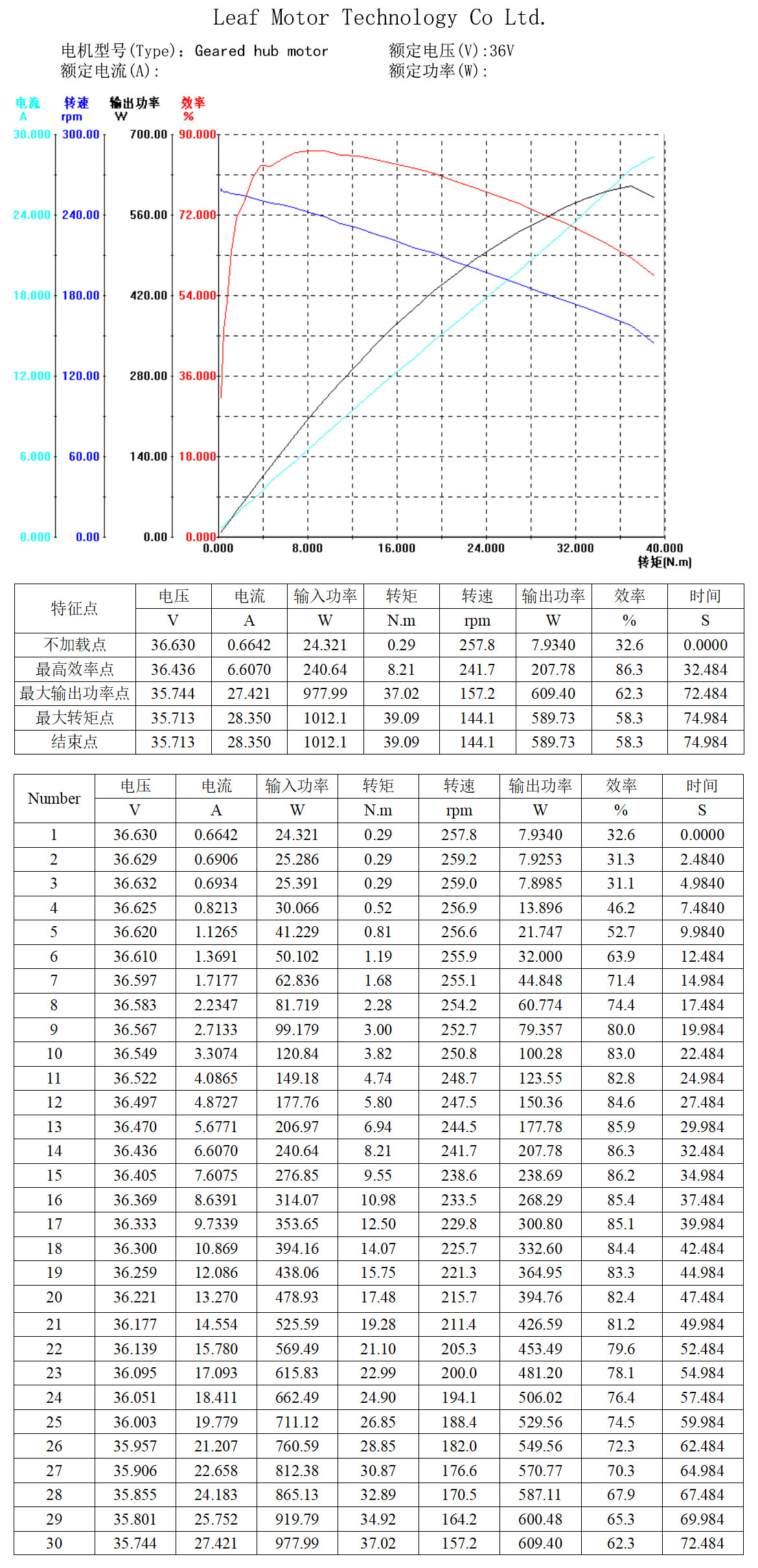

Performance Data:
