28 inch 48V 52V 1000W rear wheel - electric hub motor kit

Name: 28 inch 48V 52V 1000W rear wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK28481000RN
Price: 338 USD
Availability: InStock
Rating: 5 (3 reviews)

Item ID #LBCK28481000RN

$338.00 ~~$378.00~~

Inquiry Now

Description

Please watch video for 28 inch 48V 52V 1000W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
This 28 inch electric bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

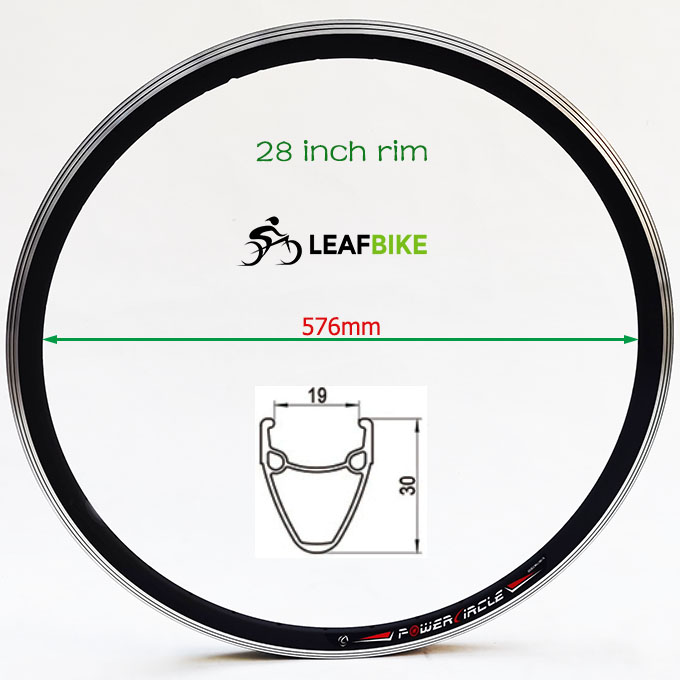

>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1 5/8" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 87.8 kmh -- 54.6 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: freewheel or Cassette
>>. Cable location: shaft end, Left
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise - Yes
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off throttle. "1" is the slowest ~ "5" is the fastest.
* Battery gauge
* ...

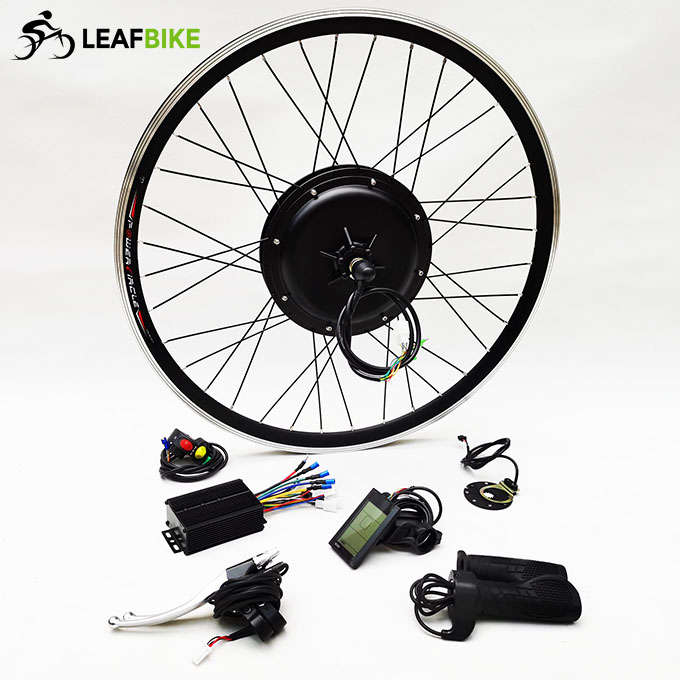

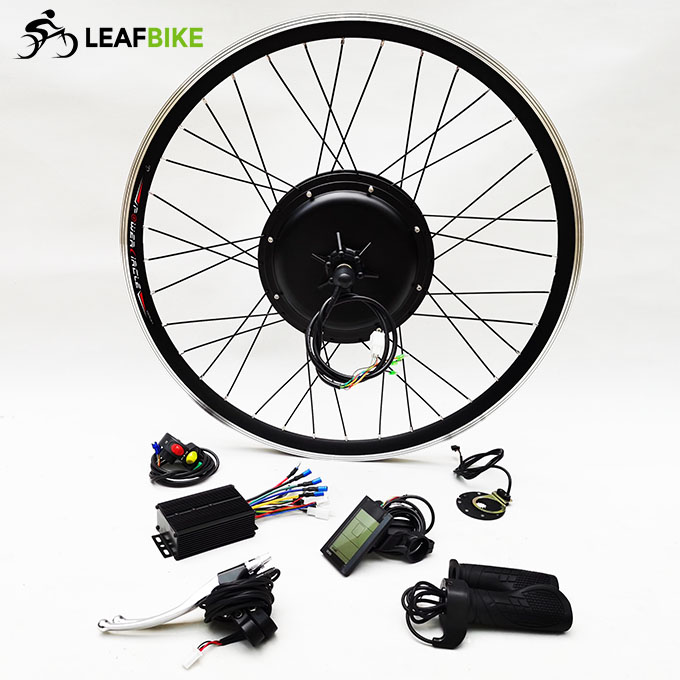

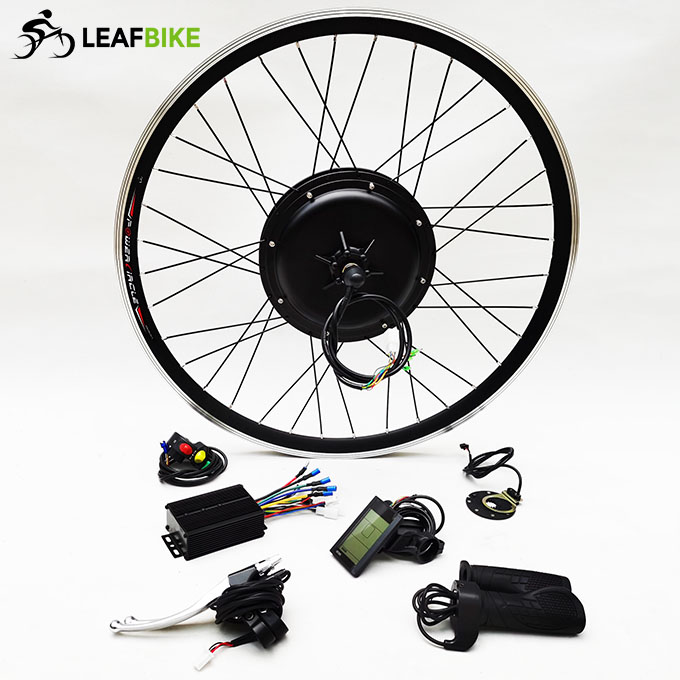

Package Content:

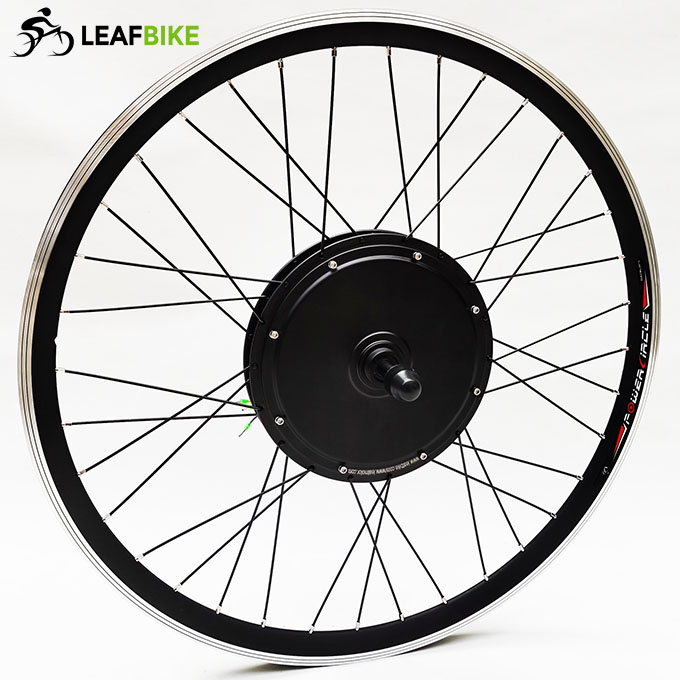

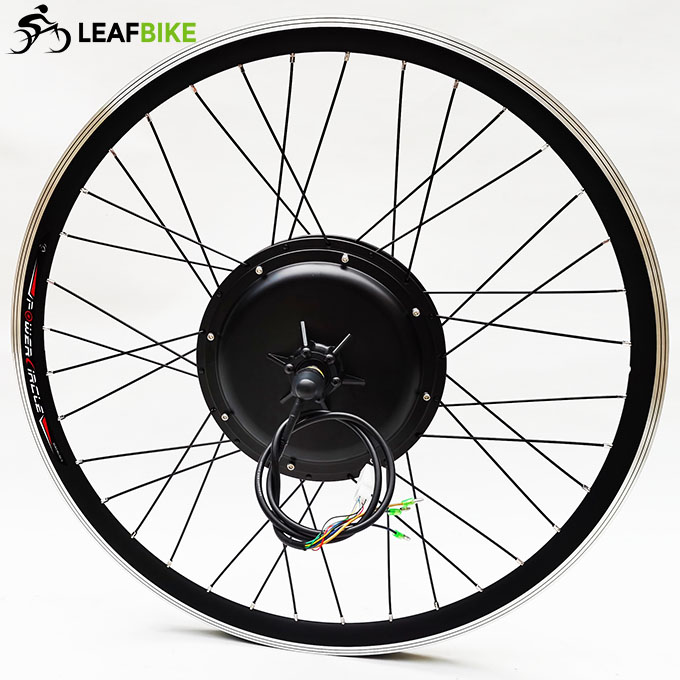

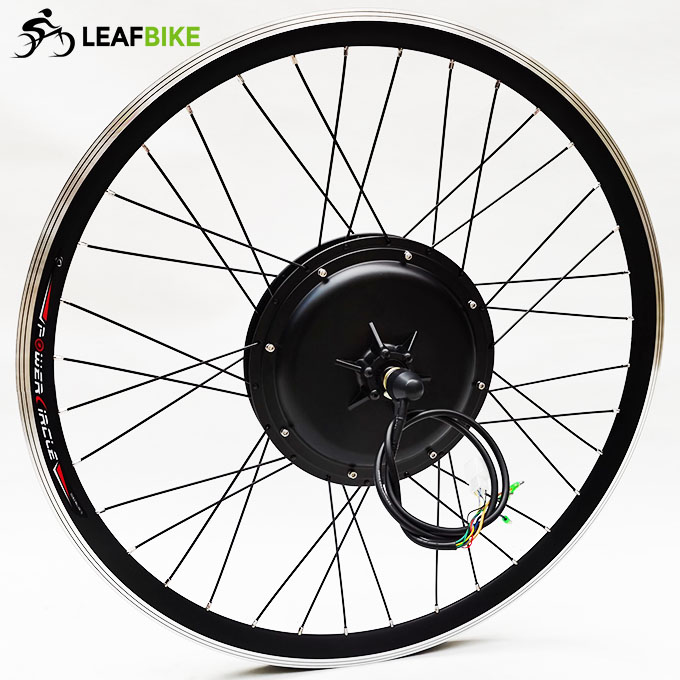

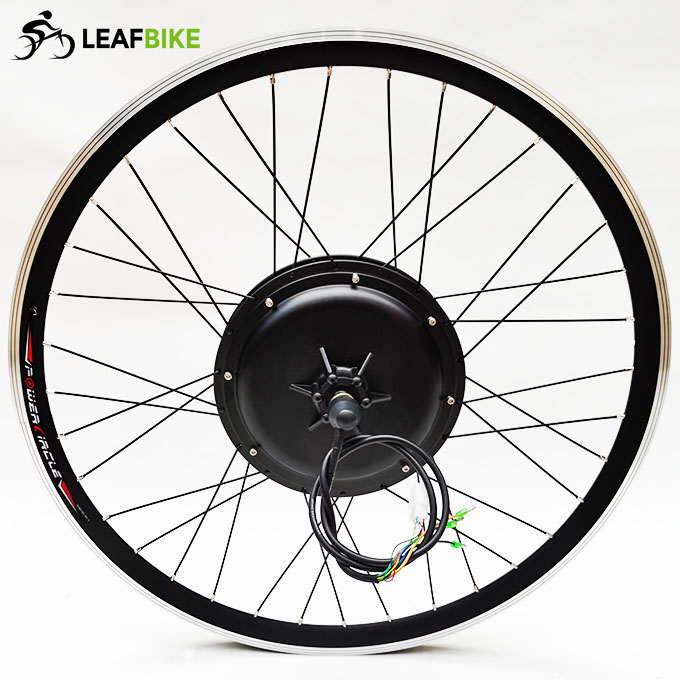

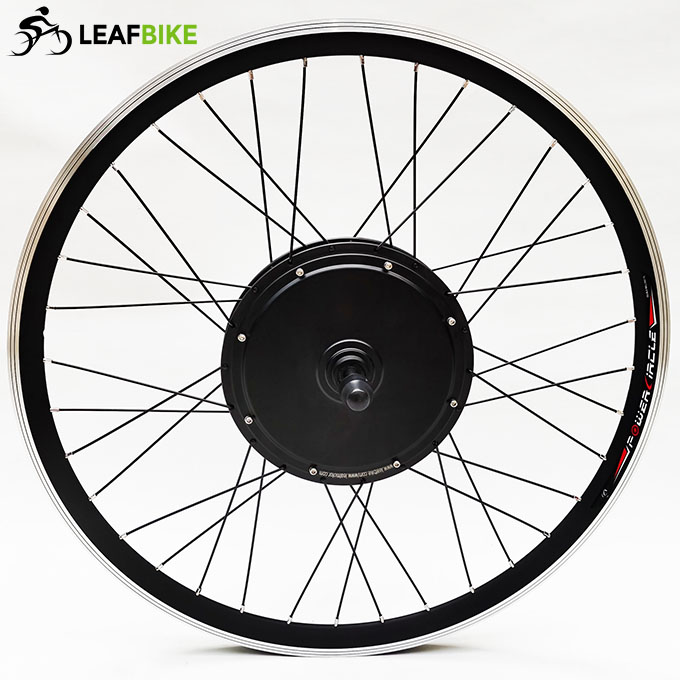

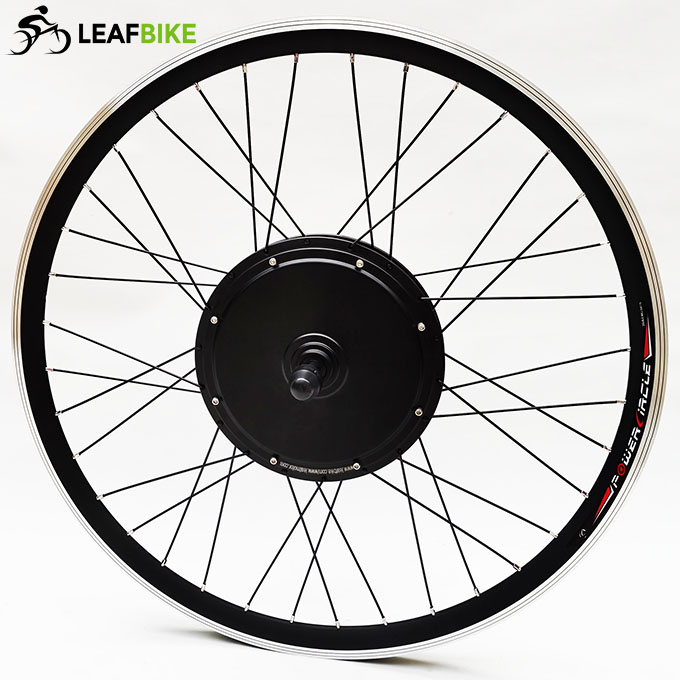

1 x 28 inch 48V 52V 1000W rear hub motor wheel
1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm (Optional: thumb throttle)
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg / 24.6 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

* This motor & controller system can handle with a 48V or 52V battery.

Wire Diagram:

1000W Rear Drw.

1000W Cassette Drw.

Performance Data:

Customer's Reviews

5.0 3 Reviews

Tell us what you think about this item and share your opinions with other people. Please make sure your review focuses only on this item. All reviews are moderated and will be reviewed within two business days. Inappropriate reviews will not be posted. After-sales questions and issues: Contact our Customer Service Department. (A customer representative will get back to you). Please Login first if you want to later edit or manage reviews uploaded by yourself.

Write a review

By BOSCO CARVALHOJan,23 2016 15:17:00

I would like to purchase this ebike kit. Can I have an email for clarifying some queries I have ?

1. Is there a provision to fit a front light / headlight for night riding ?
2. If the hub motor is fitted on one wheel to drive the bike, is there a provision to fit a dynamo on the other hub which can charge the battery or use for powering the headlight & tail lights at night ?

Thank you,

Bosco

By Stepan CarabadjacAug,26 2014 16:39:59

Six weeks ago bought this great assembly. already 700 km wound until the problems were found. my weight is 70 kg maximum speed 65km me !! very pleased that he had bought on this site, although there was little problem with delivery. Thank you!

By MarkApr,23 2014 18:42:06

Excellent item. With my 100 kg on my bike i drive close to 50 kph. My friend has the same set, but he has a 26 inch, which drives the same speed but accelerates faster due to less torque required. 26 inch is for acceleration a better choice.
Lcd works really nice, speed indication is very correct up to 1 km. Accurate. Pas assist adjust 1-5 which not a lot ebike offer is great. I have the throttle on the bike as well. I put pas to stand 2 or 3 and cycle 25 kph. When i need speed i just throttle it up. Its perfect. I am using a 20ah 48v lifepo4 on full speed it gives me a 30 km range. When i use pas at 2 i drive around 60 km.
