This 28 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 28 inch bike conversion kit works with a 60V battery.
Main Features:

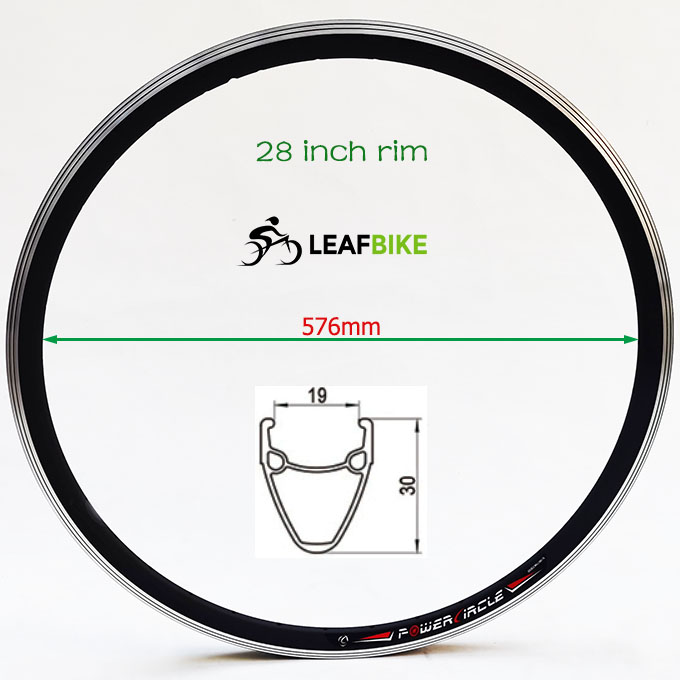

>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1 1/2" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 72.9 kmh -- 45.2 mph
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
With LCD-003, More Function:
* Cruise - Yes
* Reverse - (On / Off)
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* ...

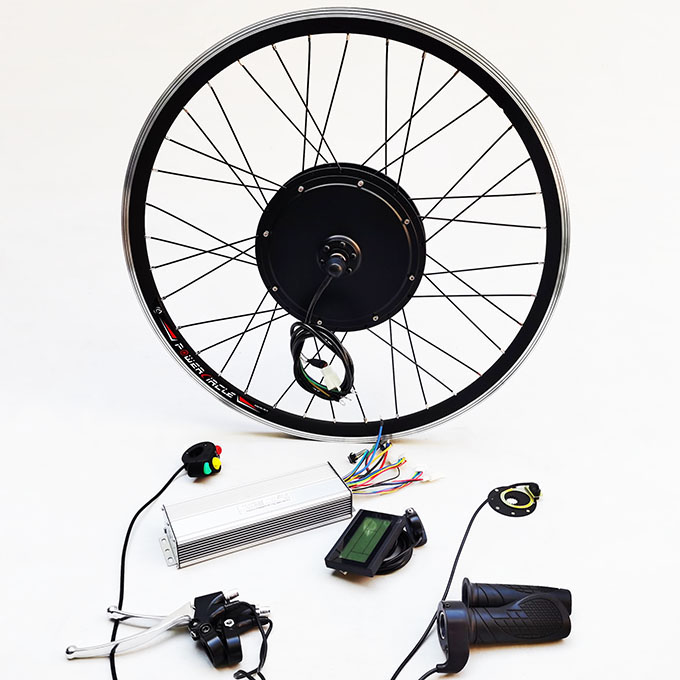

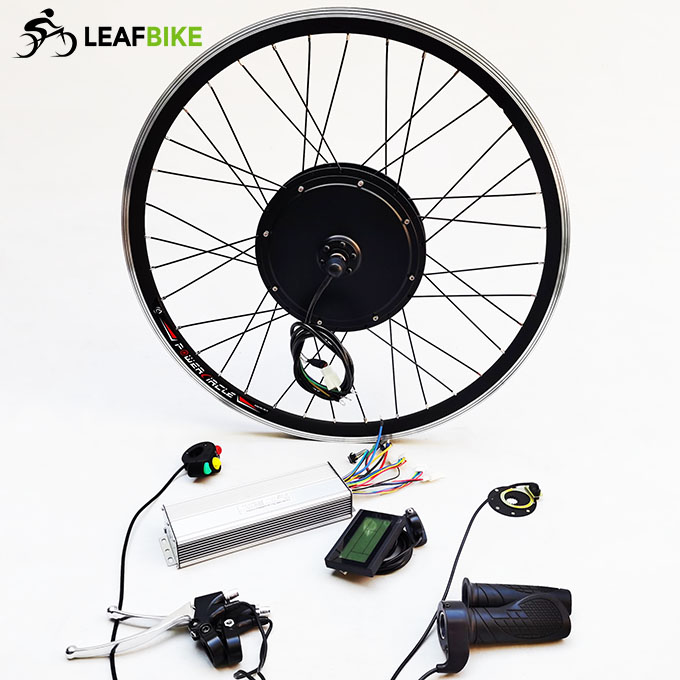

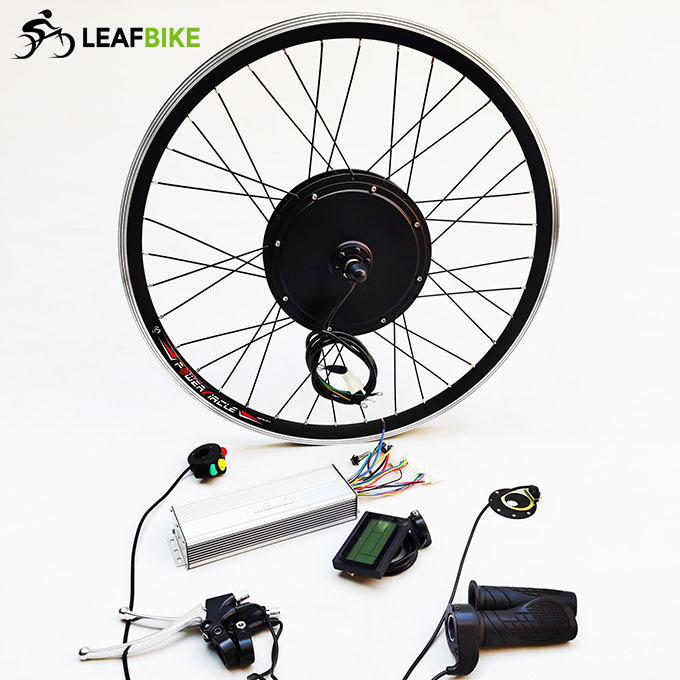

Package Content:

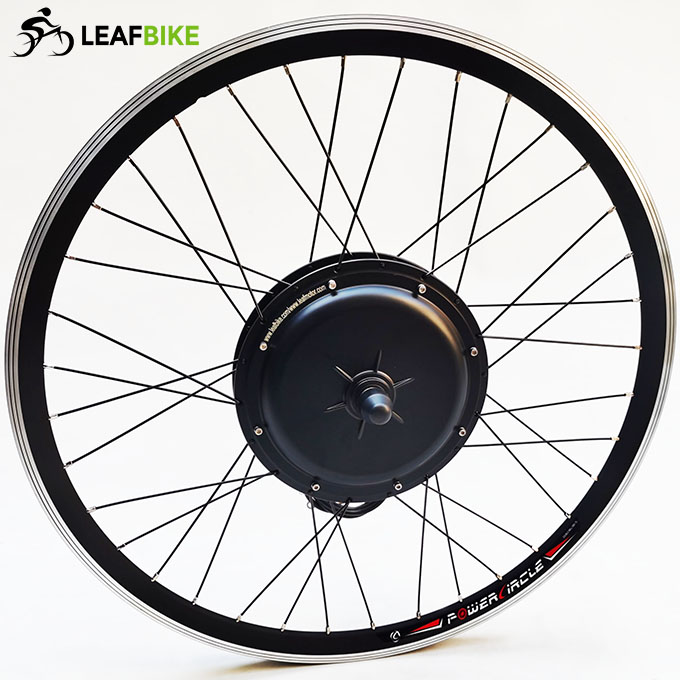

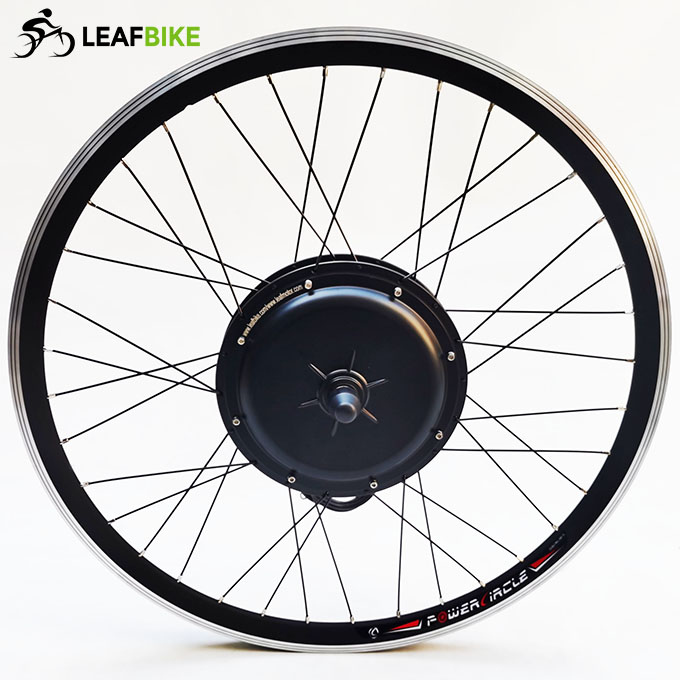

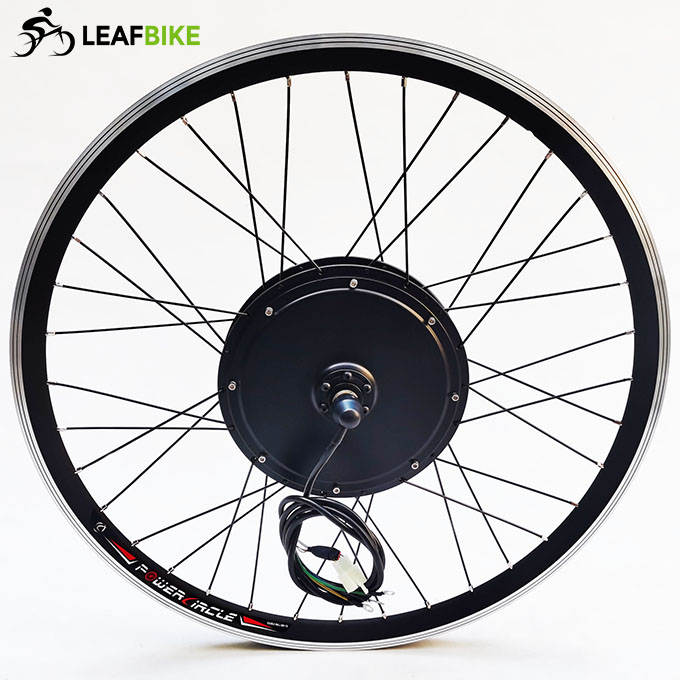

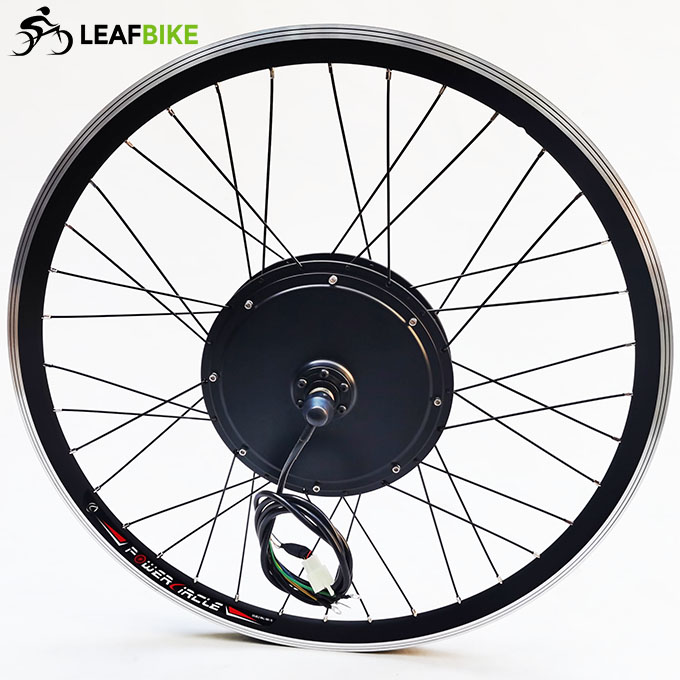

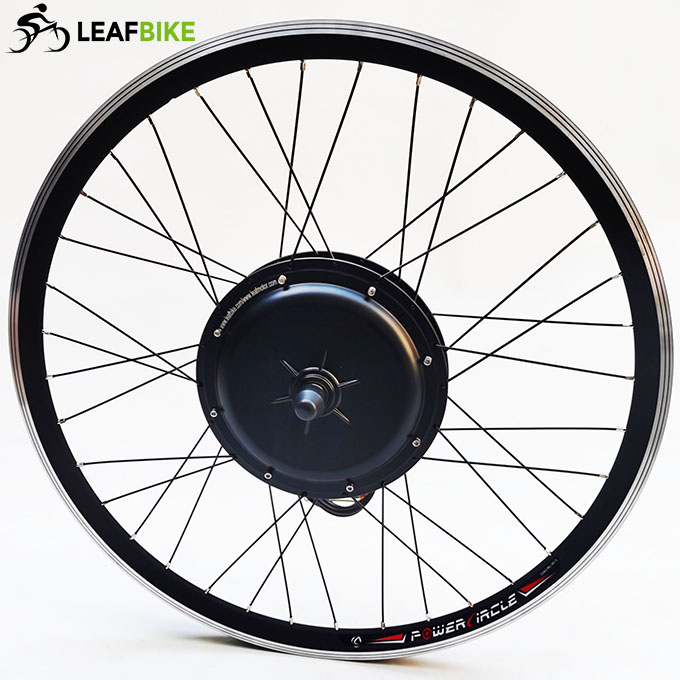

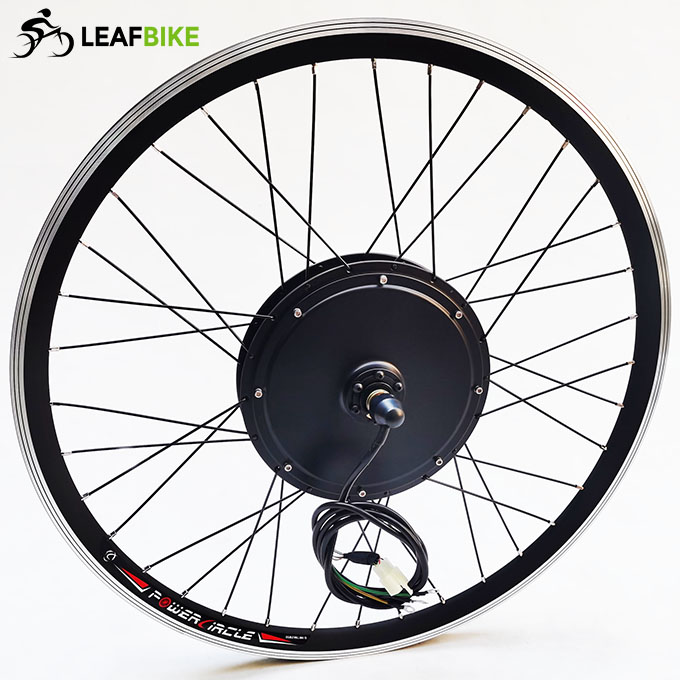

1 x 28 inch 60V 2000W front hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
Front Motor Drw.
