24 inch 60V 2000W front hub motor - bike conversion kit

Name: 24 inch 60V 2000W front hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK24602000FN
Price: 379 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK24602000FN

$379.00 ~~$438.00~~

Maybe You Need These

Description

Please watch videos for 24 inch 60V 2000W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video: S830

24 inch 48v 1500w front hub motor electric bike conversion kit

Share Video: 08HU

24 inch 52v 1500w front hub motor electric bike conversion kit

Share Video:

24 inch 48V 1500W front hub motor - bike conversion kit

* This 24 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

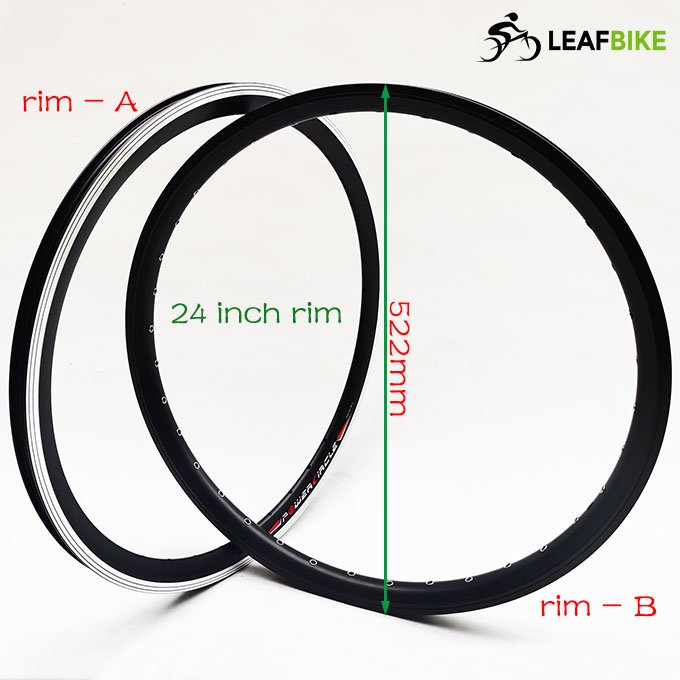

>. Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 130mm Length × 36 pcs

>. Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 135mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 40mph Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: Sine Wave Controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* ...

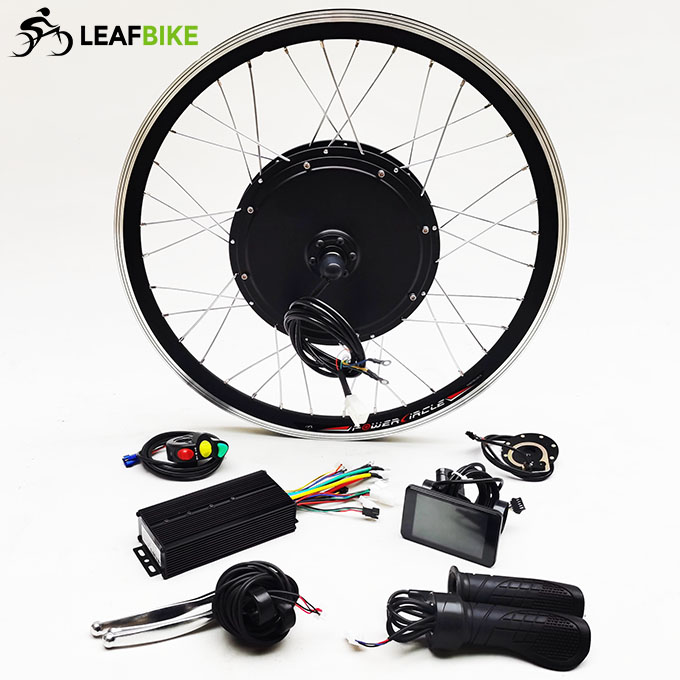

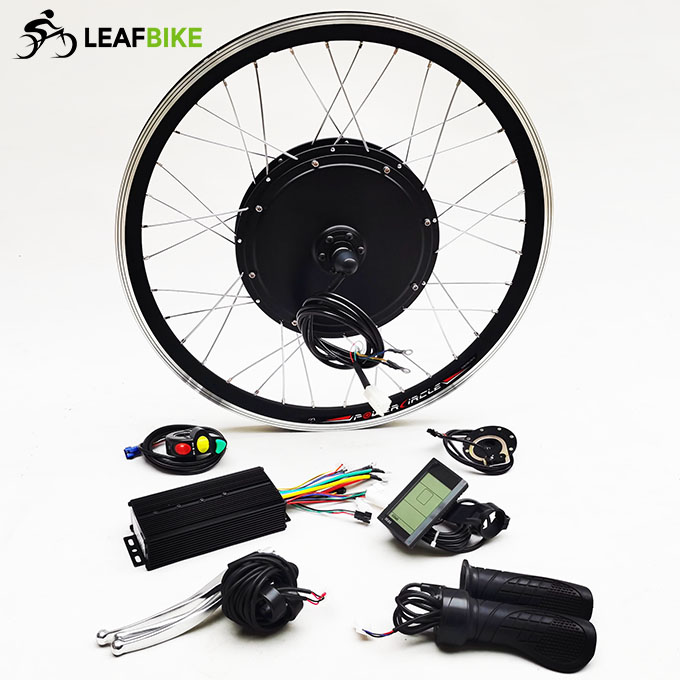

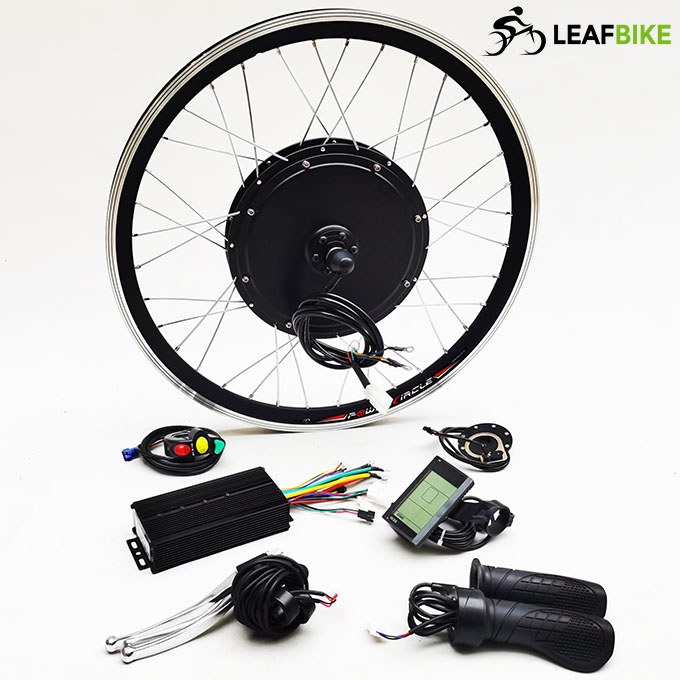

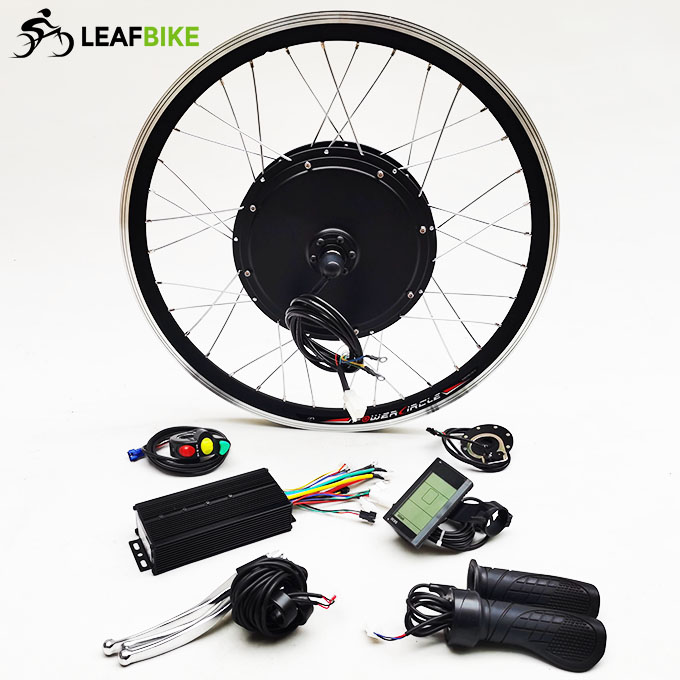

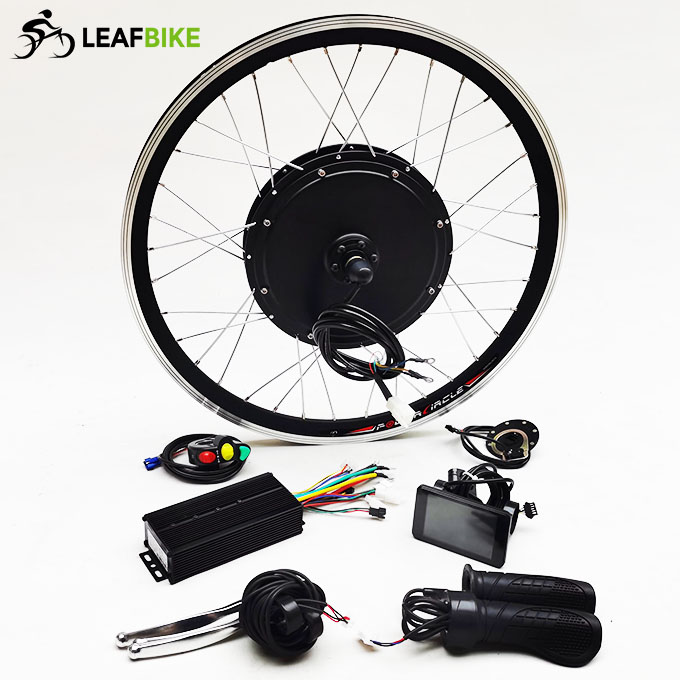

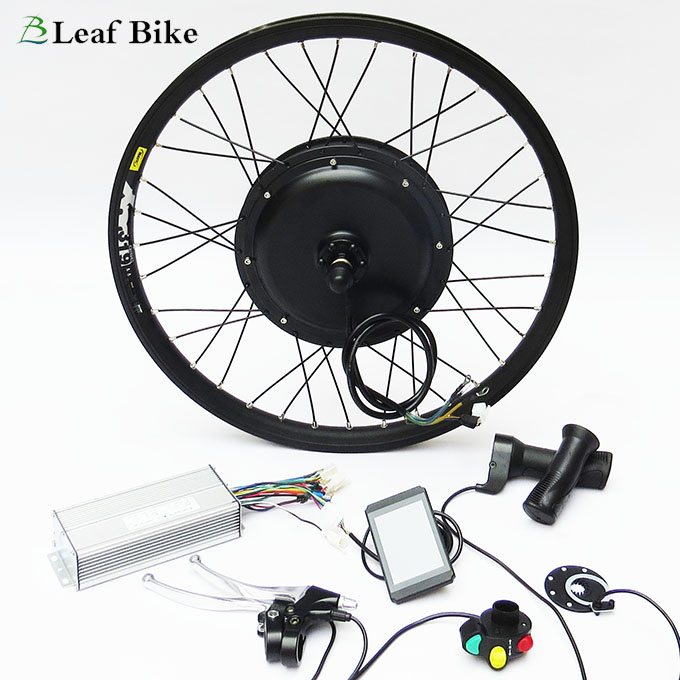

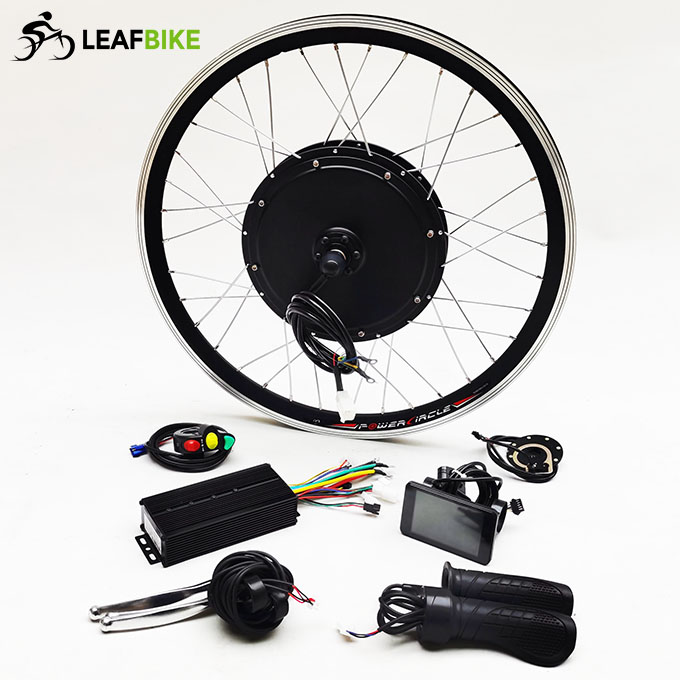

Package Content:

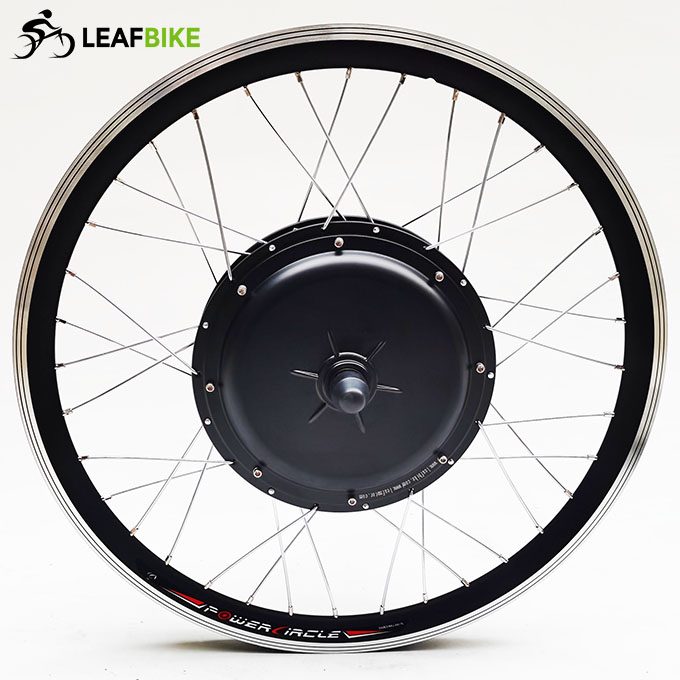

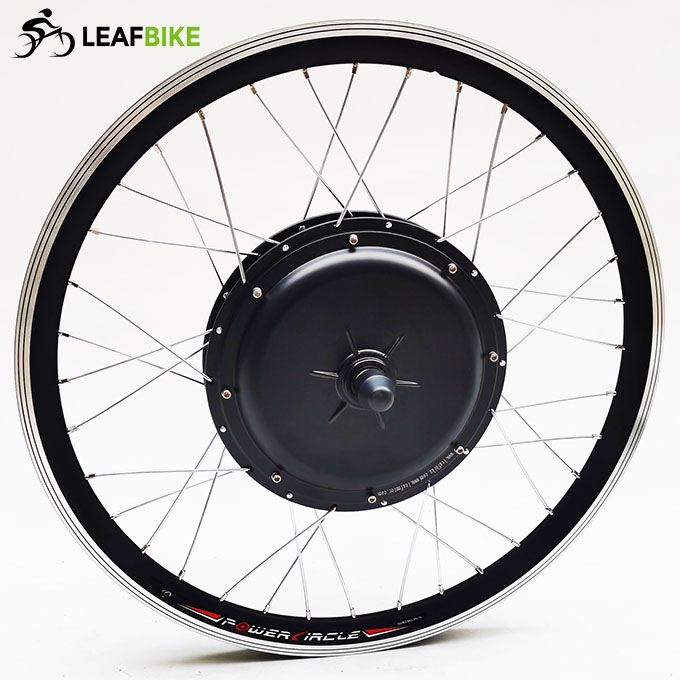

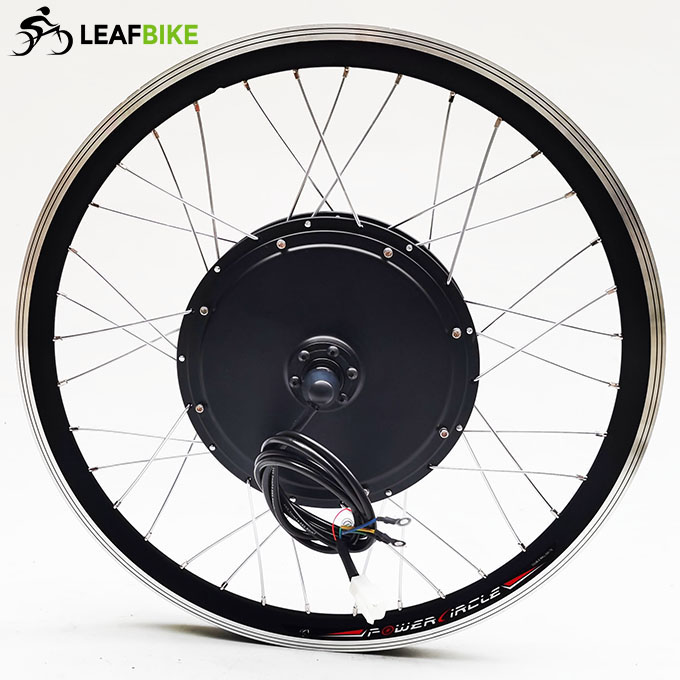

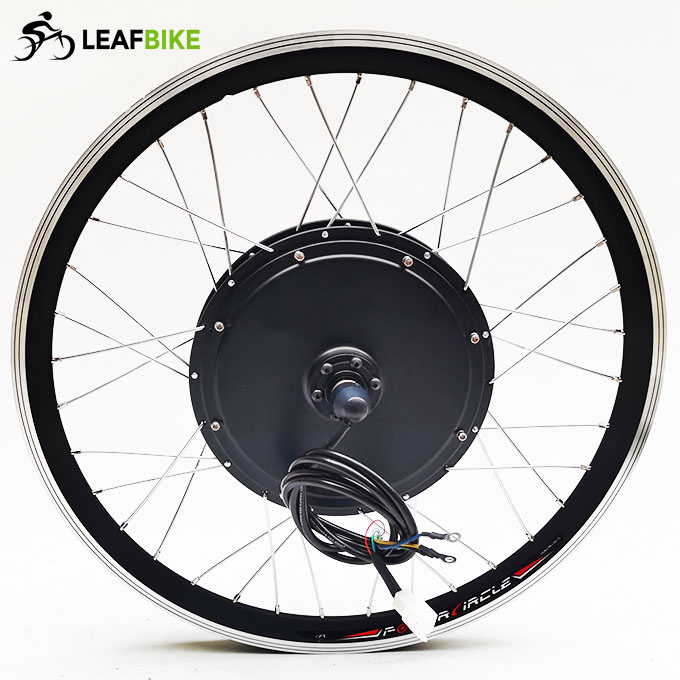

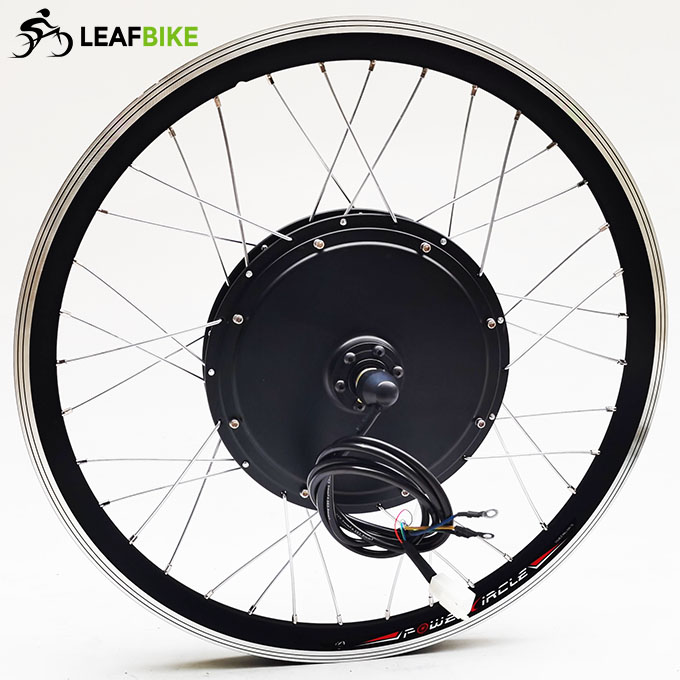

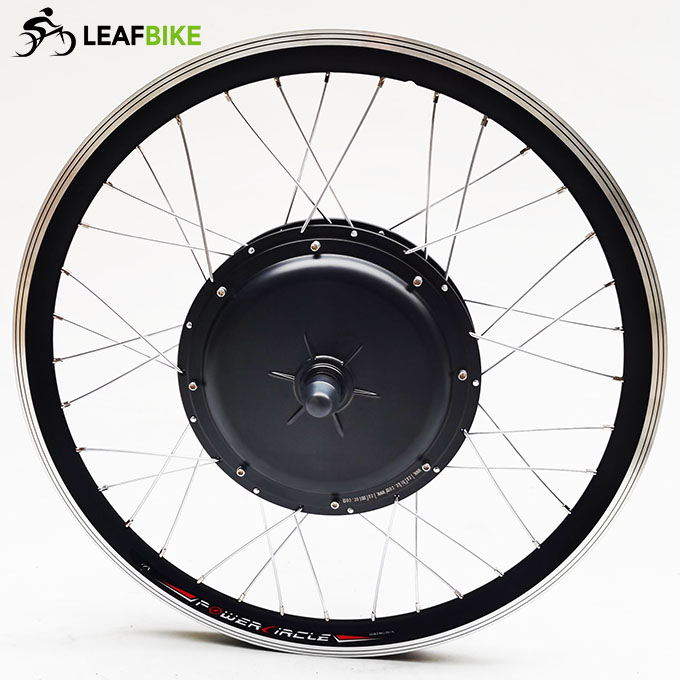

1 x 24 inch 60V 2000W front hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg / 24.6 lbs
Package Size: 56cm L x 56cm W x 25cm H / 22" L x 22" W x 9.8" H
Package Type: Cardboard Box

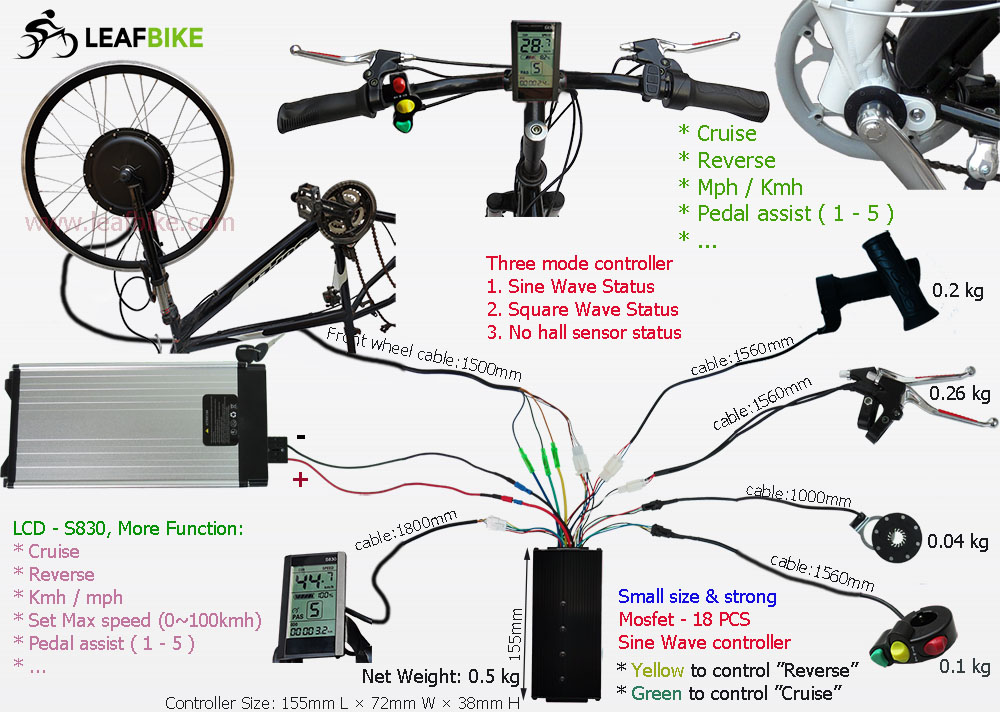

Wire Diagram:

Front Motor Drw.

Performance Data:
