24 inch 36V 750W rear hub motor kit

Name: 24 inch 36V 750W rear hub motor kit
Brand: Leaf Bike
SKU: LBCK2436750RNK
Price: 325 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2436750RNK

$325.00 ~~$378.00~~

Maybe You Need These

Description

Please watch videos for 24 inch 36V 750W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

Share Video:

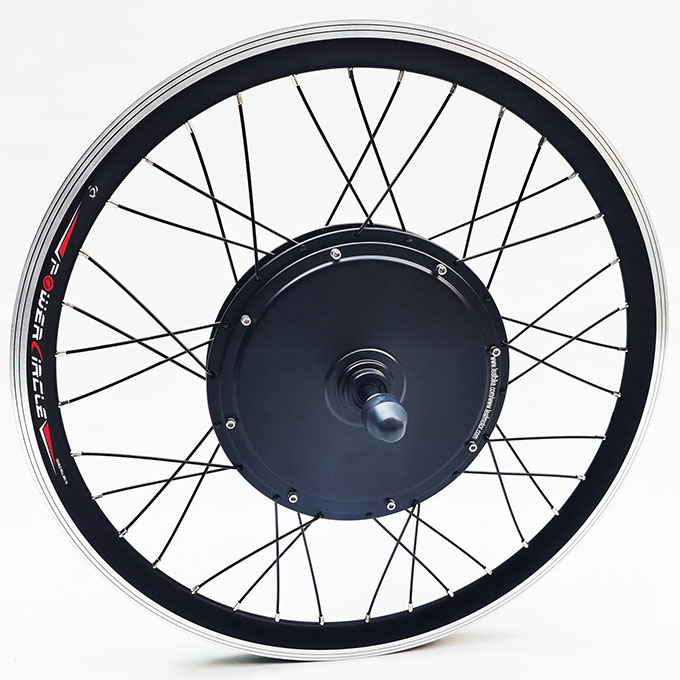

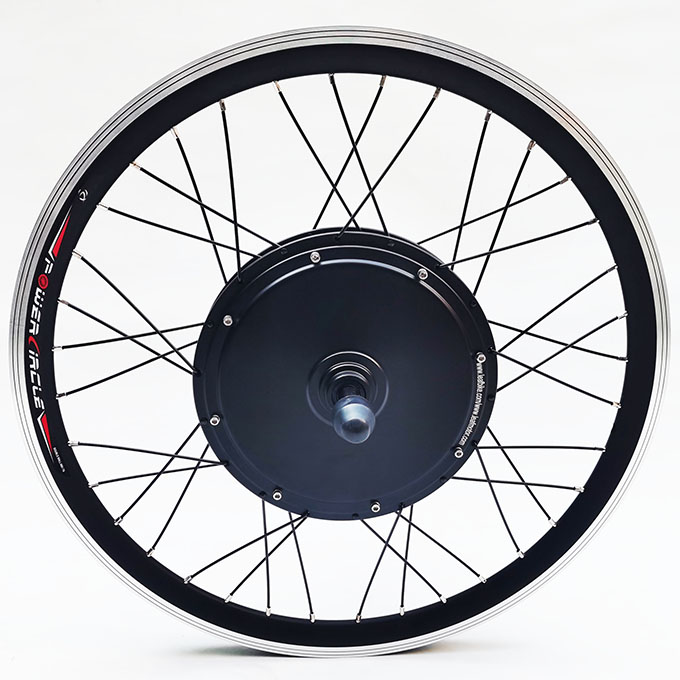

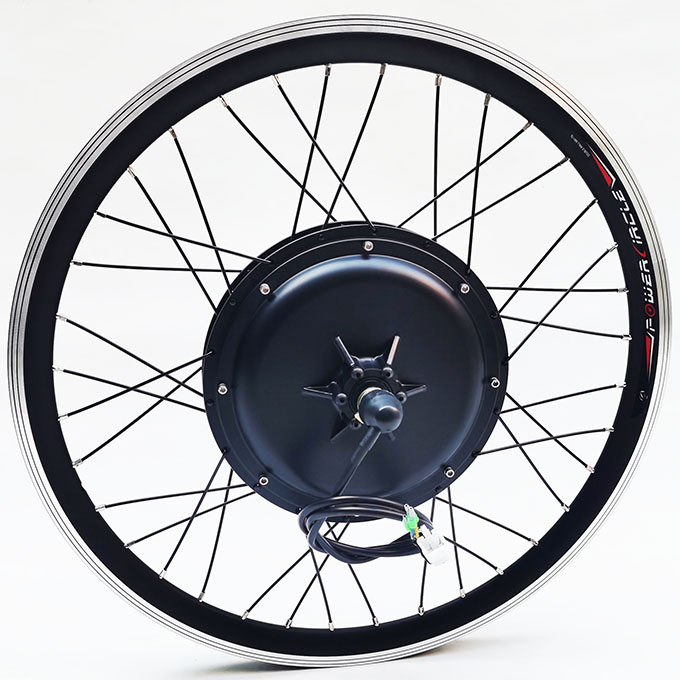

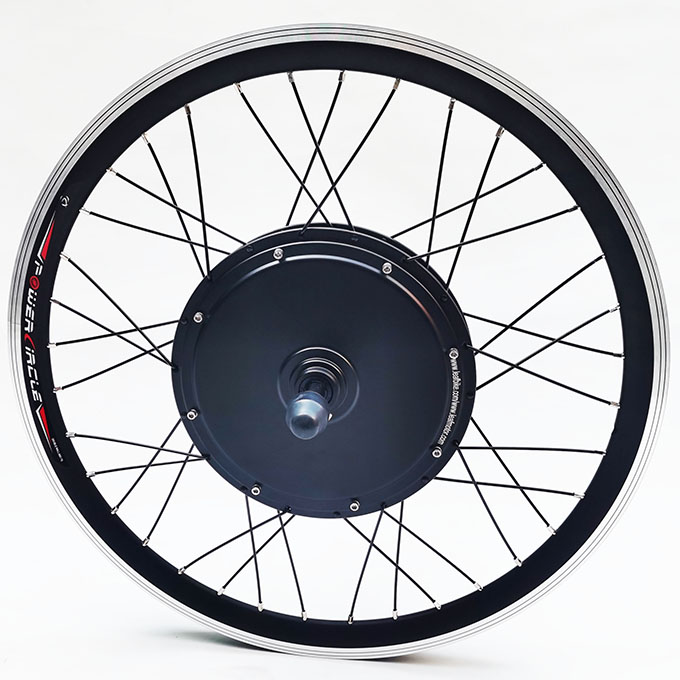

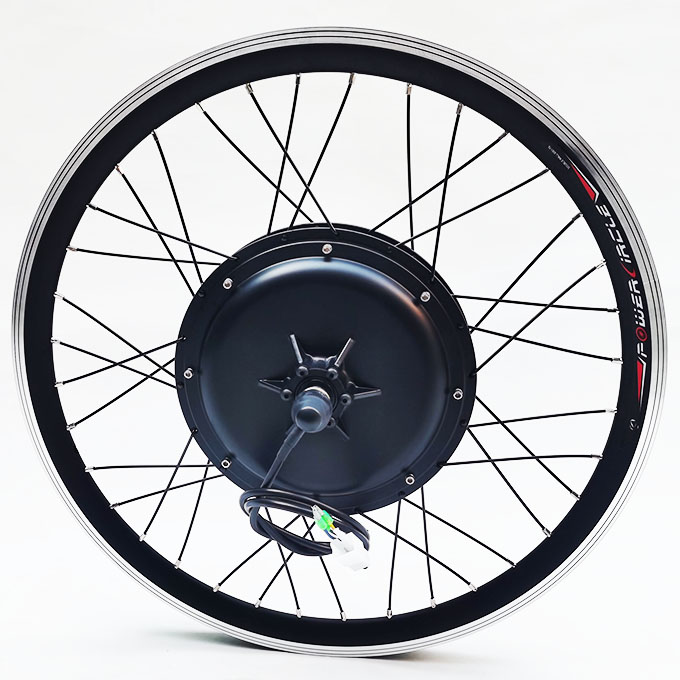

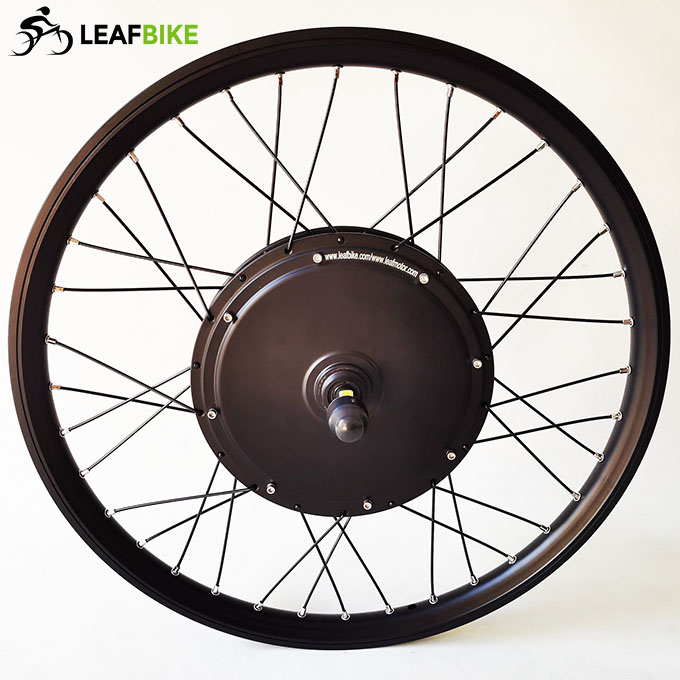

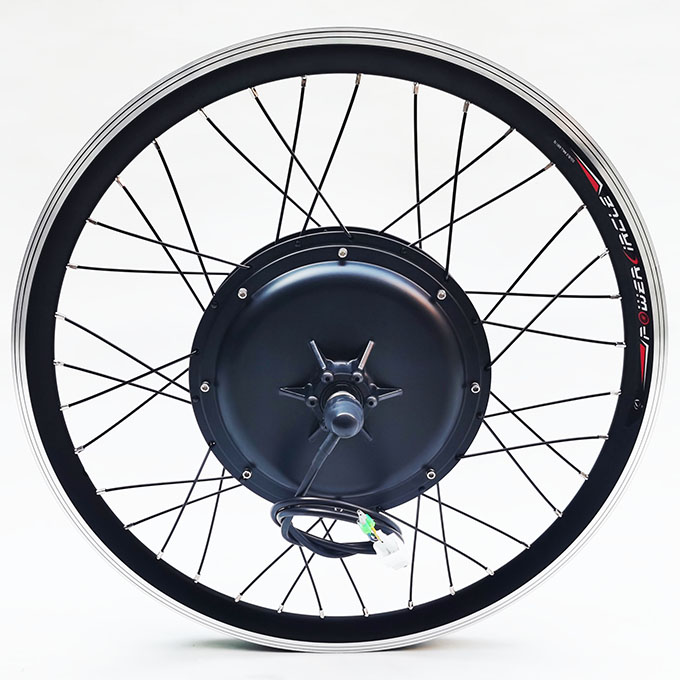

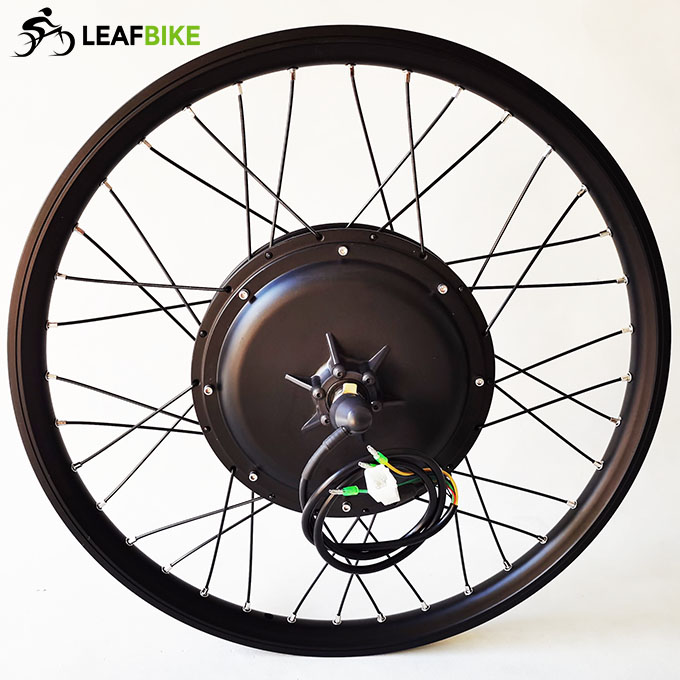

24 inch 36v 750w rear hub motor - electric bike conversion kit

This 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

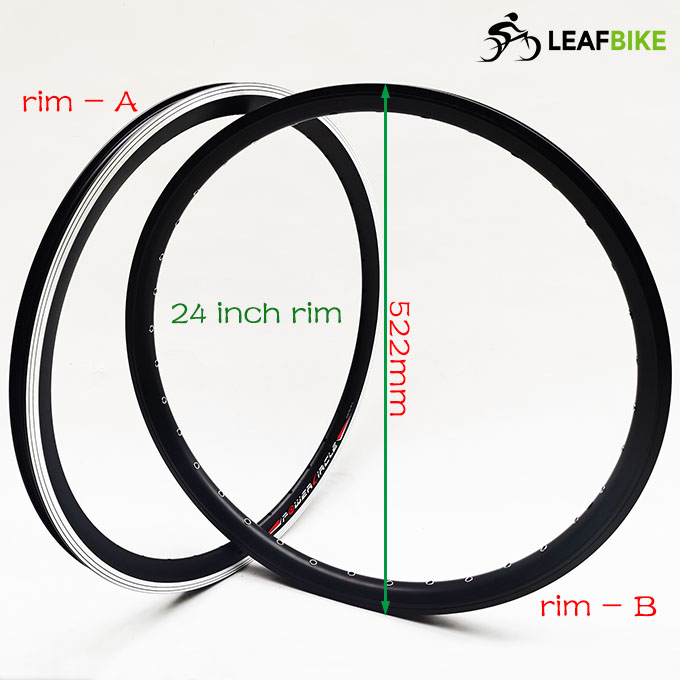

>. Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
>. Spoke: Black 12 gauge / 130mm Length × 36 pcs

>. Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 135mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 61.3 kmh – 38 mph
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 6 or 7 gears
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

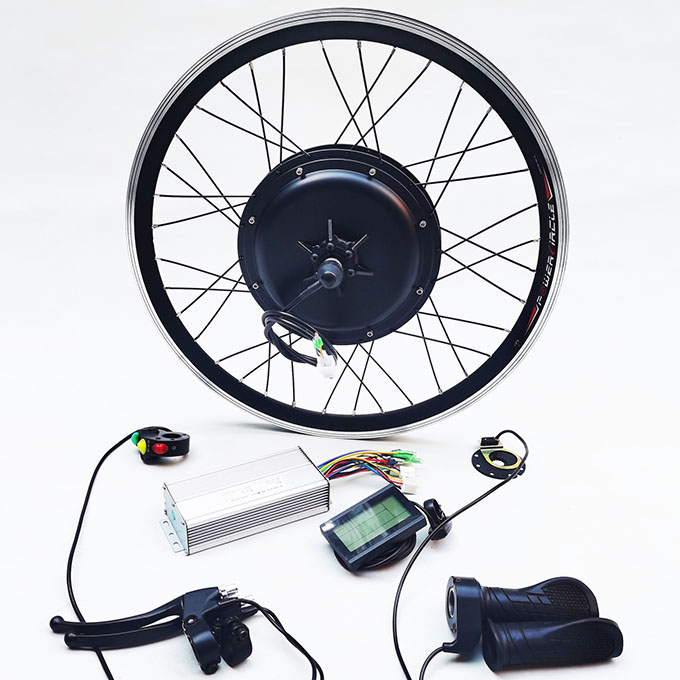

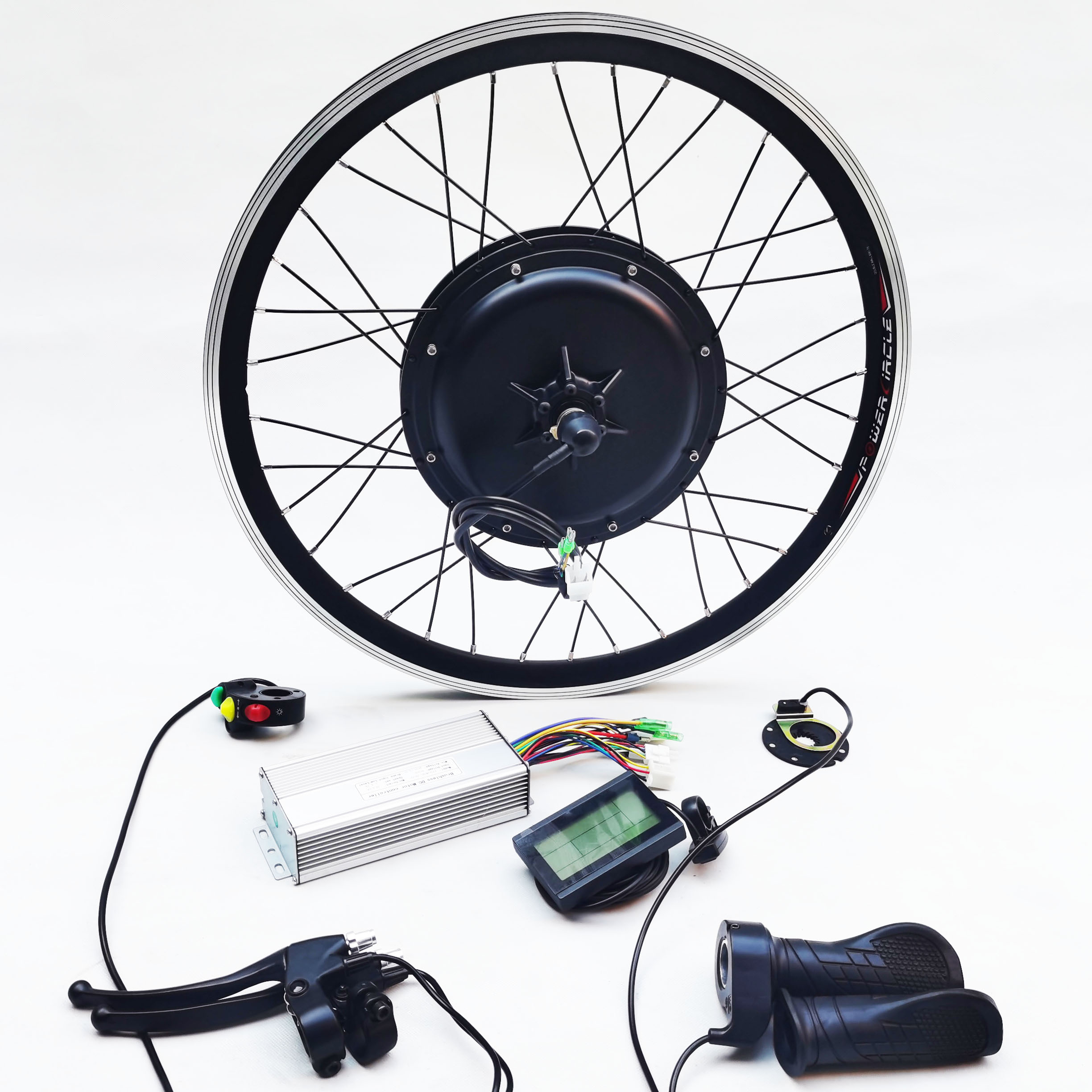

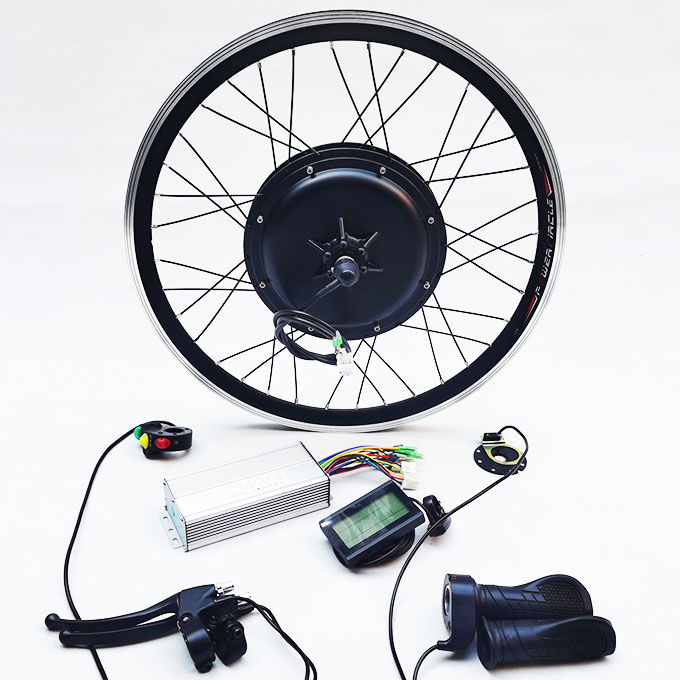

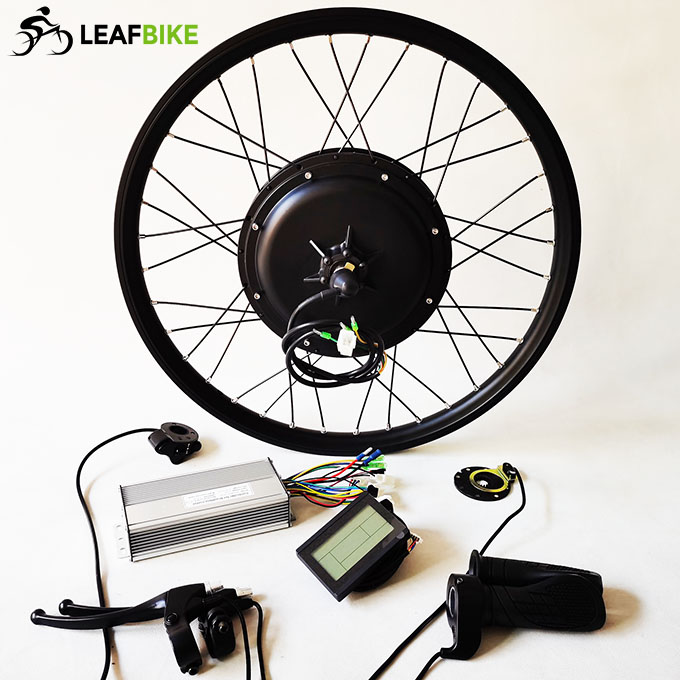

Package Content:
1 x 24 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-003
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.6 kg / 23 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

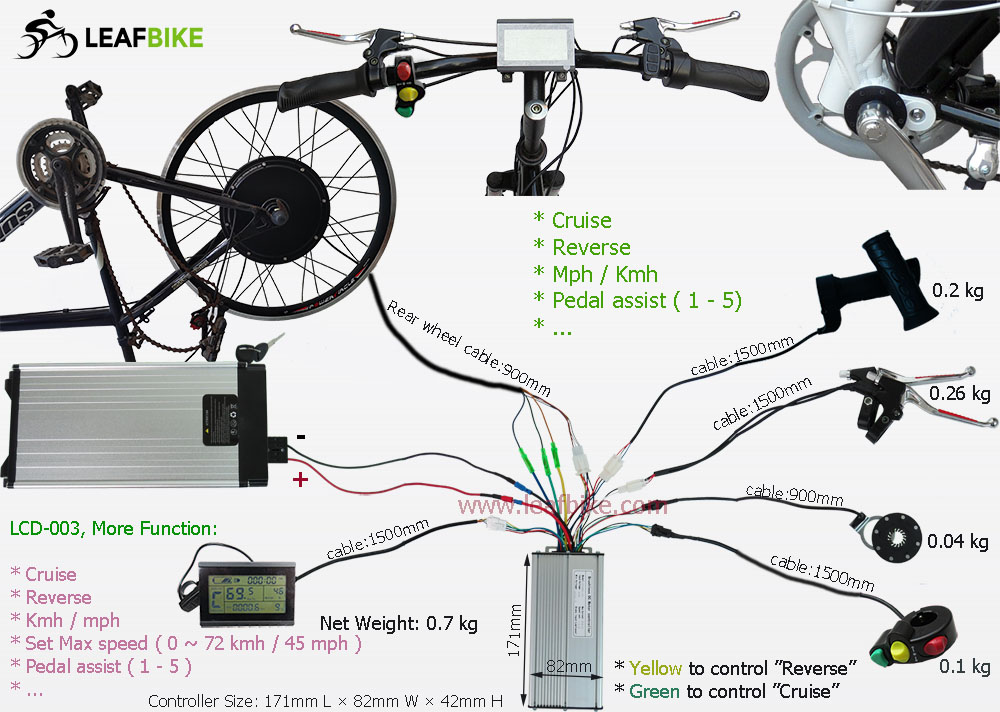

Wire Diagram:

750W Rear Drw.

750W Cassette Drw.

Performance Data:
