Please watch video for 24 inch 24V 250W 300W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free.
This 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

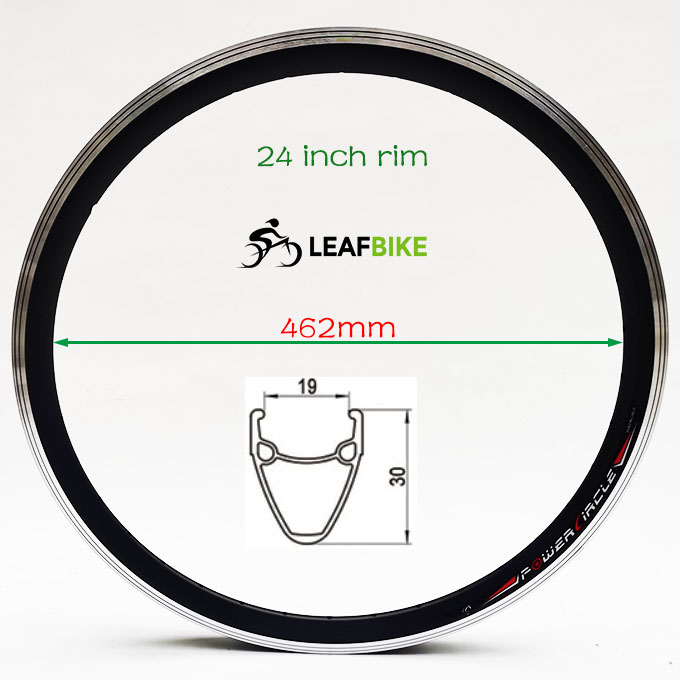

>. Rim: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: 12 gauge / 156 mm Length × 36 pcs
>. Engine : Bldc hub motor -- Brushless Geared
>>. Voltage: 24V
>>. Power: 250W
>>. Efficiency: 78%
>>. Max speed: 28.9 kmh -- 17.8 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end , RIGHT
>>. Cable length:160cm / 63"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC24 Volts
>>. Min. Voltage: DC 20 ± 0.5 V
>>. Rated power: 250 Watts
>>. Casing material: aluminium
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H
LCD-003, More Function:
* Cruise
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

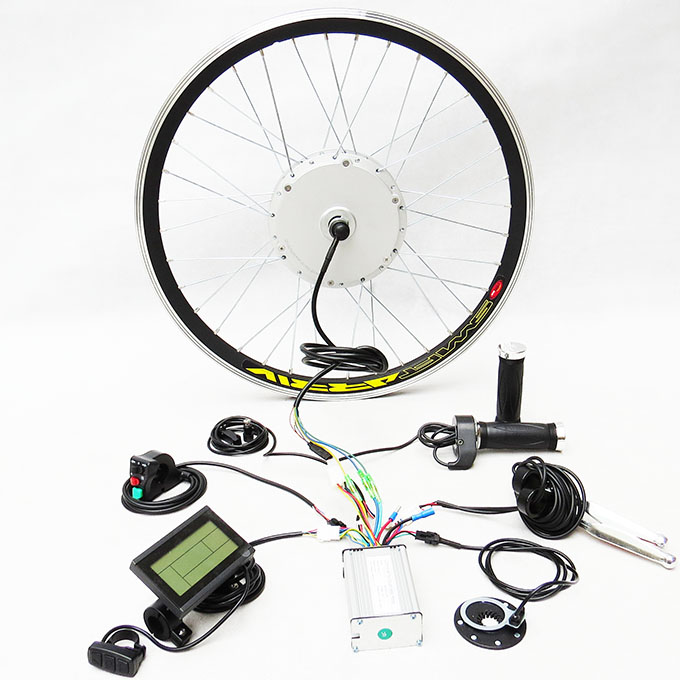

Package Content:

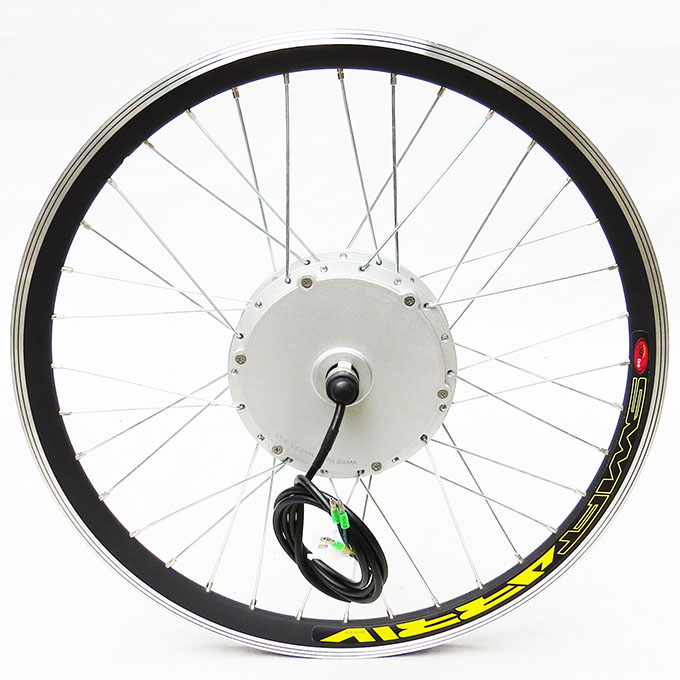

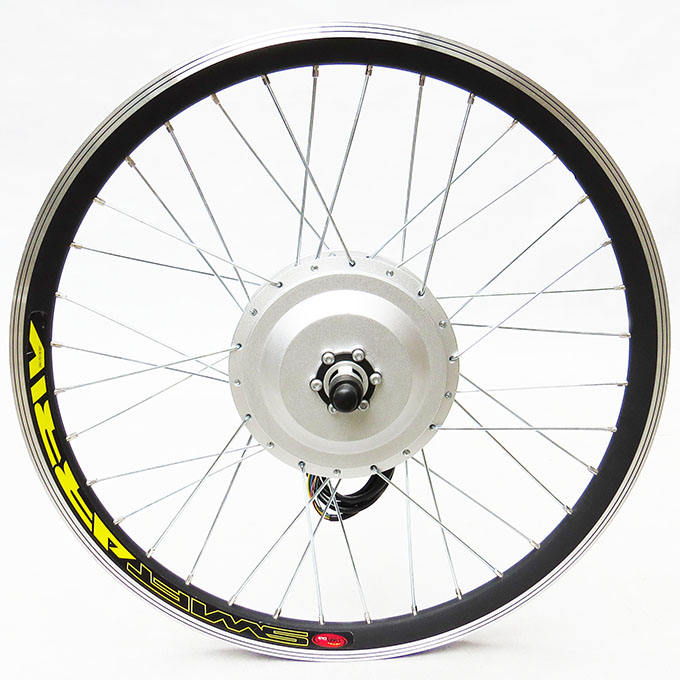

1 x 24 inch 24V 250W - 300W front bldc hub motor wheel
1 x 24V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist
Net weight: 5.93 kg / 13 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
