20 inch 48V / 52V 1500W rear hub motor - bike conversion kit

Item ID #LBCK20481500RN
$355.00 $428.00
    Please select the information you wantX
  • Tyre Size :
    20 x 1.95" / 2.0" / 2.1" ~ 2.5"
    20 x 1.5" / 1.75" / 1.95"
  • LCD :
    S830
    SW900
    08HU
    08SU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* This 20 inch 48V / 52V 1500W rear bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

This Brand New 18 - Mosfet electric motor controller with Sine wave, Square wave, No hall, three modes compatible.

What are three modes?
* First mode: Sine Wave Status - Motor without noise,Very quiet !
If one of motor hall sensor is broken, controller still can work in Sine Wave Status.

* Second mode: Square Wave Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If two of motor hall sensors are broken, controller can work in Square Wave Status.

* Third mode: No Hall Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If all of three hall sensors are broken, controller can work in No hall Status.


Main Features:

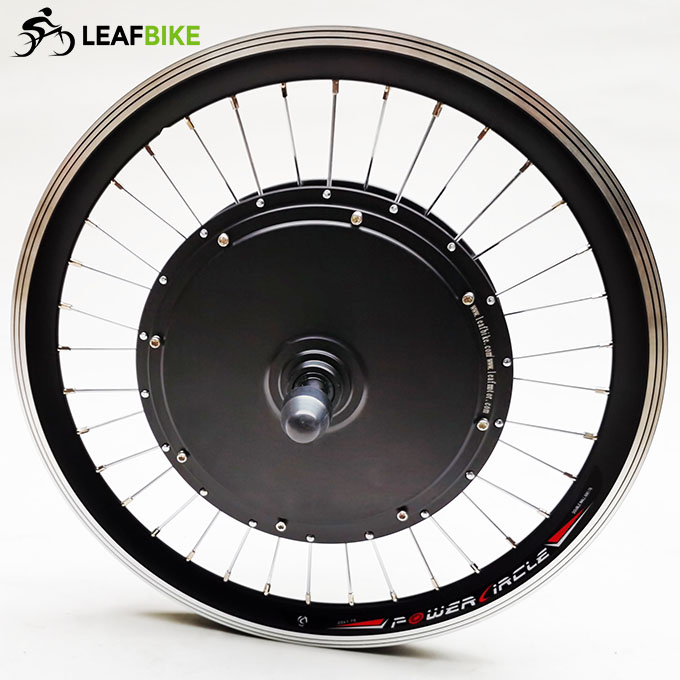

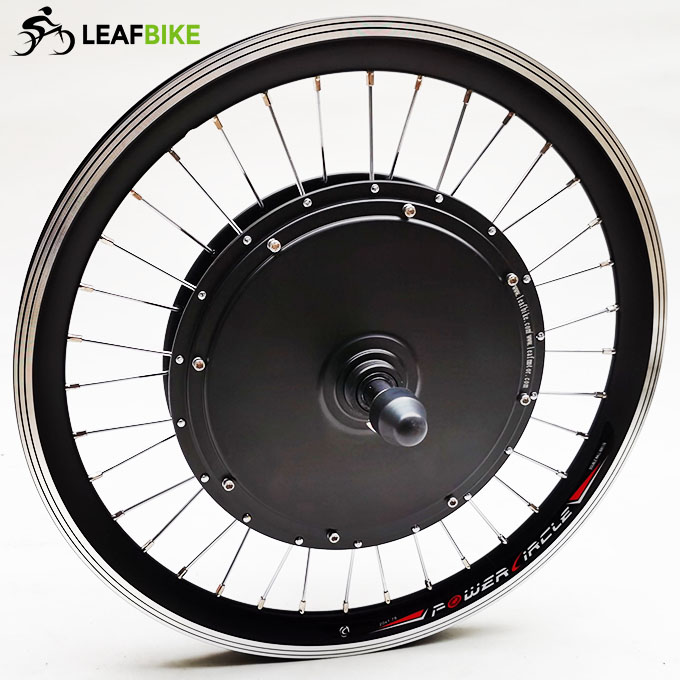

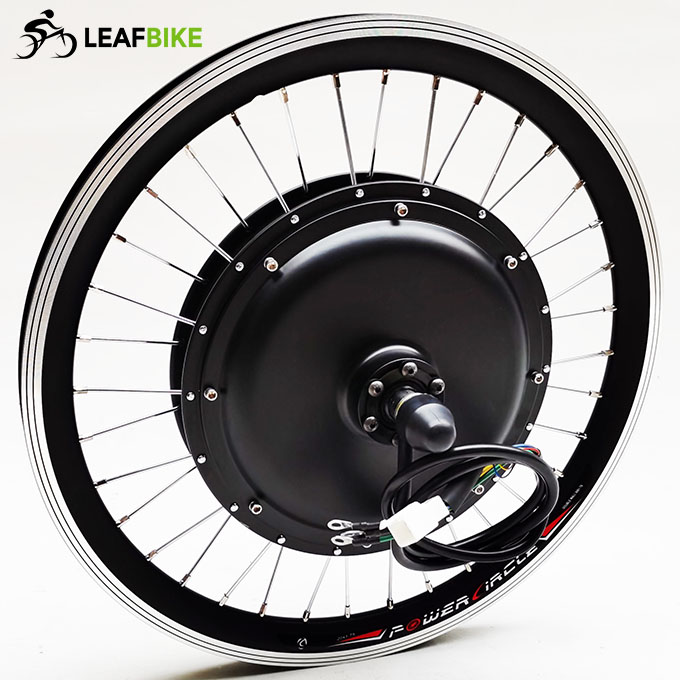

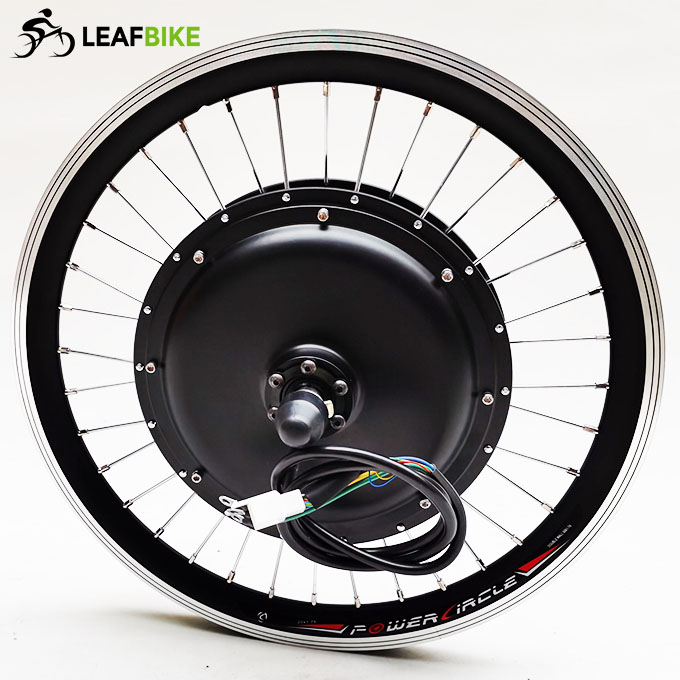

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

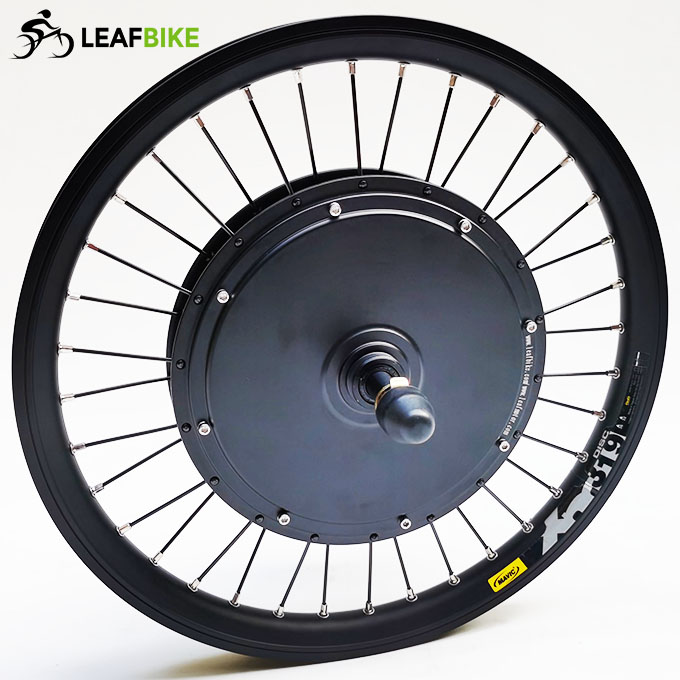

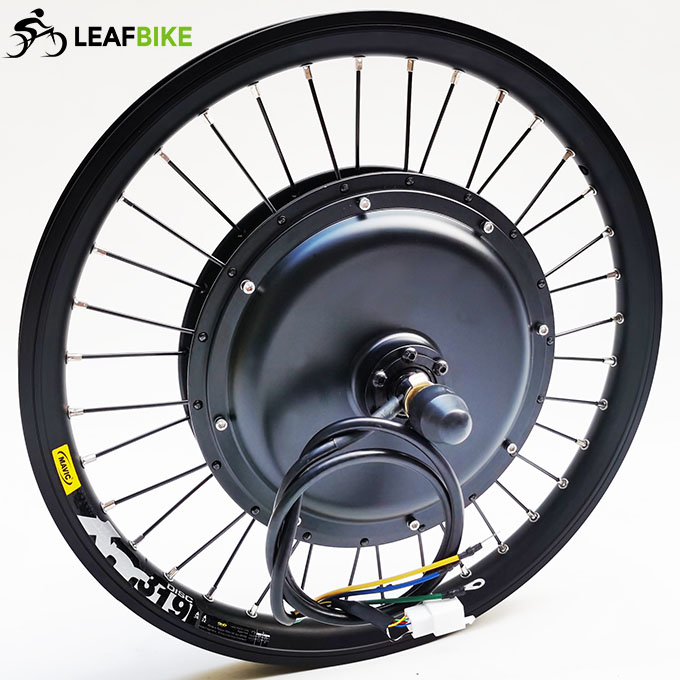

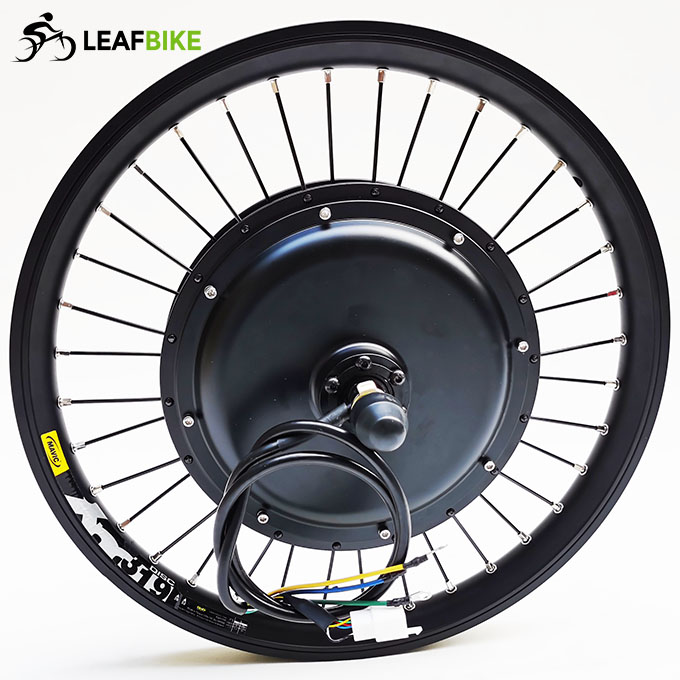

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs


>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 67.5 kmh Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed... 6 speed or max 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: sine wave brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise?-- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse?-- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Regen brake?-- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )?--  If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 )?-- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

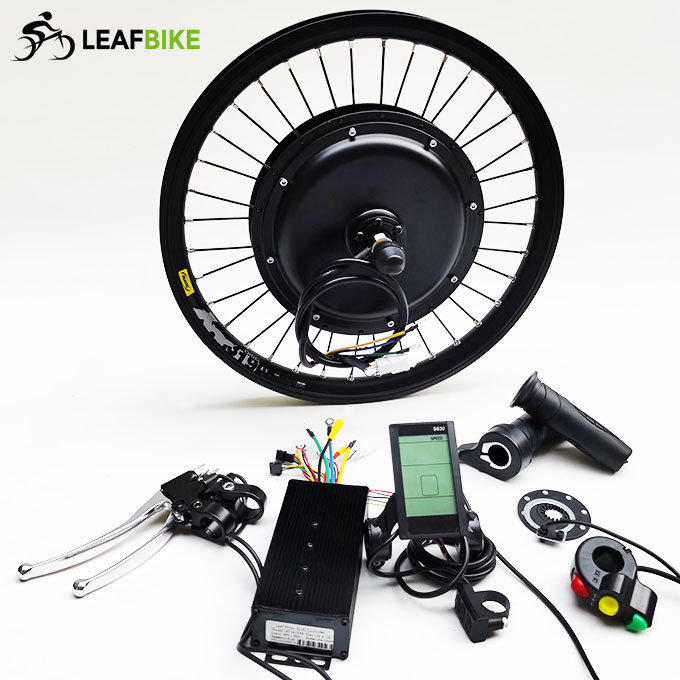

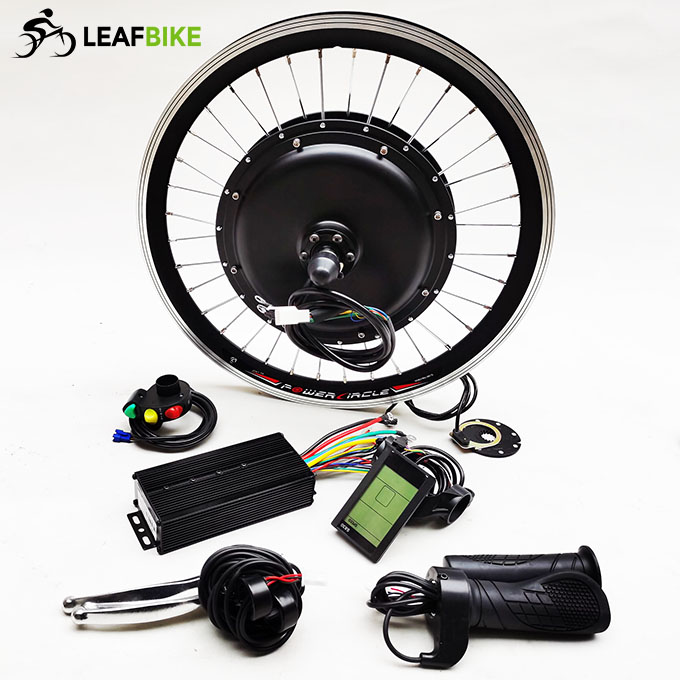

Package Content:

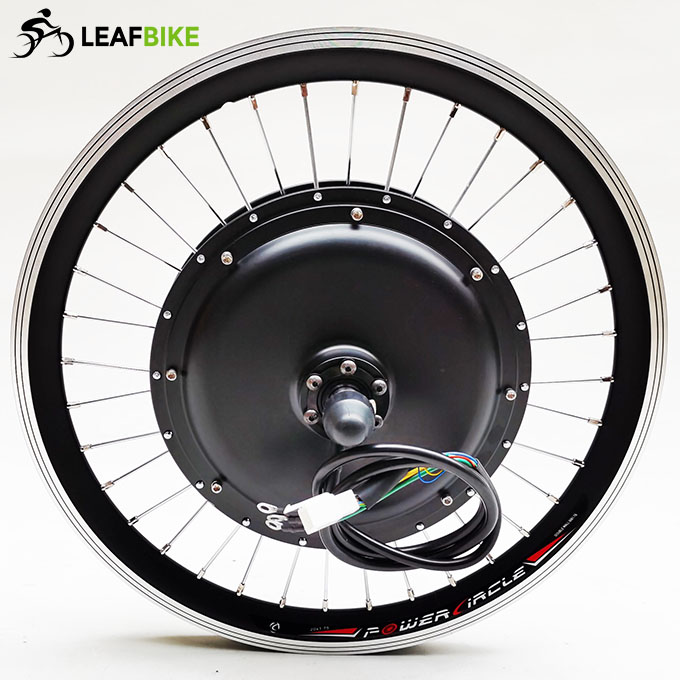

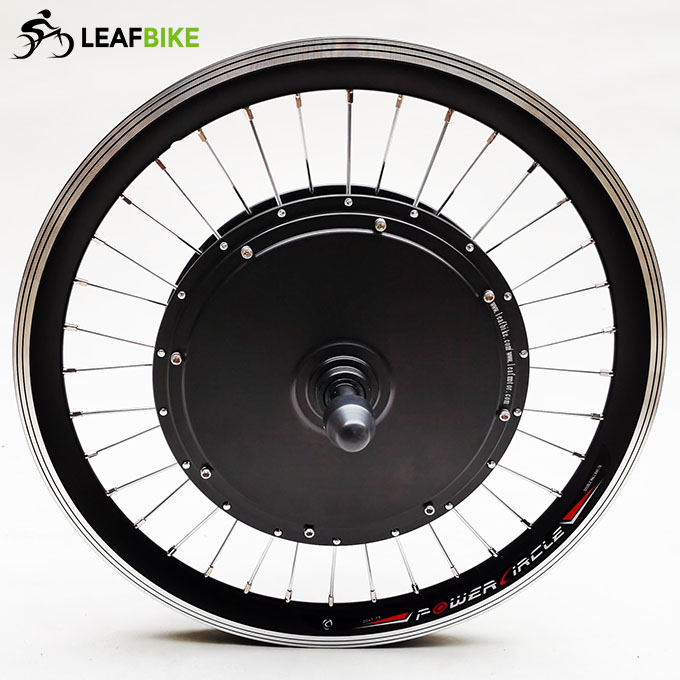

1 x 20 inch 48V / 52V 1500W rear hub motor wheel
1 x 48V / 52V 1500W 18-MOSFET sine wave motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 11.0 kg   /  24.2 lbs
Package Size: 50cm L x 50cm W x 23cm H  /  19.7"  L x 19.7" W x 8.7" H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:

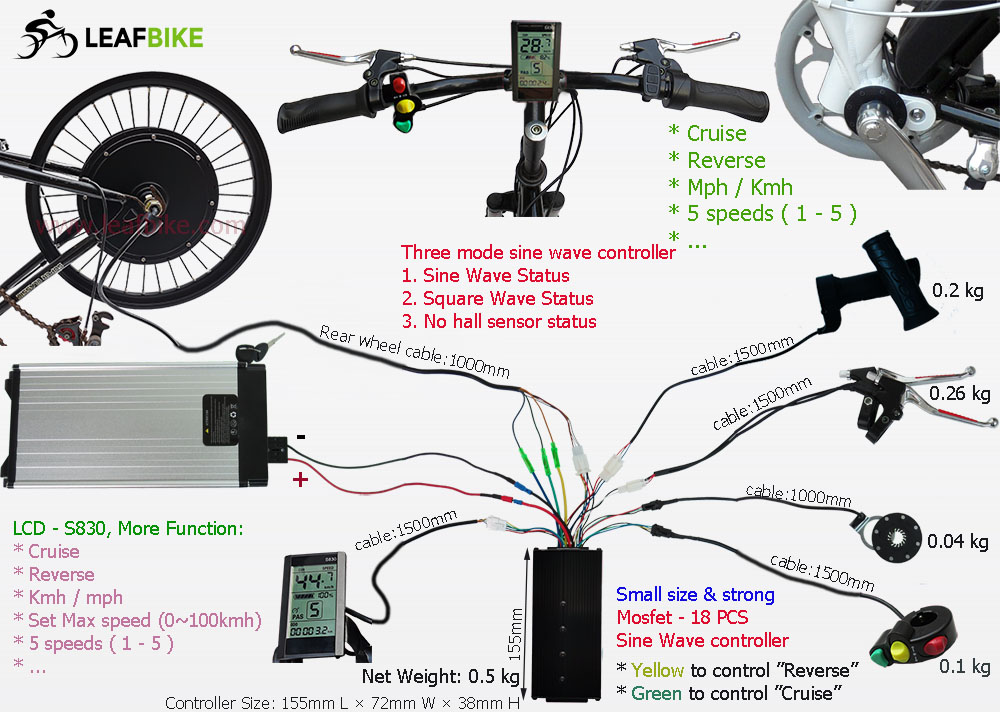

Wire Diagram:
1500w rear Motor Drw.
1500w-rear-electric-bike-motor-drawing
Performance Data:
48v-1500w-hub-motor-curve

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
