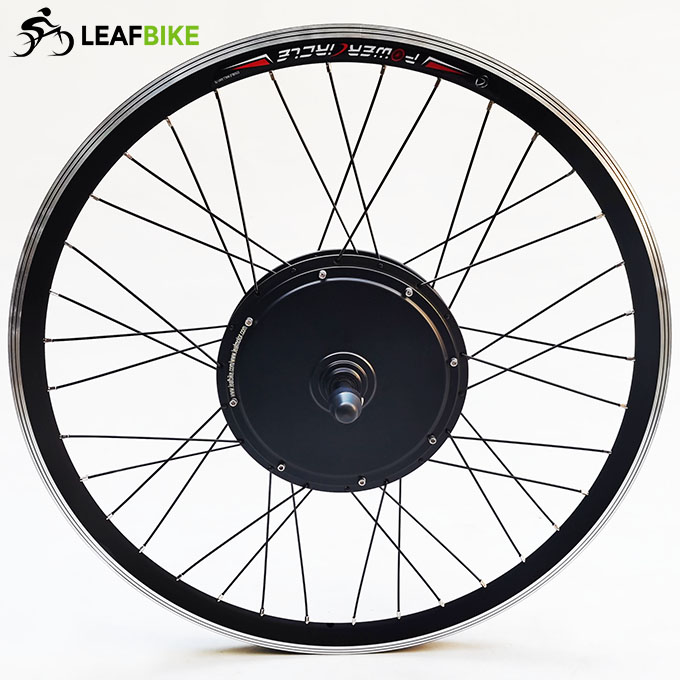

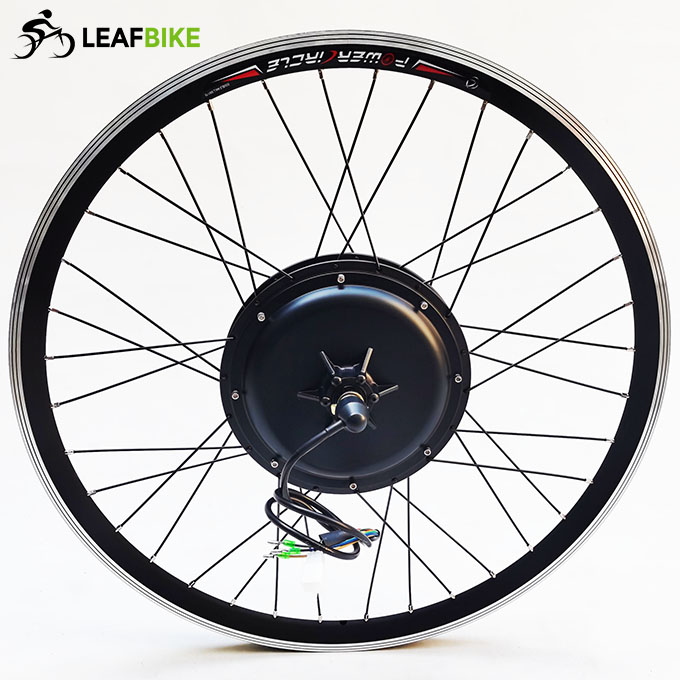

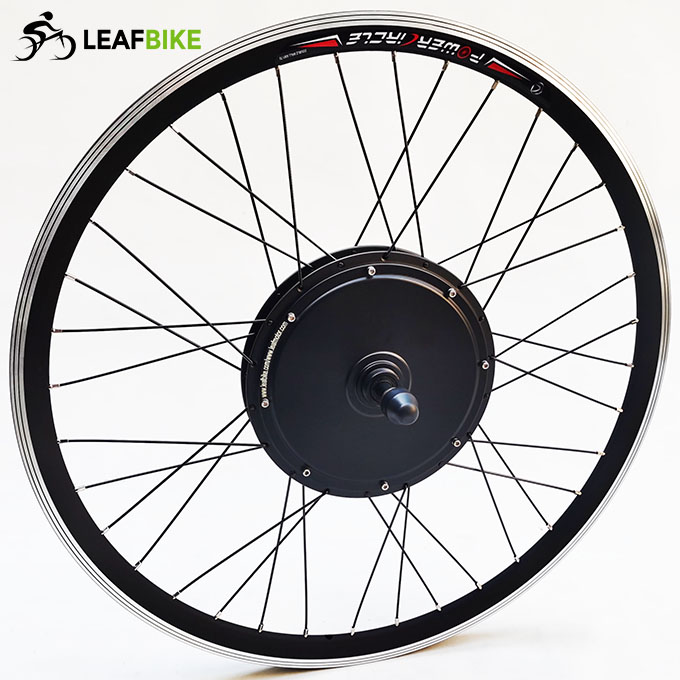

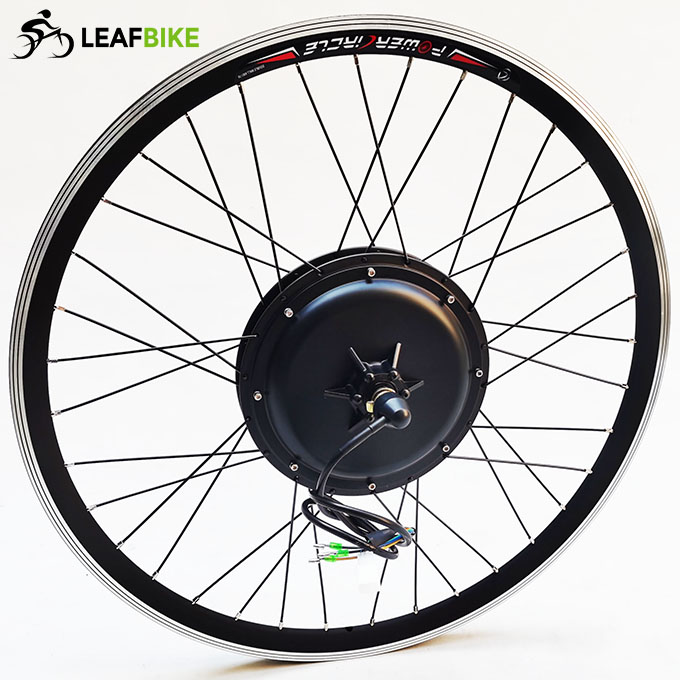

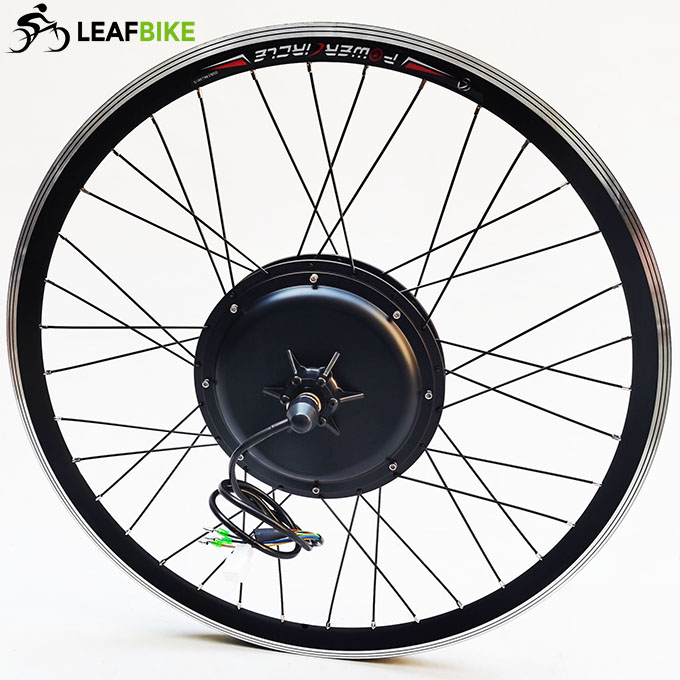

700c 36V 750W rear wheel - electric hub motor kit

Name: 700c 36V 750W rear wheel - electric hub motor kit
Brand: Leaf Bike
SKU: LBCK700C36750RNK
Price: 323 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK700C36750RNK

$323.00 ~~$372.00~~

Maybe You Need These

Description

Please watch videos for 700c 36V 750W rear hub motor electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

700c 36V 750W rear hub motor electric bike kit video

Share Video:

700c 36v 750w rear hub motor - electric bike conversion kit video

This 700c bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

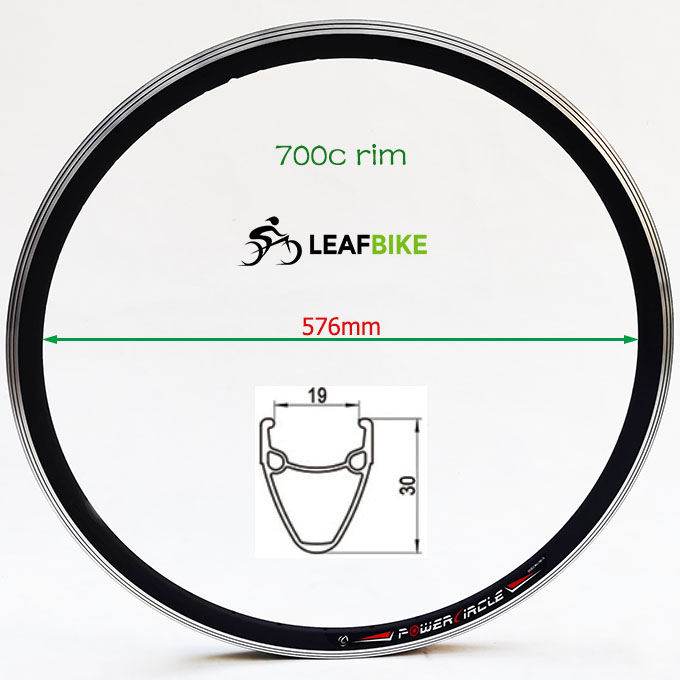

>. Rim: 700c / 622 double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C)
>. Spoke: 12 gauge / 184mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 65.3 kmh – 40.3 mph
>>. Mechanical brake: Disk or V
>>. Freewheel: space for 6 or 7 gears
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003 , More Function:
* Cruise - Yes
* Forward & Backward (Optional: On / Off)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph ) -- If hope riding max 25kmh, just set LCD to be "25"
* Pedal assist ( 1 - 5 )
* ...

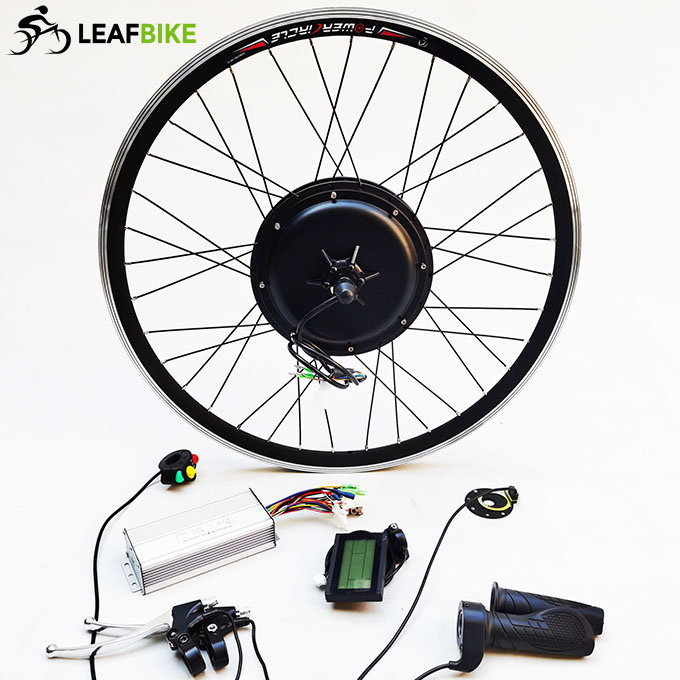

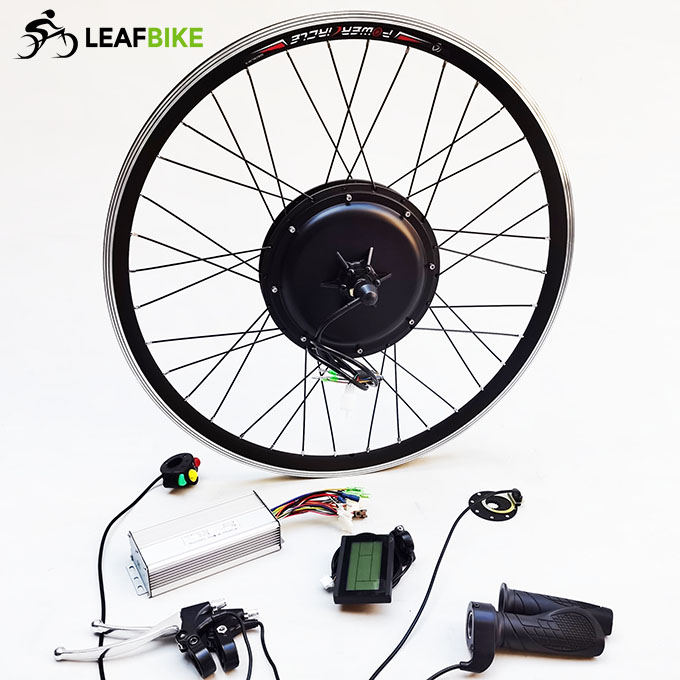

Package Content:

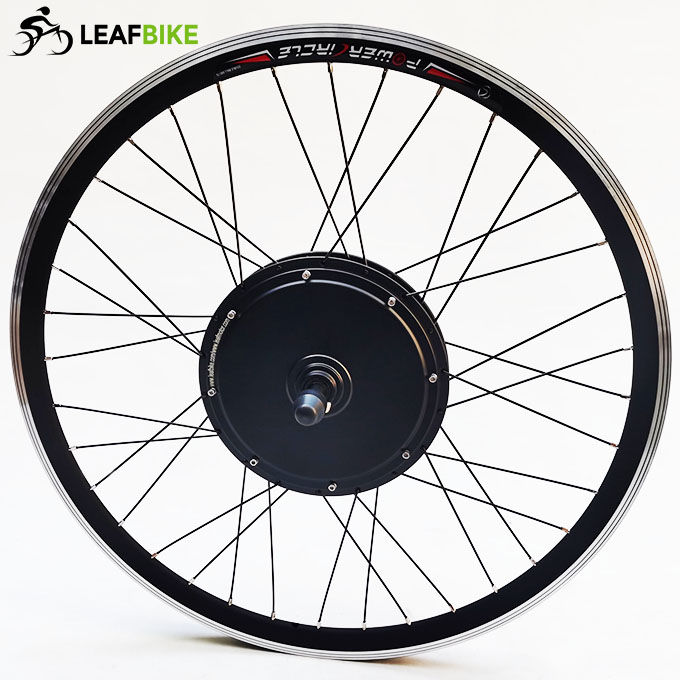

1 x 700c 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-003
1 x Twist throttle Default (Optional: Thumb throttle)
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.9 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

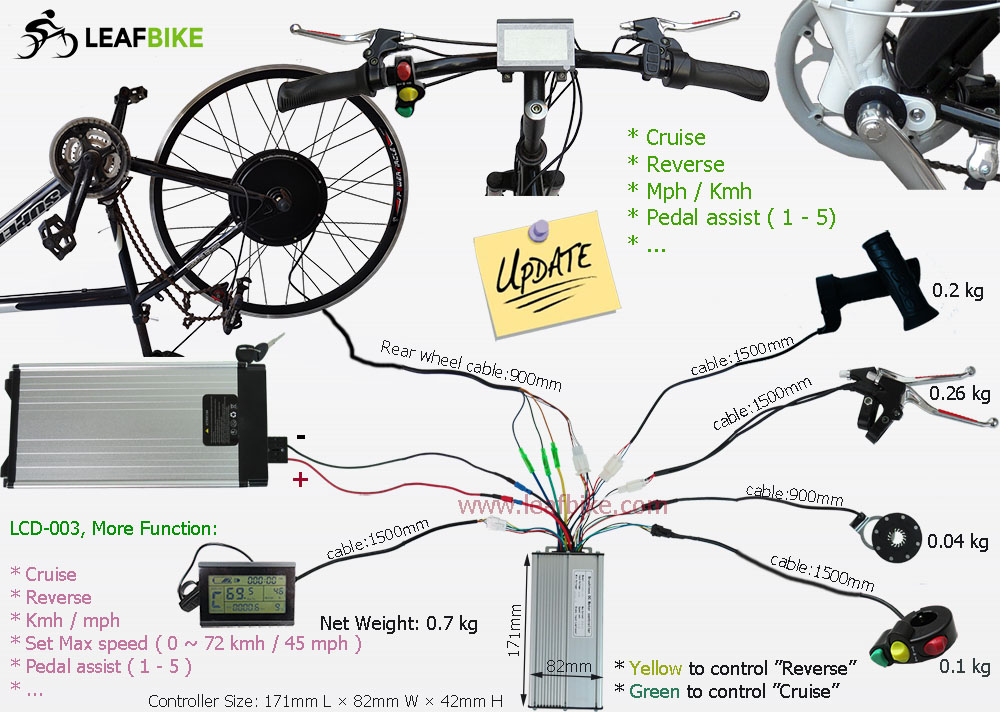

Wire Diagram:

750W Rear Drw.

750W Cassette Drw.

Performance Data:
