27.5 inch 48V 52V 1500W front wheel - 650b electric hub motor kit

Name: 27.5 inch 48V 52V 1500W front wheel - 650b electric hub motor kit
Brand: Leaf Bike
SKU: LBCK275481500FN
Price: 374 USD
Availability: InStock
Rating: 5 (2 reviews)

Item ID #LBCK275481500FN

$374.00 ~~$423.00~~

Maybe You Need These

Description

Please watch videos for 27.5 inch 48V 52V 1500W front hub motor 650b electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..

Share Video:

27.5 inch 48V 52V 1500W front hub motor electric bike conversion kit video

Share Video:

27.5 inch 1500w front hub motor electric bike conversion kit video

Share Video:

27.5 inch 48v 1500w front hub motor electric bike conversion kit video

Share Video:

27.5 inch 1500w front electric bike conversion kit

* The 27.5 inch electric bike kit combines the full E-bike technology: direct drive Brushless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

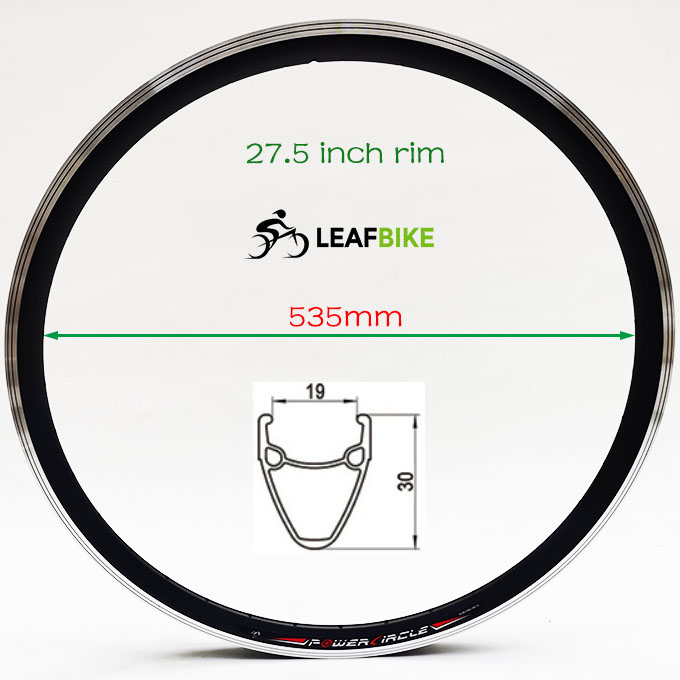

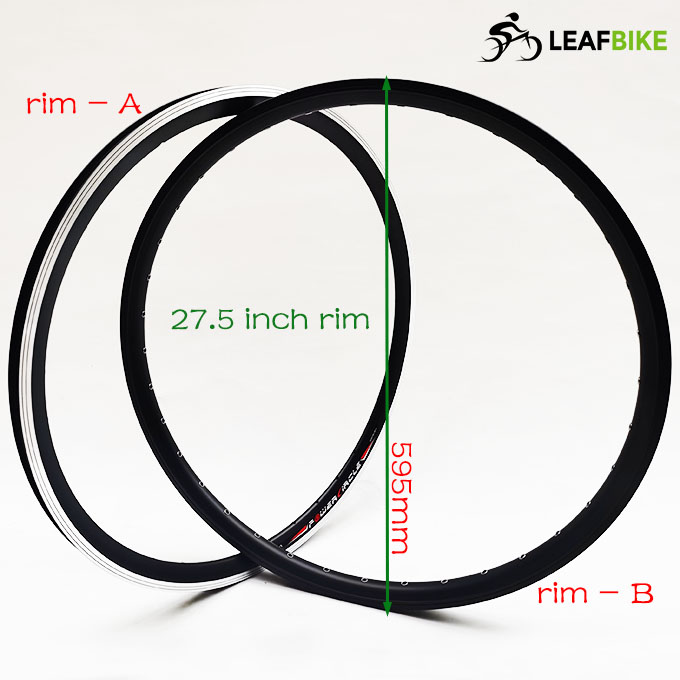

>. Rim A: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" tire)
>. Spoke: Black 12 gauge / 165mm Length × 36 pcs

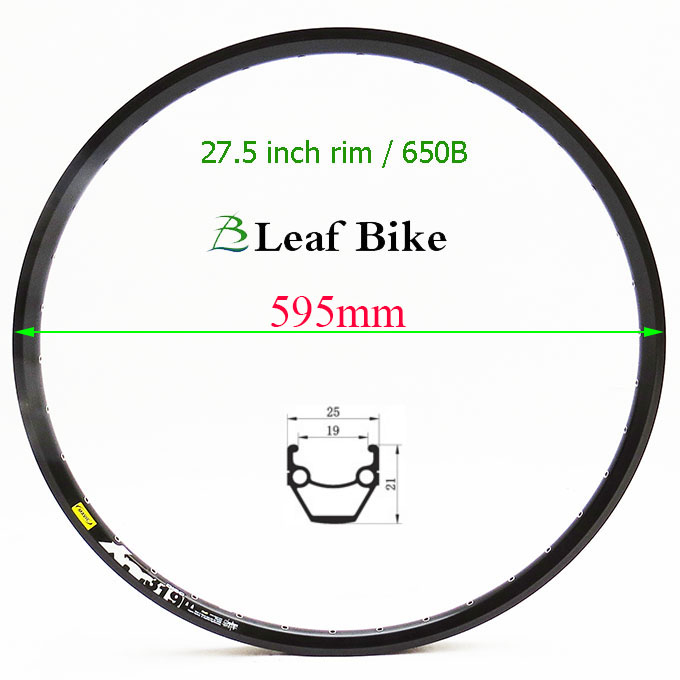

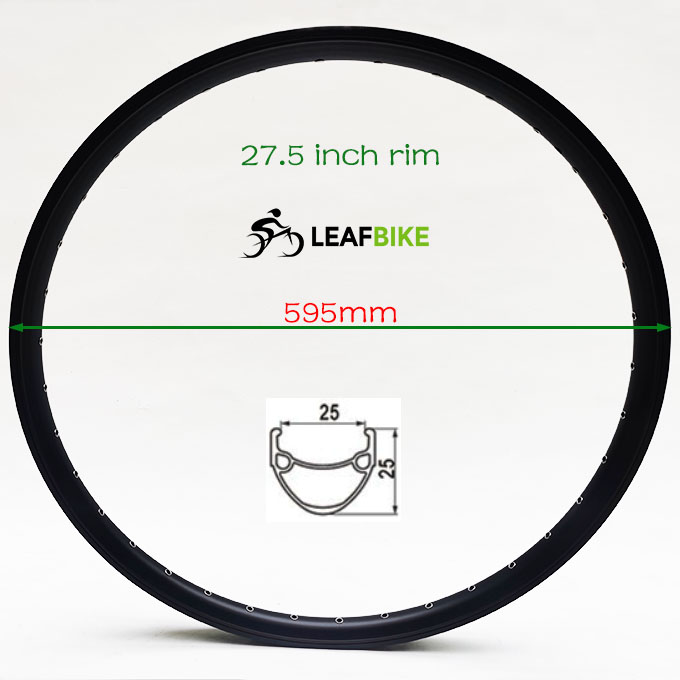

>. Rim B: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.95" / 2.1" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 170mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 64 kmh -- 40 mph
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise - Yes
* Reverse
* Kmh / mph
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours.

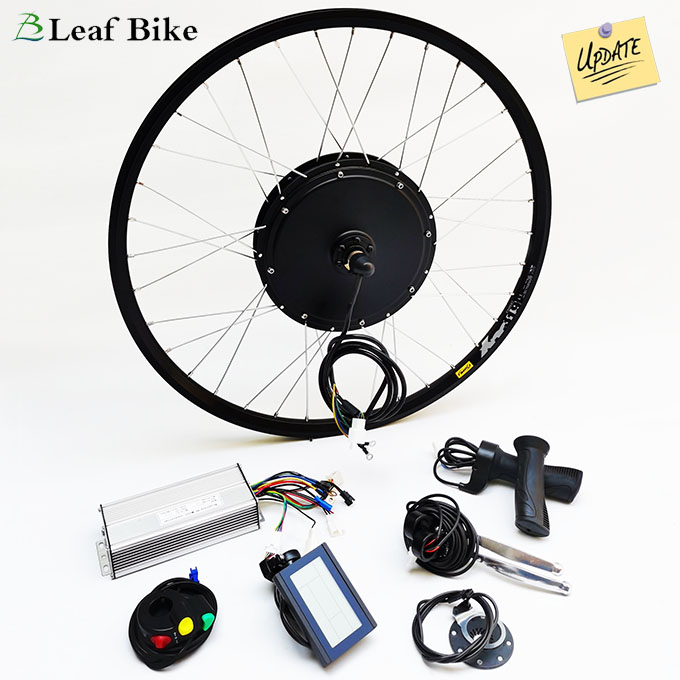

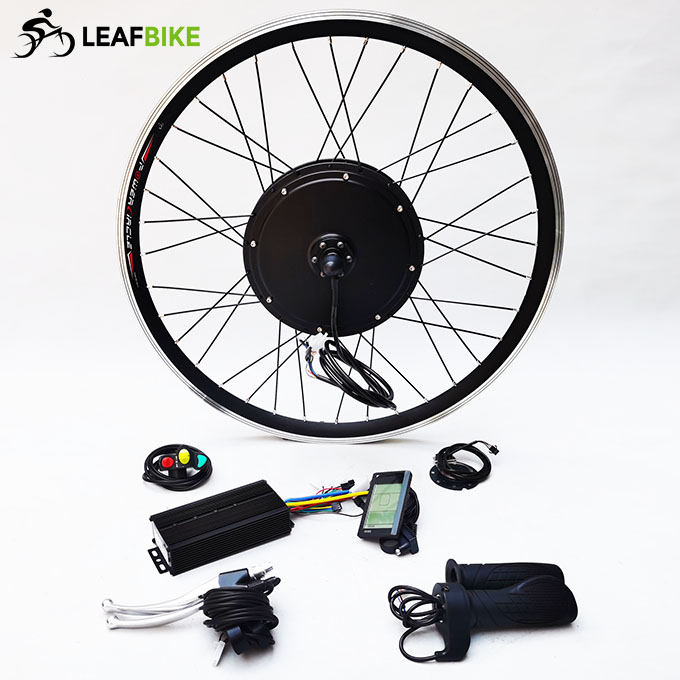

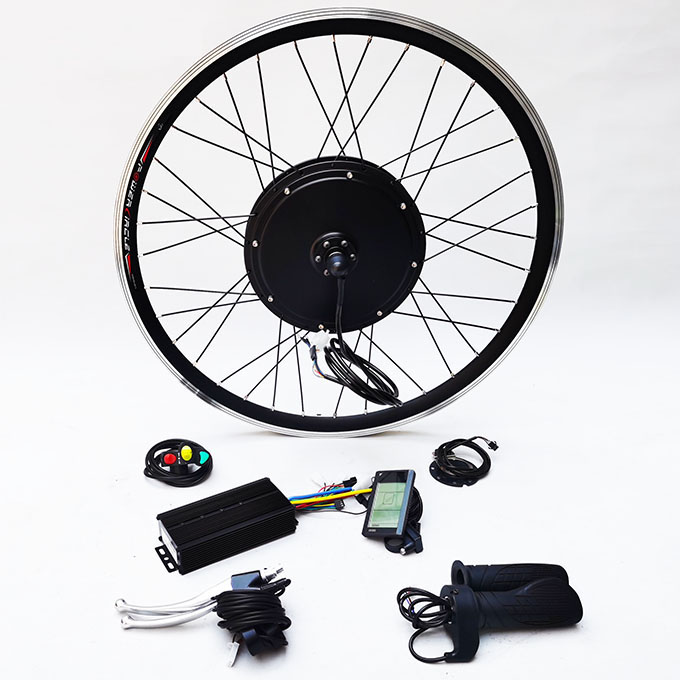

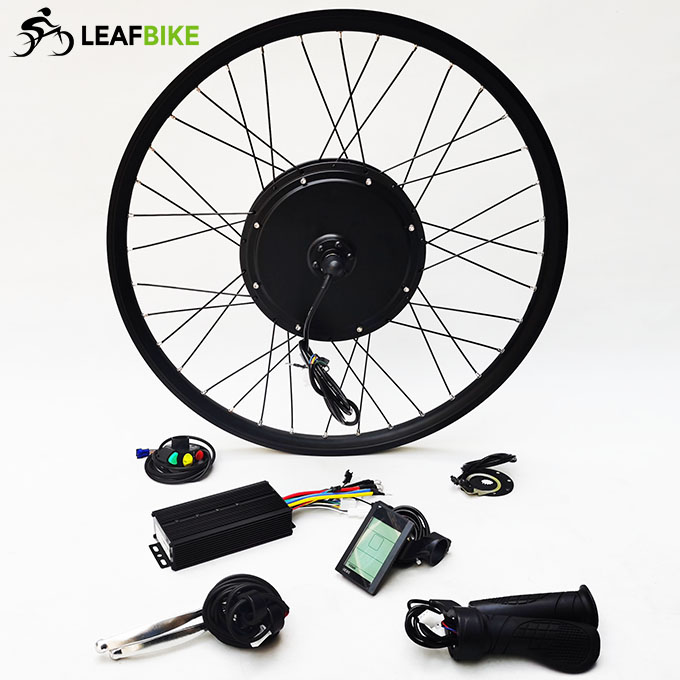

Package Content:

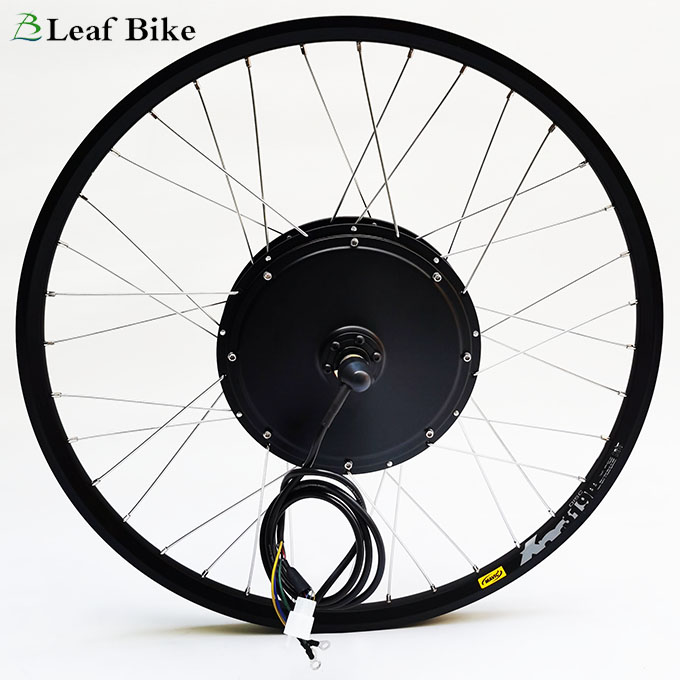

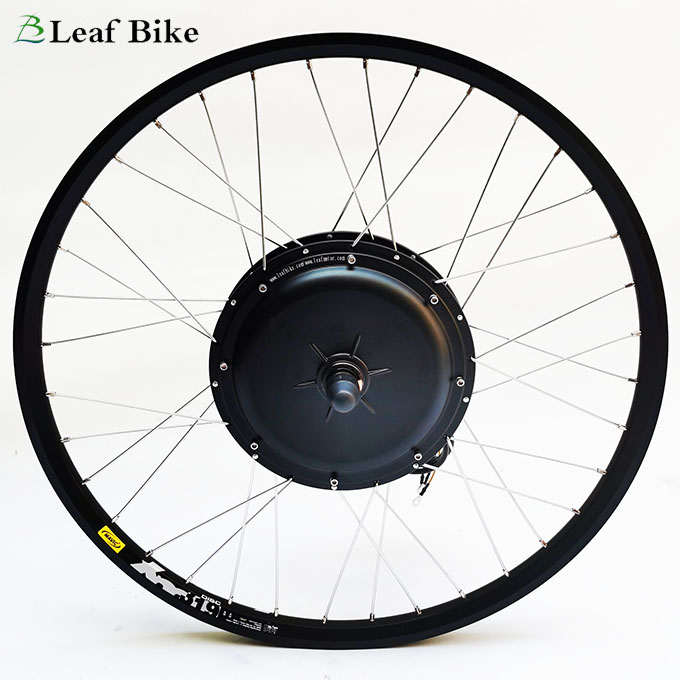

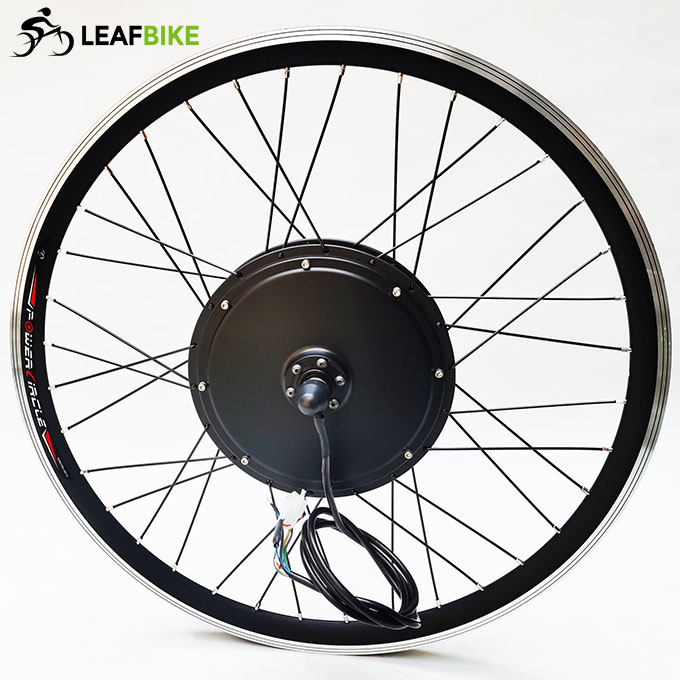

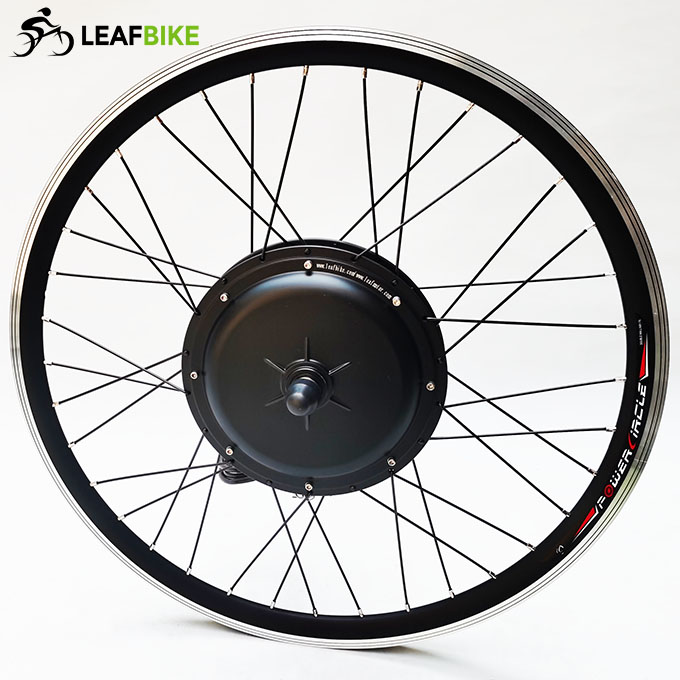

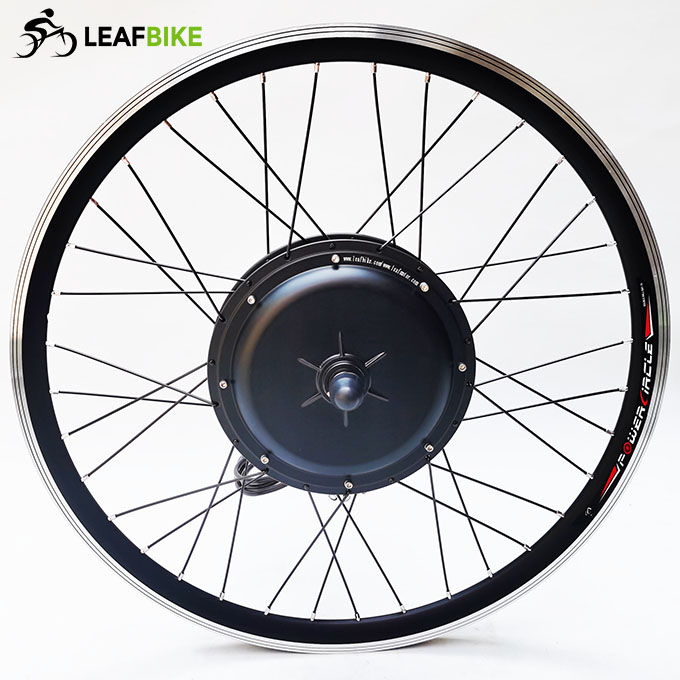

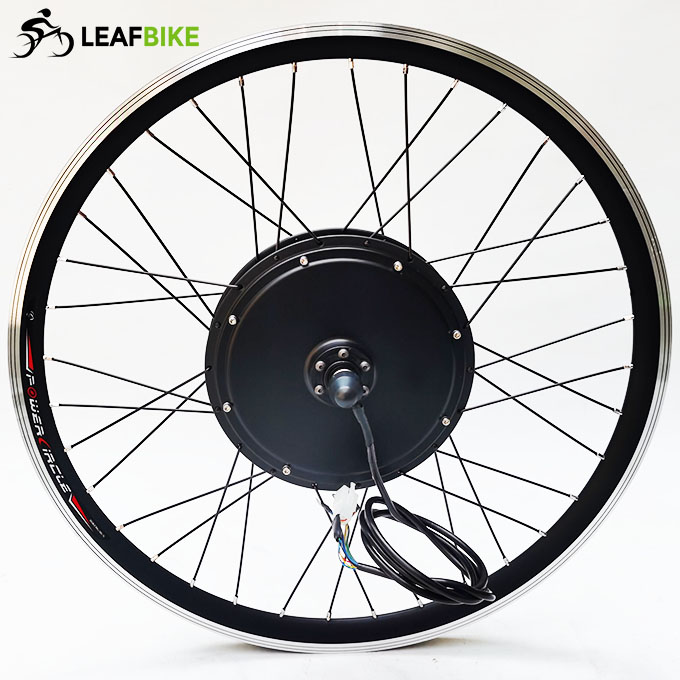

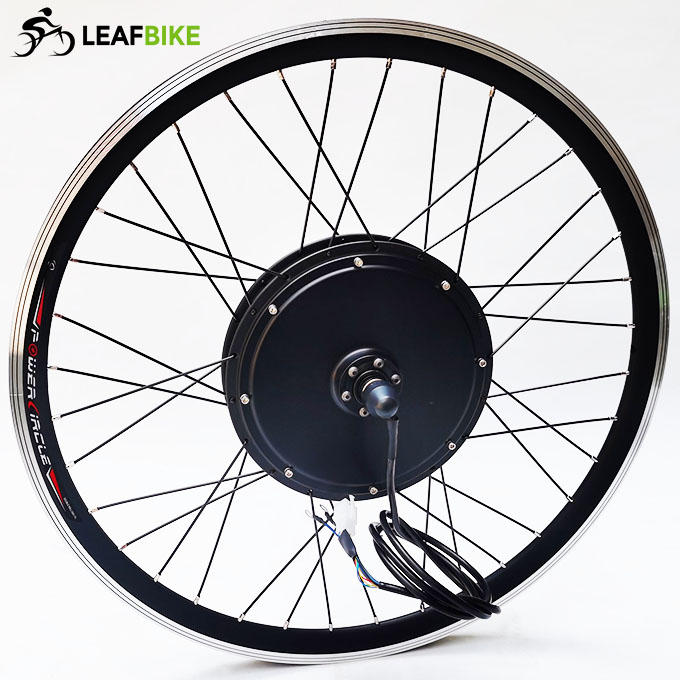

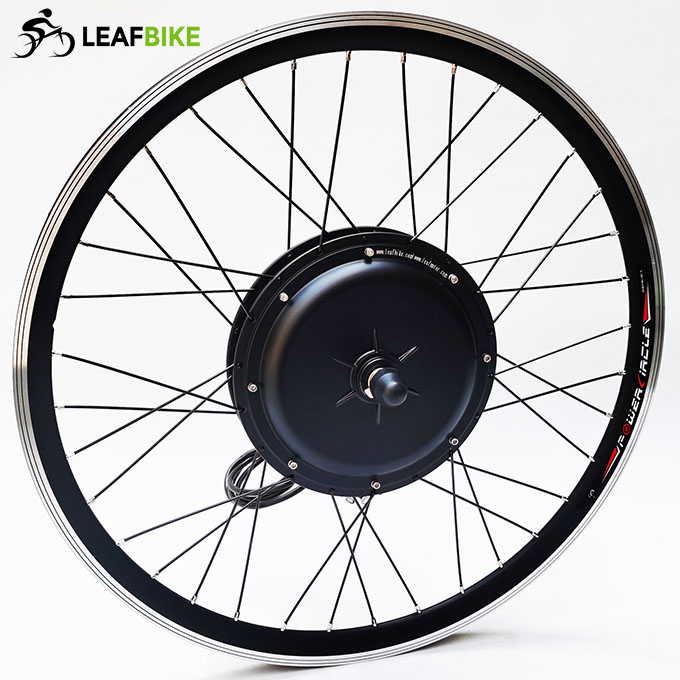

1 x 27.5 inch 48V 52V 1500W front hub motor wheel
1 x 48V 52V 1500W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 25.6 lb
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box

Wire Diagram:

1500w Front Drw.

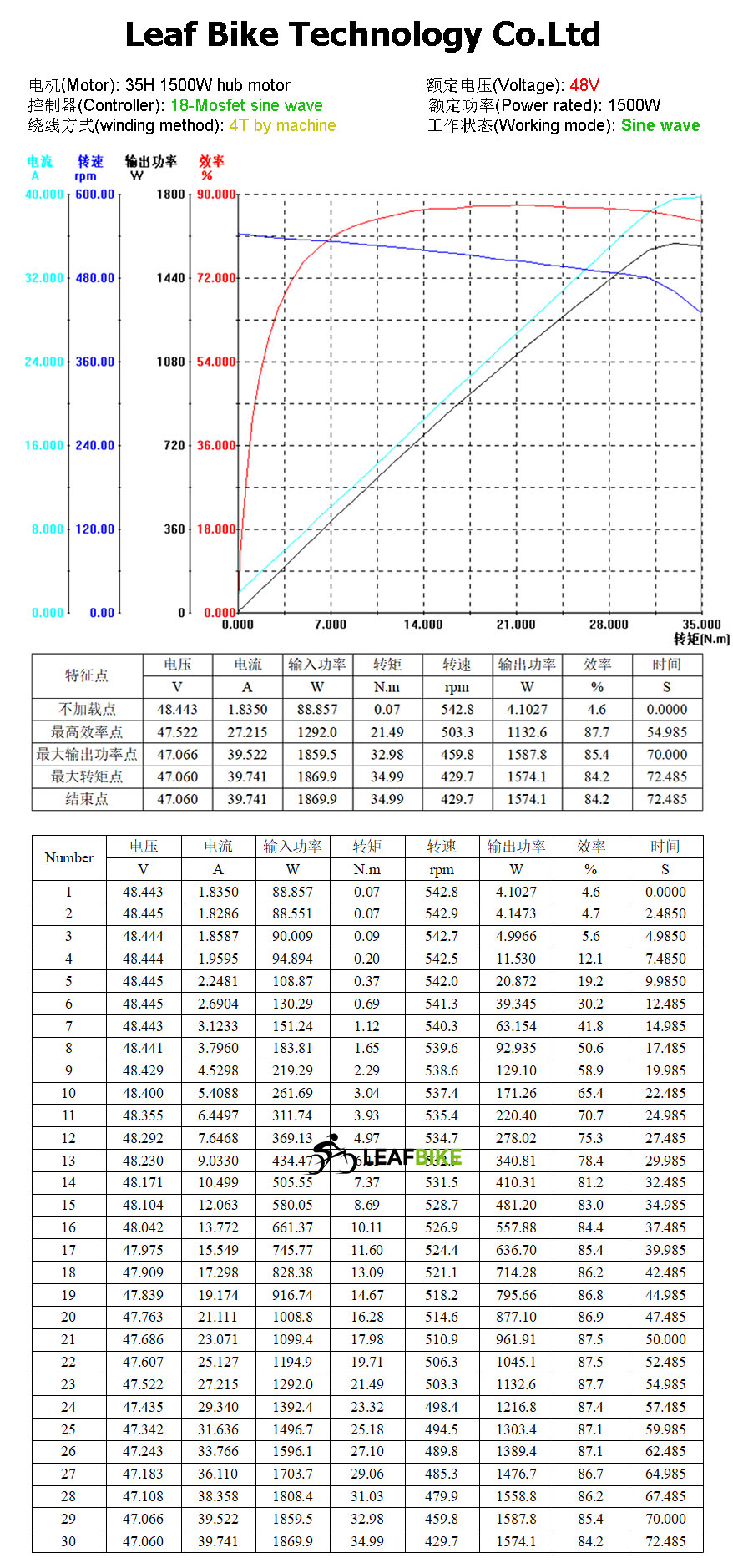

Performance Data:
