Please watch videos for 24 inch 48V 52V 1000W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

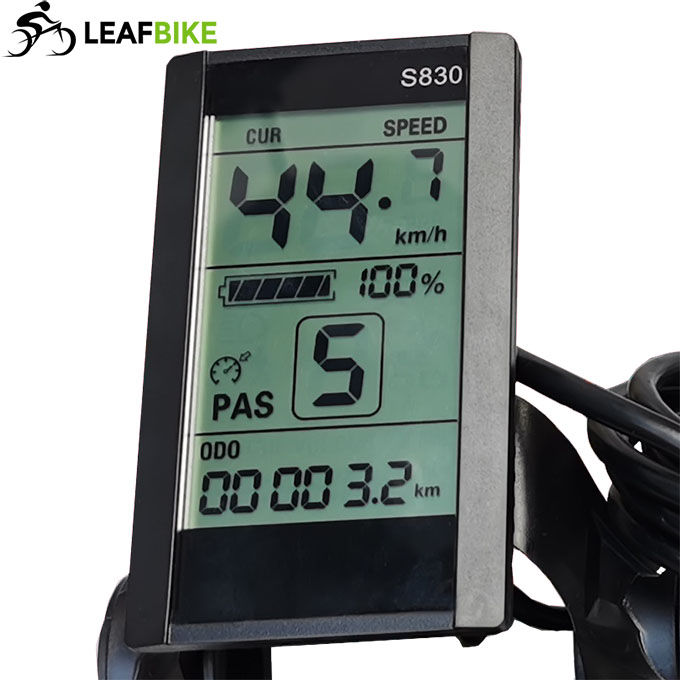

S830 Video:

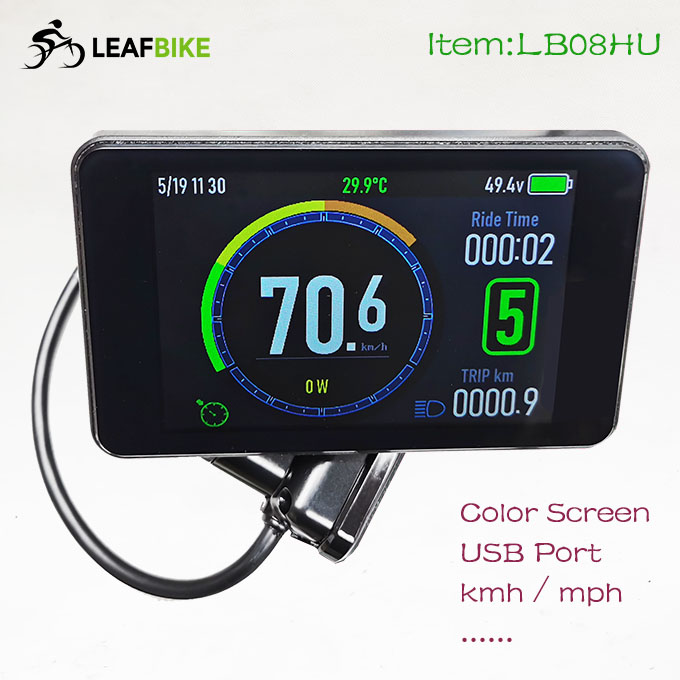

08HU Video:
Share Video:
Rotor Part 1:
Rotor Part 2:
Install Motor:

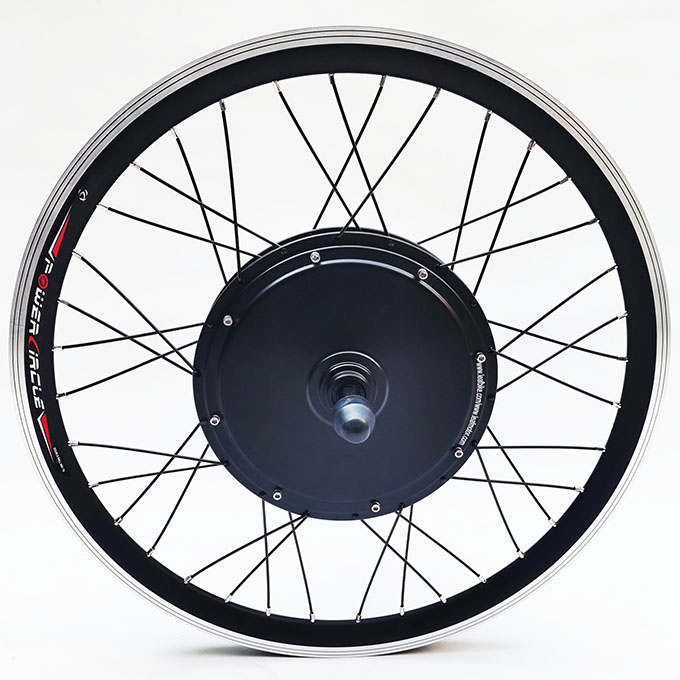

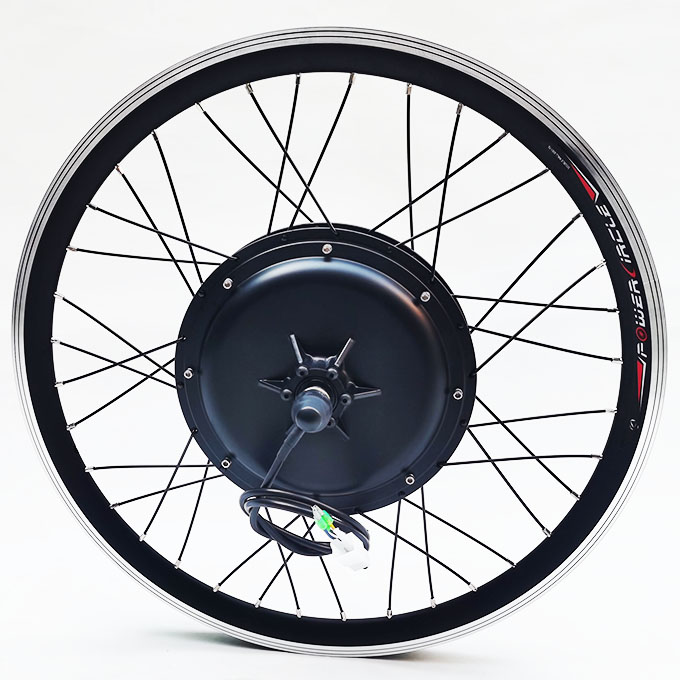

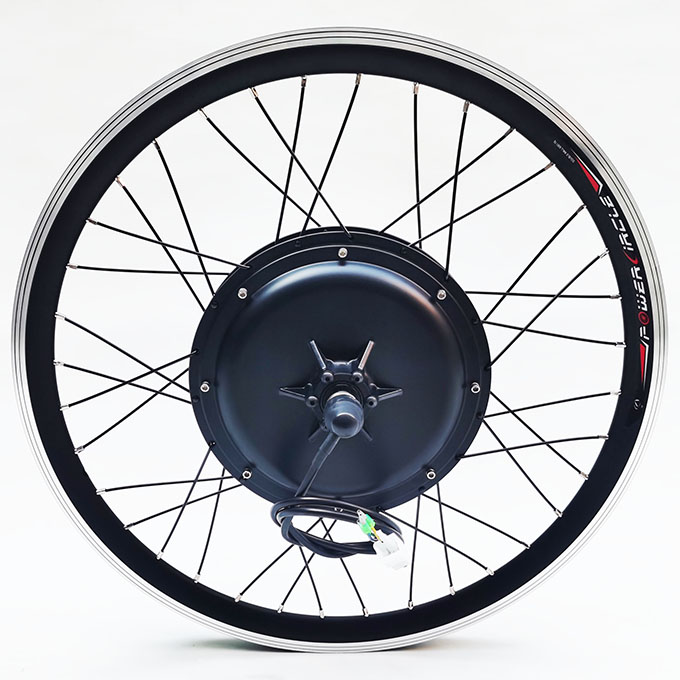

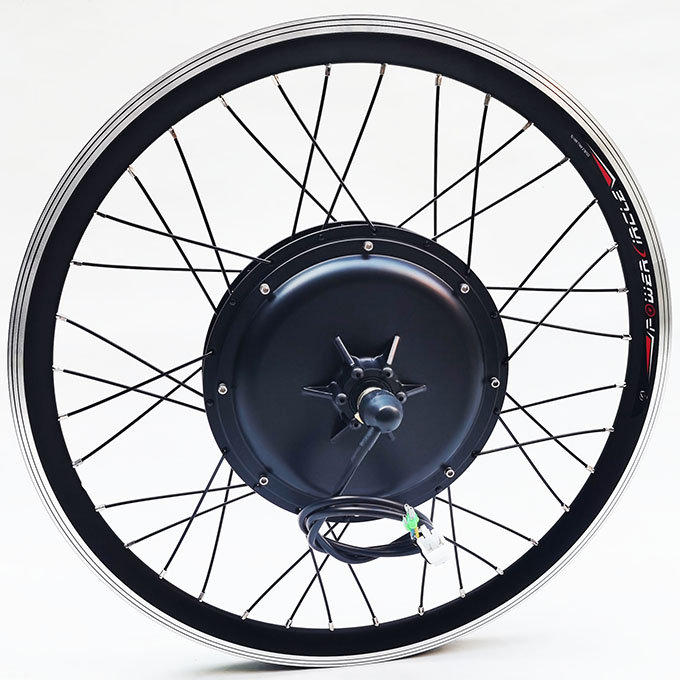

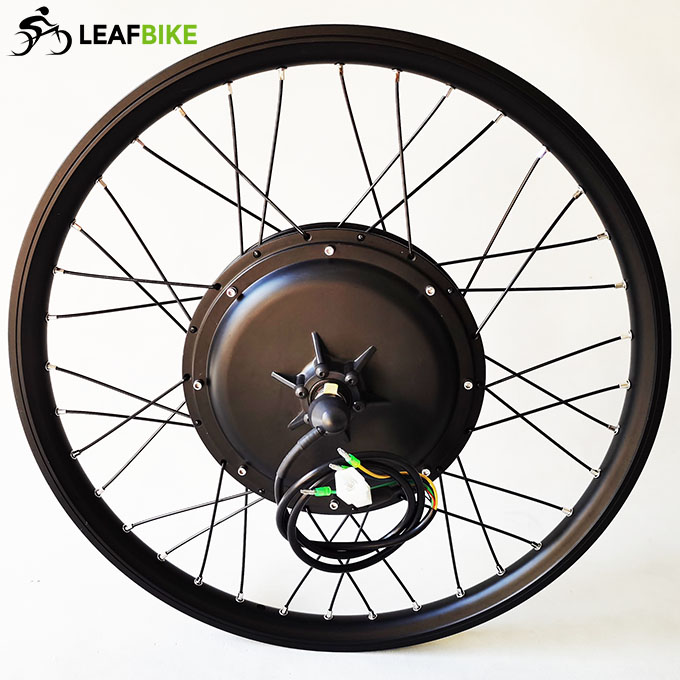

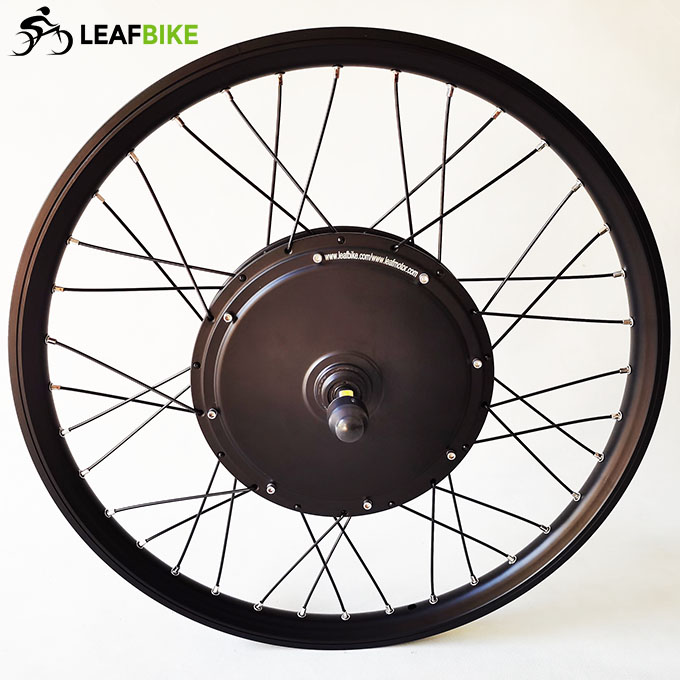

* This 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

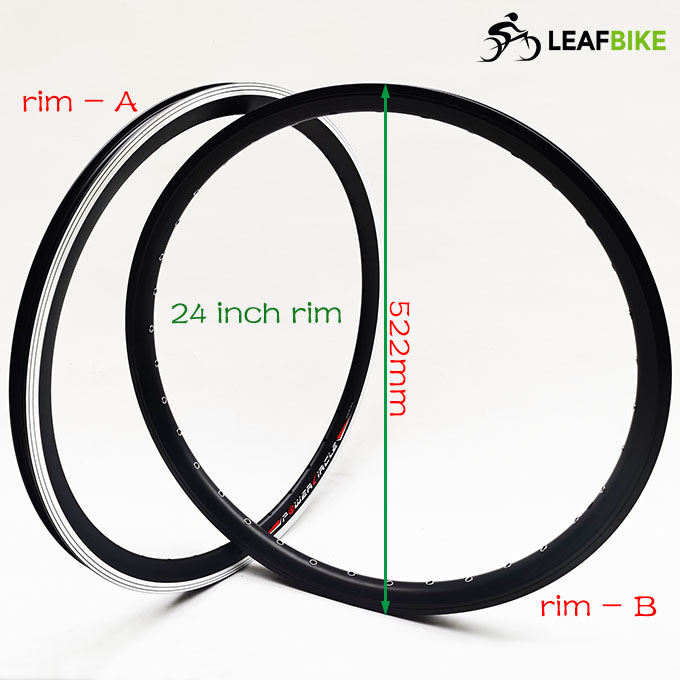

Rim: 24 / 507 Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
If the width of your tire / tyre is 1.95, 2.1, 2.5 inch…
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 131mm Length × 36 pcs
Default: Silver spokes
Optional: Black spokes -- Please leave message.

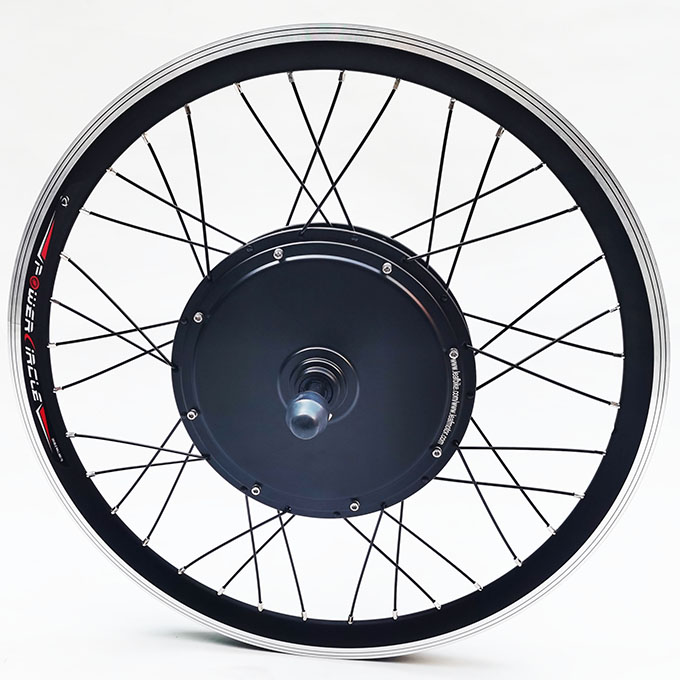

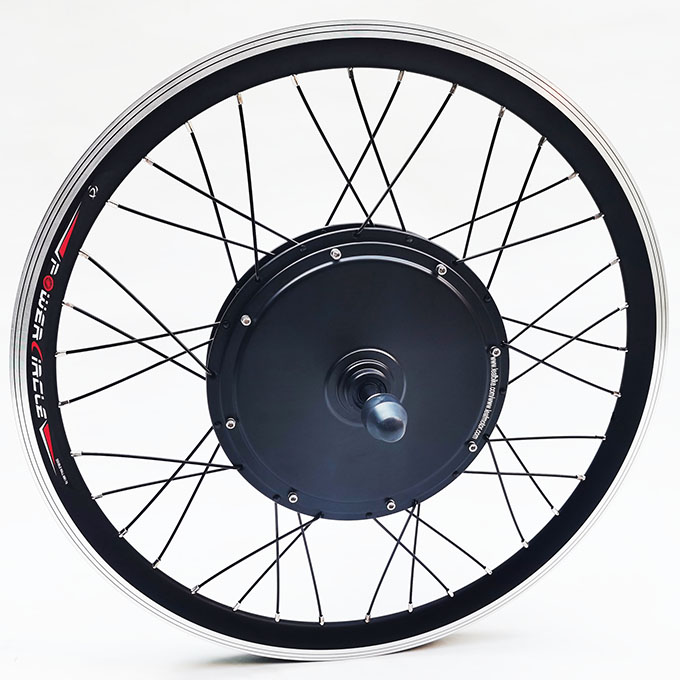

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 72 kmh -- 45 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for single speed... 6 speed or max 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

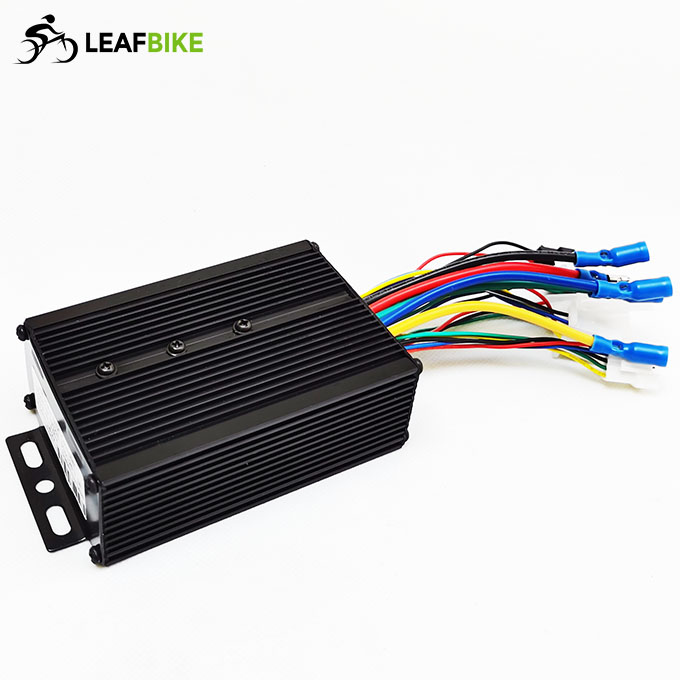

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

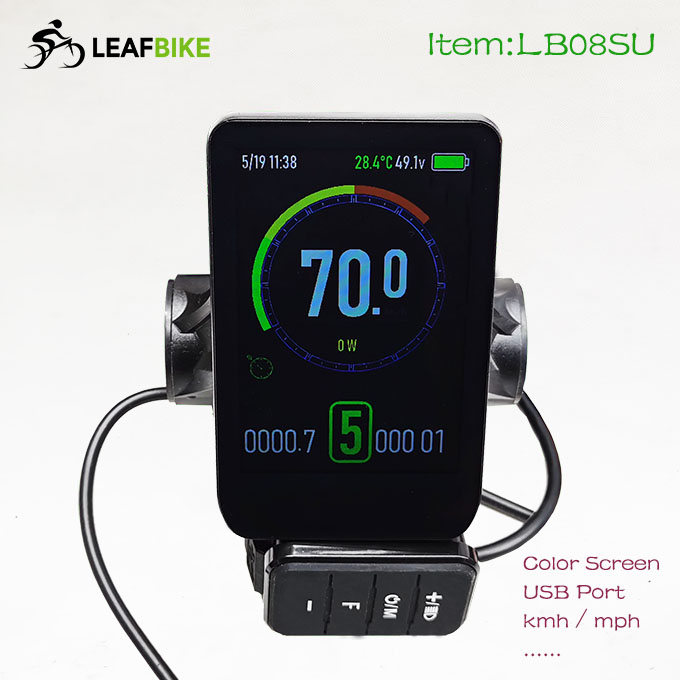

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* Battery gauge
* ...

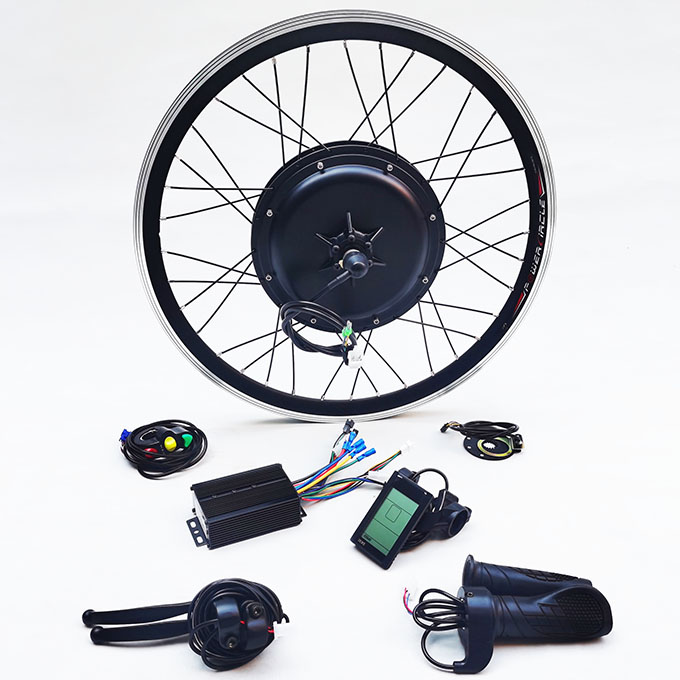

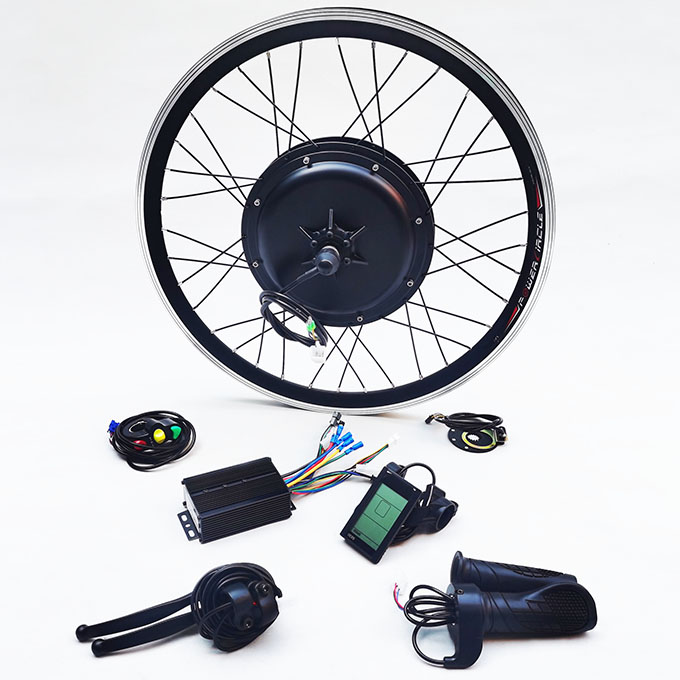

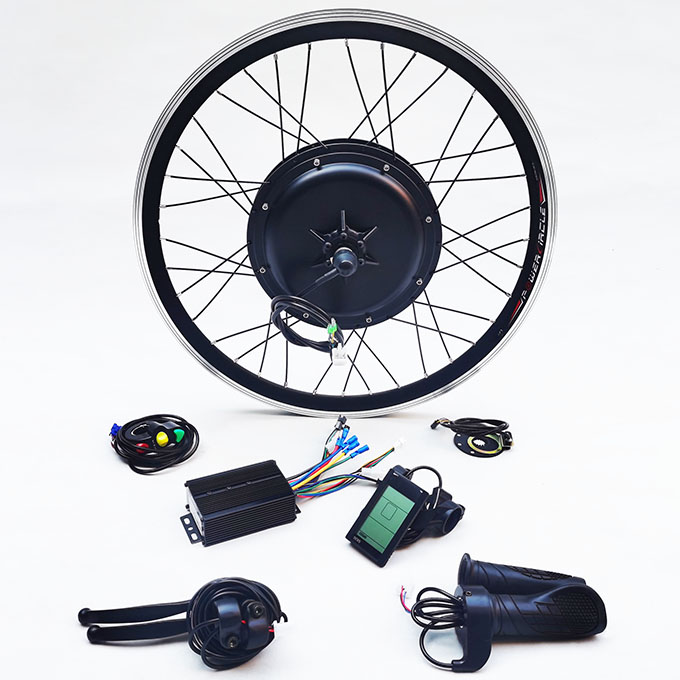

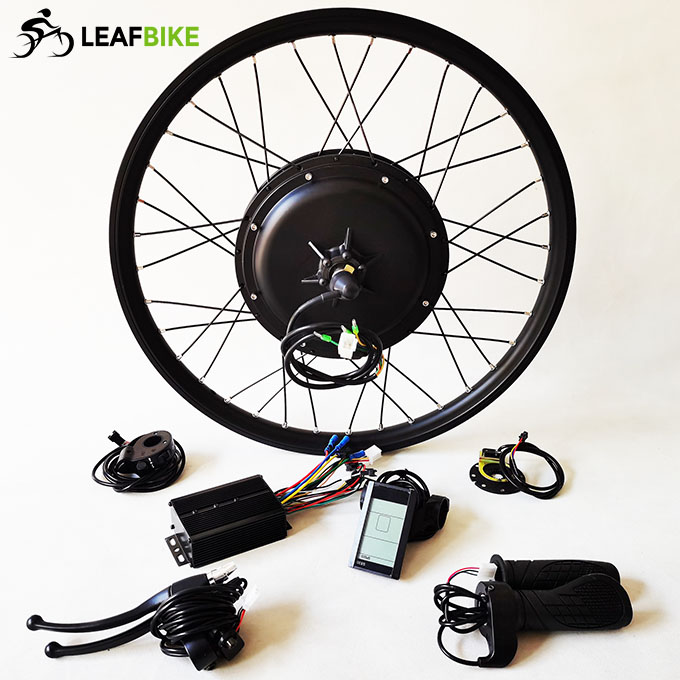

Package Content:
1 x 24 inch 48V / 52V 1000W rear hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise .. )
1 x Pedal assist
Net Weight: 10.7 kg / 23.5 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
* This motor & controller system can handle with a 48V or 52V battery.

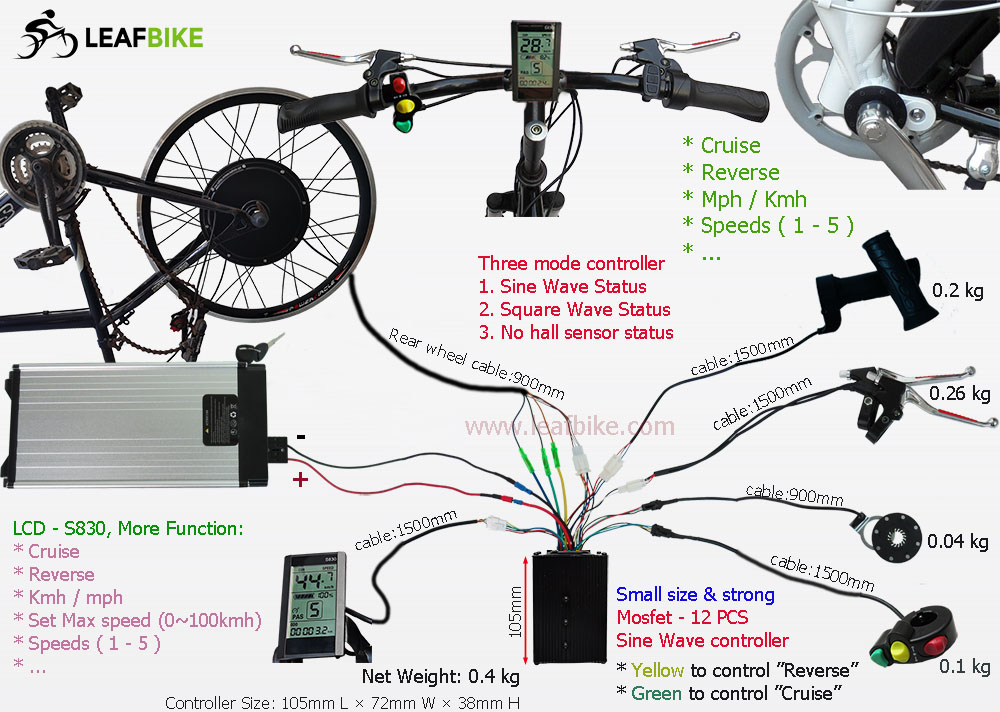

Wire Diagram:
1000w rear Motor Drw.
1000W Cassette Drw.
Performance Data:
