24 inch 48V 52V 1000W electric hub motor kit - front wheel

Name: 24 inch 48V 52V 1000W electric hub motor kit - front wheel
Brand: Leaf Bike
SKU: LBCK24481000F
Price: 297 USD
Availability: InStock
Rating: 5 (2 reviews)

Item ID #LBCK24481000F

$297.00 ~~$360.00~~

Maybe You Need These

Description

Please watch video for 24 inch 48V 52V 1000W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

24-inch-1000w-front-bldc-hub-motor-electric-bike-conversion-kit

This 24 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

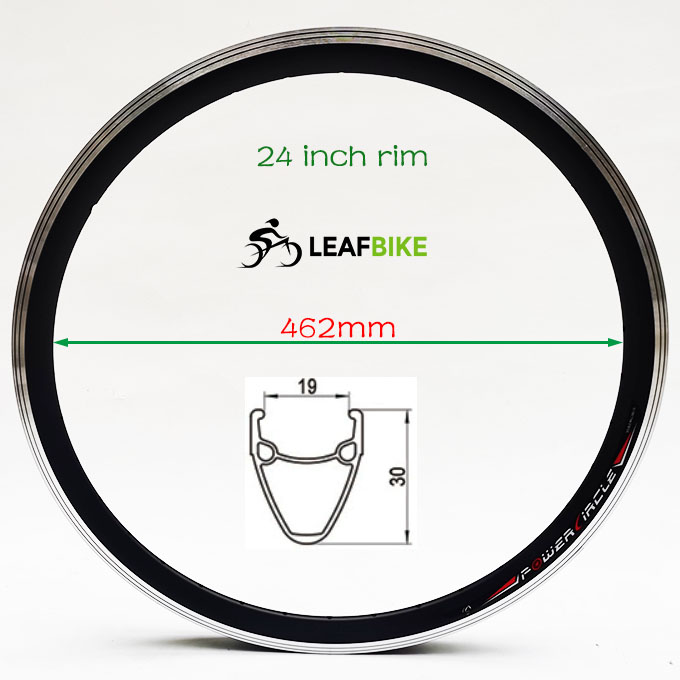

Rim: 24 inch Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
Hub motor: brushless gearless dc motor
Controller: LCD display
Max speed: 24.6 mph
Mechanical brake: V
Install: spacing of 100mm fork

LCD-830, More function:
* Cruise
* Reverse
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* ...

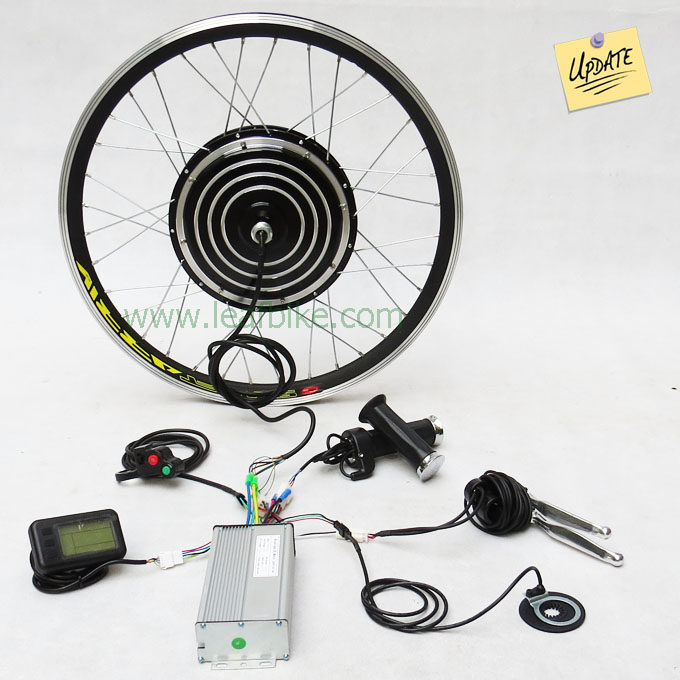

Package Content:
1 x 24 inch 48V 52V 1000W front hub motor wheel

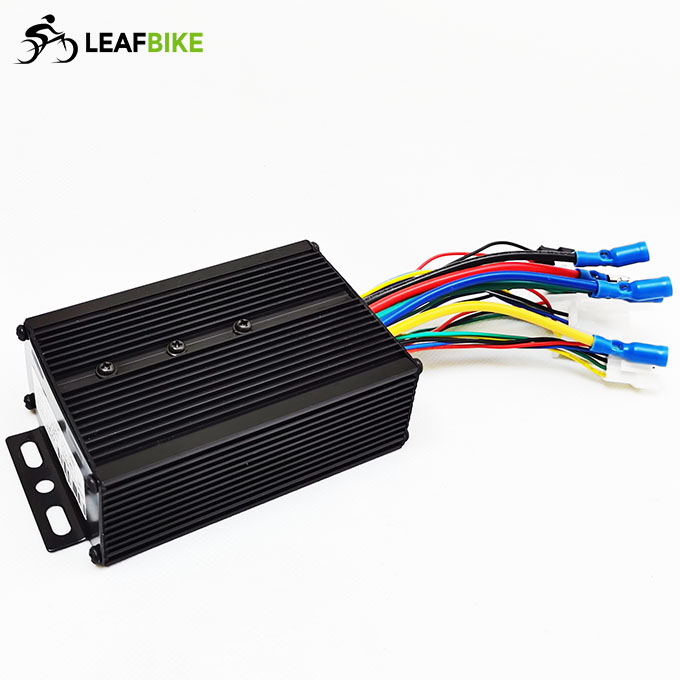

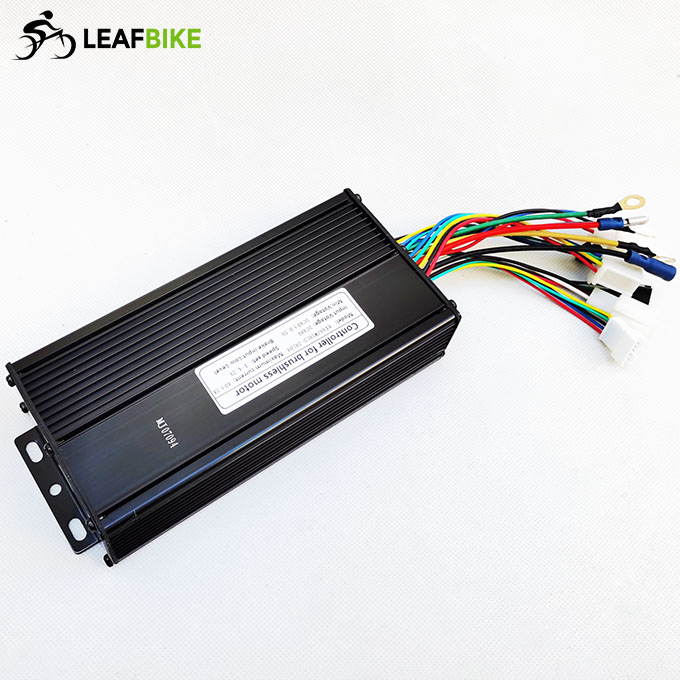

1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise..)
1 x Pedal assist

Net Weight: 10.4 kg / 22.9 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

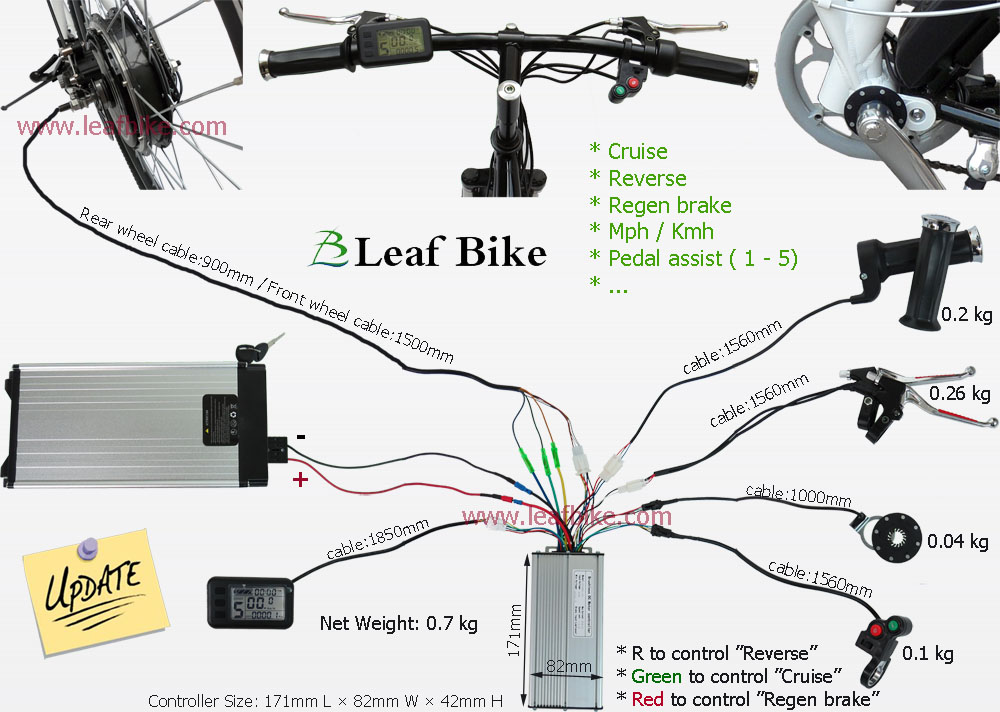

Wire Diagram:

1000W Front Drw.

Performance Data:

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
