24 inch 48V 1500W rear hub motor kit

Name: 24 inch 48V 1500W rear hub motor kit
Brand: Leaf Bike
SKU: LBCK24481500RNK
Price: 385 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK24481500RNK

$385.00 ~~$429.00~~

Please select the information you wantX

Tyre Size :

24 x 1.5" / 1.75"

24 x 1.95" / 2.0" ~ 2.5"
LCD :

LCD-003

LCD-005

LCD-07U

LCD-08HUP
Sprocket :

Freewheel

Cassette

Quantity :

Maybe You Need These

Description

Please watch video for 24 inch 48V 1500W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..

Share Video:

24 inch 48V 52V 1500W rear hub motor electric bike conversion kit video

* The 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

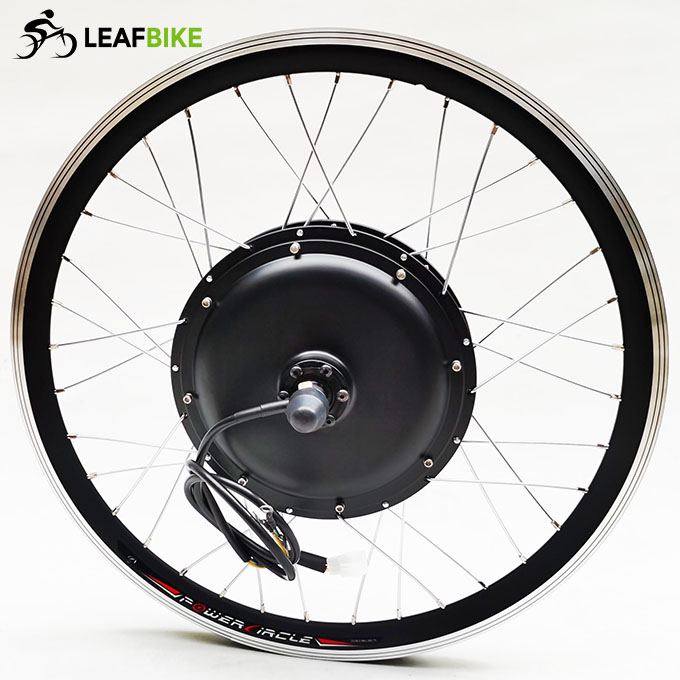

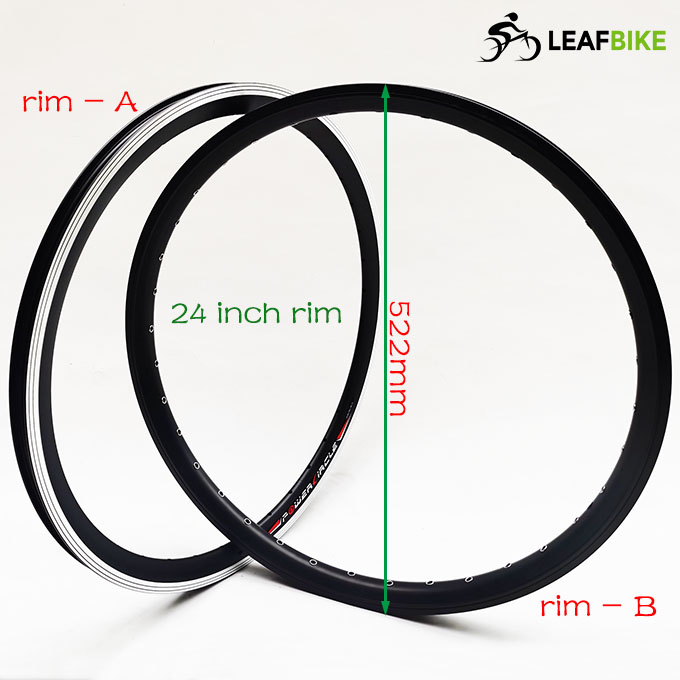

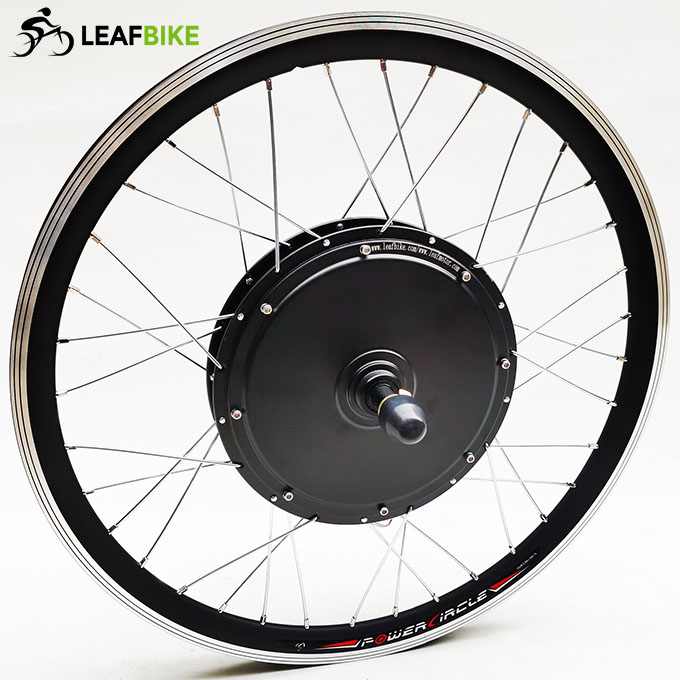

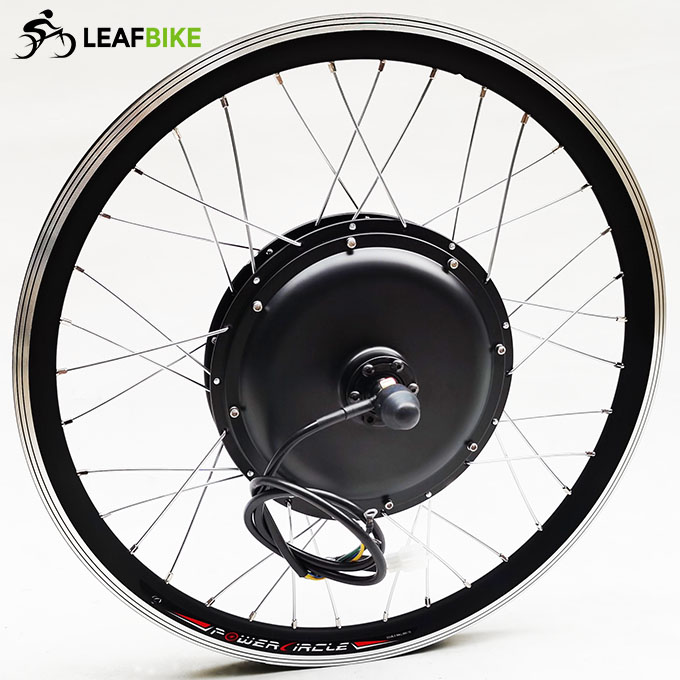

>. Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 130mm Length × 36 pcs

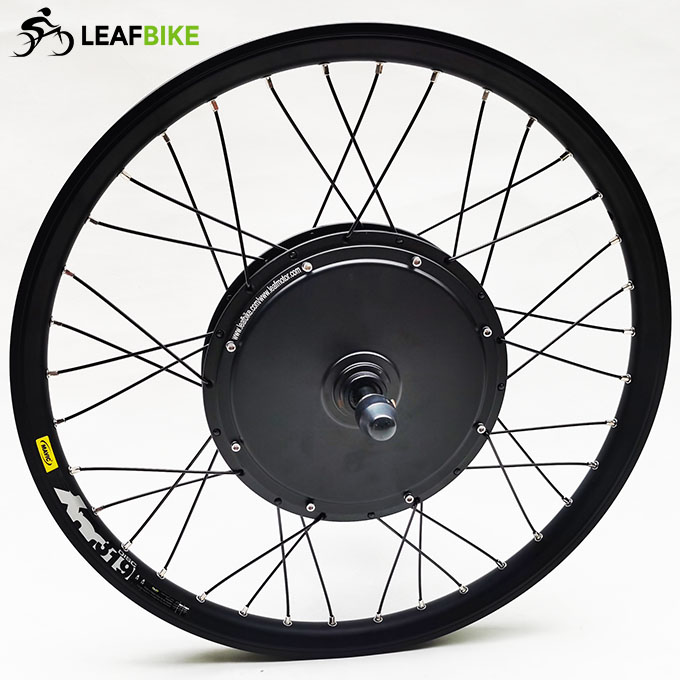

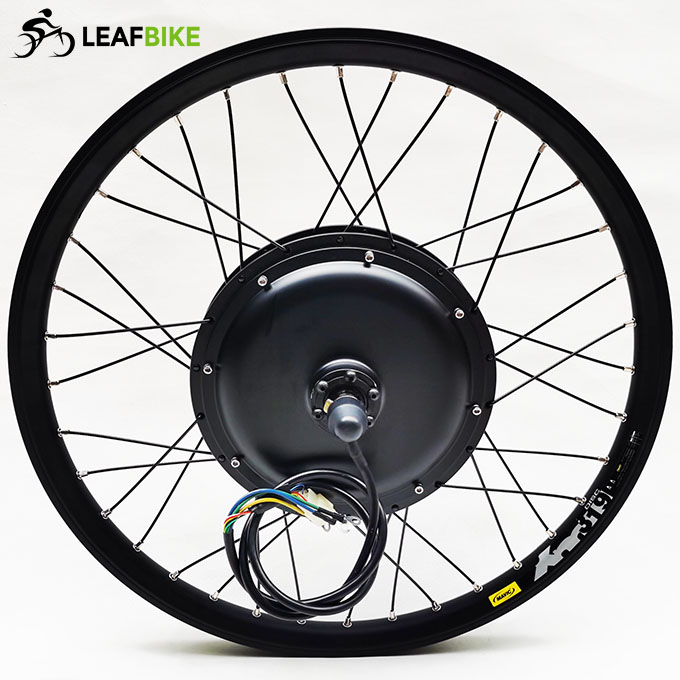

>. Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 135mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 66.1 kmh -- 41.0 mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min 135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Pedal assist ( 0 - 5 )
* ...

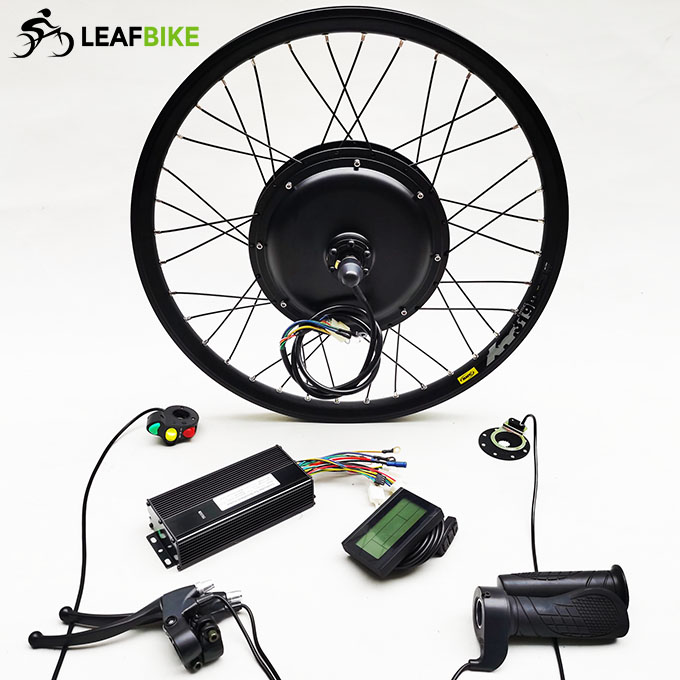

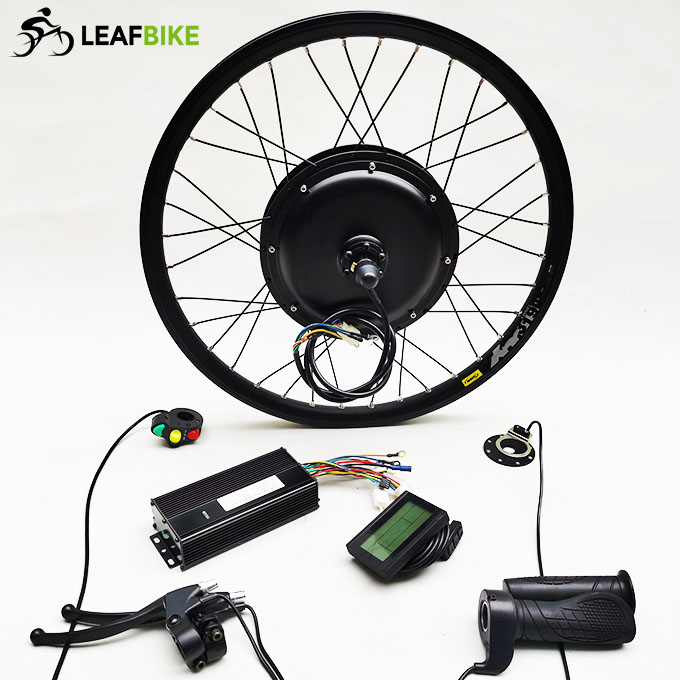

Package Content:

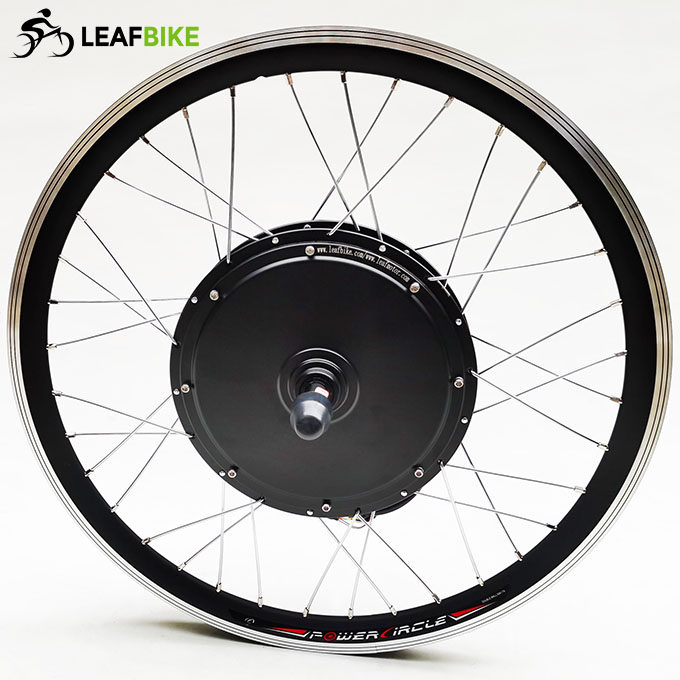

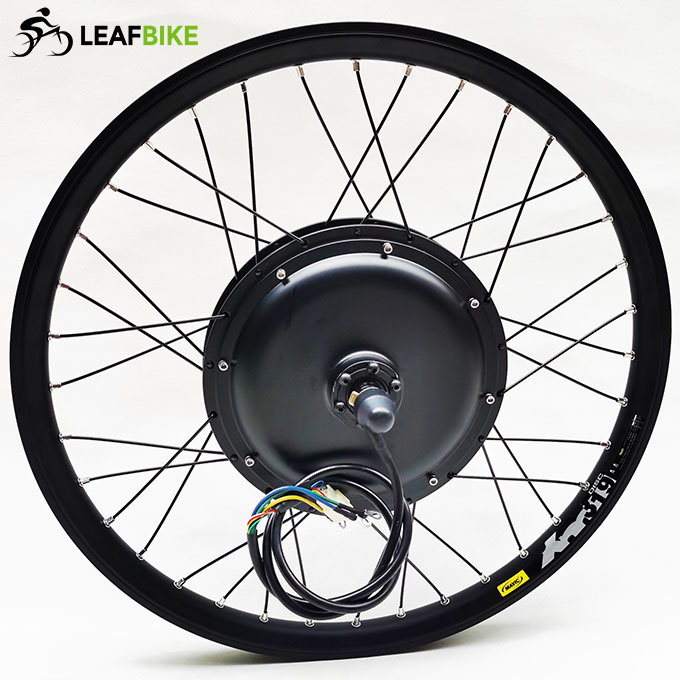

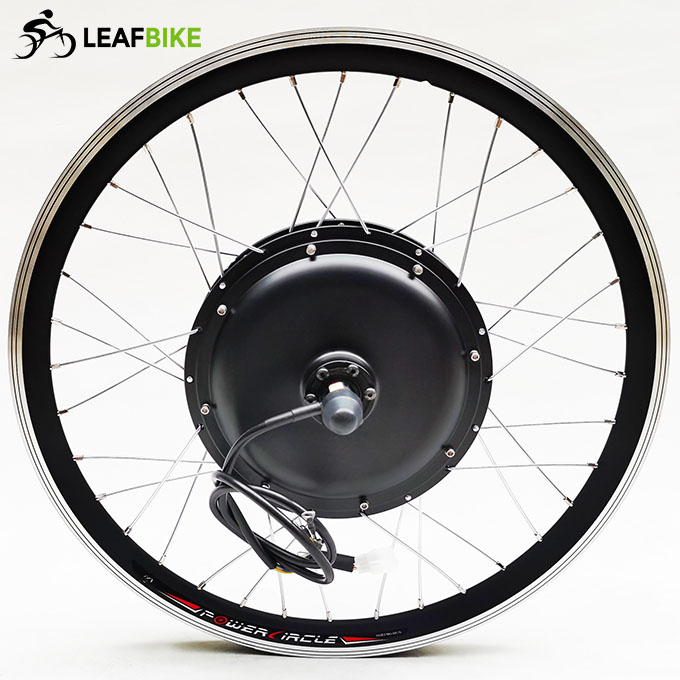

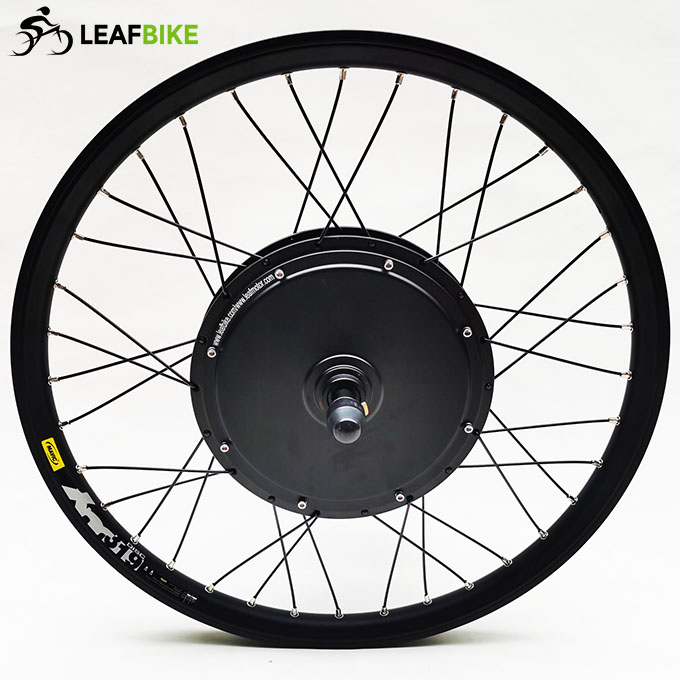

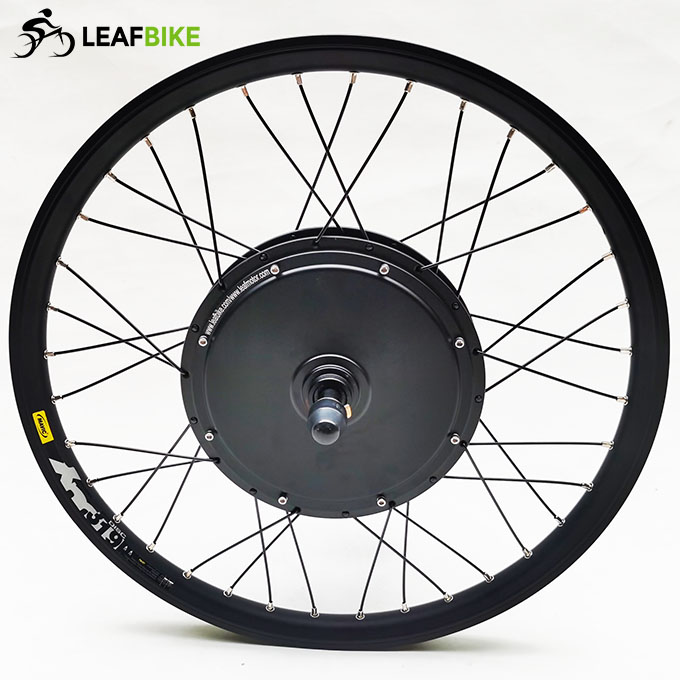

1 x 24 inch 48V 1500W rear hub motor wheel
1 x 48V 1500W motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.3 kg
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

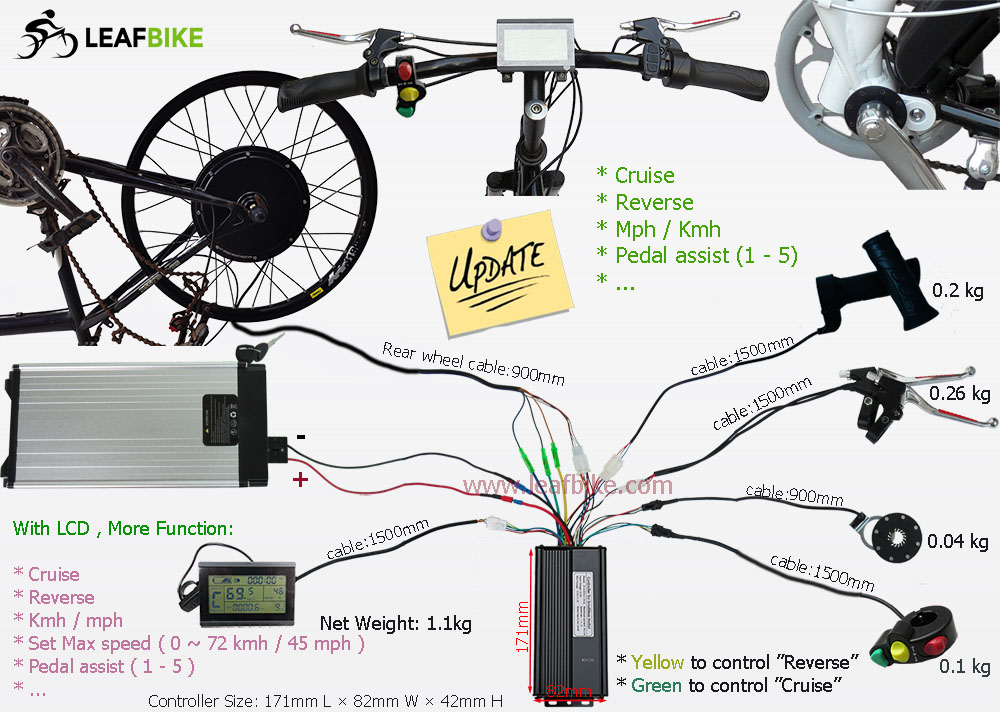

Wire Diagram:

1500W rear Motor Drw.

1500W Cassette Drw.

Performance Data:

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers. For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
