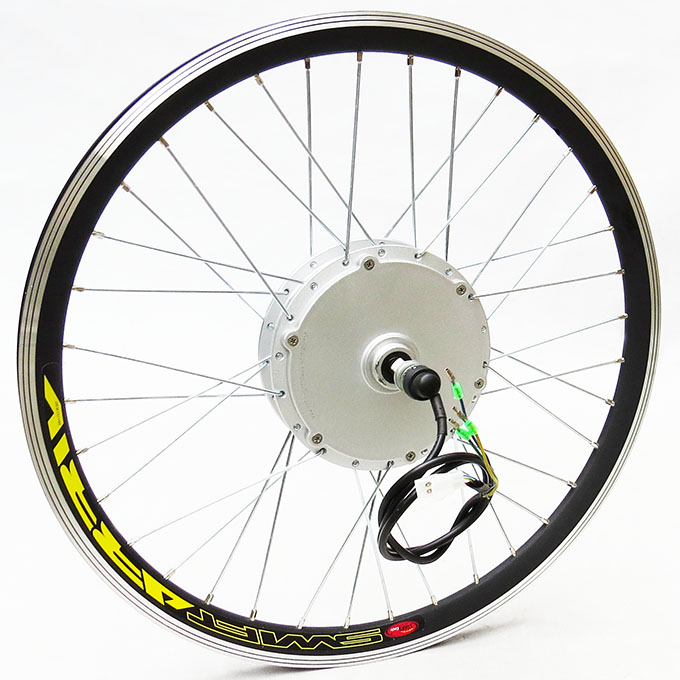

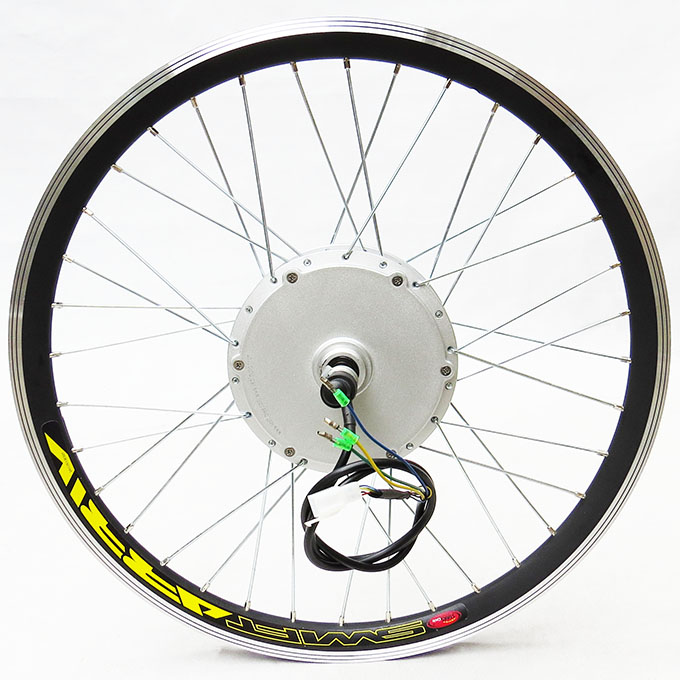

24 inch 36V 300W - 500W rear hub motor - electric bike kit

Name: 24 inch 36V 300W - 500W rear hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK2436400RN
Price: 289 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2436400RN

$289.00 ~~$398.00~~

Maybe You Need These

Description

Please watch video for 24 inch 36V 300W 500W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free.

Share Video:

This 24 inch 36V 300W - 500W rear hub motor electric bike conversion kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

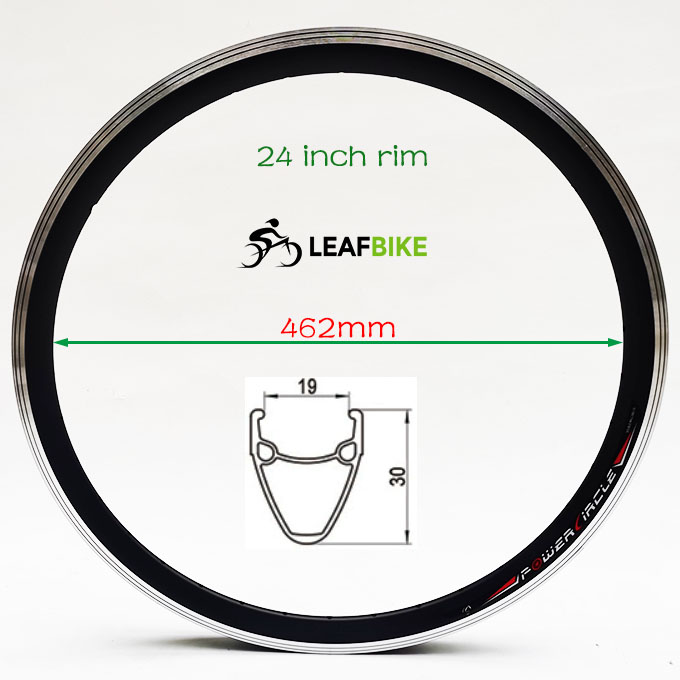

Rim: 24 / 507 Alloy (Rim Fit For: 24 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" tire)
If the width of your tire / tyre is 2.1, 2.5 inch…(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 155mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 400W
>>. Efficiency: 87%
>>. Max speed: 29.5 kmh -- 18.1 mph
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 1 speed ~ 7 speed (Default: Screw Thread)
>>. Cable location: shaft end , Right
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Silver painted

>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Casing material: aluminium
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

LCD-003, More Function:
* Cruise
* Regen brake
* Kmh & mph (Optional)
* Set Any Max speed ( from 6kmh / 4 mph to 30 kmh / 18 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

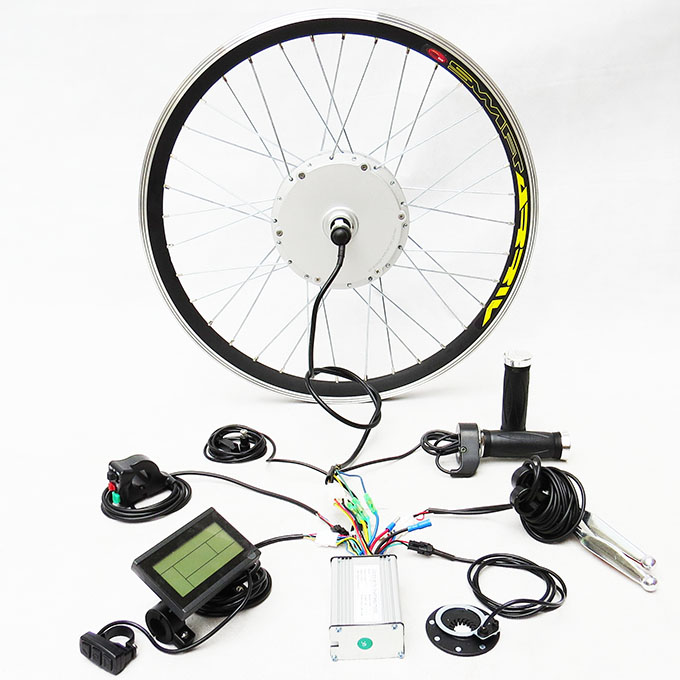

Package Content:
1 x 24 inch 36V 400W rear hub motor wheel - Not Support Reverse
1 x 36V 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle No battery gauge
1 x Brake lever
1 x Three button switches
1 x Pedal assist

Net weight: 5.92 kg / 13 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

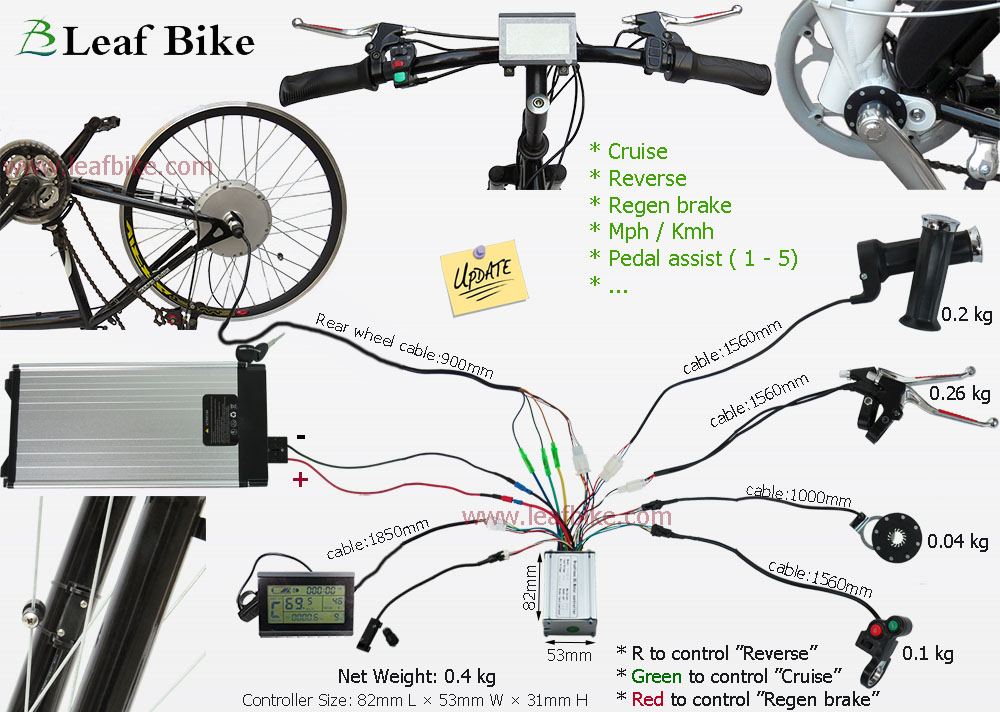

Wire Diagram:

20-24-26-27-28-29-inch-700c-bmp-rear-hub-motor-electric-bike-conversion-kit

250W Rear Drw.
