20 inch 48V 52V 1000W front casted electric hub motor kit

Name: 20 inch 48V 52V 1000W front casted electric hub motor kit
Brand: Leaf Bike
SKU: LBCK20481000FML
Price: 329 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Item ID #LBCK20481000FML

$329.00 ~~$418.00~~

Maybe You Need These

Description

Please watch video for 20 inch 48V 52V 1000W front casted electric hub motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

20 inch 48v 1000w front casted bike motor kit video

* This 20 inch 48V 52V 1000W front casted bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Hub: Ø420mm Aluminum casted (Hub Fit For: 20 × 2.1/4 or 2.1/2" tire)
>. Engine: Electric bike motor

>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 73.5 kmh -- 44.4mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end , LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork (Min.100mm ~ Max.115mm)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: black color motor controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-008HU With USB Port & Color screen, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

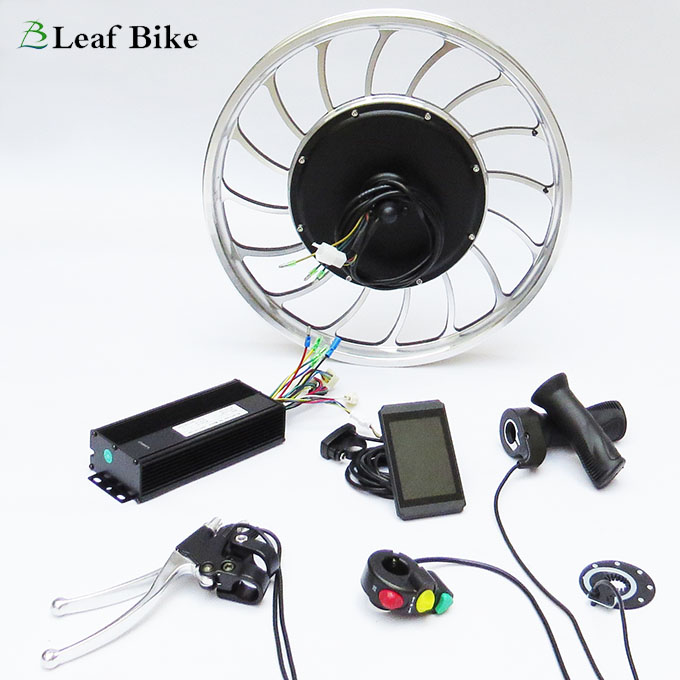

Package Content:
1 x 20 inch 48V / 52V 1000W front casted hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.86 kg / 21.7 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

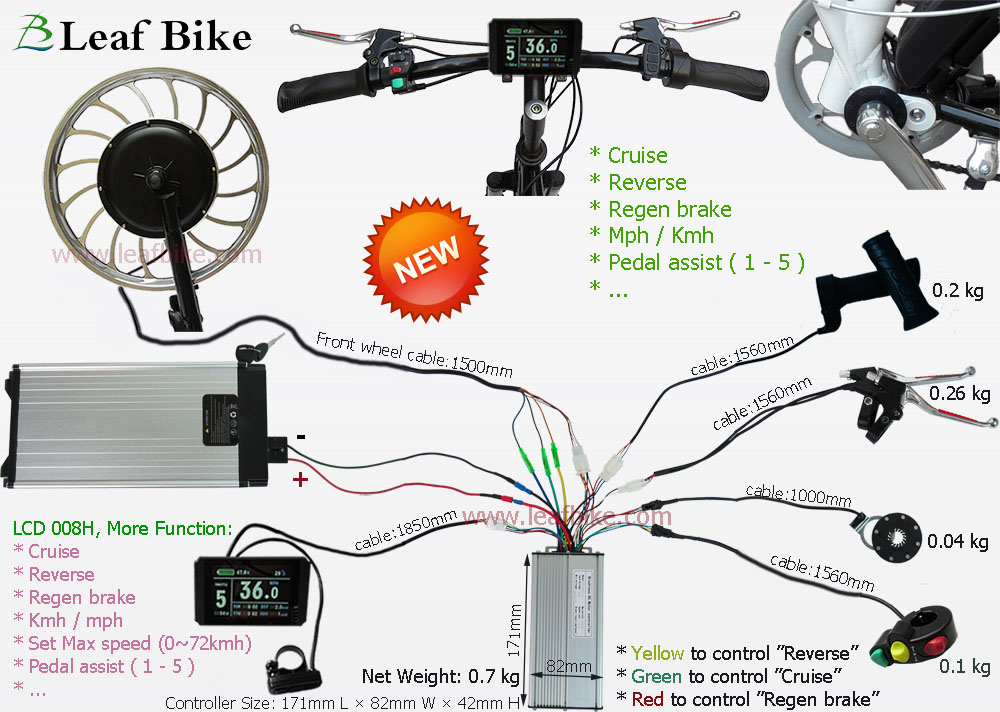

Wire Diagram:

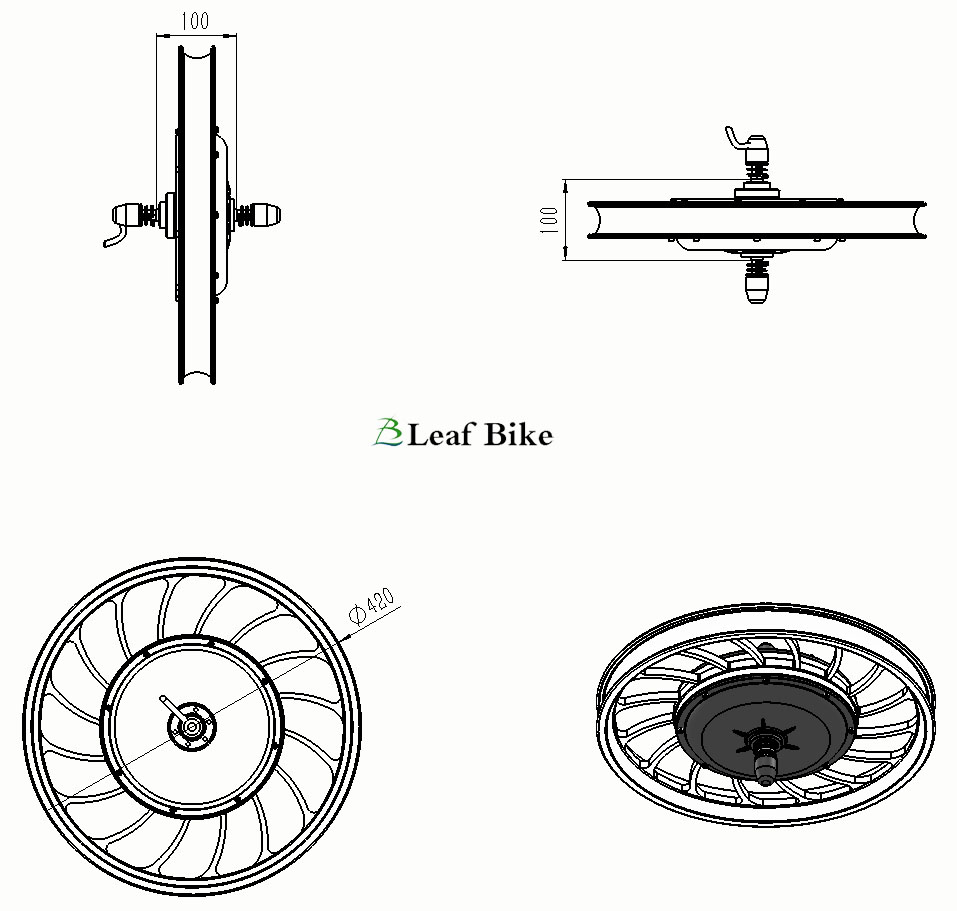

20 inch front casted hub motor - electric bike conversion kit drawing

20 inch Front Drw.

20 inch 48v 1000w front casted electric bike motor kit drawing

Performance Data:
